Sayfa 1-55 - Isuzu EPC

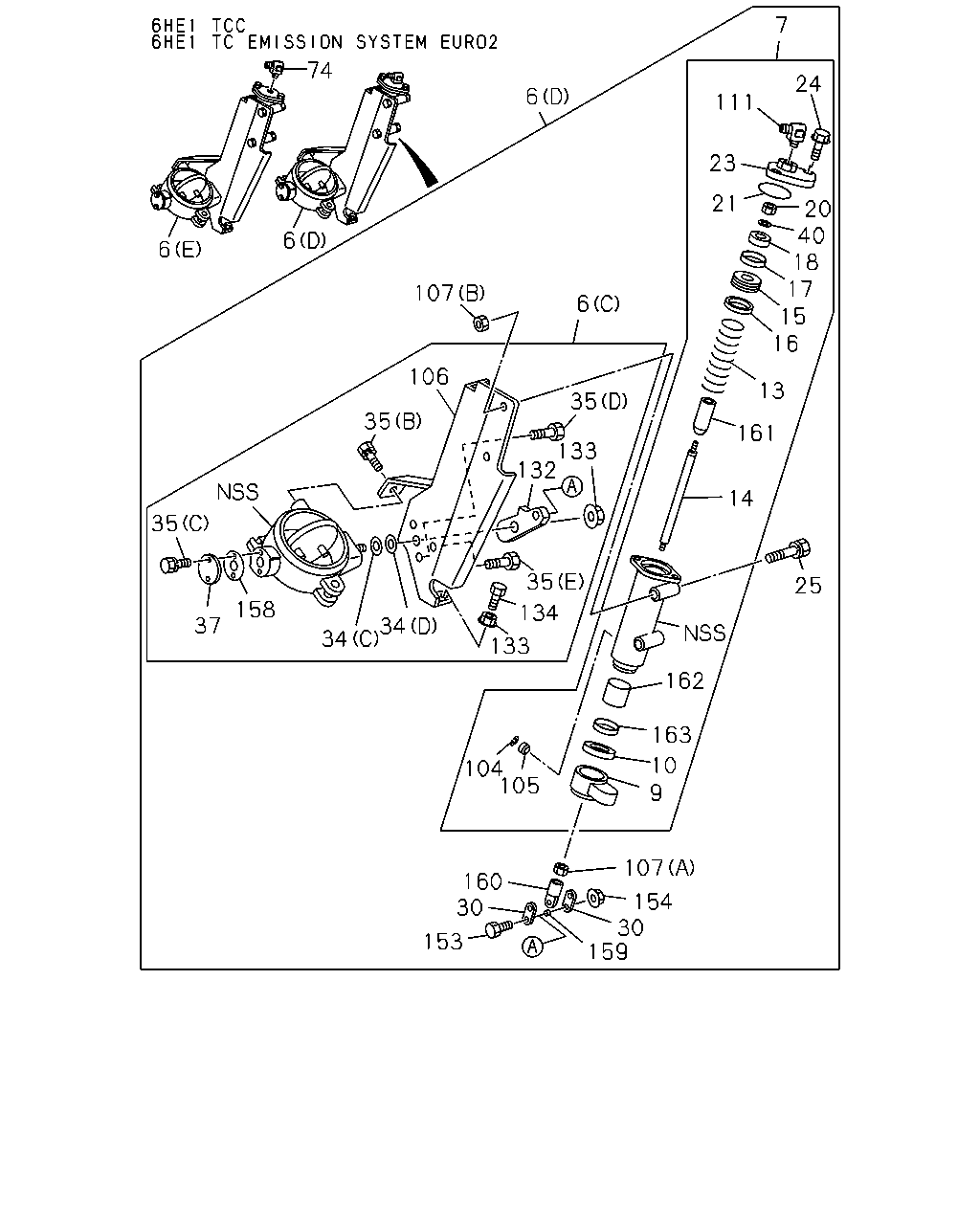

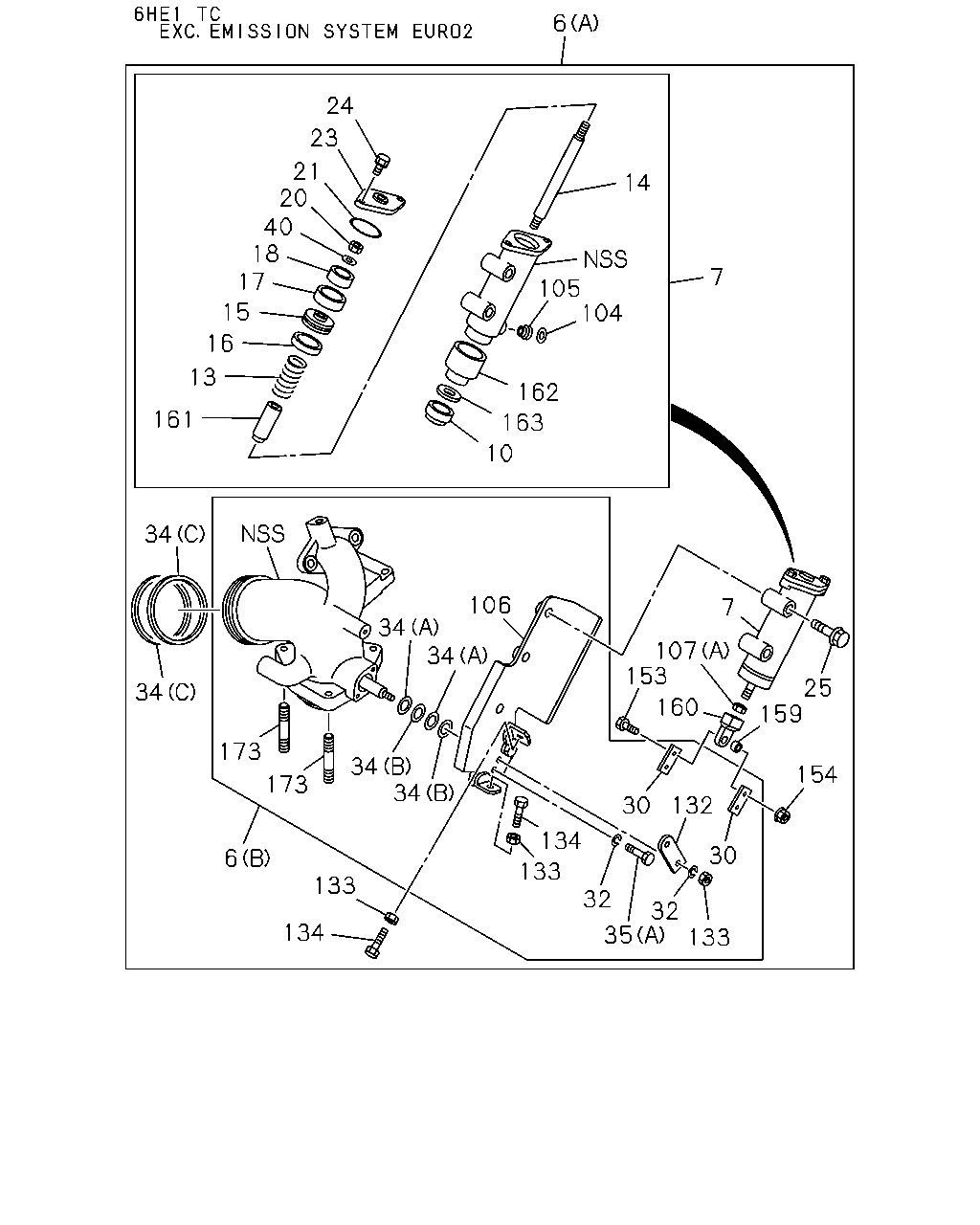

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#24285) — 397 parça

6 24 23 21 20 40 18 17 14 105 104 7 15 16 13 162 161 163 10 34 106 7 34 34 107 153 25 159 34 160 173 34 34 154 173 132 30 134 30 6 133 133 32 32 35 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (A)	8-94394-679-1	01	1	9811-0201	●
6	VALVE; EXH BRAKE EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-679-1	01	1	0202-0203	●
6	VALVE; EXH BRAKE (B)	8-94395-463-0	01	1	9811-0201	●
6	VALVE; EXH BRAKE EXC. EURO2 SPECIFICATION<THN> (B)	8-94395-463-0	01	1	0202-0203	●
6	VALVE; EXH BRAKE (C)	1-22181-134-0	01	1	9903-0201		●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<THN> (C)	1-22181-134-0	01	1	0202-0203	●
6	VALVE; EXH BRAKE (C)	1-22181-134-0	01	1	0202-0203		●
6	VALVE; EXH BRAKE (C)	1-22181-134-0	01	1	0204-0211	●	●
6	VALVE; EXH BRAKE (D)	8-94395-246-2	01	1	9903-0201		●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<THN> (D)	8-94395-246-2	01	1	0202-0203	●
6	VALVE; EXH BRAKE (D)	8-94395-246-2	01	1	0202-0203		●
6	VALVE; EXH BRAKE (D)	8-94395-246-2	01	1	0204-0211	●	●
6	VALVE; EXH BRAKE (E)	8-97602-527-0	01	1	0212-	●	●
7	CYLINDER ASM; CONT	8-94395-444-0	01	1	9811-0201	●
7	CYLINDER ASM; CONT EXC. EURO2 SPECIFICATION<THN>	8-94395-444-0	01	1	0202-0203	●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	9903-0201		●
7	CYLINDER ASM; CONT EURO2 SPECIFICATION<THN>	1-22190-632-0	01	1	0202-0203	●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	0202-0203		●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	0204-0211	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9811-9902	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9903-0211	●	●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9811-0201	●
13	SPRING; CONT CYL EXC. EURO2 SPECIFICATION<THN>	1-22199-157-0	01	1	0202-0203	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9903-0201		●
13	SPRING; CONT CYL EURO2 SPECIFICATION<THN>	1-09580-517-0	01	1	0202-0203	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0202-0203		●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0204-0211	●	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9811-9902	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9903-0211	●	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9811-9902	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9903-0211	●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9811-9902	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9903-0211	●	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9811-9902	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9903-0211	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9811-9902	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9903-0211	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9811-9902	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9903-0211	●	●
21	GASKET; COVER	1-22199-072-0	01	1	9811-9902	●
21	GASKET; COVER	1-22199-072-0	01	1	9903-0211	●	●
23	COVER; CONT CYL	1-22199-159-0	01	1	9811-0201	●
23	COVER; CONT CYL EXC. EURO2 SPECIFICATION<THN>	1-22199-159-0	01	1	0202-0203	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9903-0201		●
23	COVER; CONT CYL EURO2 SPECIFICATION<THN>	1-22199-066-0	01	1	0202-0203	●
23	COVER; CONT CYL	1-22199-066-0	01	1	0202-0203		●
23	COVER; CONT CYL	1-22199-066-0	01	1	0204-0211	●	●
24	BOLT; COVER	1-22199-155-0	02	1	9811-9902	●
24	BOLT; COVER	1-22199-155-0	02	1	9903-0211	●	●
25	BOLT; CONT CYL M12X55	8-94399-884-0	02	1	9811-0201	●
25	BOLT; CONT CYL EXC. EURO2 SPECIFICATION<THN> M12X55	8-94399-884-0	02	1	0202-0203	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9903-0201		●
25	BOLT; CONT CYL EURO2 SPECIFICATION<THN> M10X60 FLANGE	0-28081-060-0	02	1	0202-0203	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	0202-0203		●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	0204-0211	●	●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9811-9902	●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9903-0211	●	●
32	WASHER; LK ID=8.2	9-09150-508-0	04	1	9811-0201	●
32	WASHER; LK EXC. EURO2 SPECIFICATION<THN> ID=8.2	9-09150-508-0	04	1	0202-0203	●
34	RING; SEAL (C)	1-14149-084-2	02	1	9811-0201	●
34	RING; SEAL EXC. EURO2 SPECIFICATION<THN> (C)	1-14149-084-2	02	1	0202-0203	●
34	RING; SEAL (B)	1-22189-272-0	02	1	9811-0201	●
34	RING; SEAL EXC. EURO2 SPECIFICATION<THN> (B)	1-22189-272-0	02	1	0202-0203	●
34	RING; SEAL (A)	1-22189-273-0	02	1	9811-0201	●
34	RING; SEAL EXC. EURO2 SPECIFICATION<THN> (A)	1-22189-273-0	02	1	0202-0203	●
34	RING; SEAL (C) ID=15	8-94397-184-0	02	1	9903-0201		●
34	RING; SEAL EURO2 SPECIFICATION<THN> (C) ID=15	8-94397-184-0	02	1	0202-0203	●
34	RING; SEAL (C) ID=15	8-94397-184-0	02	1	0202-0203		●
34	RING; SEAL (C) ID=15	8-94397-184-0	02	1	0204-0211	●	●
34	RING; SEAL (D) ID=13.7	9-22189-124-0	02	1	9903-0201		●
34	RING; SEAL EURO2 SPECIFICATION<THN> (D) ID=13.7	9-22189-124-0	02	1	0202-0203	●
34	RING; SEAL (D) ID=13.7	9-22189-124-0	02	1	0202-0203		●
34	RING; SEAL (D) ID=13.7	9-22189-124-0	02	1	0204-0211	●	●
35	BOLT; PLATE FIX (A) M8X16	9-02050-816-0	03	1	9811-0201	●
35	BOLT; PLATE FIX EXC. EURO2 SPECIFICATION<THN> (A) M8X16	9-02050-816-0	03	1	0202-0203	●
35	BOLT; PLATE FIX (B) M10X20	0-28021-020-0	01	1	9903-0201		●
35	BOLT; PLATE FIX EURO2 SPECIFICATION<THN> (B) M10X20	0-28021-020-0	01	1	0202-0203	●
35	BOLT; PLATE FIX (B) M10X20	0-28021-020-0	01	1	0202-0203		●
35	BOLT; PLATE FIX (B) M10X20	0-28021-020-0	01	1	0204-0211	●	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	9903-0201		●
35	BOLT; PLATE FIX EURO2 SPECIFICATION<THN> (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	0202-0203	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	0202-0203		●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	0204-0211	●	●
35	BOLT; PLATE FIX (D)	1-22199-174-0	02	1	9903-0201		●
35	BOLT; PLATE FIX EURO2 SPECIFICATION<THN> (D)	1-22199-174-0	02	1	0202-0203	●
35	BOLT; PLATE FIX (D)	1-22199-174-0	02	1	0202-0203		●
35	BOLT; PLATE FIX (D)	1-22199-174-0	02	1	0204-0211	●	●
35	BOLT; PLATE FIX (E)	1-22199-188-0	01	1	9903-0201		●
35	BOLT; PLATE FIX EURO2 SPECIFICATION<THN> (E)	1-22199-188-0	01	1	0202-0203	●
35	BOLT; PLATE FIX (E)	1-22199-188-0	01	1	0202-0203		●
35	BOLT; PLATE FIX (E)	1-22199-188-0	01	1	0204-0211	●	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9811-9902	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9903-0211	●	●
104	RING; RET	9-88510-331-0	01	1	9811-9902	●
104	RING; RET	9-88510-331-0	01	1	9903-0211	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9811-9902	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9903-0211	●	●
106	BRACKET; CONT CYL	8-94394-681-0	01	1	9811-0201	●
106	BRACKET; CONT CYL EXC. EURO2 SPECIFICATION<THN>	8-94394-681-0	01	1	0202-0203	●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	9903-0201		●
106	BRACKET; CONT CYL EURO2 SPECIFICATION<THN>	8-94395-578-0	01	1	0202-0203	●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	0202-0203		●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	0204-0211	●	●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	9811-9902	●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	9903-0211	●	●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	9903-0201		●
107	NUT; CONT CYL EURO2 SPECIFICATION<THN> (B) M10 FLANGE	0-91150-110-0	02	1	0202-0203	●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0202-0203		●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0204-0211	●	●
132	LEVER; BRK VLV	1-22196-343-0	01	1	9811-0201	●
132	LEVER; BRK VLV EXC. EURO2 SPECIFICATION<THN>	1-22196-343-0	01	1	0202-0203	●
132	LEVER; BRK VLV	1-22196-342-0	01	1	9903-0201		●
132	LEVER; BRK VLV EURO2 SPECIFICATION<THN>	1-22196-342-0	01	1	0202-0203	●
132	LEVER; BRK VLV	1-22196-342-0	01	1	0202-0203		●
132	LEVER; BRK VLV	1-22196-342-0	01	1	0204-0211	●	●
133	NUT; LK	8-94311-428-0	03	1	9811-0201	●
133	NUT; LK EXC. EURO2 SPECIFICATION<THN>	8-94311-428-0	03	1	0202-0203	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	9903-0201		●
133	NUT; LK EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	03	1	0202-0203	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0202-0203		●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0204-0211	●	●
134	BOLT; STOPPER	1-22199-121-0	02	1	9811-0201	●
134	BOLT; STOPPER EXC. EURO2 SPECIFICATION<THN>	1-22199-121-0	02	1	0202-0203	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9903-0201		●
134	BOLT; STOPPER EURO2 SPECIFICATION<THN> M8X30	1-09000-112-1	02	1	0202-0203	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0202-0203		●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0204-0211	●	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9811-9902	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9903-0211	●	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9811-9902	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9903-0211	●	●
159	COLLAR; CONT CYL	1-22199-138-0	02	1	9811-9902	●
159	COLLAR; CONT CYL	1-22199-138-0	02	1	9903-0211	●	●
160	JOINT; CONT CYL	1-22199-150-0	01	1	9811-0201	●
160	JOINT; CONT CYL EXC. EURO2 SPECIFICATION<THN>	1-22199-150-0	01	1	0202-0203	●
160	JOINT; CONT CYL	1-22199-137-0	01	1	9903-0201		●
160	JOINT; CONT CYL EURO2 SPECIFICATION<THN>	1-22199-137-0	01	1	0202-0203	●
160	JOINT; CONT CYL	1-22199-137-0	01	1	0202-0203		●
160	JOINT; CONT CYL	1-22199-137-0	01	1	0204-0211	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9811-9902	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9903-0211	●	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9811-9902	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9903-0211	●	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9811-9902	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9903-0211	●	●
173	STUD; EXH BRK VLV M12X40 L=64	9-94321-240-0	02	1	9811-0201	●
173	STUD; EXH BRK VLV EXC. EURO2 SPECIFICATION<THN> M12X40 L=64	9-94321-240-0	02	1	0202-0203	●

7 74 24 6 111 23 21 20 40 18 17 15 16 6 6 107 6 106 13 35 35 161 133 132 14 35 35 25 158 134 37 34 34 133 162 163 10 9 104 105 107 160 30 154 30 159 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (A)	8-94394-679-1	01	1	9811-0201	●
6	VALVE; EXH BRAKE EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-679-1	01	1	0202-0203	●
6	VALVE; EXH BRAKE (B)	8-94395-463-0	01	1	9811-0201	●
6	VALVE; EXH BRAKE EXC. EURO2 SPECIFICATION<THN> (B)	8-94395-463-0	01	1	0202-0203	●
6	VALVE; EXH BRAKE (C)	1-22181-134-0	01	1	9903-0201		●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<THN> (C)	1-22181-134-0	01	1	0202-0203	●
6	VALVE; EXH BRAKE (C)	1-22181-134-0	01	1	0202-0203		●
6	VALVE; EXH BRAKE (C)	1-22181-134-0	01	1	0204-0211	●	●
6	VALVE; EXH BRAKE (D)	8-94395-246-2	01	1	9903-0201		●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<THN> (D)	8-94395-246-2	01	1	0202-0203	●
6	VALVE; EXH BRAKE (D)	8-94395-246-2	01	1	0202-0203		●
6	VALVE; EXH BRAKE (D)	8-94395-246-2	01	1	0204-0211	●	●
6	VALVE; EXH BRAKE (E)	8-97602-527-0	01	1	0212-	●	●
7	CYLINDER ASM; CONT	8-94395-444-0	01	1	9811-0201	●
7	CYLINDER ASM; CONT EXC. EURO2 SPECIFICATION<THN>	8-94395-444-0	01	1	0202-0203	●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	9903-0201		●
7	CYLINDER ASM; CONT EURO2 SPECIFICATION<THN>	1-22190-632-0	01	1	0202-0203	●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	0202-0203		●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	0204-0211	●	●
9	COVER; CYL	1-22199-070-0	01	1	9903-0201		●
9	COVER; CYL EURO2 SPECIFICATION<THN>	1-22199-070-0	01	1	0202-0203	●
9	COVER; CYL	1-22199-070-0	01	1	0202-0203		●
9	COVER; CYL	1-22199-070-0	01	1	0204-0211	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9811-9902	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9903-0211	●	●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9811-0201	●
13	SPRING; CONT CYL EXC. EURO2 SPECIFICATION<THN>	1-22199-157-0	01	1	0202-0203	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9903-0201		●
13	SPRING; CONT CYL EURO2 SPECIFICATION<THN>	1-09580-517-0	01	1	0202-0203	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0202-0203		●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0204-0211	●	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9811-9902	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9903-0211	●	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9811-9902	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9903-0211	●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9811-9902	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9903-0211	●	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9811-9902	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9903-0211	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9811-9902	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9903-0211	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9811-9902	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9903-0211	●	●
21	GASKET; COVER	1-22199-072-0	01	1	9811-9902	●
21	GASKET; COVER	1-22199-072-0	01	1	9903-0211	●	●
23	COVER; CONT CYL	1-22199-159-0	01	1	9811-0201	●
23	COVER; CONT CYL EXC. EURO2 SPECIFICATION<THN>	1-22199-159-0	01	1	0202-0203	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9903-0201		●
23	COVER; CONT CYL EURO2 SPECIFICATION<THN>	1-22199-066-0	01	1	0202-0203	●
23	COVER; CONT CYL	1-22199-066-0	01	1	0202-0203		●
23	COVER; CONT CYL	1-22199-066-0	01	1	0204-0211	●	●
24	BOLT; COVER	1-22199-155-0	02	1	9811-9902	●
24	BOLT; COVER	1-22199-155-0	02	1	9903-0211	●	●
25	BOLT; CONT CYL M12X55	8-94399-884-0	02	1	9811-0201	●
25	BOLT; CONT CYL EXC. EURO2 SPECIFICATION<THN> M12X55	8-94399-884-0	02	1	0202-0203	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	9903-0201		●
25	BOLT; CONT CYL EURO2 SPECIFICATION<THN> M10X60 FLANGE	0-28081-060-0	02	1	0202-0203	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	0202-0203		●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	0204-0211	●	●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9811-9902	●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9903-0211	●	●
34	RING; SEAL (C)	1-14149-084-2	02	1	9811-0201	●
34	RING; SEAL EXC. EURO2 SPECIFICATION<THN> (C)	1-14149-084-2	02	1	0202-0203	●
34	RING; SEAL (B)	1-22189-272-0	02	1	9811-0201	●
34	RING; SEAL EXC. EURO2 SPECIFICATION<THN> (B)	1-22189-272-0	02	1	0202-0203	●
34	RING; SEAL (A)	1-22189-273-0	02	1	9811-0201	●
34	RING; SEAL EXC. EURO2 SPECIFICATION<THN> (A)	1-22189-273-0	02	1	0202-0203	●
34	RING; SEAL (C) ID=15	8-94397-184-0	02	1	9903-0201		●
34	RING; SEAL EURO2 SPECIFICATION<THN> (C) ID=15	8-94397-184-0	02	1	0202-0203	●
34	RING; SEAL (C) ID=15	8-94397-184-0	02	1	0202-0203		●
34	RING; SEAL (C) ID=15	8-94397-184-0	02	1	0204-0211	●	●
34	RING; SEAL (D) ID=13.7	9-22189-124-0	02	1	9903-0201		●
34	RING; SEAL EURO2 SPECIFICATION<THN> (D) ID=13.7	9-22189-124-0	02	1	0202-0203	●
34	RING; SEAL (D) ID=13.7	9-22189-124-0	02	1	0202-0203		●
34	RING; SEAL (D) ID=13.7	9-22189-124-0	02	1	0204-0211	●	●
35	BOLT; PLATE FIX (A) M8X16	9-02050-816-0	03	1	9811-0201	●
35	BOLT; PLATE FIX EXC. EURO2 SPECIFICATION<THN> (A) M8X16	9-02050-816-0	03	1	0202-0203	●
35	BOLT; PLATE FIX (B) M10X20	0-28021-020-0	01	1	9903-0201		●
35	BOLT; PLATE FIX EURO2 SPECIFICATION<THN> (B) M10X20	0-28021-020-0	01	1	0202-0203	●
35	BOLT; PLATE FIX (B) M10X20	0-28021-020-0	01	1	0202-0203		●
35	BOLT; PLATE FIX (B) M10X20	0-28021-020-0	01	1	0204-0211	●	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	9903-0201		●
35	BOLT; PLATE FIX EURO2 SPECIFICATION<THN> (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	0202-0203	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	0202-0203		●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	0204-0211	●	●
35	BOLT; PLATE FIX (D)	1-22199-174-0	02	1	9903-0201		●
35	BOLT; PLATE FIX EURO2 SPECIFICATION<THN> (D)	1-22199-174-0	02	1	0202-0203	●
35	BOLT; PLATE FIX (D)	1-22199-174-0	02	1	0202-0203		●
35	BOLT; PLATE FIX (D)	1-22199-174-0	02	1	0204-0211	●	●
35	BOLT; PLATE FIX (E)	1-22199-188-0	01	1	9903-0201		●
35	BOLT; PLATE FIX EURO2 SPECIFICATION<THN> (E)	1-22199-188-0	01	1	0202-0203	●
35	BOLT; PLATE FIX (E)	1-22199-188-0	01	1	0202-0203		●
35	BOLT; PLATE FIX (E)	1-22199-188-0	01	1	0204-0211	●	●
37	COVER; BODY	1-22189-327-0	01	1	9903-0201		●
37	COVER; BODY EURO2 SPECIFICATION<THN>	1-22189-327-0	01	1	0202-0203	●
37	COVER; BODY	1-22189-327-0	01	1	0202-0203		●
37	COVER; BODY	1-22189-327-0	01	1	0204-0211	●	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9811-9902	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9903-0211	●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0212-	●	●
104	RING; RET	9-88510-331-0	01	1	9811-9902	●
104	RING; RET	9-88510-331-0	01	1	9903-0211	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9811-9902	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9903-0211	●	●
106	BRACKET; CONT CYL	8-94394-681-0	01	1	9811-0201	●
106	BRACKET; CONT CYL EXC. EURO2 SPECIFICATION<THN>	8-94394-681-0	01	1	0202-0203	●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	9903-0201		●
106	BRACKET; CONT CYL EURO2 SPECIFICATION<THN>	8-94395-578-0	01	1	0202-0203	●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	0202-0203		●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	0204-0211	●	●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	9811-9902	●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	9903-0211	●	●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	9903-0201		●
107	NUT; CONT CYL EURO2 SPECIFICATION<THN> (B) M10 FLANGE	0-91150-110-0	02	1	0202-0203	●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0202-0203		●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0204-0211	●	●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	9903-0201		●
111	ELBOW; CONT CYL EURO2 SPECIFICATION<THN>	1-09650-358-1	01	1	0202-0203	●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	0202-0203		●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	0204-0211	●	●
132	LEVER; BRK VLV	1-22196-343-0	01	1	9811-0201	●
132	LEVER; BRK VLV EXC. EURO2 SPECIFICATION<THN>	1-22196-343-0	01	1	0202-0203	●
132	LEVER; BRK VLV	1-22196-342-0	01	1	9903-0201		●
132	LEVER; BRK VLV EURO2 SPECIFICATION<THN>	1-22196-342-0	01	1	0202-0203	●
132	LEVER; BRK VLV	1-22196-342-0	01	1	0202-0203		●
132	LEVER; BRK VLV	1-22196-342-0	01	1	0204-0211	●	●
133	NUT; LK	8-94311-428-0	03	1	9811-0201	●
133	NUT; LK EXC. EURO2 SPECIFICATION<THN>	8-94311-428-0	03	1	0202-0203	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	9903-0201		●
133	NUT; LK EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	03	1	0202-0203	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0202-0203		●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0204-0211	●	●
134	BOLT; STOPPER	1-22199-121-0	02	1	9811-0201	●
134	BOLT; STOPPER EXC. EURO2 SPECIFICATION<THN>	1-22199-121-0	02	1	0202-0203	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9903-0201		●
134	BOLT; STOPPER EURO2 SPECIFICATION<THN> M8X30	1-09000-112-1	02	1	0202-0203	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0202-0203		●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0204-0211	●	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9811-9902	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9903-0211	●	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9811-9902	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9903-0211	●	●
158	GASKET; COVER	1-22189-286-0	01	1	9903-0201		●
158	GASKET; COVER EURO2 SPECIFICATION<THN>	1-22189-286-0	01	1	0202-0203	●
158	GASKET; COVER	1-22189-286-0	01	1	0202-0203		●
158	GASKET; COVER	1-22189-286-0	01	1	0204-0211	●	●
159	COLLAR; CONT CYL	1-22199-138-0	02	1	9811-9902	●
159	COLLAR; CONT CYL	1-22199-138-0	02	1	9903-0211	●	●
160	JOINT; CONT CYL	1-22199-150-0	01	1	9811-0201	●
160	JOINT; CONT CYL EXC. EURO2 SPECIFICATION<THN>	1-22199-150-0	01	1	0202-0203	●
160	JOINT; CONT CYL	1-22199-137-0	01	1	9903-0201		●
160	JOINT; CONT CYL EURO2 SPECIFICATION<THN>	1-22199-137-0	01	1	0202-0203	●
160	JOINT; CONT CYL	1-22199-137-0	01	1	0202-0203		●
160	JOINT; CONT CYL	1-22199-137-0	01	1	0204-0211	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9811-9902	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9903-0211	●	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9811-9902	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9903-0211	●	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9811-9902	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9903-0211	●	●

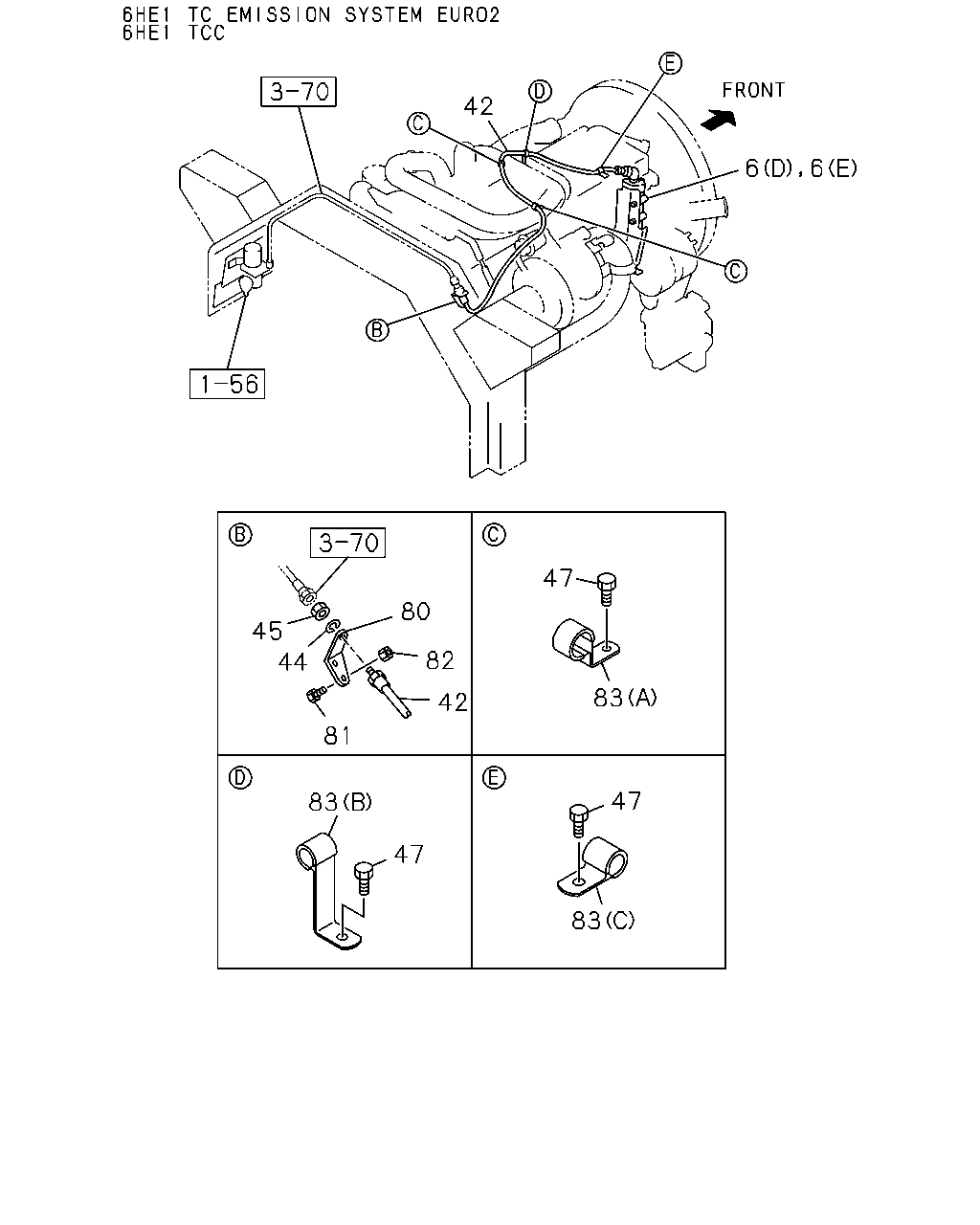

42 47 80 45 82 44 83 42 81 47 83 47 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	HOSE; FLEX,EXH BRK L=330	0-07030-330-0	01	1	9811-0201	●
42	HOSE; FLEX,EXH BRK EXC. EURO2 SPECIFICATION<THN> L=330	0-07030-330-0	01	1	0202-0203	●
42	HOSE; FLEX,EXH BRK L=1030	1-09363-568-1	01	1	9903-0201		●
42	HOSE; FLEX,EXH BRK EURO2 SPECIFICATION<THN> L=1030	1-09363-568-1	01	1	0202-0203	●
42	HOSE; FLEX,EXH BRK L=1030	1-09363-568-1	01	1	0202-0203		●
42	HOSE; FLEX,EXH BRK L=1030	1-09363-568-1	01	1	0204-	●	●
44	WASHER; LK,FLEX HOSE EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	01	1	0202-0203	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0204-0603	●
44	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-	●
44	WASHER; LK,FLEX HOSE EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	02	1	0202-0203	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0204-0603	●
44	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0604-	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	03	1	9811-0201	●	●
44	WASHER; LK,FLEX HOSE EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	03	1	0202-0203	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	03	1	0202-0203		●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	03	1	0204-0603		●
44	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	03	1	0604-		●
45	NUT; FLEX HOSE EURO2 SPECIFICATION<THN> M12	9-09840-280-0	01	1	0202-0203	●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0204-	●
45	NUT; FLEX HOSE EURO2 SPECIFICATION<THN> M12	9-09840-280-0	02	1	0202-0203	●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0204-	●
45	NUT; FLEX HOSE M12	9-09840-280-0	03	1	9811-0201	●	●
45	NUT; FLEX HOSE EXC. EURO2 SPECIFICATION<THN> M12	9-09840-280-0	03	1	0202-0203	●
45	NUT; FLEX HOSE M12	9-09840-280-0	03	1	0202-0203		●
45	NUT; FLEX HOSE M12	9-09840-280-0	03	1	0204-		●
47	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	04	1	0202-0203	●
47	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0204-0512	●
47	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
80	BRACKET; FLEX HOSE	1-47476-880-1	01	1	9811-9811	●
80	BRACKET; FLEX HOSE EURO2 SPECIFICATION<THN>	1-47476-880-1	01	1	0202-0203	●
80	BRACKET; FLEX HOSE	1-47476-880-1	01	1	0204-	●
81	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-9811	●
81	BOLT; HOSE BRKT EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	02	1	0202-0203	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0204-0512	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9811-9811	●
82	NUT; HOSE BRKT EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	0202-0203	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0204-0602	●
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
83	CLIP; FLEX HOSE EURO2 SPECIFICATION<THN> (A) ID=11 H=20 L=25	1-09700-848-0	02	1	0202-0203	●
83	CLIP; FLEX HOSE (A) ID=11 H=20 L=25	1-09700-848-0	02	1	0204-	●
83	CLIP; FLEX HOSE EURO2 SPECIFICATION<THN> (B) ID=11 H=34 L=27	1-09701-023-0	01	1	0202-0203	●
83	CLIP; FLEX HOSE (B) ID=11 H=34 L=27	1-09701-023-0	01	1	0204-	●
83	CLIP; FLEX HOSE EURO2 SPECIFICATION<THN> (C) ID=13 L=32	9-09525-265-0	01	1	0202-0203	●
83	CLIP; FLEX HOSE (C) ID=13 L=32	9-09525-265-0	01	1	0204-0606	●
83	CLIP; FLEX HOSE (C) ID=13 L=32	0-95235-265-0	01	1	0607-	●

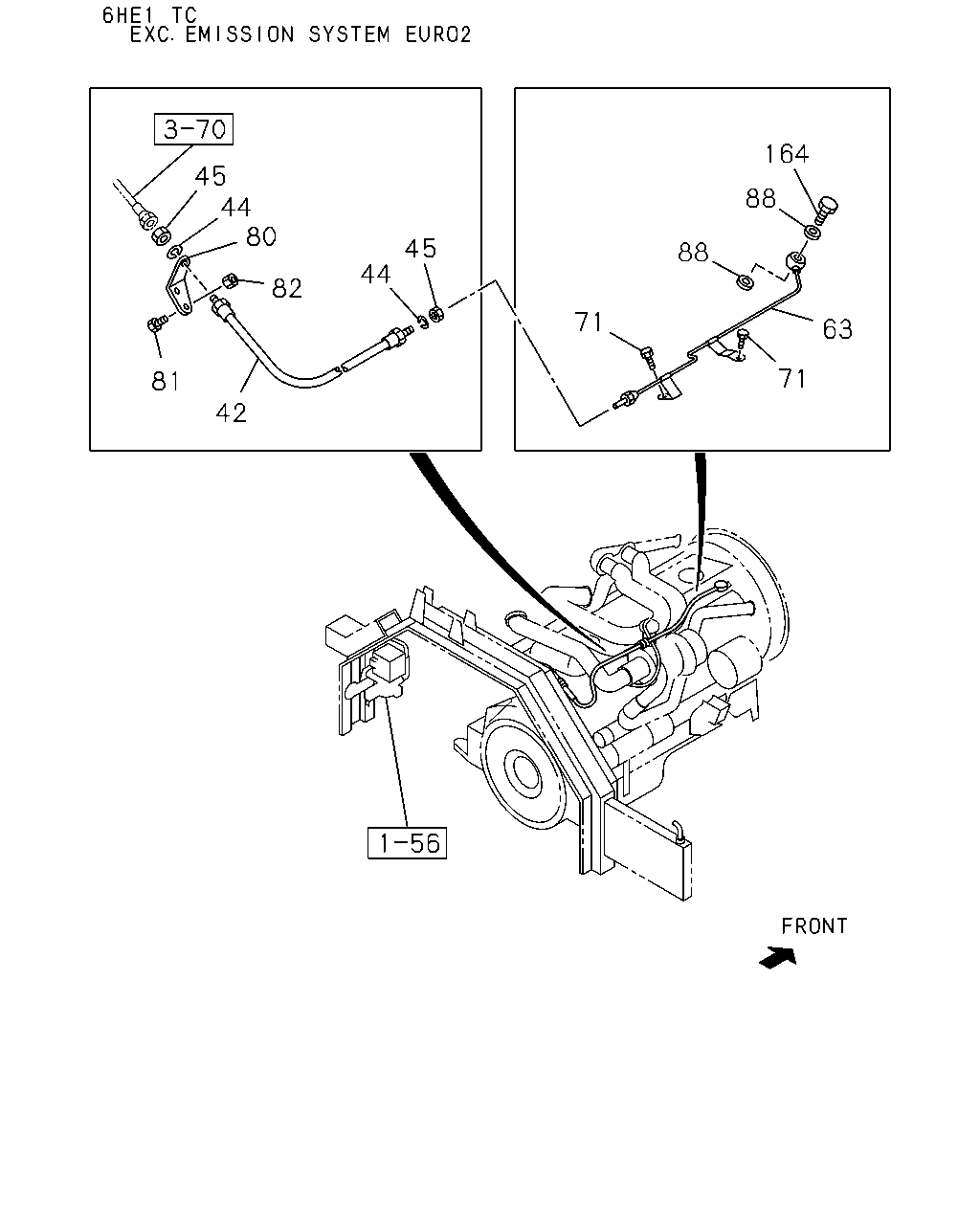

164 45 44 80 88 45 88 44 82 71 63 71 81 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	HOSE; FLEX,EXH BRK L=330	0-07030-330-0	01	1	9811-0201	●
42	HOSE; FLEX,EXH BRK EXC. EURO2 SPECIFICATION<THN> L=330	0-07030-330-0	01	1	0202-0203	●
42	HOSE; FLEX,EXH BRK L=1030	1-09363-568-1	01	1	9903-0201		●
42	HOSE; FLEX,EXH BRK EURO2 SPECIFICATION<THN> L=1030	1-09363-568-1	01	1	0202-0203	●
42	HOSE; FLEX,EXH BRK L=1030	1-09363-568-1	01	1	0202-0203		●
42	HOSE; FLEX,EXH BRK L=1030	1-09363-568-1	01	1	0204-	●	●
44	WASHER; LK,FLEX HOSE EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	01	1	0202-0203	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0204-0603	●
44	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-	●
44	WASHER; LK,FLEX HOSE EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	02	1	0202-0203	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0204-0603	●
44	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0604-	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	03	1	9811-0201	●	●
44	WASHER; LK,FLEX HOSE EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	03	1	0202-0203	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	03	1	0202-0203		●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	03	1	0204-0603		●
44	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	03	1	0604-		●
45	NUT; FLEX HOSE EURO2 SPECIFICATION<THN> M12	9-09840-280-0	01	1	0202-0203	●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0204-	●
45	NUT; FLEX HOSE EURO2 SPECIFICATION<THN> M12	9-09840-280-0	02	1	0202-0203	●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0204-	●
45	NUT; FLEX HOSE M12	9-09840-280-0	03	1	9811-0201	●	●
45	NUT; FLEX HOSE EXC. EURO2 SPECIFICATION<THN> M12	9-09840-280-0	03	1	0202-0203	●
45	NUT; FLEX HOSE M12	9-09840-280-0	03	1	0202-0203		●
45	NUT; FLEX HOSE M12	9-09840-280-0	03	1	0204-		●
63	PIPE; AIR,EXH BRAKE	8-94395-725-0	01	1	9811-0201	●
63	PIPE; AIR,EXH BRAKE EXC. EURO2 SPECIFICATION<THN>	8-94395-725-0	01	1	0202-0203	●
71	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9811-0201	●
71	BOLT; CLIP EXC. EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28080-816-0	02	1	0202-0203	●
80	BRACKET; FLEX HOSE	1-47476-880-1	01	1	9811-9811	●
80	BRACKET; FLEX HOSE EURO2 SPECIFICATION<THN>	1-47476-880-1	01	1	0202-0203	●
80	BRACKET; FLEX HOSE	1-47476-880-1	01	1	0204-	●
81	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-9811	●
81	BOLT; HOSE BRKT EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	02	1	0202-0203	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0204-0512	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9811-9811	●
82	NUT; HOSE BRKT EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	0202-0203	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0204-0602	●
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
88	GASKET; AIR PIPE ID=12.2	1-09630-084-0	02	1	9811-0201	●
88	GASKET; AIR PIPE EXC. EURO2 SPECIFICATION<THN> ID=12.2	1-09630-084-0	02	1	0202-0203	●
164	BOLT; EYE M12X24 EYE-BOLT	1-09675-081-0	01	1	9811-0201	●
164	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> M12X24 EYE-BOLT	1-09675-081-0	01	1	0202-0203	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
