◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#24284) — 233 parça

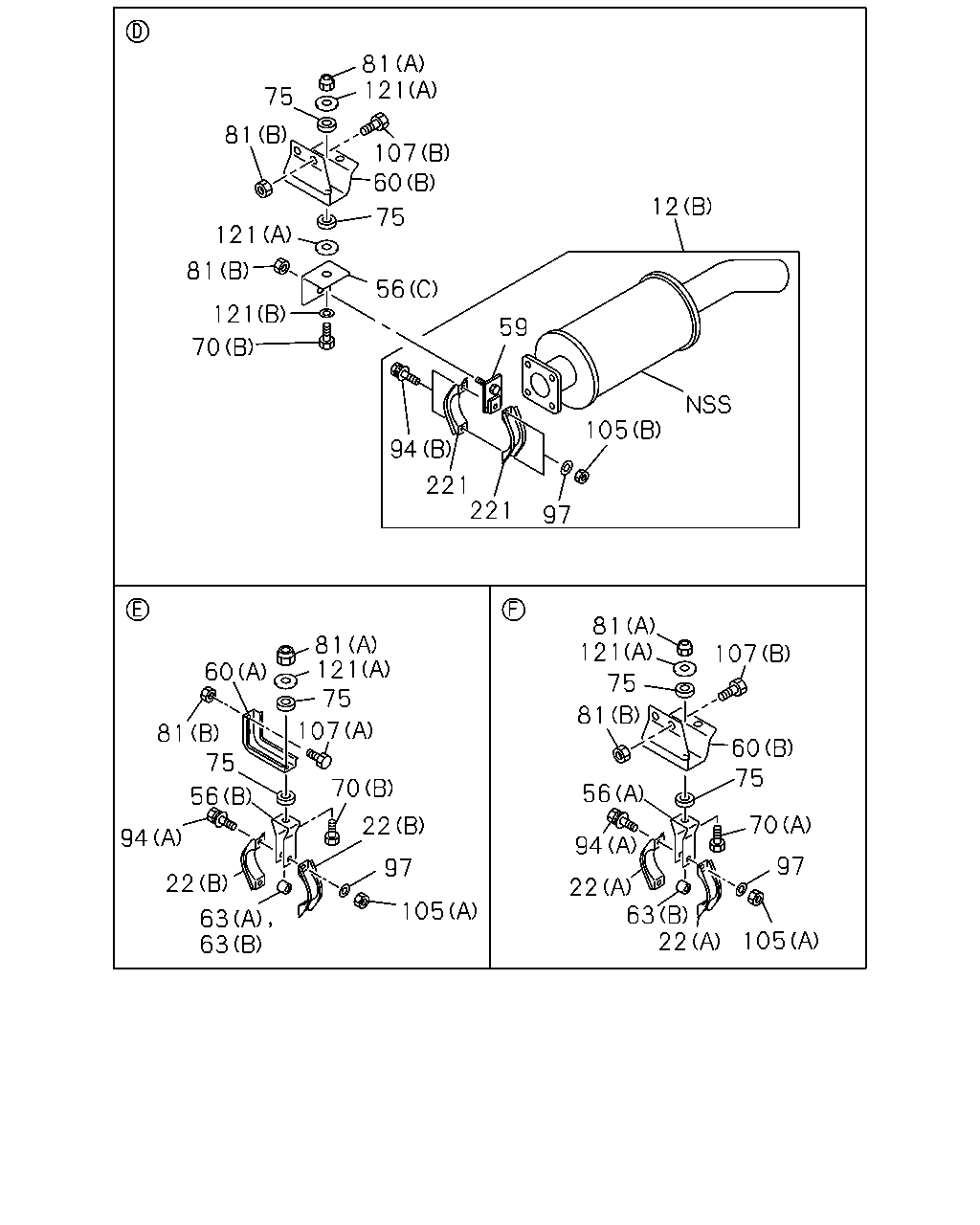

çizim 23595
81 121 75 81 107 60 12 75 121 81 56 121 59 70 105 94 221 221 97 81 121 81 121 75 107 60 75 81 81 107 75 60 75 70 56 56 70 22 94 94 97 97 22 22 63 22 105 63 63 105
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
(A) 		1-22140-723-2 01 1 9811-0201 ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> (A) 		1-22140-723-2 01 1 0202-0203 ●
12 SILENCER ASM; EXH
(B) 		1-22140-846-4 01 1 9903-0201 ●
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<THN> (B) 		1-22140-846-4 01 1 0202-0203 ● ●
12 SILENCER ASM; EXH
(B) 		1-22140-846-4 01 1 0204- ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 9811-0201 ●
22 CLAMP; EXH PIPE
EXC. EURO2 SPECIFICATION<THN> (A) ID=80-84 		1-22133-233-0 02 1 0202-0203 ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 9811-9902 ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 9903-0201 ● ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<THN> (B) ID=94-98 		1-22133-237-0 02 1 0202-0203 ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 0202-0203 ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 0204-0706 ● ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 0707- ● ●
22 CLAMP; EXH PIPE
PROVISIONAL PACKAGE SPEC<BCC> (B) ID=94-98 		1-22133-237-0 02 1 0707- ●
56 BRACKET; CLAMP,EXH PIPE
(A) H=67 		1-22139-041-0 01 1 9811-0201 ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO2 SPECIFICATION<THN> (A) H=67 		1-22139-041-0 01 1 0202-0203 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-082-0 01 1 9811-0201 ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO2 SPECIFICATION<THN> (B) 		1-22139-082-0 01 1 0202-0203 ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=135 		1-22139-054-0 01 1 9903-0201 ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<THN> (B) H=135 		1-22139-054-0 01 1 0202-0203 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=135 		1-22139-054-0 01 1 0204-0706 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=135 		1-22139-054-0 01 1 0707- ● ●
56 BRACKET; CLAMP,EXH PIPE
PROVISIONAL PACKAGE SPEC<BCC> (B) H=135 		1-22139-054-0 01 1 0707- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22139-118-0 01 1 9903-0201 ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<THN> (C) 		1-22139-118-0 01 1 0202-0203 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22139-118-0 01 1 0204- ● ●
59 BRACKET; EXH SILENCER,FRT 1-22139-098-0 01 1 9903-0201 ●
59 BRACKET; EXH SILENCER,FRT
EURO2 SPECIFICATION<THN> 		1-22139-098-0 01 1 0202-0203 ● ●
59 BRACKET; EXH SILENCER,FRT 1-22139-098-0 01 1 0204- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-512-2 01 1 9811-9902 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-512-2 01 1 9903-0201 ● ●
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION<THN> (A) 		1-22151-512-2 01 1 0202-0203 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-512-2 01 1 0202-0203 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-512-3 01 1 0204-0706 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-512-3 01 1 0707- ● ●
60 BRACKET; FRAME TO BRKT
PROVISIONAL PACKAGE SPEC<BCC> (A) 		1-22151-512-3 01 1 0707- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-534-3 01 1 9811- ● ●
63 TUBE; DIST,BRKT
(A) L=11 		1-22139-026-0 01 1 9811-0201 ●
63 TUBE; DIST,BRKT
EXC. EURO2 SPECIFICATION<THN> (A) L=11 		1-22139-026-0 01 1 0202-0203 ●
63 TUBE; DIST,BRKT
(B) L=8.5 		1-22139-057-0 01 1 9811-9902 ●
63 TUBE; DIST,BRKT
(B) L=8.5 		1-22139-057-0 01 1 9903-0706 ● ●
63 TUBE; DIST,BRKT
(B) L=8.5 		1-22139-057-0 01 1 0707- ● ●
63 TUBE; DIST,BRKT
PROVISIONAL PACKAGE SPEC<BCC> (B) L=8.5 		1-22139-057-0 01 1 0707- ●
70 BOLT; BRKT
(A) M10X45 		0-10806-045-0 01 1 9811-0201 ●
70 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> (A) M10X45 		0-10806-045-0 01 1 0202-0203 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9811-9902 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9903-0201 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9903-0201 ●
70 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> (B) M10X50 		0-10806-050-0 01 1 0202-0203 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0202-0203 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0202-0203 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0204-0512 ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0601-0706 ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0707- ● ●
70 BOLT; BRKT
PROVISIONAL PACKAGE SPEC<BCC> (B) M10X50 		0-10856-050-0 01 1 0707- ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M10X50 		0-10806-050-0 02 1 0202-0203 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 0204-0512 ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0601- ●
75 RUBBER; SUPPORT,BRKT
OD=30 		1-22159-106-1 02 1 9811-9902 ●
75 RUBBER; SUPPORT,BRKT
OD=30 		1-22159-106-1 02 1 9811-9902 ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO2 SPECIFICATION<THN> OD=30 		1-22159-106-1 02 1 9903-0203 ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO2 SPECIFICATION<THN> OD=30 		1-22159-106-1 02 1 9903-0203 ●
75 RUBBER; SUPPORT,BRKT
OD=30 		1-22159-106-1 02 1 9903-0203 ●
75 RUBBER; SUPPORT,BRKT
OD=30 		1-22159-106-1 02 1 9903-0203 ●
75 RUBBER; SUPPORT,BRKT
OD=30 		1-22159-106-1 02 1 0204-0706 ●
75 RUBBER; SUPPORT,BRKT
OD=30 		1-22159-106-1 02 1 0707- ● ●
75 RUBBER; SUPPORT,BRKT
PROVISIONAL PACKAGE SPEC<BCC> OD=30 		1-22159-106-1 02 1 0707- ●
75 RUBBER; SUPPORT,BRKT
EURO2 SPECIFICATION<THN> OD=30 		1-22159-106-1 04 1 0202-0203 ●
75 RUBBER; SUPPORT,BRKT
OD=30 		1-22159-106-1 04 1 0204- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0204-0603 ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604-0706 ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0707- ● ●
81 NUT; BRKT
PROVISIONAL PACKAGE SPEC<BCC> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0707- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9811-9902 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9811-9902 ●
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 9903-0203 ●
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 9903-0203 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9903-0203 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9903-0203 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9811-0201 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0202-0203 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0204-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 03 1 9811-0201 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0202-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-0706 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0707- ● ●
81 NUT; BRKT
PROVISIONAL PACKAGE SPEC<BCC> (B) M10 FLANGE 		0-91180-210-0 02 1 0707- ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 03 1 0202-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 0603- ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9903-0201 ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0202-0203 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0204-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
81 NUT; BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 9903-0201 ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (C) M12 FLANGE 		0-91150-212-0 04 1 0202-0203 ● ●
81 NUT; BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 0204-0602 ● ●
81 NUT; BRKT
(C) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9811-9902 ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9811-9902 ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9903-0110 ● ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9903-0110 ● ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0111-0203 ● ●
94 BOLT; CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0111-0203 ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0204-0706 ● ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0707-0805 ● ●
94 BOLT; CLAMP
PROVISIONAL PACKAGE SPEC<BCC> (A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0707-0805 ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
94 BOLT; CLAMP
PROVISIONAL PACKAGE SPEC<BCC> (A) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
(B) M10X40 FLANGE 		0-28681-040-0 02 1 0111-0201 ●
94 BOLT; CLAMP
EURO2 SPECIFICATION<THN> (B) M10X40 FLANGE 		0-28681-040-0 02 1 0202-0203 ● ●
94 BOLT; CLAMP
(B) M10X40 FLANGE 		0-28681-040-0 02 1 0204-0512 ● ●
94 BOLT; CLAMP
(B) M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9811-9902 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9811-9902 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9903-0110 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9903-0110 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0111-0203 ● ●
97 WASHER; PL,CLAMP
EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0111-0203 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0204-0706 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0707- ● ●
97 WASHER; PL,CLAMP
PROVISIONAL PACKAGE SPEC<BCC> ID=10.5 		9-09164-510-0 02 1 0707- ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 9811-9902 ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 9811-9902 ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 9903-0110 ● ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 9903-0110 ● ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0111-0203 ● ●
105 NUT; CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) M10 		9-09110-510-0 02 1 0111-0203 ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0204-0512 ● ●
105 NUT; CLAMP
(A) M10 		0-91110-510-0 02 1 0601-0706 ● ●
105 NUT; CLAMP
(A) M10 		0-91110-510-0 02 1 0707- ● ●
105 NUT; CLAMP
PROVISIONAL PACKAGE SPEC<BCC> (A) M10 		0-91110-510-0 02 1 0707- ●
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 02 1 0111-0201 ●
105 NUT; CLAMP
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 02 1 0202-0203 ● ●
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ● ●
105 NUT; CLAMP
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 02 1 9811-0512 ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0601-0706 ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0707- ● ●
107 BOLT; BRKT
PROVISIONAL PACKAGE SPEC<BCC> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0707- ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 03 1 9811-0512 ● ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 03 1 0601- ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 9811-9902 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 9811-9902 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 02 1 9903-0203 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 03 1 0204-0605 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
121 WASHER; PL,BRKT
EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 OD=32 		9-09164-810-0 01 1 9903-0203 ●
121 WASHER; PL,BRKT
EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 OD=32 		9-09164-810-0 01 1 9903-0203 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 9903-0203 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 0204-0605 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 0606-0706 ●
121 WASHER; PL,BRKT
PROVISIONAL PACKAGE SPEC<BCC> (A) ID=10.5 OD=32 		0-91614-810-0 01 1 0707- ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 0707- ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> (B) ID=10.5 OD=18 		9-09160-510-0 01 1 0202-0203 ● ●
121 WASHER; PL,BRKT
(B) ID=10.5 OD=18 		9-09160-510-0 01 1 0204-0605 ● ●
121 WASHER; PL,BRKT
(B) ID=10.5 		0-91610-510-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
(B) ID=10.5 OD=18 		9-09160-510-0 01 1 9903-0201 ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> (A) ID=10.5 OD=32 		9-09164-810-0 03 1 0202-0203 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 02 1 0204-0605 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		0-91614-810-0 03 1 0606- ●
221 CLAMP; EXH SILENCER
ID=80-84 		1-22133-233-0 02 1 9903-0201 ●
221 CLAMP; EXH SILENCER
EURO2 SPECIFICATION<THN> ID=80-84 		1-22133-233-0 02 1 0202-0203 ● ●
221 CLAMP; EXH SILENCER
ID=80-84 		1-22133-233-0 02 1 0204- ● ●

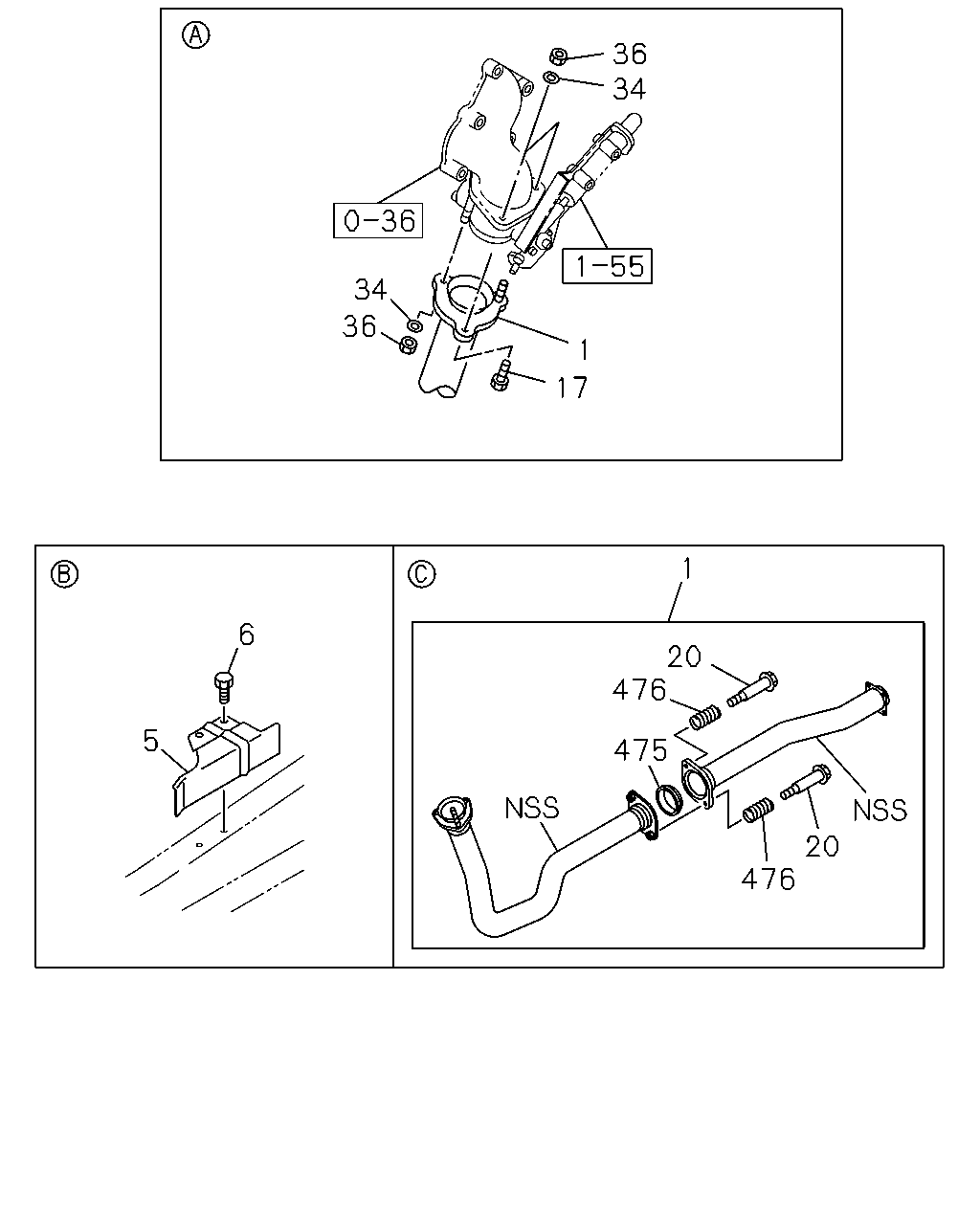

çizim 80142
36 34 34 36 1 17 1 6 20 476 5 475 20 476
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 1-22122-270-5 01 1 9811-0201 ●
1 PIPE; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22122-270-5 01 1 0202-0203 ●
1 PIPE; EXH 1-22122-930-1 01 1 9903-0201 ●
1 PIPE; EXH
EURO2 SPECIFICATION<THN> 		1-22122-930-1 01 1 0202-0203 ● ●
1 PIPE; EXH 1-22122-930-3 01 1 0204- ● ●
5 PROTECTOR; HEAT 1-33659-182-1 01 1 9811- ● ●
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ●
17 BOLT; EXH PIPE
M12X110 		1-09000-290-0 01 1 9811-9811 ●
17 BOLT; EXH PIPE
M12X110 		1-09000-290-0 01 1 9903-0201 ●
17 BOLT; EXH PIPE
EURO2 SPECIFICATION<THN> M12X110 		1-09000-290-0 01 1 0202-0203 ●
17 BOLT; EXH PIPE
M12X110 		1-09000-290-0 01 1 0202-0203 ●
17 BOLT; EXH PIPE
M12X110 		1-09000-290-0 01 1 0204-0401 ● ●
17 BOLT; EXH PIPE
M12X120 		1-09000-293-0 01 1 0402- ● ●
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 0005-0412 ● ●
20 BOLT; FLANGE,EXH PIPE
M10X49.8 		8-97039-586-0 02 1 0501- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9811-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9811- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-1 01 1 0005- ● ●
476 SPRING; VIBNON,EXH PIPE 8-94141-851-0 02 1 0005- ● ●

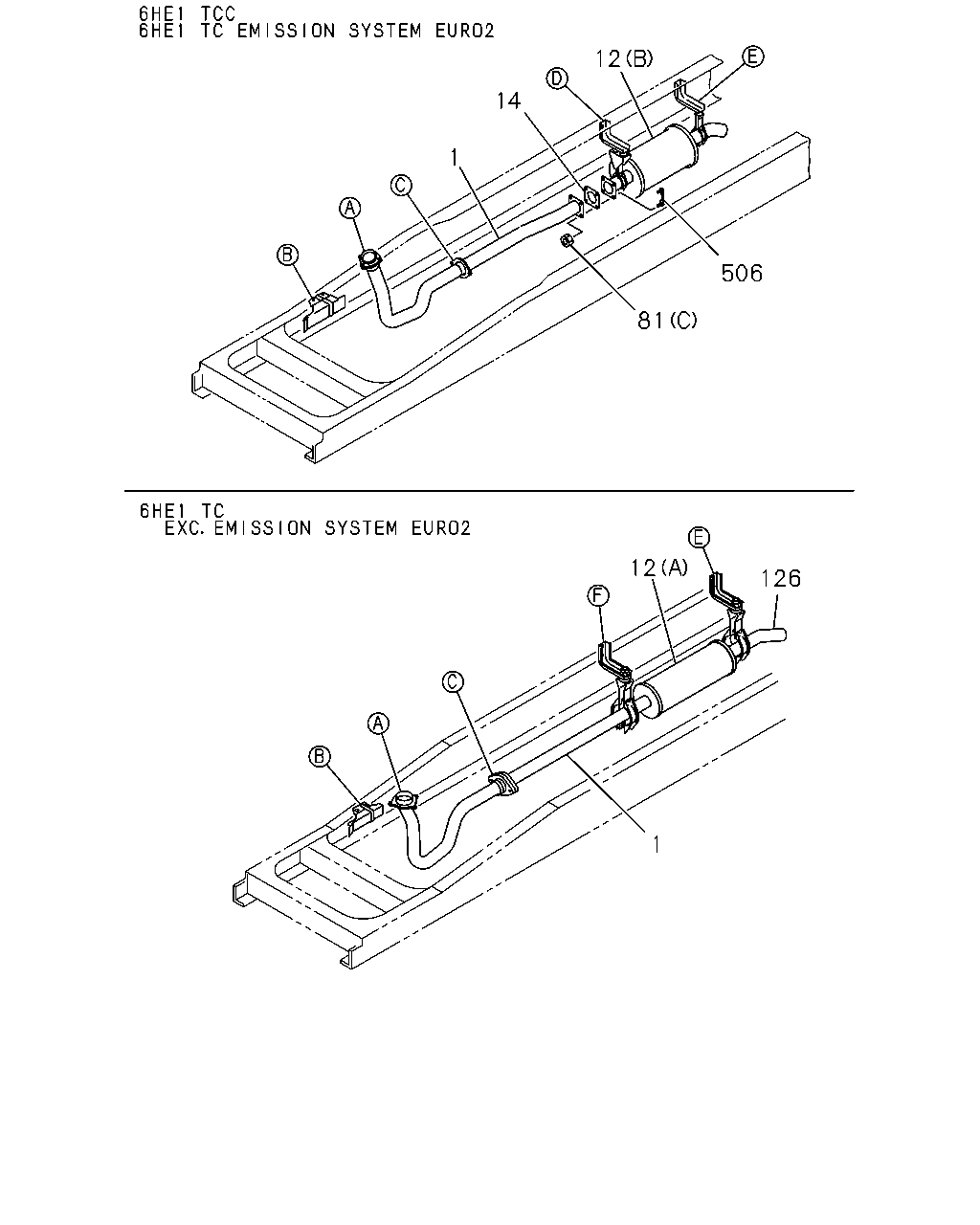

çizim 80547
12 14 1 506 81 12 126 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 1-22122-270-5 01 1 9811-0201 ●
1 PIPE; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22122-270-5 01 1 0202-0203 ●
1 PIPE; EXH 1-22122-930-1 01 1 9903-0201 ●
1 PIPE; EXH
EURO2 SPECIFICATION<THN> 		1-22122-930-1 01 1 0202-0203 ● ●
1 PIPE; EXH 1-22122-930-3 01 1 0204- ● ●
12 SILENCER ASM; EXH
(A) 		1-22140-723-2 01 1 9811-0201 ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> (A) 		1-22140-723-2 01 1 0202-0203 ●
12 SILENCER ASM; EXH
(B) 		1-22140-846-4 01 1 9903-0201 ●
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<THN> (B) 		1-22140-846-4 01 1 0202-0203 ● ●
12 SILENCER ASM; EXH
(B) 		1-22140-846-4 01 1 0204- ● ●
14 GASKET; SILENCER TO EXH PIPE 8-94394-391-0 01 1 9903-0201 ●
14 GASKET; SILENCER TO EXH PIPE
EURO2 SPECIFICATION<THN> 		8-94394-391-0 01 1 0202-0203 ● ●
14 GASKET; SILENCER TO EXH PIPE 8-94394-391-0 01 1 0204- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0204-0603 ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604-0706 ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0707- ● ●
81 NUT; BRKT
PROVISIONAL PACKAGE SPEC<BCC> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0707- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9811-9902 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9811-9902 ●
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 9903-0203 ●
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 9903-0203 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9903-0203 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9903-0203 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9811-0201 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0202-0203 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0204-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 03 1 9811-0201 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0202-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-0706 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0707- ● ●
81 NUT; BRKT
PROVISIONAL PACKAGE SPEC<BCC> (B) M10 FLANGE 		0-91180-210-0 02 1 0707- ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 03 1 0202-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 0603- ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9903-0201 ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0202-0203 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0204-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
81 NUT; BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 9903-0201 ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (C) M12 FLANGE 		0-91150-212-0 04 1 0202-0203 ● ●
81 NUT; BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 0204-0602 ● ●
81 NUT; BRKT
(C) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 9811-0009 ●
126 PIPE; EXH,RR
OD=94 		1-22126-331-0 01 1 0010-0201 ●
126 PIPE; EXH,RR
EXC. EURO2 SPECIFICATION<THN> OD=94 		1-22126-331-0 01 1 0202-0203 ●
506 BRACKET; STUD 1-22131-680-0 02 1 9903-0201 ●
506 BRACKET; STUD
EURO2 SPECIFICATION<THN> 		1-22131-680-0 02 1 0202-0203 ● ●
506 BRACKET; STUD 1-22131-680-0 02 1 0204-0206 ● ●
506 BRACKET; STUD 1-22131-962-0 02 1 0207- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
