◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#24279) — 26 parça

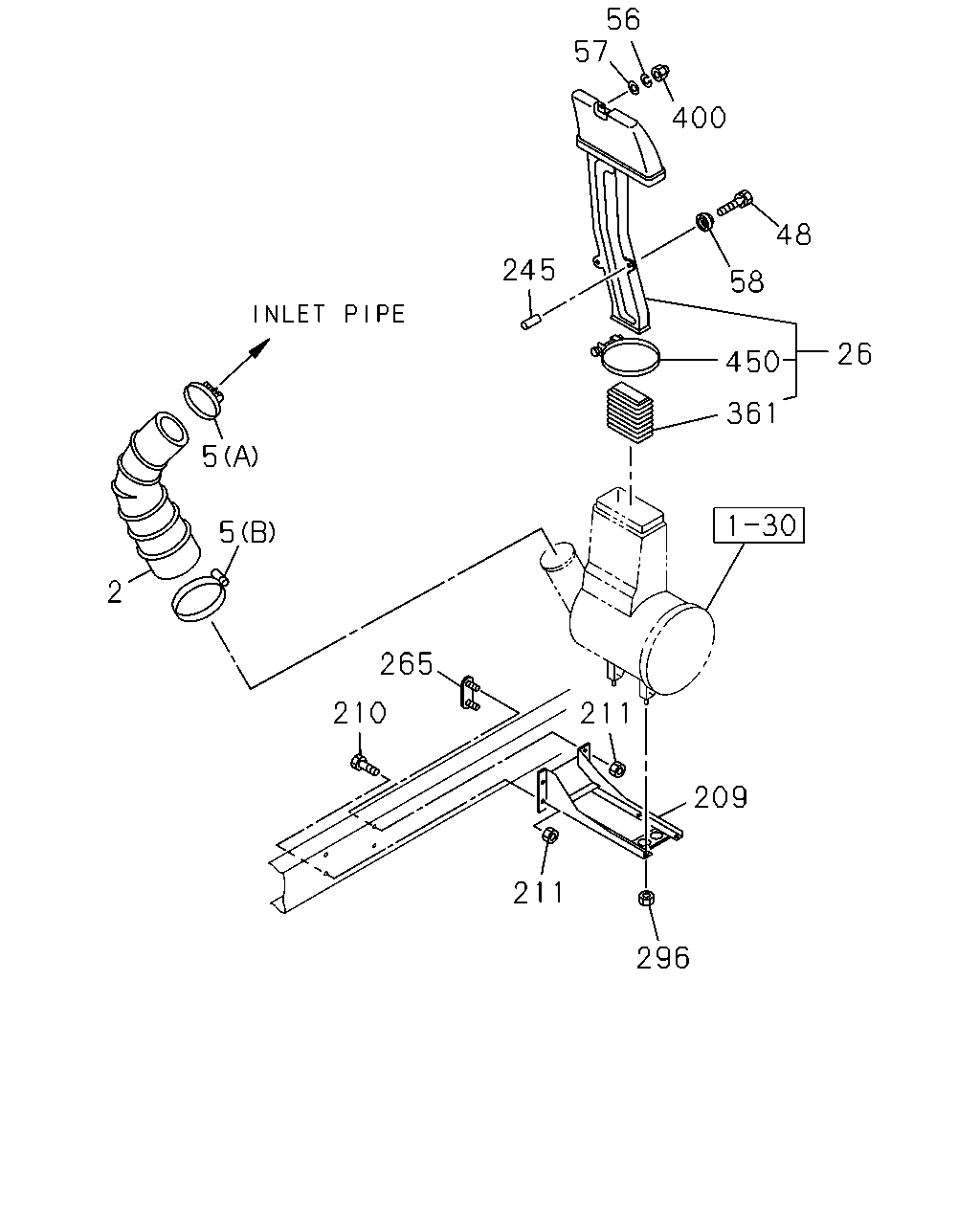

çizim 85065
56 57 400 48 245 58 26 450 361 5 5 2 265 210 211 209 211 296
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 1-14231-854-0 01 1 9811- ● ●
5 CLIP; AIR DUCT
(B) ID=130-150 		8-98133-360-0 01 1 0811- ●
5 CLIP; AIR DUCT
(A) ID=75-95 		8-98133-357-0 01 1 0811- ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9811-0306 ● ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-198-0 01 1 0307-0810 ● ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-198-0 01 1 0811- ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 9811-0306 ● ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0307-0810 ● ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0811- ●
26 DUCT; AIR INT 1-14230-173-2 01 1 9811- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 9811- ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 9811- ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811- ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 9811- ● ●
209 BRACKET; ACL 1-53497-525-0 01 1 9811- ● ●
210 BOLT; ACL BRKT
M12X35 FLANGE 		0-28681-235-0 02 1 9811-0512 ● ●
210 BOLT; ACL BRKT
M12X35 FLANGE 		0-28651-235-0 02 1 0601- ● ●
211 NUT; BRKT
M12 FLANGE 		0-91150-212-0 04 1 9811-0602 ● ●
211 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 9811- ● ●
265 BRACKET; STUD,ACL 1-53497-454-1 01 1 9811- ● ●
296 NUT; ACL
M8 FLANGE 		0-91150-108-0 04 1 9811-0602 ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-1 01 1 9811- ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 9811- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 9811- ● ●
