1-10 — RADIATOR (#24276) — 154 parça

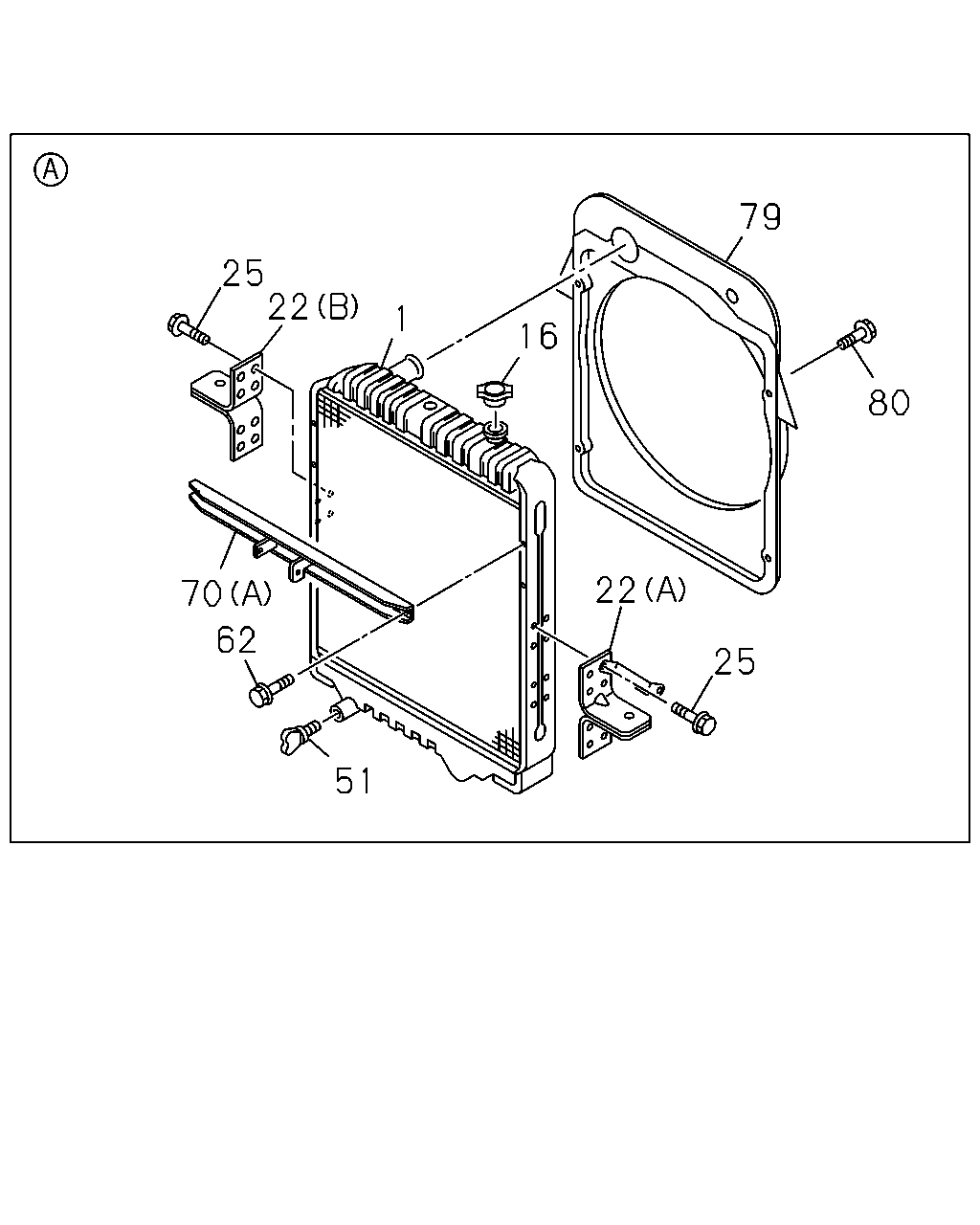

çizim 80196
79 25 22 1 16 80 22 70 62 25 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		8-98040-796-0 01 1 0512- ●
1 RADIATOR ASM 1-21410-675-1 01 1 9811-0511 ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 0512- ●
16 CAP; RAD 1-21450-142-0 01 1 0312-0511 ●
16 CAP; RAD 1-21450-142-0 01 1 0512- ● ●
16 CAP; RAD 1-21450-053-2 01 1 9811-0311 ● ●
16 CAP; RAD
EURO2 SPECIFICATION<THN> 		1-21450-053-1 01 1 0312-0511 ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (A) 		1-21464-361-0 01 1 0202- ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-548-0 01 1 0202- ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 9811-0101 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-673-0 01 1 0102-0201 ● ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (A) 		1-21464-673-0 01 1 0202-0203 ●
22 BRACKET; RAD MTG
(A) 		1-21464-673-0 01 1 0202-0203 ●
22 BRACKET; RAD MTG
(A) 		1-21464-673-0 01 1 0204- ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 9811-0101 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-681-0 01 1 0102-0201 ● ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-681-0 01 1 0202-0203 ●
22 BRACKET; RAD MTG
(B) 		1-21464-681-0 01 1 0202-0203 ●
22 BRACKET; RAD MTG
(B) 		1-21464-681-0 01 1 0204- ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9811- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9811- ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9811- ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9811-0511 ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0512- ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9811-0511 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0512- ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9811-0201 ● ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21522-069-0 01 1 0202-0203 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0202-0203 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0204- ●
79 GUIDE; FAN,RAD
EURO2 SPECIFICATION<THN> 		8-98040-798-0 01 1 0512- ●
79 GUIDE; FAN,RAD 1-21551-374-4 01 1 9811-0511 ● ●
79 GUIDE; FAN,RAD 1-21551-374-4 01 1 0512- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9811- ● ●

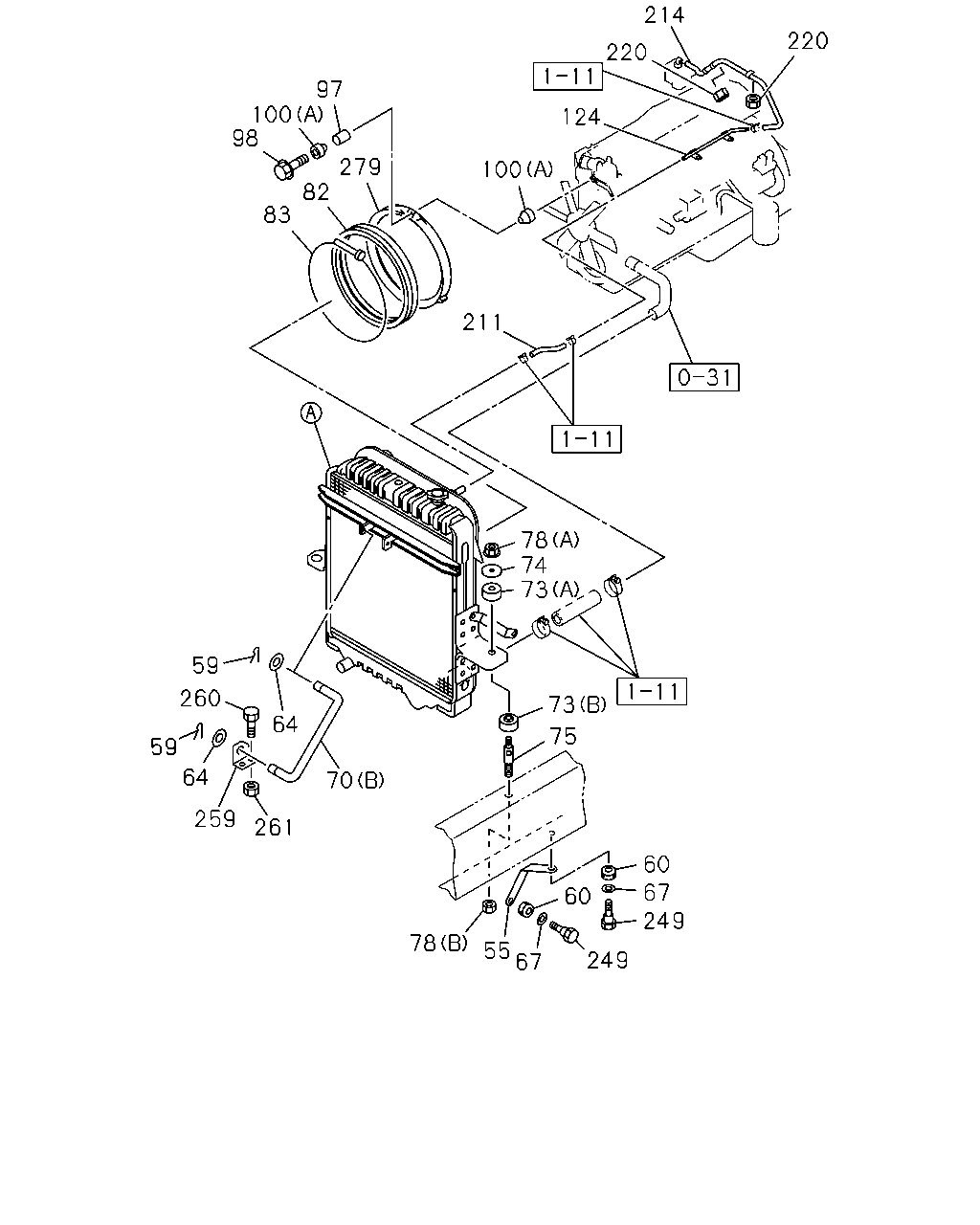

çizim 81709
214 220 220 97 100 98 124 279 100 82 83 211 78 74 73 59 260 73 64 75 59 64 70 259 261 60 67 249 60 78 55 67 249
BalonParca AdiParca NoAdetTipApplied Date A B
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-453-0 01 1 0202- ●
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-452-0 01 1 0202- ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9811-0201 ● ●
59 PIN; SNAP,STAY
EXC. EURO2 SPECIFICATION<THN> 		1-09987-158-1 02 1 0202-0203 ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0202-0203 ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0204- ●
60 GROMMET
EURO2 SPECIFICATION<THN> 		1-09332-117-0 04 1 0202- ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9811-0201 ● ●
64 WASHER; STAY TO RAD
EXC. EURO2 SPECIFICATION<THN> ID=12.5 		9-09160-512-0 02 1 0202-0203 ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0202-0203 ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0204-0605 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ●
67 WASHER; PL,STAY,RAD MBR
EURO2 SPECIFICATION<THN> ID=12.5 OD=26 		9-09160-612-0 04 1 0202-0605 ●
67 WASHER; PL,STAY,RAD MBR
EURO2 SPECIFICATION<THN> ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9811-0511 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0512- ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9811-0201 ● ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21522-069-0 01 1 0202-0203 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0202-0203 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0204- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9811- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9811- ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9811- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 9811- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9811-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9811- ● ●
82 COVER; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21559-321-0 01 1 0202- ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9811-0201 ● ●
82 COVER; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21559-211-0 01 1 0202-0203 ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 0202-0203 ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 0204- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9811- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9811- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9811-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9811-9902 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9903-0203 ● ●
100 RUBBER; MTG
HEAVY DUTY P/S OIL PUMP<E1N> (B) 		8-94394-268-1 01 1 0204-0910 ●
100 RUBBER; MTG
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> (B) 		8-94394-268-1 01 1 0204-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9811- ● ●
124 PIPE; WATER,TANK TO RAD 8-94394-422-0 01 1 9811-0201 ●
124 PIPE; WATER,TANK TO RAD
EXC. EURO2 SPECIFICATION<THN> 		8-94394-422-0 01 1 0202-0203 ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 9903-0201 ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 0202- ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9811-0103 ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0104- ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9811-0103 ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0104- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9811-9902 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9811-9902 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9903-0201 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9903-0201 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0202-0203 ● ●
220 NUT; CLIP
EXC. EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 02 1 0202-0203 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0202-0203 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ● ●
220 NUT; CLIP
HEAVY DUTY P/S OIL PUMP<E1N> M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ●
220 NUT; CLIP
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
220 NUT; CLIP
HEAVY DUTY P/S OIL PUMP<E1N> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
220 NUT; CLIP
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
220 NUT; CLIP
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 03 1 0202-0602 ●
220 NUT; CLIP
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 03 1 0603- ●
249 BOLT; STAY,RAD MBR
EURO2 SPECIFICATION<THN> M8X30 		1-09009-020-1 02 1 0202- ●
249 BOLT; STAY,RAD MBR
EURO2 SPECIFICATION<THN> M8X22 		1-09009-123-0 02 1 0202- ●
259 BRACKET; RAD STAY 1-21523-025-0 01 1 9811-0101 ● ●
259 BRACKET; RAD STAY 1-21523-028-0 01 1 0102-0201 ● ●
259 BRACKET; RAD STAY
EXC. EURO2 SPECIFICATION<THN> 		1-21523-028-0 01 1 0202-0203 ●
259 BRACKET; RAD STAY 1-21523-028-0 01 1 0202-0203 ●
259 BRACKET; RAD STAY 1-21523-028-0 01 1 0204- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0201 ● ●
260 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 0202-0203 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0202-0203 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9811-0201 ● ●
261 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 02 1 0202-0203 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0202-0203 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
279 BELL MOUTH
EURO2 SPECIFICATION<THN> 		8-94393-779-1 01 1 0202- ●
279 BELL MOUTH 8-94394-174-1 01 1 9811-0201 ● ●
279 BELL MOUTH
EXC. EURO2 SPECIFICATION<THN> 		8-94394-174-1 01 1 0202-0203 ●
279 BELL MOUTH 8-94394-174-1 01 1 0202-0203 ●
279 BELL MOUTH 8-94394-174-1 01 1 0204- ●

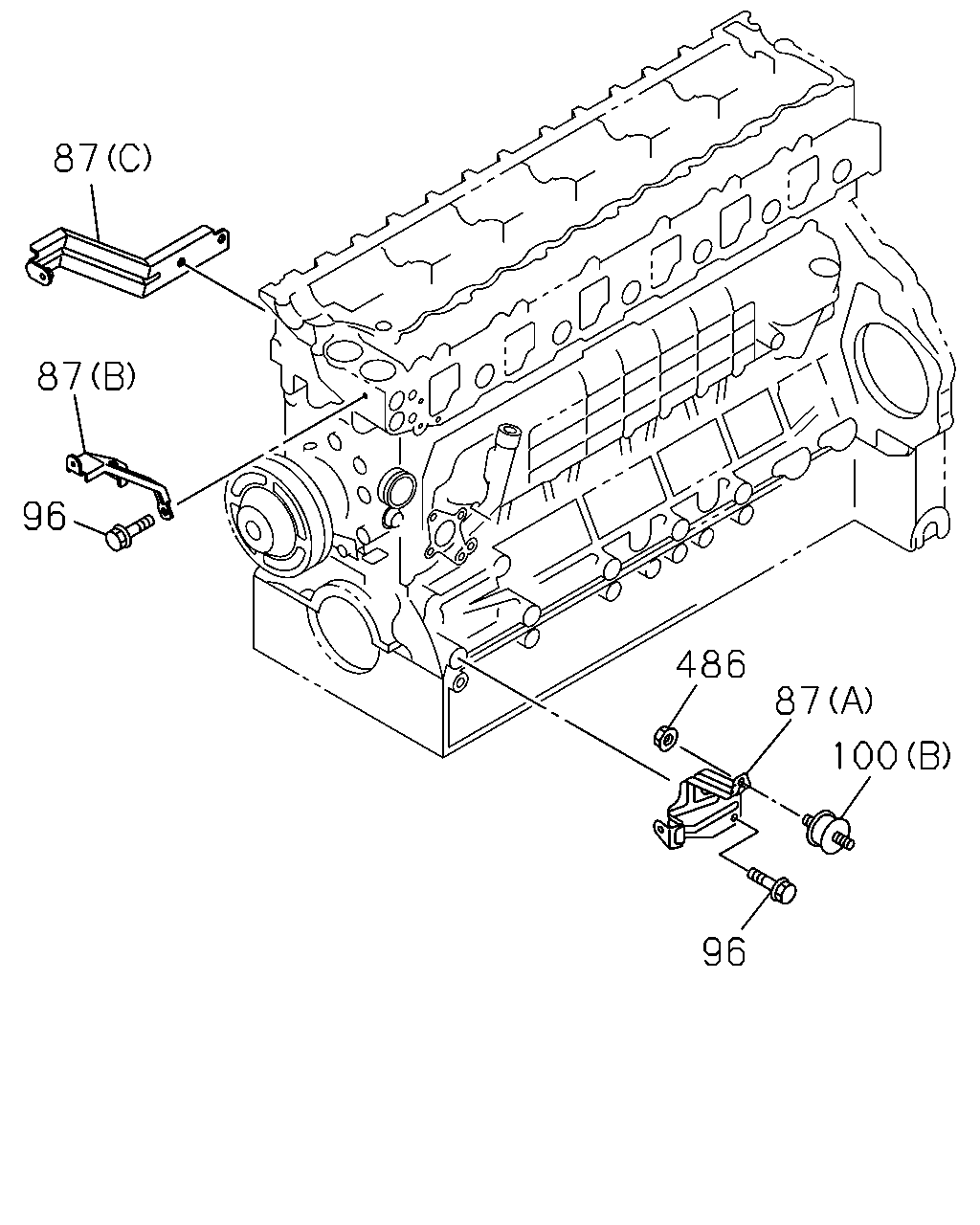

çizim 82456
87 87 96 486 87 100 96
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9811-9902 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9903-0201 ● ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94393-119-2 01 1 0202-0203 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 0202-0203 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 0204- ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9811-9902 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9903-0201 ● ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94393-726-0 01 1 0202-0203 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 0202-0203 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 0204- ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 9811-9902 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 9903-0201 ● ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-263-2 01 1 0202-0203 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 0202-0203 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 0204- ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (B) 		8-94393-776-0 01 1 0202-0203 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0204- ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (A) 		8-94393-778-2 01 1 0202-0203 ●
87 STAY; FAN GUIDE
(A) 		8-94393-778-2 01 1 0204- ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (C) 		8-97601-850-0 01 1 0202-0203 ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0204- ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9811-9902 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9903-0512 ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9811-9902 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9903-0203 ● ●
100 RUBBER; MTG
HEAVY DUTY P/S OIL PUMP<E1N> (B) 		8-94394-268-1 01 1 0204-0910 ●
100 RUBBER; MTG
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> (B) 		8-94394-268-1 01 1 0204-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9811- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9811-9902 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9903-0602 ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
