1-01 — ACCELERATOR PEDAL AND CONTROL (#24275) — 176 parça

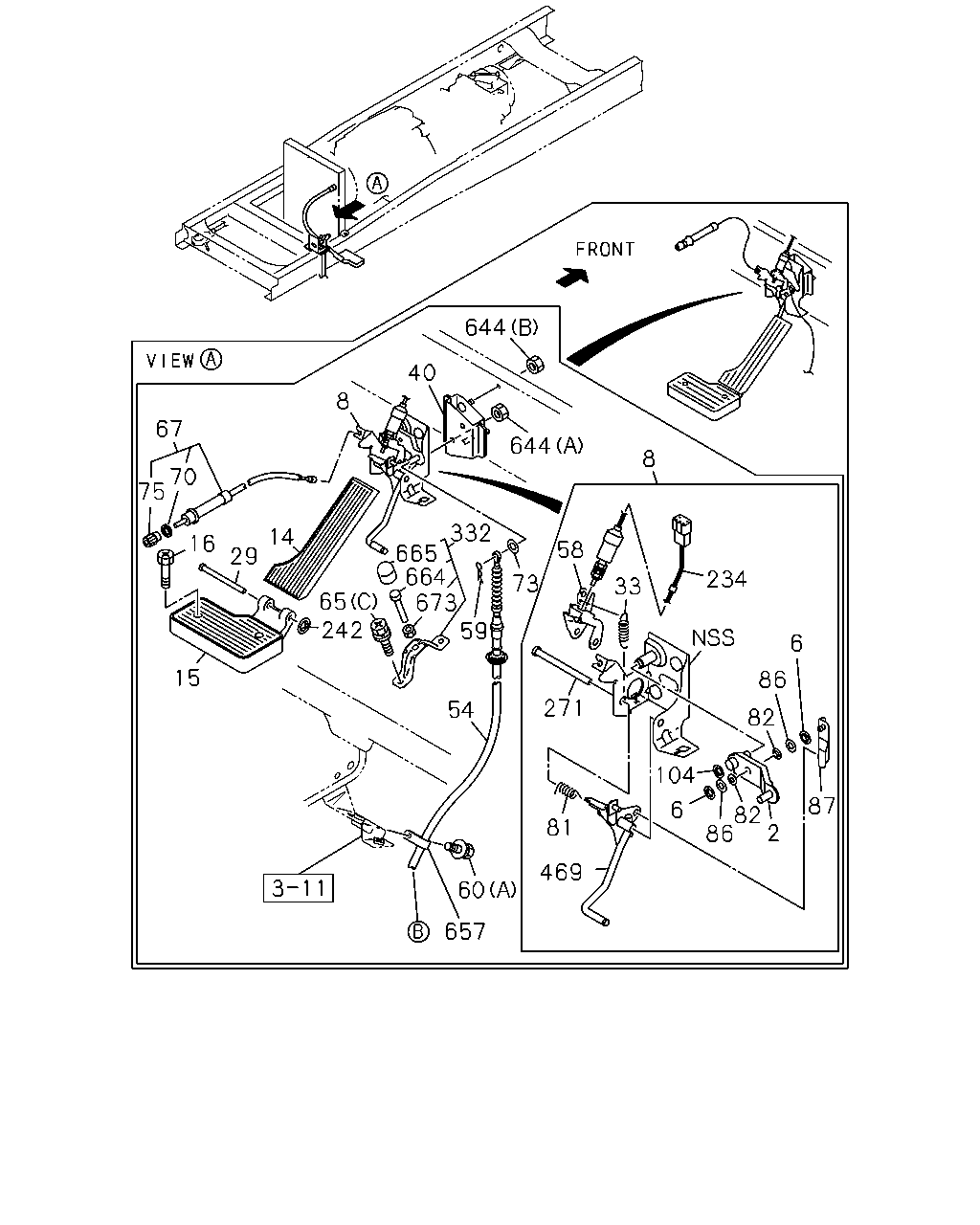

644 40 8 67 644 8 70 75 332 14 16 58 665 664 673 59 29 234 73 33 65 242 6 15 86 271 54 82 104 87 6 82 81 469 60 657 2 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-71907-210-2	01	1	9811-	●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	9811-0604	●	●
6	RING; SNAP,LINK TO LINK ID=4	0-91805-504-0	02	1	0605-	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9811-	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9811-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	9811-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9811-9812	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9901-	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9811-	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9811-	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	9811-	●	●
54	CABLE; ENG CONT L=2259	1-23230-227-0	01	1	9811-0201	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> L=2259	1-23230-227-0	01	1	0202-0203	●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	9903-0201		●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=2306.5	1-23230-260-0	01	1	0202-0203	●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	0202-0203		●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	0204-	●
54	CABLE; ENG CONT BUS BODY FRONT OVERHANG VAR1<YK9> L=2306.5	1-23230-260-0	01	1	0204-		●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9811-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9811-	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9811-0201	●	●
60	BOLT; CABLE EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28080-820-0	01	1	0202-0203	●
60	BOLT; CABLE (B) M8X20 FLANGE	0-28080-820-0	01	1	0204-0512	●
60	BOLT; CABLE (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0202-0904	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0905-	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9811-9902	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9903-0512	●	●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9811-9902	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9903-0512	●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9811-0204	●	●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-0	01	1	0205-	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9811-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9811-0605	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9811-0109	●	●
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0110-0204	●	●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0205-	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9811-	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9811-	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9811-	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9811-	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9811-	●	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	9811-	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9811-	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9811-	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9811-	●	●
469	LEVER ASM	1-71907-209-5	01	1	9811-	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9811-	●	●
657	CLIP; ENG CONT CABLE D=18 H=30	1-09701-028-0	01	1	9811-0203	●	●
657	CLIP; ENG CONT CABLE EURO2 SPECIFICATION<THN> D=18 H=30	1-09701-028-0	01	1	0204-	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9811-	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9811-	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9811-0512	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●

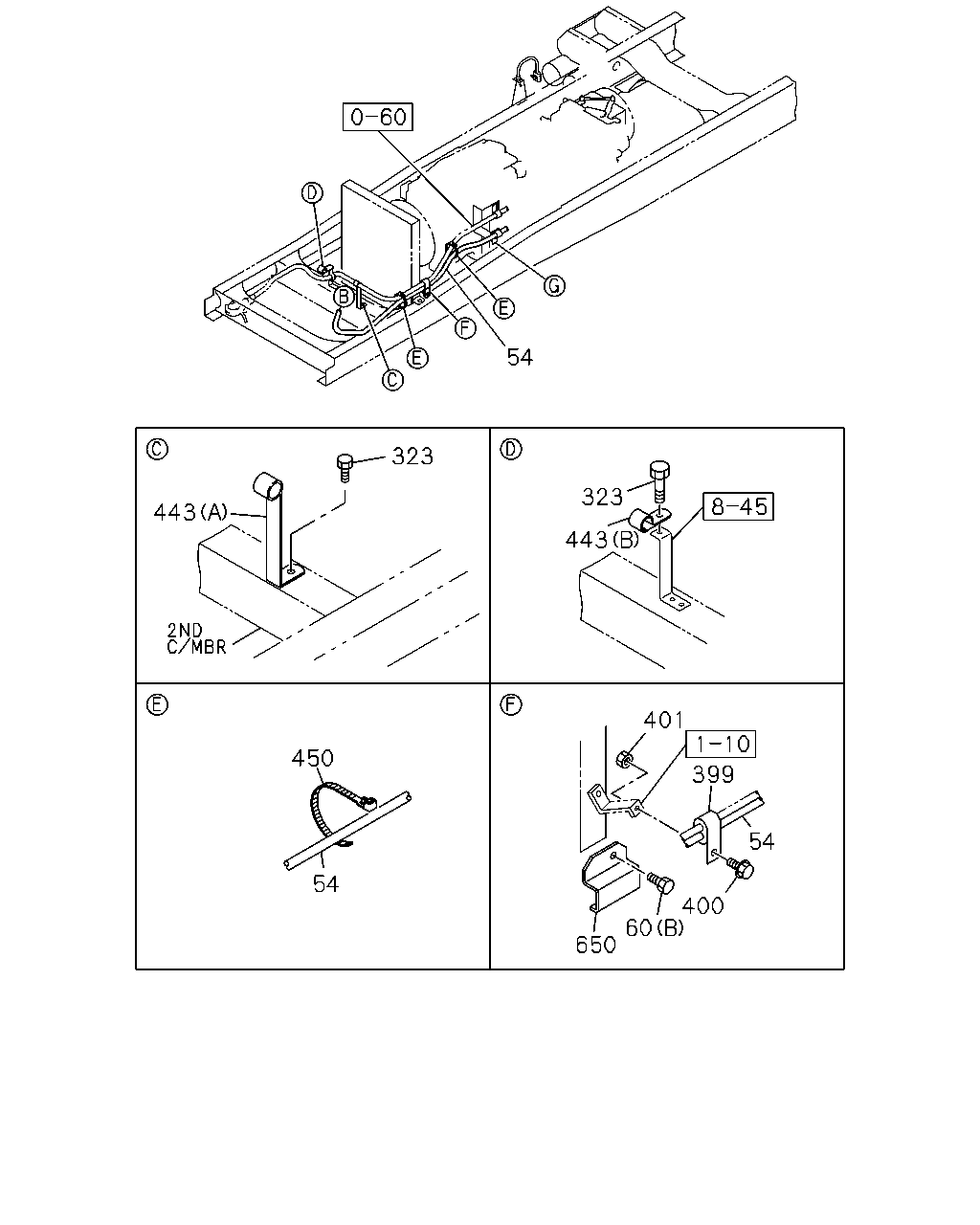

54 323 323 443 443 401 450 399 54 54 400 60 650

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT L=2259	1-23230-227-0	01	1	9811-0201	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> L=2259	1-23230-227-0	01	1	0202-0203	●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	9903-0201		●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=2306.5	1-23230-260-0	01	1	0202-0203	●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	0202-0203		●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	0204-	●
54	CABLE; ENG CONT BUS BODY FRONT OVERHANG VAR1<YK9> L=2306.5	1-23230-260-0	01	1	0204-		●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9811-0201	●	●
60	BOLT; CABLE EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28080-820-0	01	1	0202-0203	●
60	BOLT; CABLE (B) M8X20 FLANGE	0-28080-820-0	01	1	0204-0512	●
60	BOLT; CABLE (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0202-0904	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0905-	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-9902	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9903-0512	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9903-0512	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	9811-	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	9811-0512	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	9811-0602	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
443	CLIP; CABLE (A)	8-94107-647-0	01	1	9811-	●	●
443	CLIP; CABLE (B) ID=7 L=20	9-09524-635-0	01	1	9811-0606	●	●
443	CLIP; CABLE (B) ID=7 L=20	0-95234-635-0	01	1	0607-	●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	9811-	●	●
650	PROTECTOR; ACCEL CABLE EURO2 SPECIFICATION<THN>	1-47478-691-0	01	1	0202-0203	●
650	PROTECTOR; ACCEL CABLE	1-47478-691-0	01	1	0204-	●

74 54 57 63 64 63 149 149 65 65 65 65 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT L=2259	1-23230-227-0	01	1	9811-0201	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> L=2259	1-23230-227-0	01	1	0202-0203	●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	9903-0201		●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=2306.5	1-23230-260-0	01	1	0202-0203	●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	0202-0203		●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	0204-	●
54	CABLE; ENG CONT BUS BODY FRONT OVERHANG VAR1<YK9> L=2306.5	1-23230-260-0	01	1	0204-		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9811-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9811-0605	●	●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9811-9902	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9903-0103	●	●
63	NUT; LOCK,BRKT BUS BODY FRONT OVERHANG VAR1<YK9> M8	9-09111-408-0	02	1	0104-0203	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0204-	●
63	NUT; LOCK,BRKT BUS BODY FRONT OVERHANG VAR1<YK9> M8	9-09111-408-0	02	1	0204-		●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9811-9902	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9903-0103	●	●
64	BRACKET; ENG CONT CABLE BUS BODY FRONT OVERHANG VAR1<YK9>	1-23219-105-1	01	1	0104-0203	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0204-	●
64	BRACKET; ENG CONT CABLE BUS BODY FRONT OVERHANG VAR1<YK9>	1-23219-105-1	01	1	0204-		●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9811-9902	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9903-0512	●	●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9811-9902	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9903-0512	●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9811-	●	●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0204-	●	●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	9811-0201	●
149	BRACKET; ENG CONT EXC. EURO2 SPECIFICATION<THN> (A)	8-94390-006-2	01	1	0202-0203	●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0202-0203	●
149	BRACKET; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)	8-94394-532-1	01	1	0202-0203		●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	9903-9905		●
149	BRACKET; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)	8-94394-532-1	01	1	9906-0201		●
149	BRACKET; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-94392-784-0	01	1	9906-		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9811-0605	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●

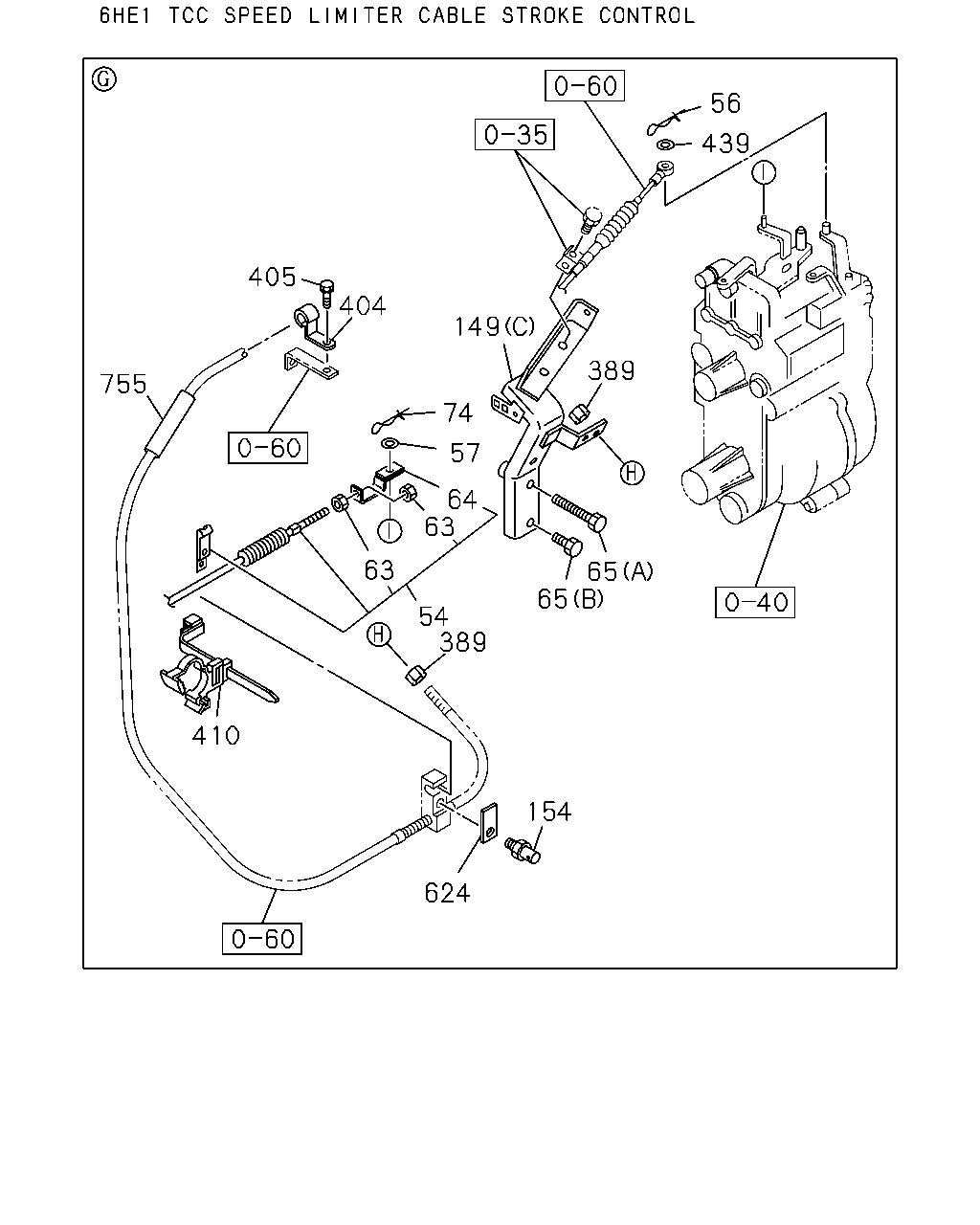

56 439 405 404 149 389 755 74 57 64 63 63 65 65 54 389 410 154 624

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT L=2259	1-23230-227-0	01	1	9811-0201	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> L=2259	1-23230-227-0	01	1	0202-0203	●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	9903-0201		●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=2306.5	1-23230-260-0	01	1	0202-0203	●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	0202-0203		●
54	CABLE; ENG CONT L=2306.5	1-23230-260-0	01	1	0204-	●
54	CABLE; ENG CONT BUS BODY FRONT OVERHANG VAR1<YK9> L=2306.5	1-23230-260-0	01	1	0204-		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9811-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9811-0605	●	●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9811-9902	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9903-0103	●	●
63	NUT; LOCK,BRKT BUS BODY FRONT OVERHANG VAR1<YK9> M8	9-09111-408-0	02	1	0104-0203	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0204-	●
63	NUT; LOCK,BRKT BUS BODY FRONT OVERHANG VAR1<YK9> M8	9-09111-408-0	02	1	0204-		●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9811-9902	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9903-0103	●	●
64	BRACKET; ENG CONT CABLE BUS BODY FRONT OVERHANG VAR1<YK9>	1-23219-105-1	01	1	0104-0203	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0204-	●
64	BRACKET; ENG CONT CABLE BUS BODY FRONT OVERHANG VAR1<YK9>	1-23219-105-1	01	1	0204-		●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9811-9902	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9903-0512	●	●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9811-9902	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9903-0512	●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9811-	●	●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0204-	●	●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	9811-0201	●
149	BRACKET; ENG CONT EXC. EURO2 SPECIFICATION<THN> (A)	8-94390-006-2	01	1	0202-0203	●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0202-0203	●
149	BRACKET; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)	8-94394-532-1	01	1	0202-0203		●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	9903-9905		●
149	BRACKET; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)	8-94394-532-1	01	1	9906-0201		●
149	BRACKET; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-94392-784-0	01	1	9906-		●
154	BOLT; CABLE BRKT SPEED LIMITER CABLE STROKE CONTROL<TDT>	9-23321-272-0	01	1	9906-		●
389	NUT; ACCEL CONT CABLE FIX SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91150-106-0	02	1	9906-0602		●
389	NUT; ACCEL CONT CABLE FIX SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91180-106-0	02	1	0603-		●
404	CLIP; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=18 L=25 H=50	1-09701-096-0	01	1	9906-		●
405	BOLT; CABLE CLIP SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE	0-28080-816-0	01	1	9906-0512		●
405	BOLT; CABLE CLIP SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
410	CLIP; BAND SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-09707-187-0	03	1	9906-		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9811-0605	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●
624	PLATE; CONT LINK SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-47477-576-0	01	1	9906-		●

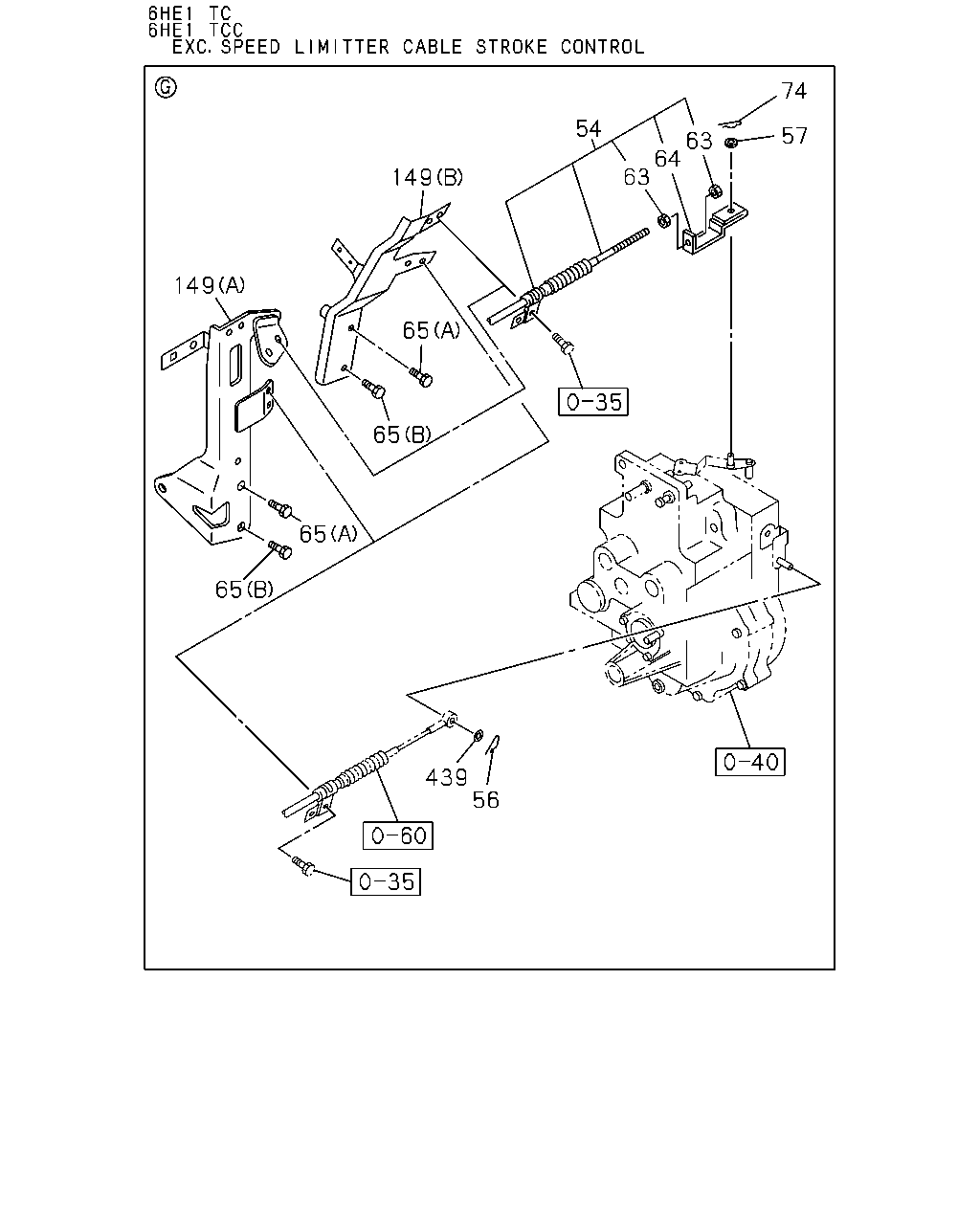

755	SLEEVE; RUBBER,CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=29 OD=39 L=40	1-09337-013-0	02	1	9906-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
