0-87 — COUPLING; INJECTION PUMP (#24274) — 146 parça

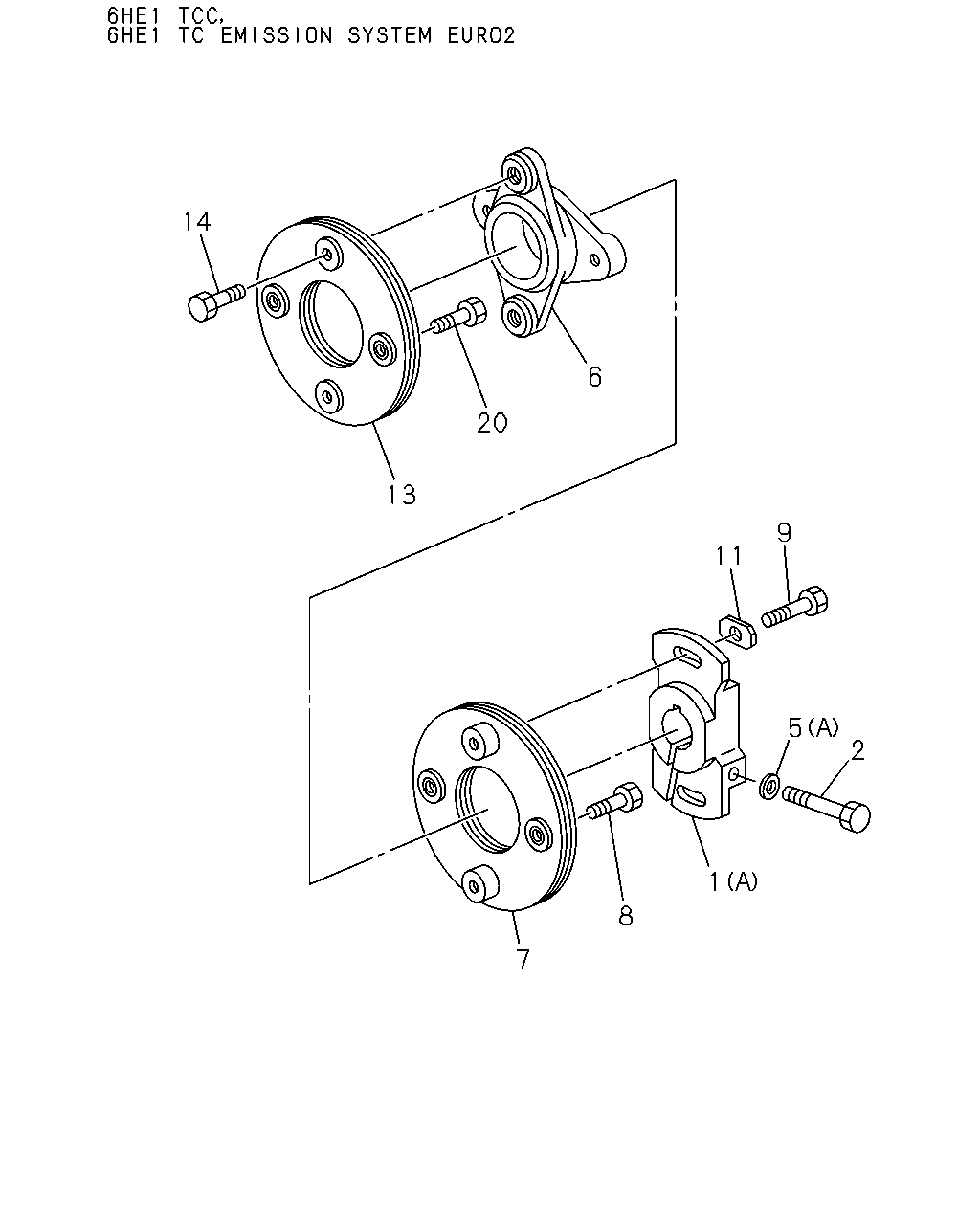

çizim 23117
14 6 20 13 11 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-019-0 01 1 9811-0201 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (C) 		1-15782-019-0 01 1 0202-0203 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9903-0201 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0202-0203 ● ●
1 COUPLING; INJ PUMP DRIVE
HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-15781-031-0 01 1 0204- ●
1 COUPLING; INJ PUMP DRIVE
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> (B) 		1-15781-031-0 01 1 0204- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9903-0201 ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (A) 		1-15781-041-0 01 1 0202-0203 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0202-0203 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0204- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9811-0201 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 0202-0203 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9903-0201 ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-162-0 01 1 0202-0203 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0202-0203 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0204- ● ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9903-0201 ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0202-0203 ● ●
5 WASHER; COUPLING FIX,INJ PUMP
HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-15619-131-0 01 1 0204- ●
5 WASHER; COUPLING FIX,INJ PUMP
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> (B) 		1-15619-131-0 01 1 0204- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9903-0201 ●
5 WASHER; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> (A) 		1-15789-021-0 01 1 0202-0203 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0202-0203 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0204- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9811-0201 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 0202-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9903-0201 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0202-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0202-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0204- ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9811-0201 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0202-0203 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9903-0201 ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-189-1 01 1 0202-0203 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0202-0203 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0204- ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9811-0201 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0202-0203 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9903-0201 ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 0202-0203 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0202-0203 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0204- ● ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 9903-0201 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-188-0 02 1 0202-0203 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 0202-0203 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 0204- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9811-0201 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0202-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9903-0201 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-181-0 01 1 0202-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0202-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0204- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9811-0201 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0202-0203 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9903-0201 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 0202-0203 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0202-0203 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0204- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9811-0201 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0202-0203 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9903-0201 ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 0202-0203 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0202-0203 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0204- ● ●
çizim 23596
5 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-019-0 01 1 9811-0201 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (C) 		1-15782-019-0 01 1 0202-0203 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9903-0201 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0202-0203 ● ●
1 COUPLING; INJ PUMP DRIVE
HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-15781-031-0 01 1 0204- ●
1 COUPLING; INJ PUMP DRIVE
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> (B) 		1-15781-031-0 01 1 0204- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9903-0201 ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (A) 		1-15781-041-0 01 1 0202-0203 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0202-0203 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0204- ● ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 9903-0201 ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 0202-0203 ● ●
3 NUT; COUPLING FIX,INJ PUMP
HEAVY DUTY P/S OIL PUMP<E1N> 		1-15619-132-0 01 1 0204- ●
3 NUT; COUPLING FIX,INJ PUMP
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> 		1-15619-132-0 01 1 0204- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9903-0201 ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0202-0203 ● ●
5 WASHER; COUPLING FIX,INJ PUMP
HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-15619-131-0 01 1 0204- ●
5 WASHER; COUPLING FIX,INJ PUMP
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> (B) 		1-15619-131-0 01 1 0204- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9903-0201 ●
5 WASHER; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> (A) 		1-15789-021-0 01 1 0202-0203 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0202-0203 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0204- ● ●

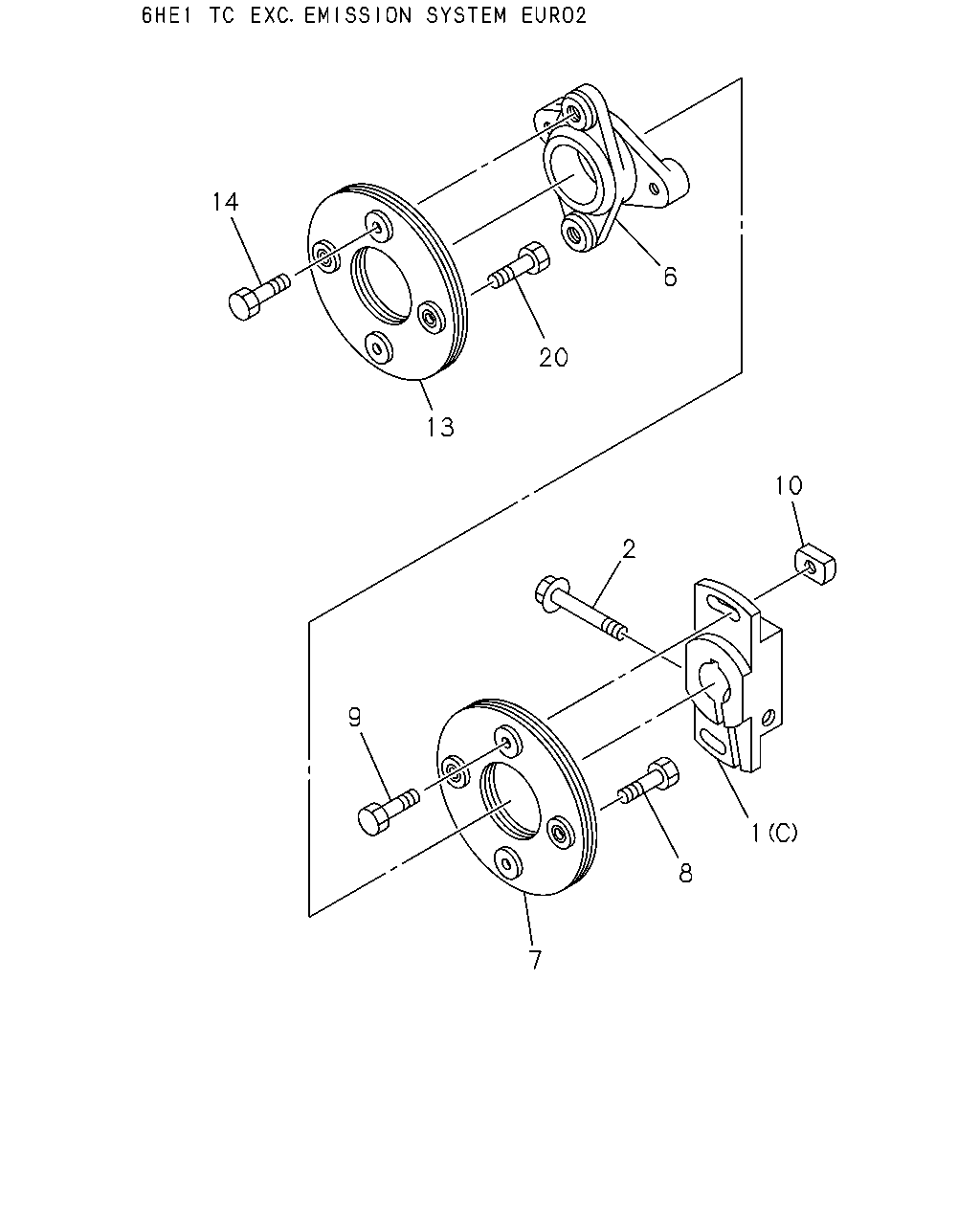

çizim 24580
14 6 20 13 10 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-019-0 01 1 9811-0201 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (C) 		1-15782-019-0 01 1 0202-0203 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9903-0201 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0202-0203 ● ●
1 COUPLING; INJ PUMP DRIVE
HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-15781-031-0 01 1 0204- ●
1 COUPLING; INJ PUMP DRIVE
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> (B) 		1-15781-031-0 01 1 0204- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9903-0201 ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (A) 		1-15781-041-0 01 1 0202-0203 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0202-0203 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0204- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9811-0201 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 0202-0203 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9903-0201 ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-162-0 01 1 0202-0203 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0202-0203 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0204- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9811-0201 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 0202-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9903-0201 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0202-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0202-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0204- ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9811-0201 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0202-0203 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9903-0201 ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-189-1 01 1 0202-0203 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0202-0203 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0204- ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9811-0201 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0202-0203 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9903-0201 ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 0202-0203 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0202-0203 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0204- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9811-0201 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 0202-0203 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9903-0201 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-163-0 02 1 0202-0203 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0202-0203 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0204- ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9811-0201 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 0202-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9811-0201 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0202-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9903-0201 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-181-0 01 1 0202-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0202-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0204- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9811-0201 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0202-0203 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9903-0201 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 0202-0203 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0202-0203 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0204- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9811-0201 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0202-0203 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9903-0201 ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 0202-0203 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0202-0203 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0204- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
