1 |

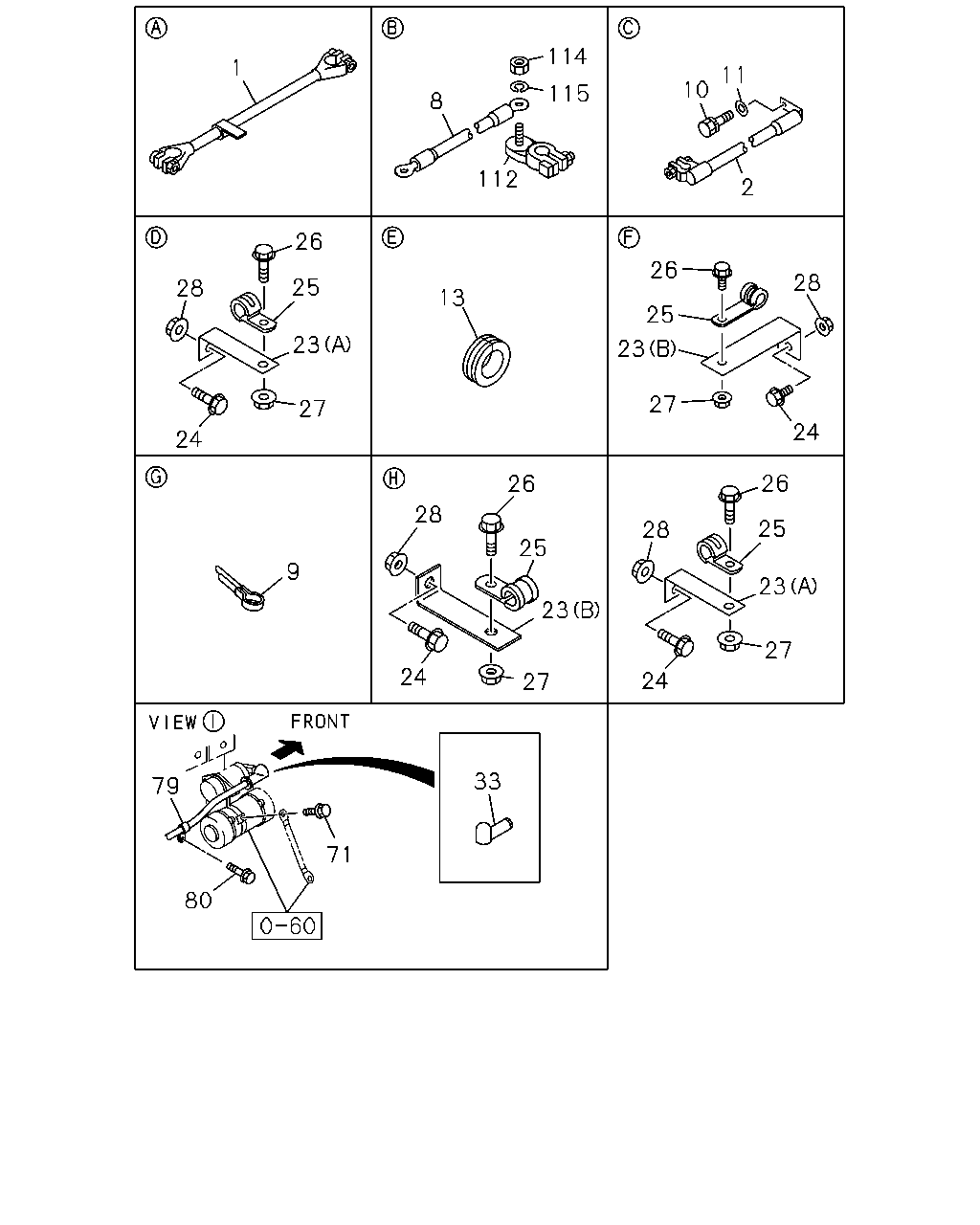

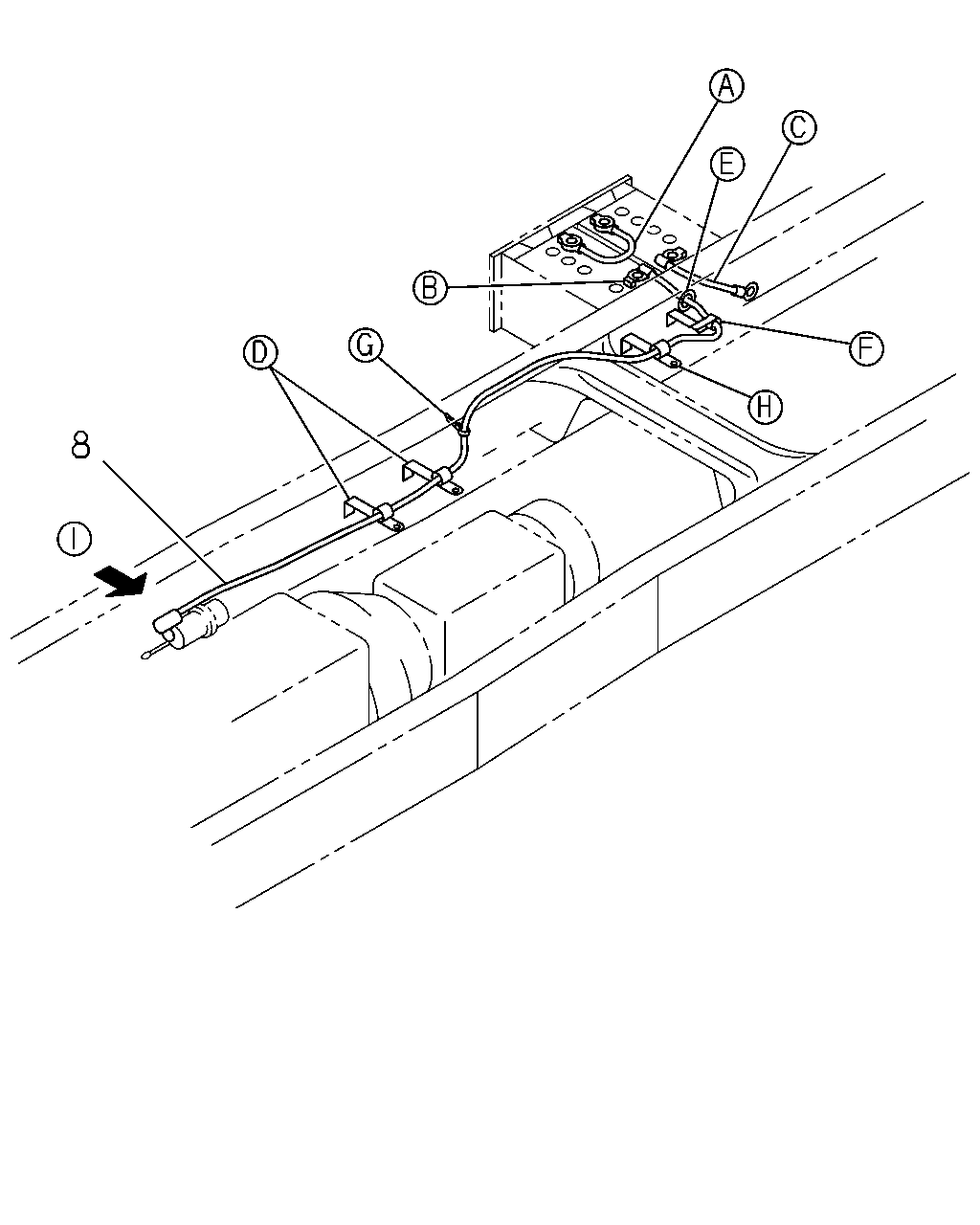

CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=280
|
8-97230-719-2 |
01 |
1 |
0801- |
● |
|
| |
1 |
CABLE; BATTERY
EURO2 SPECIFICATION<THN>
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
<+> TO <->
L=180
|
1-82650-265-0 |
01 |
1 |
0202-0203 |
● |
|
| |
1 |
CABLE; BATTERY
EXC. EURO2 SPECIFICATION<THN>
<+> TO <->
L=180
|
1-82650-265-0 |
01 |
1 |
0202-0203 |
● |
|
| |
1 |
CABLE; BATTERY
<+> TO <->
L=180
|
1-82650-265-0 |
01 |
1 |
0202-0203 |
|
● |
| |
1 |
CABLE; BATTERY
<+> TO <->
L=180
|
1-82650-265-0 |
01 |
1 |
0204- |
|
● |
| |
1 |
CABLE; BATTERY
<+> TO <->
L=180
|
1-82650-265-0 |
01 |
1 |
9811-0201 |
● |
● |
| |
1 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
<+> TO <->
L=450
|
1-82650-281-2 |
01 |
1 |
0202-0711 |
● |
|
| |
1 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
L=500
|
8-97623-077-0 |
01 |
1 |
0712- |
● |
|
| |
2 |
CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
<-> TO FRAME
L=185
|
8-97623-075-0 |
01 |
1 |
0712- |
● |
|
| |
2 |
CABLE; BATTERY
EURO2 SPECIFICATION<THN>
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
<-> TO FRAME
L=185
|
1-82650-067-2 |
01 |
1 |
0202-0203 |
● |
|
| |
2 |
CABLE; BATTERY
EXC. EURO2 SPECIFICATION<THN>
<-> TO FRAME
L=185
|
1-82650-067-2 |
01 |
1 |
0202-0203 |
● |
|
| |
2 |
CABLE; BATTERY
<-> TO FRAME
L=185
|
1-82650-067-2 |
01 |
1 |
0202-0203 |
|
● |
| |
2 |
CABLE; BATTERY
<-> TO FRAME
L=185
|
1-82650-067-2 |
01 |
1 |
9811-0201 |
● |
● |
| |
2 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
<-> TO FRAME
L=380
|
9-82932-713-3 |
01 |
1 |
0202-0508 |
● |
|
| |
2 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
<-> TO FRAME
L=380
|
8-97604-629-1 |
01 |
1 |
0509- |
● |
|
| |
2 |
CABLE; BATTERY
<-> TO FRAME
L=185
|
1-82650-067-3 |
01 |
1 |
0204- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EURO2 SPECIFICATION<THN>
<+> TO STARTER
L=1350
|
1-82650-367-0 |
01 |
1 |
0202- |
● |
|
| |
8 |
CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
<+> TO STARTER
L=1450
|
1-82650-217-1 |
01 |
1 |
0202- |
● |
|
| |
8 |
CABLE; BATTERY,STARTER
<+> TO STARTER
L=2250
|
1-82650-261-1 |
01 |
1 |
9811-0201 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
EXC. EURO2 SPECIFICATION<THN>
<+> TO STARTER
L=2250
|
1-82650-261-1 |
01 |
1 |
0202-0203 |
● |
|
| |
8 |
CABLE; BATTERY,STARTER
<+> TO STARTER
L=2250
|
1-82650-261-1 |
01 |
1 |
0202-0203 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
<+> TO STARTER
L=2250
|
1-82650-261-1 |
01 |
1 |
0204- |
|
● |
| |
9 |
CLIP; BATTERY CABLE
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9811-0201 |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
EXC. EURO2 SPECIFICATION<THN>
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
0202-0203 |
● |
|
| |
9 |
CLIP; BATTERY CABLE
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
0202-0203 |
|
● |
| |
9 |
CLIP; BATTERY CABLE
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
0204- |
|
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
EURO2 SPECIFICATION<THN>
M10X25 W/LK&PL WASHER
|
8-97087-205-0 |
01 |
1 |
0202-0203 |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER
|
8-97087-205-0 |
01 |
1 |
0204-1201 |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X20 W/PL WASHER
|
8-98164-838-0 |
01 |
1 |
1202- |
|
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X30 W/LK&PL WASHER
|
8-97087-206-0 |
01 |
1 |
9811-0201 |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. EURO2 SPECIFICATION<THN>
M10X30 W/LK&PL WASHER
|
8-97087-206-0 |
01 |
1 |
0202-0203 |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X30 W/LK&PL WASHER
|
8-97087-206-0 |
01 |
1 |
0202-0203 |
|
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X30 W/LK&PL WASHER
|
8-97087-206-0 |
01 |
1 |
0204- |
|
● |
| |
11 |
WASHER; BATTERY CABLE EARTH
EURO2 SPECIFICATION<THN>
ID=10.5 OD=22 T=2.0
|
1-09503-265-0 |
01 |
1 |
0202-0203 |
● |
|
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0
|
1-09503-265-0 |
01 |
1 |
0204- |
● |
|
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22
|
9-09160-610-0 |
01 |
1 |
9811-0201 |
● |
● |
| |
11 |
WASHER; BATTERY CABLE EARTH
EXC. EURO2 SPECIFICATION<THN>
ID=10.5 OD=22
|
9-09160-610-0 |
01 |
1 |
0202-0203 |
● |
|
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22
|
9-09160-610-0 |
01 |
1 |
0202-0203 |
|
● |
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22
|
9-09160-610-0 |
01 |
1 |
0204-0605 |
|
● |
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
01 |
1 |
0606- |
● |
|
| |
13 |
GROMMET; BATTERY CABLE
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
9811- |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EURO2 SPECIFICATION<THN>
(A)
L=95
|
1-82699-085-0 |
03 |
1 |
0202- |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(B)
L=145
|
1-47475-655-0 |
01 |
1 |
9811-0201 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(B)
L=145
|
1-47475-655-0 |
01 |
1 |
9811-0201 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
EXC. EURO2 SPECIFICATION<THN>
(B)
L=145
|
1-47475-655-0 |
01 |
1 |
0202-0203 |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
EXC. EURO2 SPECIFICATION<THN>
(B)
L=145
|
1-47475-655-0 |
01 |
1 |
0202-0203 |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(B)
L=145
|
1-47475-655-0 |
01 |
1 |
0202-0203 |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(B)
L=145
|
1-47475-655-0 |
01 |
1 |
0204- |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(A)
L=95
|
1-82699-085-0 |
02 |
1 |
9811-0201 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
EXC. EURO2 SPECIFICATION<THN>
(A)
L=95
|
1-82699-085-0 |
02 |
1 |
0202-0203 |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
(A)
L=95
|
1-82699-085-0 |
02 |
1 |
0202-0203 |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(A)
L=95
|
1-82699-085-0 |
02 |
1 |
0202-0203 |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
(A)
L=95
|
1-82699-085-0 |
02 |
1 |
0204- |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(A)
L=95
|
1-82699-085-0 |
02 |
1 |
0204- |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EURO2 SPECIFICATION<THN>
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
0202-0512 |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EURO2 SPECIFICATION<THN>
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0601- |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0202-0512 |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
9811-0201 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
EXC. EURO2 SPECIFICATION<THN>
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0202-0203 |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0202-0203 |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0204-0512 |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
ID=15 L=28
|
1-09701-216-0 |
02 |
1 |
0202- |
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
9811-0201 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
EXC. EURO2 SPECIFICATION<THN>
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0202-0203 |
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0202-0203 |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0204- |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
9811-0201 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
EXC. EURO2 SPECIFICATION<THN>
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
0202-0203 |
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EURO2 SPECIFICATION<THN>
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
0202-0203 |
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
0202-0203 |
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
0204- |
|
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EURO2 SPECIFICATION<THN>
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
0202-0512 |
● |
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EURO2 SPECIFICATION<THN>
M8X25 FLANGE
|
0-28650-825-0 |
03 |
1 |
0601- |
● |
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0202-0512 |
● |
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9811-0201 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
EXC. EURO2 SPECIFICATION<THN>
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0202-0203 |
● |
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0202-0203 |
|
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0204-0512 |
|
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601- |
|
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0202-0602 |
● |
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
● |
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0202-0602 |
● |
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9811-0201 |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
EXC. EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0202-0203 |
● |
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0202-0203 |
|
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0204-0602 |
|
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
● |
| |
28 |
NUT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0202-0602 |
● |
|
| |
28 |
NUT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
● |
|
| |
28 |
NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0202-0602 |
● |
|
| |
28 |
NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,EURO2 SPECIFICATION<THN>,
BATTERY 115E41R NS120<W73>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9811-0201 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
EXC. EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0202-0203 |
● |
|
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0202-0203 |
|
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0204-0602 |
|
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
● |
| |
33 |
CAP; INSULATOR
|
1-82699-431-0 |
01 |
1 |
9811- |
● |
● |
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
9811-9902 |
● |
|
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
9903-0512 |
● |
● |
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28051-020-0 |
01 |
1 |
0601- |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
9811- |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9811-0512 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
● |
● |
| |
112 |
TERMINAL; BATTERY
<+>
|
1-82695-003-0 |
01 |
1 |
9811-0403 |
● |
● |
| |
112 |
TERMINAL; BATTERY
<+>
|
1-82695-175-0 |
01 |
1 |
0404- |
● |
● |
| |
114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
9-09110-510-0 |
01 |
1 |
9811-0512 |
● |
● |
| |
114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
0-91110-510-0 |
01 |
1 |
0601- |
● |
● |
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
9-09150-510-0 |
01 |
1 |
9811-0603 |
● |
● |
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
0-91510-510-0 |
01 |
1 |
0604- |
● |
● |
