0-60 — ENGINE ELECTRICAL CONTROL PARTS (#24264) — 128 parça

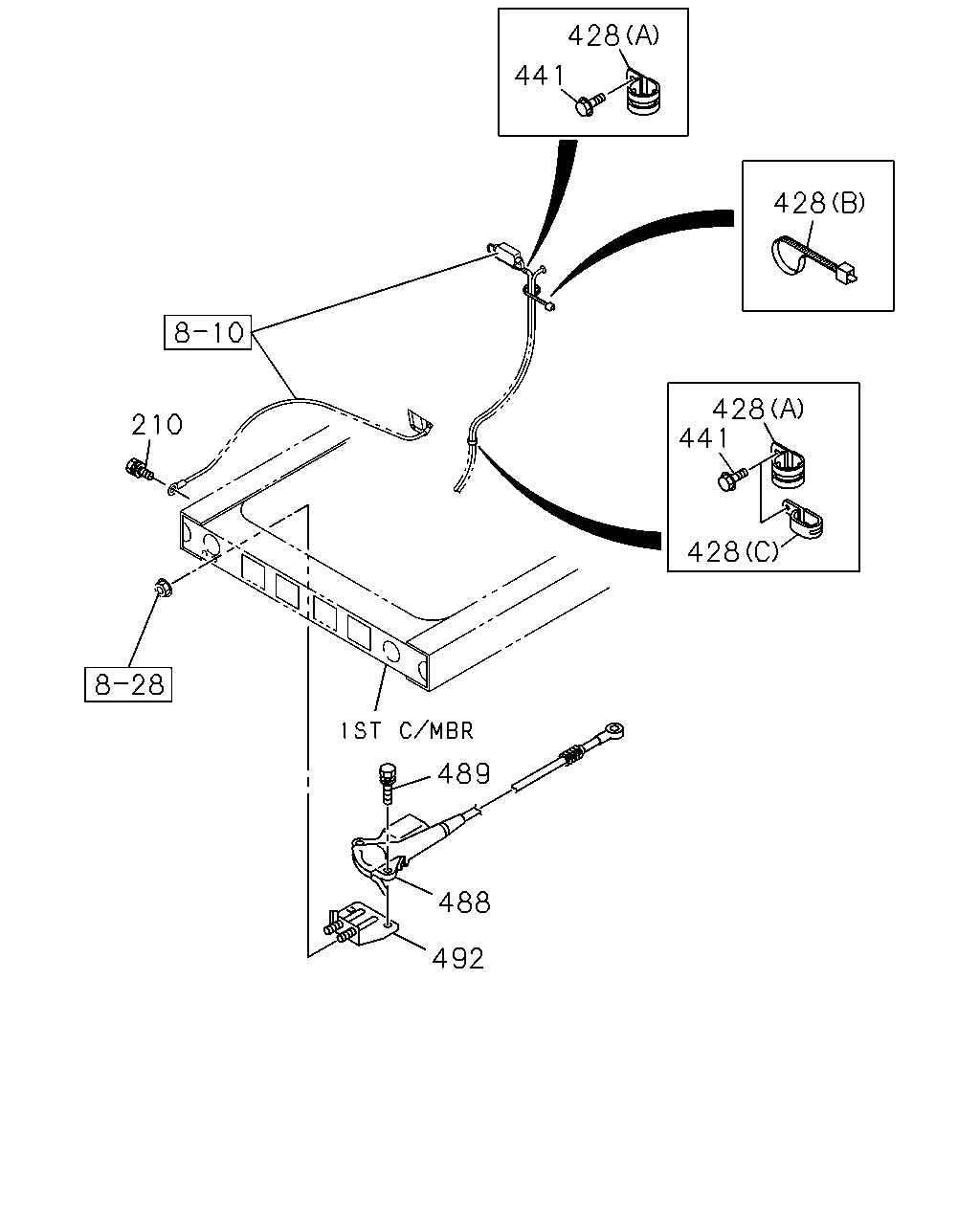

428 441 428 428 441 210 428 489 488 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
210	BOLT; CABLE FIX EURO2 SPECIFICATION<THN> M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0202-0203	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0204-1201	●	●
210	BOLT; CABLE FIX M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-		●
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-0201	●	●
210	BOLT; CABLE FIX EXC. EURO2 SPECIFICATION<THN> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0202-0203	●
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0202-0203		●
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0204-		●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	01	1	0202-0203	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0204-		●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) ID=30X2 L=28	1-09701-266-0	01	1	0202-	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (B) L=300	1-09707-001-1	05	1	0202-0203	●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	04	1	0204-		●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	9811-0201	●	●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	02	1	0202-0203	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0202-0203		●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	01	1	0204-	●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	04	1	9903-0201	●	●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (B) L=300	1-09707-001-1	04	1	0202-0203	●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	04	1	0202-0203		●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (B) L=300	1-09707-001-1	05	1	0204-	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9811-0512	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
488	STOPPER; ENG	1-82840-128-2	01	1	9811-0201	●
488	STOPPER; ENG EXC. EURO2 SPECIFICATION<THN>	1-82840-128-2	01	1	0202-0203	●
488	STOPPER; ENG	1-82840-153-1	01	1	9903-0201		●
488	STOPPER; ENG EURO2 SPECIFICATION<THN>	1-82840-153-1	01	1	0202-0203	●	●
488	STOPPER; ENG	1-82840-153-1	01	1	0204-	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9811-0512	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-	●	●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	9811-	●	●

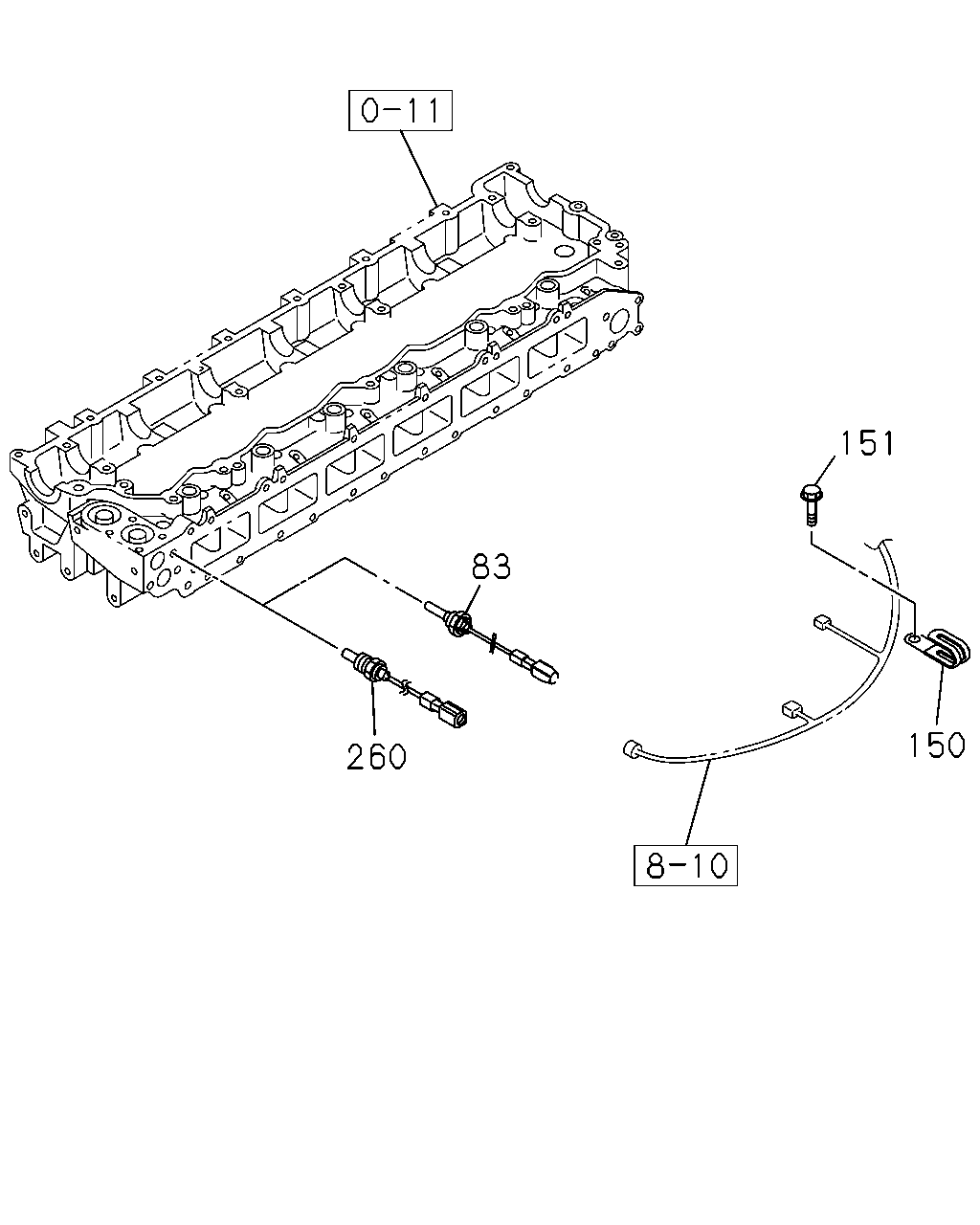

151 83 150 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
83	THERMOMETER UNIT	1-83161-031-1	01	1	9811-0201	●
83	THERMOMETER UNIT EXC. EURO2 SPECIFICATION<THN>	1-83161-031-1	01	1	0202-0203	●
150	CLIP; HARNESS,SOLENOID VLV ID=18 L=44	8-94225-185-0	02	1	9903-0201		●
150	CLIP; HARNESS,SOLENOID VLV ID=18 L=44	8-94225-185-0	02	1	0202-0801	●	●
150	CLIP; HARNESS,SOLENOID VLV ID=18 L=44	8-97367-985-1	02	1	0802-	●	●
151	BOLT; HARNESS CLIP,SOLENOID VLV M8X12 FLANGE	0-28080-812-0	02	1	9903-0201		●
151	BOLT; HARNESS CLIP,SOLENOID VLV M8X12 FLANGE	0-28080-812-0	02	1	0202-0512	●	●
151	BOLT; HARNESS CLIP,SOLENOID VLV M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
260	SENSOR; WATER TEMP	1-80210-004-0	01	1	9903-0201		●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN>	1-80210-004-0	01	1	0202-0203	●
260	SENSOR; WATER TEMP	1-80210-004-0	01	1	0202-0203		●
260	SENSOR; WATER TEMP	1-80210-004-0	01	1	0204-	●	●

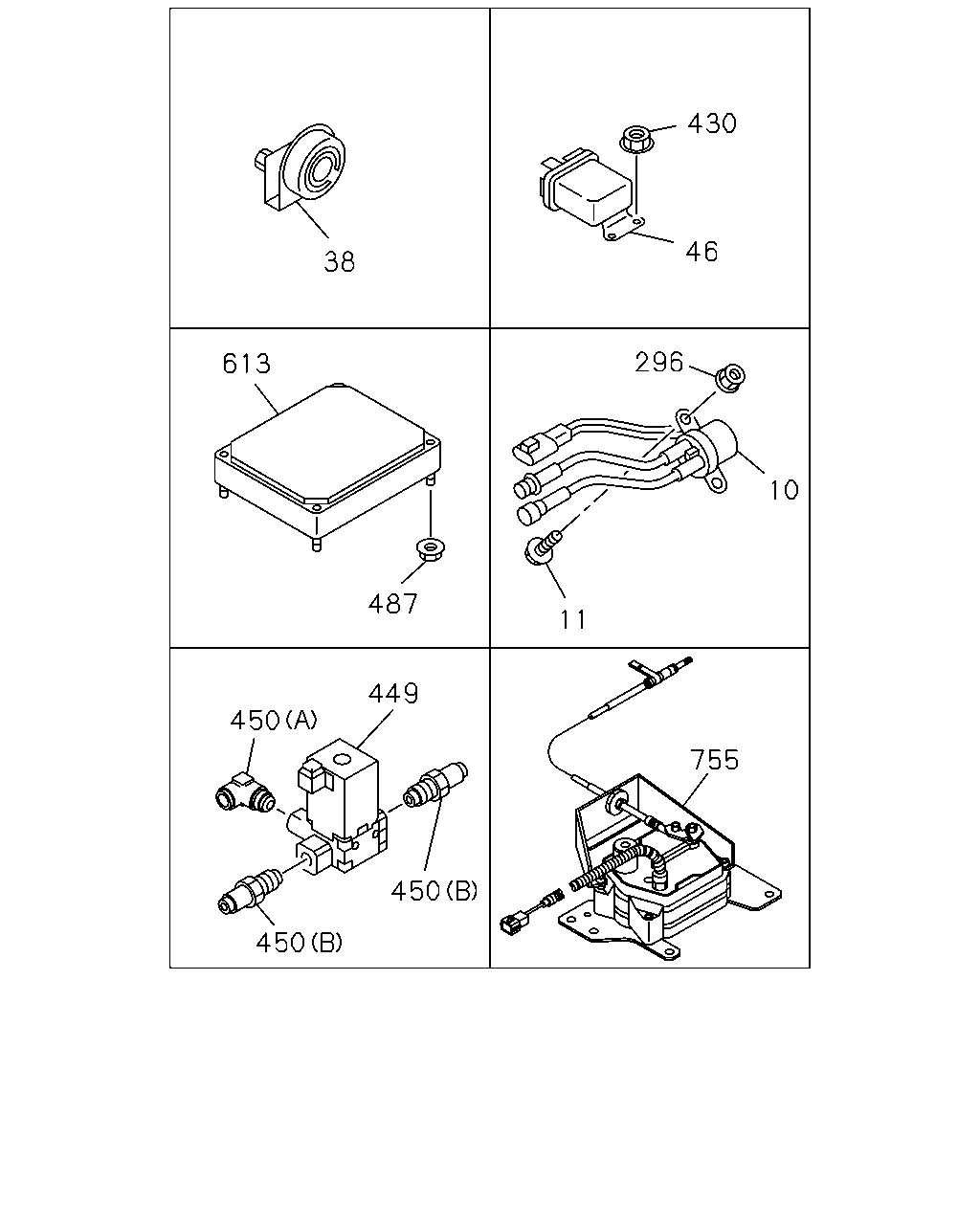

430 46 38 296 613 10 487 11 449 450 755 450 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER DENSO	1-81171-070-0	01	1	9811-	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9811-0512	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9811-	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9811-	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	01	1	9811-0602	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM EURO2 SPECIFICATION<THN>	1-82563-778-3	01	1	0202-	●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0202-	●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0202-	●
487	NUT M6 FLANGE	0-91150-106-0	04	1	9903-0201		●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	04	1	0202-0203	●	●
487	NUT M6 FLANGE	0-91150-106-0	04	1	0204-0602	●	●
487	NUT M6 FLANGE	0-91180-106-0	04	1	0603-	●	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-178-0	01	1	0202-	●
613	CONTROL UNIT; ENG	1-80110-179-0	01	1	9903-		●
755	MOTOR; SERVO SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-82840-159-1	01	1	9906-		●

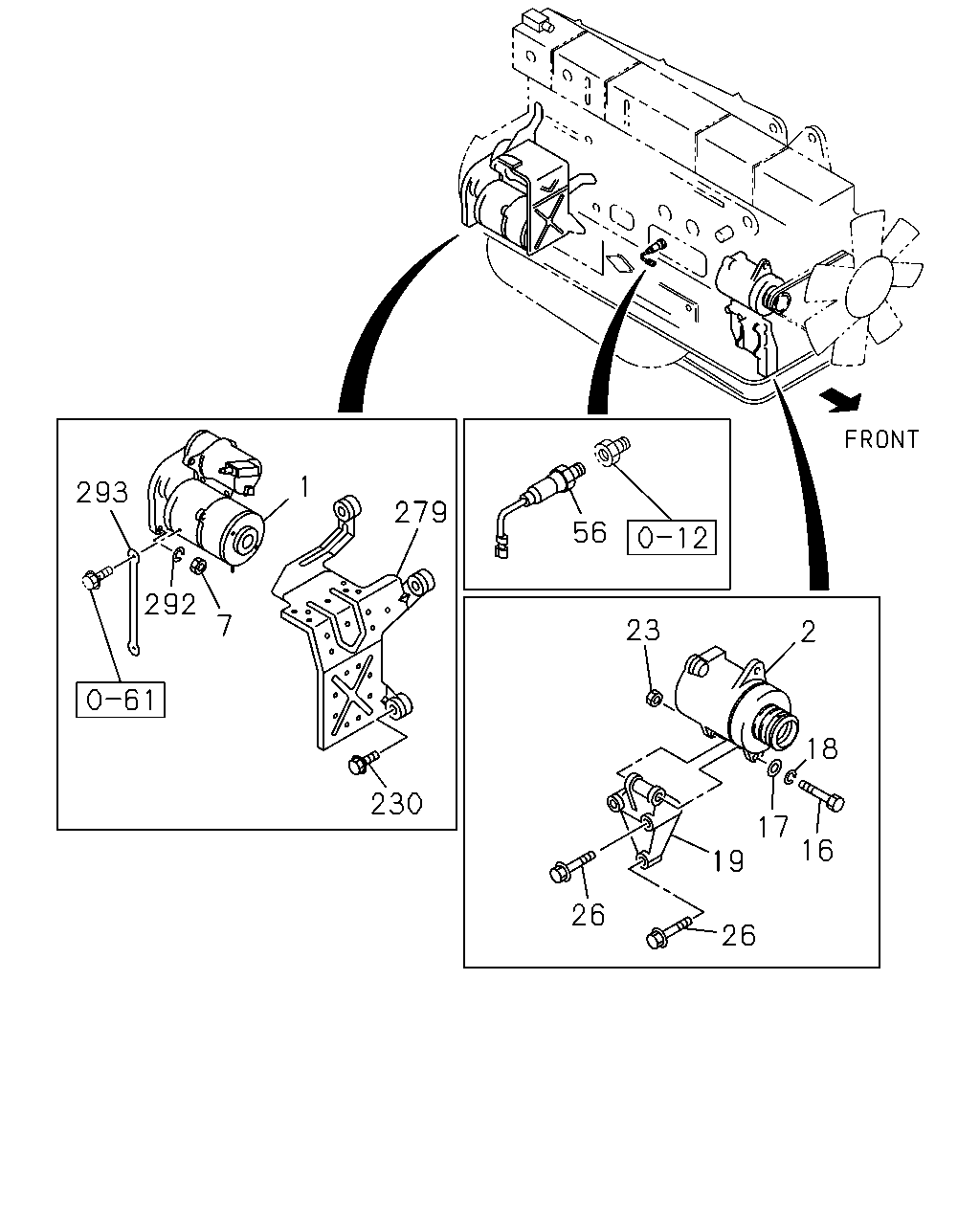

1 293 279 56 292 7 23 2 18 230 17 16 19 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94399-159-4	01	1	9811-0108	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-97602-167-1	01	1	0109-0201	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO	8-97602-167-1	01	1	0202-0203	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94394-151-2	01	1	9903-0108		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-97602-169-1	01	1	0109-0201		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO	8-97602-169-1	01	1	0202-0203	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-97602-169-1	01	1	0202-0203		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. HEAVY DUTY P/S OIL PUMP<E1N> 24V 4.5KW DENSO	8-97602-169-1	01	1	0204-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. TACHOMETER<UD7> CAUTIONS SPANISH<YN1> 24V 4.5KW DENSO	8-97602-169-1	01	1	0204-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9811-9902	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9903-0203	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. HEAVY DUTY P/S OIL PUMP<E1N> 24V 40A NIKKO	1-81200-416-5	01	1	0204-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. TACHOMETER<UD7> CAUTIONS SPANISH<YN1> 24V 40A NIKKO	1-81200-416-5	01	1	0204-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9905	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907	●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	9811-9902	●
7	NUT; STARTER M14	9-99110-414-0	02	1	9903-0512	●	●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-	●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9811-9902	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9903-0203	●	●
16	BOLT; GEN HEAVY DUTY P/S OIL PUMP<E1N> M14X135	1-09000-133-1	01	1	0204-	●
16	BOLT; GEN TACHOMETER<UD7> CAUTIONS SPANISH<YN1> M14X135	1-09000-133-1	01	1	0204-		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9811-9902	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9903-0605	●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-	●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9811-9902	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9903-0603	●	●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0604-	●	●
19	BRACKET; GEN	8-94396-297-0	01	1	9811-9902	●
19	BRACKET; GEN	8-94396-297-0	01	1	9903-0112	●	●
19	BRACKET; GEN	8-97602-318-0	01	1	0201-0203	●	●
19	BRACKET; GEN HEAVY DUTY P/S OIL PUMP<E1N>	8-97602-318-0	01	1	0204-	●
19	BRACKET; GEN TACHOMETER<UD7> CAUTIONS SPANISH<YN1>	8-97602-318-0	01	1	0204-		●
23	NUT; GEN M14	9-99110-414-0	01	1	9811-9902	●
23	NUT; GEN M14	9-99110-414-0	01	1	9903-0512	●	●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9811-9902	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9903-0203	●	●
26	BOLT; GEN BRKT HEAVY DUTY P/S OIL PUMP<E1N> M10X40 FLANGE	0-28181-040-0	01	1	0204-0512	●
26	BOLT; GEN BRKT TACHOMETER<UD7> CAUTIONS SPANISH<YN1> M10X40 FLANGE	0-28181-040-0	01	1	0204-0512		●
26	BOLT; GEN BRKT HEAVY DUTY P/S OIL PUMP<E1N> M10X40 FLANGE	0-28151-040-0	01	1	0601-	●
26	BOLT; GEN BRKT TACHOMETER<UD7> CAUTIONS SPANISH<YN1> M10X40 FLANGE	0-28151-040-0	01	1	0601-		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9811-9902	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9903-0203	●	●
26	BOLT; GEN BRKT HEAVY DUTY P/S OIL PUMP<E1N> M10X80 FLANGE	0-28181-080-0	02	1	0204-0512	●
26	BOLT; GEN BRKT TACHOMETER<UD7> CAUTIONS SPANISH<YN1> M10X80 FLANGE	0-28181-080-0	02	1	0204-0512		●
26	BOLT; GEN BRKT HEAVY DUTY P/S OIL PUMP<E1N> M10X80 FLANGE	0-28151-080-0	02	1	0601-	●
26	BOLT; GEN BRKT TACHOMETER<UD7> CAUTIONS SPANISH<YN1> M10X80 FLANGE	0-28151-080-0	02	1	0601-		●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9811-9902	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	9903-	●	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	9811-0201	●
230	BOLT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE	0-28080-828-0	01	1	0202-0203	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	9811-0201	●
230	BOLT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE	0-28181-030-0	01	1	0202-0203	●
279	PROTECTOR; STARTER	8-94394-501-0	01	1	9811-0201	●
279	PROTECTOR; STARTER EXC. EURO2 SPECIFICATION<THN>	8-94394-501-0	01	1	0202-0203	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9811-9902	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9903-0603	●	●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	02	1	0604-	●	●
293	CABLE; STARTER EARTH L=360	1-82650-230-1	01	1	9811-0006	●
293	CABLE; STARTER EARTH L=300	1-82650-223-0	01	1	0007-0201	●
293	CABLE; STARTER EARTH EXC. EURO2 SPECIFICATION<THN> L=300	1-82650-223-0	01	1	0202-0203	●
293	CABLE; STARTER EARTH L=350	1-82650-266-0	01	1	9903-0001		●
293	CABLE; STARTER EARTH L=320	1-82650-324-0	01	1	0002-0201		●
293	CABLE; STARTER EARTH L=320	1-82650-324-0	01	1	0202-0203	●	●
293	CABLE; STARTER EARTH HEAVY DUTY P/S OIL PUMP<E1N> L=320	1-82650-324-0	01	1	0204-	●
293	CABLE; STARTER EARTH TACHOMETER<UD7> CAUTIONS SPANISH<YN1> L=320	1-82650-324-0	01	1	0204-		●
