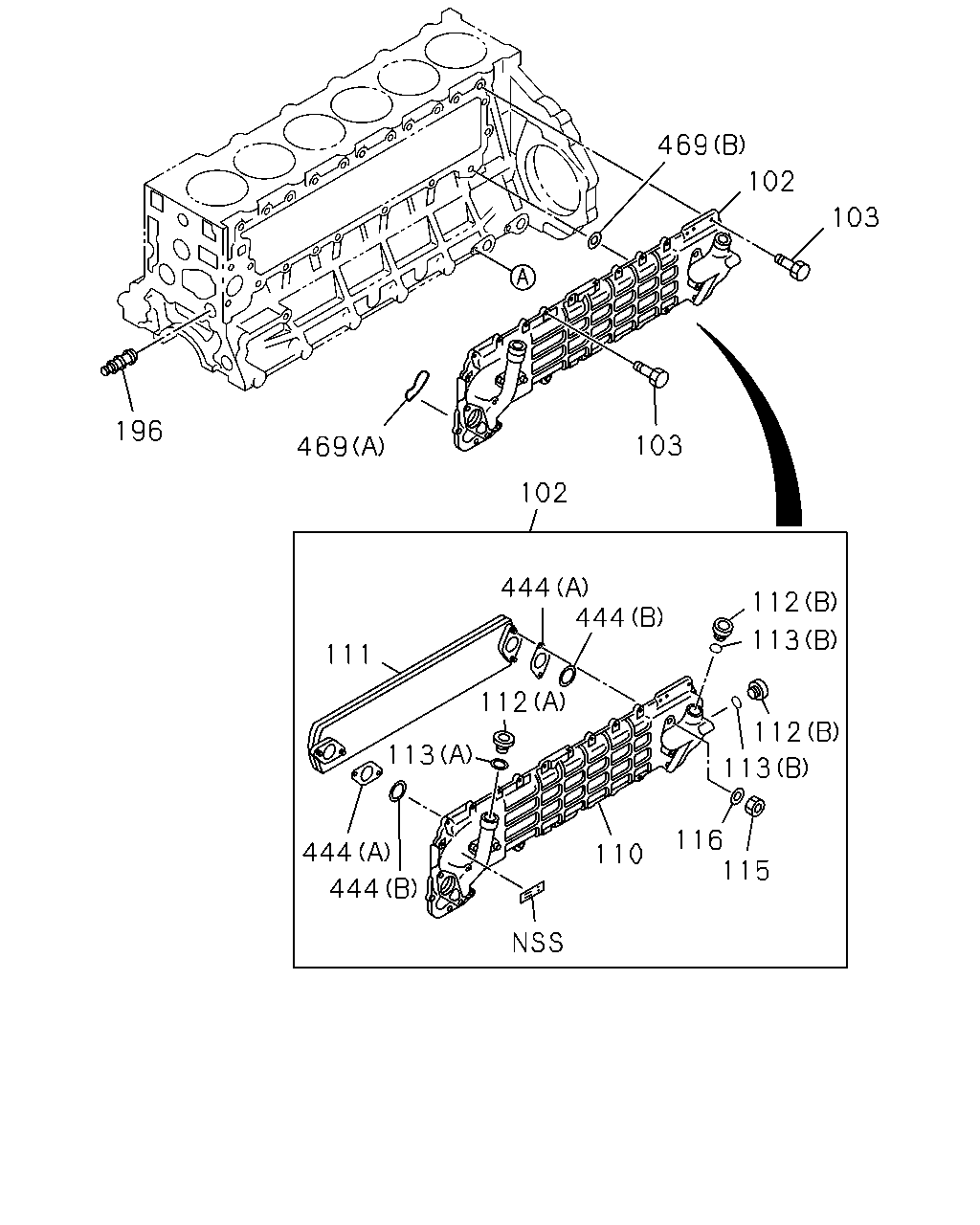

0-50 — OIL COOLER AND OIL FILTER (#24261) — 80 parça

469 102 103 196 103 469 102 444 444 112 113 111 112 112 113 113 116 115 444 110 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	COOLER ASM; OIL	8-94395-917-0	01	1	9811-0201	●
102	COOLER ASM; OIL EXC. EURO2 SPECIFICATION<THN>	8-94395-917-0	01	1	0202-0203	●
102	COOLER ASM; OIL	8-94390-536-0	01	1	9903-0201		●
102	COOLER ASM; OIL EURO2 SPECIFICATION<THN>	8-94390-536-0	01	1	0202-0203	●
102	COOLER ASM; OIL	8-94390-536-0	01	1	0202-0203		●
102	COOLER ASM; OIL	8-94390-536-0	01	1	0204-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9811-9902	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9903-	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9811-9902	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9903-0512	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●
110	BODY; CASE,OIL COOLER	8-94393-602-3	01	1	9811-0201	●
110	BODY; CASE,OIL COOLER EXC. EURO2 SPECIFICATION<THN>	8-94393-602-3	01	1	0202-0203	●
110	BODY; CASE,OIL COOLER	8-94395-283-4	01	1	9903-0201		●
110	BODY; CASE,OIL COOLER EURO2 SPECIFICATION<THN>	8-94395-283-4	01	1	0202-0203	●
110	BODY; CASE,OIL COOLER	8-94395-283-4	01	1	0202-0203		●
110	BODY; CASE,OIL COOLER	8-94395-283-4	01	1	0204-	●	●
111	CORE; OIL COOLER	8-94395-918-0	01	1	9811-0201	●
111	CORE; OIL COOLER EXC. EURO2 SPECIFICATION<THN>	8-94395-918-0	01	1	0202-0203	●
111	CORE; OIL COOLER	8-94390-537-0	01	1	9903-0201		●
111	CORE; OIL COOLER EURO2 SPECIFICATION<THN>	8-94390-537-0	01	1	0202-0203	●
111	CORE; OIL COOLER	8-94390-537-0	01	1	0202-0203		●
111	CORE; OIL COOLER	8-94390-537-0	01	1	0204-	●	●
112	PLUG; OIL COOLER CASE (A)	8-94393-604-0	01	1	9811-9902	●
112	PLUG; OIL COOLER CASE (A)	8-94393-604-0	01	1	9903-	●	●
112	PLUG; OIL COOLER CASE (B)	8-94396-753-0	02	1	9811-9902	●
112	PLUG; OIL COOLER CASE (B)	8-94396-753-0	02	1	9903-	●	●
113	GASKET; PLUG,OIL COOLER CASE (A)	1-09623-499-0	01	1	9811-9902	●
113	GASKET; PLUG,OIL COOLER CASE (A)	1-09623-499-0	01	1	9903-	●	●
113	GASKET; PLUG,OIL COOLER CASE (B) M24	8-94396-755-0	02	1	9811-9902	●
113	GASKET; PLUG,OIL COOLER CASE (B) M24	8-94396-755-0	02	1	9903-	●	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9811-9902	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9903-0512	●	●
115	NUT; ELEMENT M10	0-91111-510-0	04	1	0601-	●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9811-9902	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9903-	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9811-9902	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9903-0111	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-935-0	01	1	0112-	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-754-0	02	1	9811-0201	●
444	GASKET; ELEMENT TO BODY EXC. EURO2 SPECIFICATION<THN> (A)	8-94396-754-0	02	1	0202-0203	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-810-0	02	1	0204-	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9811-9902	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9903-0201		●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<THN> (A)	8-94394-930-0	02	1	0202-0203	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	0202-0203		●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	0204-	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9903-0203	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9811-9902	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9903-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9811-9902	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9903-0606	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-	●	●

496 307 308 265 328 328 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER	8-94391-049-0	01	1	9811-9902	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	9903-	●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	9903-1110	●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-	●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	9811-9902	●
265	BODY; OIL FILTER	8-94391-020-4	01	1	9811-0201	●
265	BODY; OIL FILTER EXC. EURO2 SPECIFICATION<THN>	8-94391-020-3	01	1	0202-0203	●
265	BODY; OIL FILTER	8-94391-016-3	01	1	9903-0201		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0202-	●	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9811-9902	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9903-	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9811-9902	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9903-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9811-9902	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9903-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9811-9902	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9903-	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9811-9902	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9903-0512	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0601-	●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	9811-9902	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	9903-0512	●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0601-	●	●
496	FILTER ASM; OIL	8-94391-018-5	01	1	9811-0201	●
496	FILTER ASM; OIL EXC. EURO2 SPECIFICATION<THN>	8-94391-018-3	01	1	0202-0203	●
496	FILTER ASM; OIL	8-94391-015-3	01	1	9903-0201		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
