0-42 — FUEL PUMP AND PIPE (#24260) — 111 parça

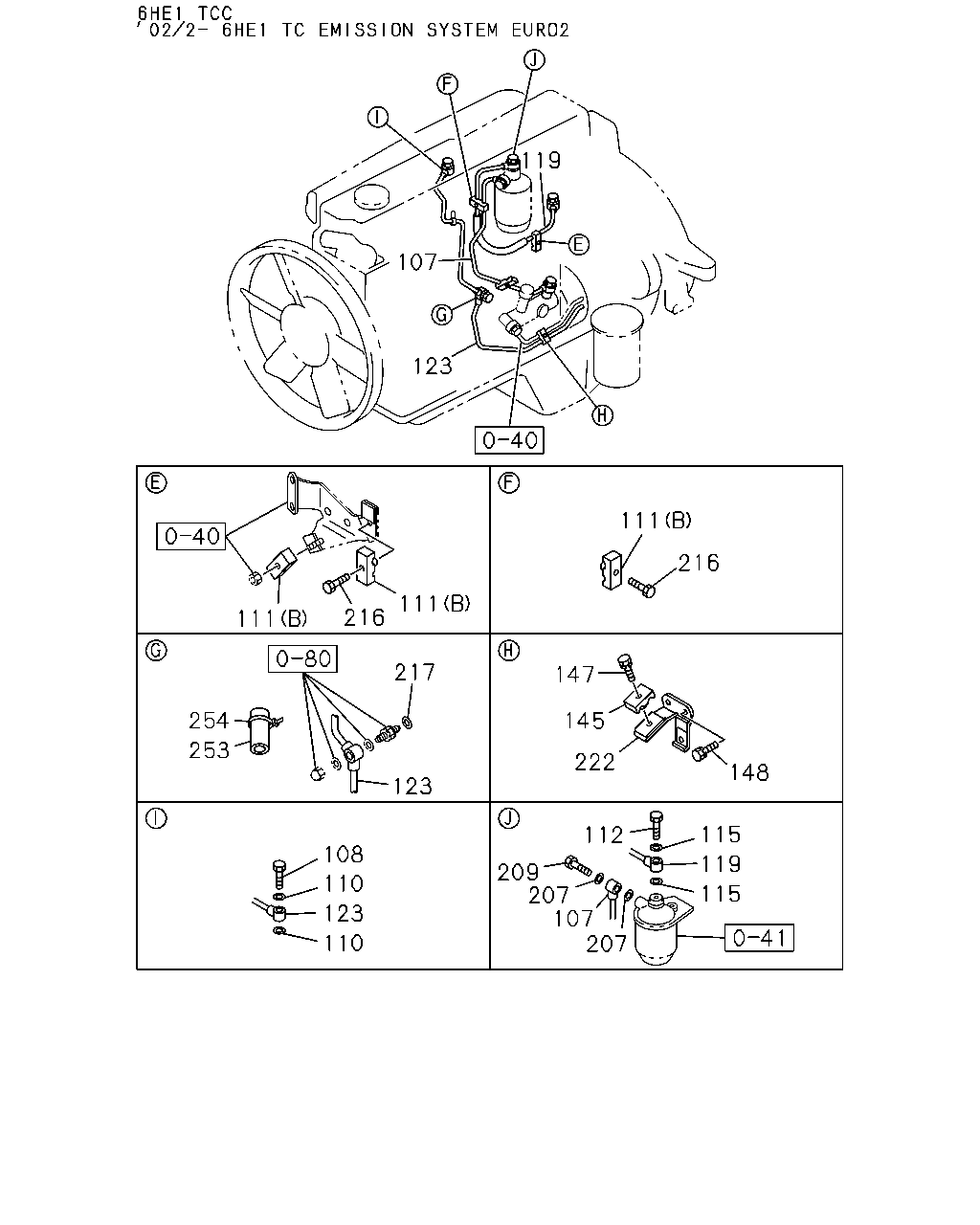

119 107 123 111 216 111 216 111 217 147 254 145 253 222 148 123 115 112 108 119 209 207 107 207 110 115 123 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9811-0201	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION<THN>	8-94395-179-0	01	1	0202-0203	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9903-0201		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	0202-	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-9902	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9903-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-9902	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9903-1312	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9811-9902	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9903-0203	●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9811-0201	●
111	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION<THN> (A) L=45	5-09709-104-0	02	1	0202-0203	●
111	CLIP; FUEL PIPE (A) L=48	5-09709-103-0	03	1	0204-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-9902	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9903-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-9902	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9903-1312	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9811-0201	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	8-94396-802-1	01	1	0202-0203	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9903-0201		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	0202-	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9811-0201	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN>	8-94394-409-1	01	1	0202-0203	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94390-831-2	01	1	9903-0201		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94390-831-2	01	1	0202-	●	●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	9903-0201		●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0202-	●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	9903-0201		●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	01	1	0202-0203	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0202-0203		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0204-0512	●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-	●	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9903-0201		●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0202-0512	●	●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9903-0112		●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9903-0112		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9811-0201	●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	03	1	0202-0203	●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9903-0108		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	9903-0201		●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0202-0203	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0202-0203		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0204-0512	●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9811-9902	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9903-1312	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●	●
222	BRACKET; CLIP	8-94395-079-2	01	1	9903-0201		●
222	BRACKET; CLIP	8-94395-079-2	01	1	0202-	●	●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0001-0201		●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=6 OD=10 L=70	1-09376-512-0	01	1	0202-0203	●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0202-0203		●
253	COVER; RUBBER HEAVY DUTY P/S OIL PUMP<E1N> ID=6 OD=10 L=70	1-09376-512-0	01	1	0204-	●
253	COVER; RUBBER TACHOMETER<UD7> CAUTIONS SPANISH<YN1> ID=6 OD=10 L=70	1-09376-512-0	01	1	0204-		●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0001-0005		●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	0006-0201		●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	02	1	0202-0203	●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	0202-0203		●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	0204-	●	●
254	CLIP L=250	5-09707-030-1	02	1	0001-0005		●

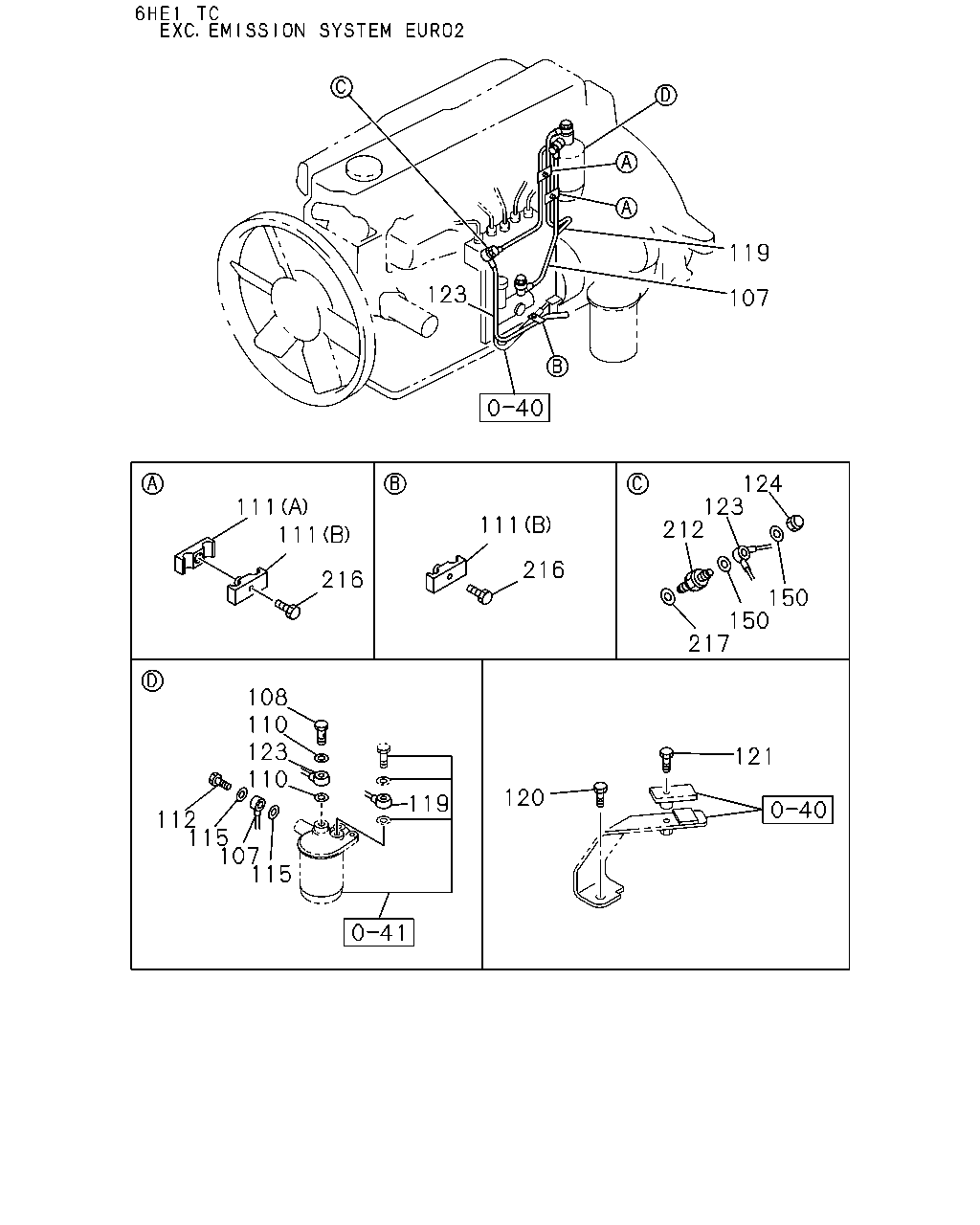

119 123 107 124 123 212 111 111 111 216 216 150 150 217 108 110 123 110 121 120 119 112 115 107 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9811-0201	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION<THN>	8-94395-179-0	01	1	0202-0203	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9903-0201		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	0202-	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-9902	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9903-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-9902	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9903-1312	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9811-9902	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9903-0203	●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9811-0201	●
111	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION<THN> (A) L=45	5-09709-104-0	02	1	0202-0203	●
111	CLIP; FUEL PIPE (A) L=48	5-09709-103-0	03	1	0204-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-9902	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9903-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-9902	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9903-1312	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9811-0201	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	8-94396-802-1	01	1	0202-0203	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9903-0201		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	0202-	●	●
120	BOLT; STAY M8X12 FLANGE	0-28080-812-0	01	1	9811-0201	●
120	BOLT; STAY EXC. EURO2 SPECIFICATION<THN> M8X12 FLANGE	0-28080-812-0	01	1	0202-0203	●
121	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9811-0201	●
121	BOLT; CLIP EXC. EURO2 SPECIFICATION<THN> M6X25 FLANGE	0-28080-625-0	01	1	0202-0203	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9811-0201	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN>	8-94394-409-1	01	1	0202-0203	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94390-831-2	01	1	9903-0201		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94390-831-2	01	1	0202-	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9811-0201	●
124	NUT; CAP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0202-0203	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-0201	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0202-0203	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9811-0201	●
212	VALVE; OVERFLOW EXC. EURO2 SPECIFICATION<THN>	8-94399-087-0	01	1	0202-0203	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9811-0201	●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	03	1	0202-0203	●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9903-0108		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	9903-0201		●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0202-0203	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0202-0203		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0204-0512	●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9811-9902	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9903-1312	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●	●
