Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#24258) — 441 parça

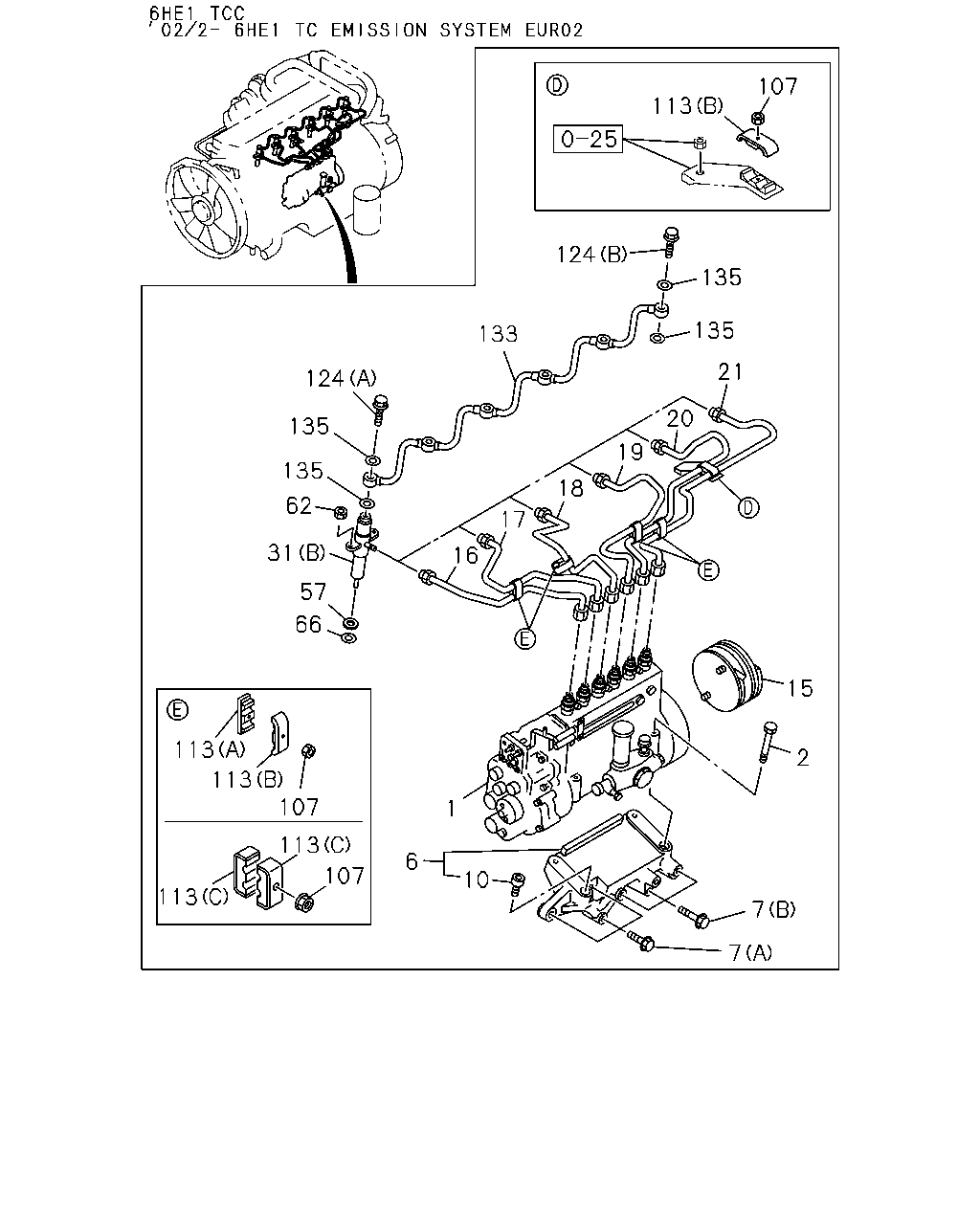

107 113 124 135 135 133 21 124 20 135 19 135 18 62 17 31 16 57 66 15 113 2 113 107 1 113 6 107 10 113 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94391-170-1	01	1	9811-0201	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94391-170-1	01	1	0202-0203	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94392-008-1	01	1	0202-0203	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-008-1	01	1	0204-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-009-1	01	1	9903-		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9811-0201	●
2	BOLT; INJ PUMP EXC. EURO2 SPECIFICATION<THN> M8X75	0-10810-875-0	04	1	0202-0203	●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	9903-0201		●
2	BOLT; INJ PUMP EURO2 SPECIFICATION<THN> M8X80 FLANGE	0-28080-880-0	04	1	0202-0203	●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0202-0203		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0204-0512	●	●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-	●	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9811-0201	●
6	BRACKET; INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN>	8-94393-689-2	01	1	0202-0203	●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	9903-0201		●
6	BRACKET; INJ PUMP TO C/BL EURO2 SPECIFICATION<THN>	8-94395-540-1	01	1	0202-0203	●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0202-0203		●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0204-	●	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	9811-0201	●
7	BOLT; INJ PUMP BRKT EXC. EURO2 SPECIFICATION<THN> (A) M10X80 FLANGE	0-28181-080-0	02	1	0202-0203	●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	9811-0201	●
7	BOLT; INJ PUMP BRKT EXC. EURO2 SPECIFICATION<THN> (B) M10X75 FLANGE	8-94399-669-1	01	1	0202-0203	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	9811-0201	●
7	BOLT; INJ PUMP BRKT EXC. EURO2 SPECIFICATION<THN> (C) M10X55 FLANGE	8-94399-863-1	01	1	0202-0203	●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	9903-0201		●
7	BOLT; INJ PUMP BRKT EURO2 SPECIFICATION<THN> (A) M10X40 FLANGE	0-28181-040-0	03	1	0202-0203	●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0202-0203		●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0204-0512	●	●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28151-040-0	03	1	0601-	●	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	9903-0201		●
7	BOLT; INJ PUMP BRKT EURO2 SPECIFICATION<THN> (B) M10X80 FLANGE	0-28181-080-0	03	1	0202-0203	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	0202-0203		●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	0204-0512	●	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28151-080-0	03	1	0601-	●	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9903-0201		●
10	DOWEL; INJ PUMP EURO2 SPECIFICATION<THN> OD=14 L=9	9-19759-019-1	02	1	0202-0203	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0202-0203		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0204-	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94393-962-2	01	1	9811-0201	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94393-962-2	01	1	0202-0203	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	9903-0201		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94396-483-1	01	1	0202-0203	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0202-0203		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0204-	●	●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9811-0201	●
16	PIPE; INJ NO.1 EXC. EURO2 SPECIFICATION<THN>	8-94393-845-1	01	1	0202-0203	●
16	PIPE; INJ NO.1	8-94394-223-1	01	1	9903-0108		●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0109-0201		●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<THN>	8-94391-422-0	01	1	0202-0203	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0202-0203		●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0204-	●	●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9811-0201	●
17	PIPE; INJ NO.2 EXC. EURO2 SPECIFICATION<THN>	8-94393-846-1	01	1	0202-0203	●
17	PIPE; INJ NO.2	8-94394-224-1	01	1	9903-0108		●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	0109-0109		●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0110-0201		●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<THN>	8-97602-329-0	01	1	0202-0203	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0202-0203		●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0204-	●	●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9811-0201	●
18	PIPE; INJ NO.3 EXC. EURO2 SPECIFICATION<THN>	8-94393-897-1	01	1	0202-0203	●
18	PIPE; INJ NO.3	8-94390-830-0	01	1	9903-0108		●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0109-0201		●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0202-	●	●
19	PIPE; INJ NO.4	8-94393-757-1	01	1	9811-0201	●
19	PIPE; INJ NO.4 EXC. EURO2 SPECIFICATION<THN>	8-94393-757-1	01	1	0202-0203	●
19	PIPE; INJ NO.4	8-94394-226-1	01	1	9903-0108		●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0109-0201		●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<THN>	8-94391-425-0	01	1	0202-0203	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0202-0203		●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0204-	●	●
20	PIPE; INJ NO.5	8-94393-758-1	01	1	9811-0201	●
20	PIPE; INJ NO.5 EXC. EURO2 SPECIFICATION<THN>	8-94393-758-1	01	1	0202-0203	●
20	PIPE; INJ NO.5	8-94394-227-1	01	1	9903-0108		●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0109-0201		●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION<THN>	8-94391-426-0	01	1	0202-0203	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0202-0203		●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0204-	●	●
21	PIPE; INJ NO.6	8-94393-759-1	01	1	9811-0201	●
21	PIPE; INJ NO.6 EXC. EURO2 SPECIFICATION<THN>	8-94393-759-1	01	1	0202-0203	●
21	PIPE; INJ NO.6	8-94394-228-1	01	1	9903-0108		●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0109-0201		●
21	PIPE; INJ NO.6 EURO2 SPECIFICATION<THN>	8-94391-427-0	01	1	0202-0203	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0202-0203		●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0204-	●	●
31	NOZZLE ASM; INJ (A)	8-94395-923-2	06	1	9811-0201	●
31	NOZZLE ASM; INJ EXC. EURO2 SPECIFICATION<THN> (A)	8-94395-923-2	06	1	0202-0203	●
31	NOZZLE ASM; INJ (B)	8-94394-606-6	06	1	9903-0201		●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<THN> (B)	8-94394-606-6	06	1	0202-0203	●
31	NOZZLE ASM; INJ (B)	8-94394-606-6	06	1	0202-0203		●
31	NOZZLE ASM; INJ (B)	8-94394-606-6	06	1	0204-	●	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09563-215-0	06	1	9811-9902	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09563-215-0	06	1	9903-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9811-9902	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9903-0602	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97171-333-0	06	1	9811-0201	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	8-97171-333-0	06	1	0202-0203	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	12	1	9903-0201		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	12	1	0202-	●	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	9811-0201	●
107	NUT; INJ PIPE CLIP EXC. EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	04	1	0202-0203	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	05	1	9903-0108		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0109-0201		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0202-0602	●	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91180-106-0	06	1	0603-	●	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	9811-9902	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	05	1	9903-0108		●
113	CLIP; INJ PIPE (C)	1-09701-132-0	10	1	0109-0201		●
113	CLIP; INJ PIPE EURO2 SPECIFICATION<THN> (C)	1-09701-132-0	10	1	0202-0203	●
113	CLIP; INJ PIPE (C)	1-09701-132-0	10	1	0202-0203		●
113	CLIP; INJ PIPE (C)	1-09701-132-1	10	1	0204-1202	●	●
113	CLIP; INJ PIPE (C)	1-09701-240-0	10	1	1203-	●	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	9811-0201	●
113	CLIP; INJ PIPE EXC. EURO2 SPECIFICATION<THN> (B)	8-94397-444-0	04	1	0202-0203	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	9903-0108	●	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0109-0201	●
113	CLIP; INJ PIPE EXC. EURO2 SPECIFICATION<THN> (A)	8-94396-793-0	04	1	0202-0203	●
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	9811-0201	●
124	BOLT; EYE LEAK OFF PIPE EXC. EURO2 SPECIFICATION<THN> (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0202-0203	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	9903-0201		●
124	BOLT; EYE LEAK OFF PIPE EURO2 SPECIFICATION<THN> (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	0202-0203	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	0202-0203		●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	0204-	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	9903-0201		●
124	BOLT; EYE LEAK OFF PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	1-09675-039-1	01	1	0202-0203	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	0202-0203		●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	0204-	●	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-145-0	01	1	9811-0201	●
133	PIPE; INJ NOZZLE LEAK OFF EXC. EURO2 SPECIFICATION<THN>	8-94395-145-0	01	1	0202-0203	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-071-0	01	1	9903-0201		●
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<THN>	8-94390-071-0	01	1	0202-0203	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-071-0	01	1	0202-0203		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-071-0	01	1	0204-	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	9811-0201	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=8.2 OD=13.2	1-09630-082-0	14	1	0202-0203	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	9903-0201		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0202-0203	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0202-0203		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0204-	●	●

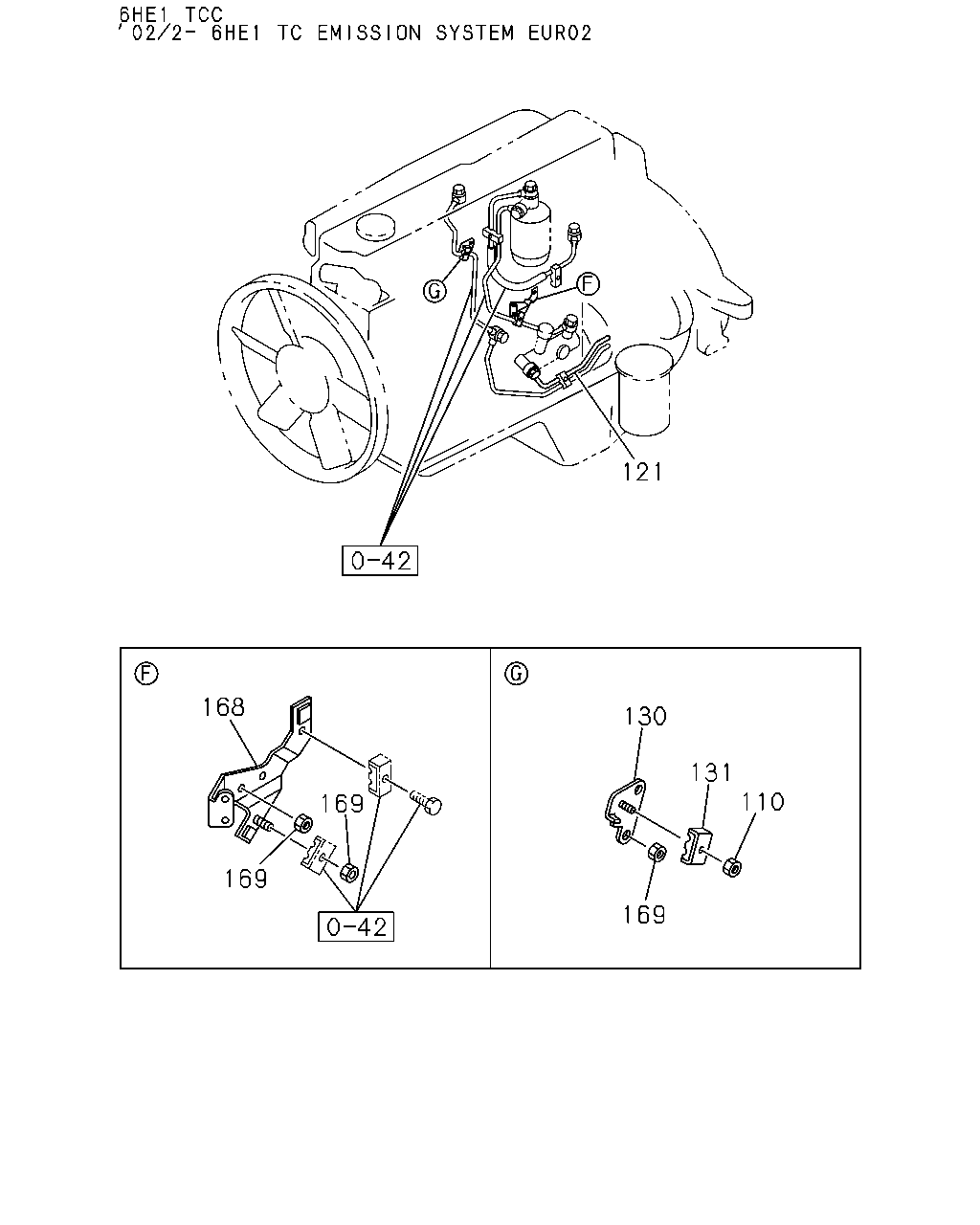

121 168 130 131 110 169 169 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9903-0201		●
110	NUT; CLIP EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	01	1	0202-0203	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0202-0203		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0204-0602	●	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	9811-0201	●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. EURO2 SPECIFICATION<THN>	8-94394-408-0	01	1	0202-0203	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	9903-0201		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0202-	●	●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-456-1	01	1	9811-0201	●
130	BRACKET; OVERFLOW TO LEAK OFF EXC. EURO2 SPECIFICATION<THN>	8-94394-456-1	01	1	0202-0203	●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-980-2	01	1	9903-0201		●
130	BRACKET; OVERFLOW TO LEAK OFF EURO2 SPECIFICATION<THN>	8-94394-980-2	01	1	0202-0203	●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-980-2	01	1	0202-0203		●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-980-2	01	1	0204-	●	●
131	CLIP; OVERFLOW LEAK OFF	8-94394-267-0	01	1	9811-0201	●
131	CLIP; OVERFLOW LEAK OFF EXC. EURO2 SPECIFICATION<THN>	8-94394-267-0	01	1	0202-0203	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	9903-0201		●
131	CLIP; OVERFLOW LEAK OFF EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0202-0203	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	0202-0203		●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	0204-	●	●
168	BRACKET; FUEL PIPE	8-94395-046-2	01	1	9903-0201		●
168	BRACKET; FUEL PIPE	8-94395-046-2	01	1	0202-	●	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9903-0201		●
169	NUT; BRKT EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	04	1	0202-0203	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0202-0203		●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●
169	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●

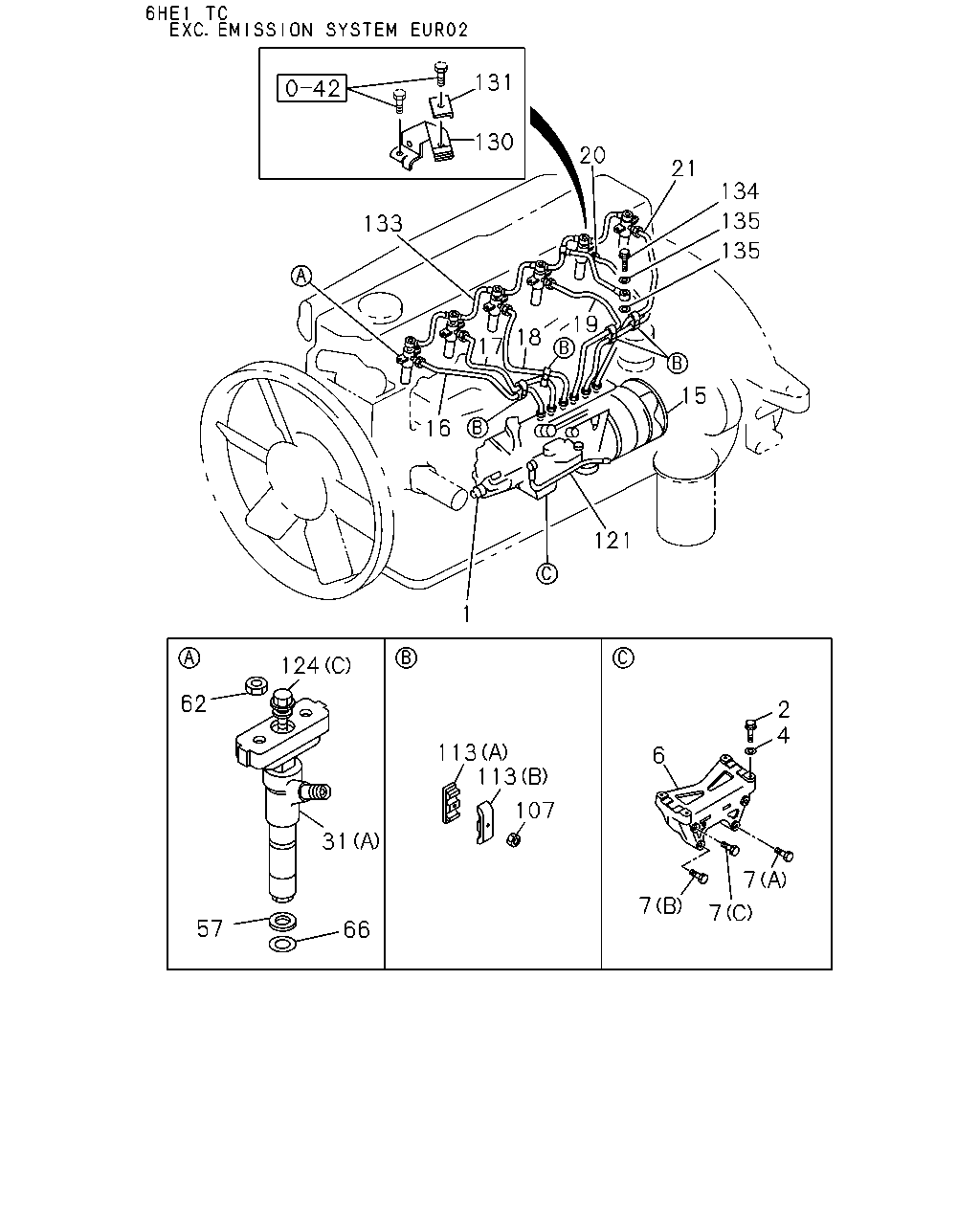

131 130 20 21 134 135 133 135 19 18 17 15 16 121 1 124 62 2 4 113 113 6 107 31 7 7 7 57 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94391-170-1	01	1	9811-0201	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94391-170-1	01	1	0202-0203	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94392-008-1	01	1	0202-0203	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-008-1	01	1	0204-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-009-1	01	1	9903-		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9811-0201	●
2	BOLT; INJ PUMP EXC. EURO2 SPECIFICATION<THN> M8X75	0-10810-875-0	04	1	0202-0203	●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	9903-0201		●
2	BOLT; INJ PUMP EURO2 SPECIFICATION<THN> M8X80 FLANGE	0-28080-880-0	04	1	0202-0203	●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0202-0203		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0204-0512	●	●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-	●	●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9811-0201	●
4	WASHER; INJ PUMP EXC. EURO2 SPECIFICATION<THN> ID=8.5 MITSUBISHI	9-09851-934-0	04	1	0202-0203	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9811-0201	●
6	BRACKET; INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN>	8-94393-689-2	01	1	0202-0203	●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	9903-0201		●
6	BRACKET; INJ PUMP TO C/BL EURO2 SPECIFICATION<THN>	8-94395-540-1	01	1	0202-0203	●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0202-0203		●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0204-	●	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	9811-0201	●
7	BOLT; INJ PUMP BRKT EXC. EURO2 SPECIFICATION<THN> (A) M10X80 FLANGE	0-28181-080-0	02	1	0202-0203	●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	9811-0201	●
7	BOLT; INJ PUMP BRKT EXC. EURO2 SPECIFICATION<THN> (B) M10X75 FLANGE	8-94399-669-1	01	1	0202-0203	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	9811-0201	●
7	BOLT; INJ PUMP BRKT EXC. EURO2 SPECIFICATION<THN> (C) M10X55 FLANGE	8-94399-863-1	01	1	0202-0203	●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	9903-0201		●
7	BOLT; INJ PUMP BRKT EURO2 SPECIFICATION<THN> (A) M10X40 FLANGE	0-28181-040-0	03	1	0202-0203	●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0202-0203		●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0204-0512	●	●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28151-040-0	03	1	0601-	●	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	9903-0201		●
7	BOLT; INJ PUMP BRKT EURO2 SPECIFICATION<THN> (B) M10X80 FLANGE	0-28181-080-0	03	1	0202-0203	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	0202-0203		●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	0204-0512	●	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28151-080-0	03	1	0601-	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94393-962-2	01	1	9811-0201	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94393-962-2	01	1	0202-0203	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	9903-0201		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94396-483-1	01	1	0202-0203	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0202-0203		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0204-	●	●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9811-0201	●
16	PIPE; INJ NO.1 EXC. EURO2 SPECIFICATION<THN>	8-94393-845-1	01	1	0202-0203	●
16	PIPE; INJ NO.1	8-94394-223-1	01	1	9903-0108		●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0109-0201		●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<THN>	8-94391-422-0	01	1	0202-0203	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0202-0203		●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0204-	●	●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9811-0201	●
17	PIPE; INJ NO.2 EXC. EURO2 SPECIFICATION<THN>	8-94393-846-1	01	1	0202-0203	●
17	PIPE; INJ NO.2	8-94394-224-1	01	1	9903-0108		●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	0109-0109		●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0110-0201		●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<THN>	8-97602-329-0	01	1	0202-0203	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0202-0203		●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0204-	●	●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9811-0201	●
18	PIPE; INJ NO.3 EXC. EURO2 SPECIFICATION<THN>	8-94393-897-1	01	1	0202-0203	●
18	PIPE; INJ NO.3	8-94390-830-0	01	1	9903-0108		●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0109-0201		●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0202-	●	●
19	PIPE; INJ NO.4	8-94393-757-1	01	1	9811-0201	●
19	PIPE; INJ NO.4 EXC. EURO2 SPECIFICATION<THN>	8-94393-757-1	01	1	0202-0203	●
19	PIPE; INJ NO.4	8-94394-226-1	01	1	9903-0108		●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0109-0201		●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<THN>	8-94391-425-0	01	1	0202-0203	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0202-0203		●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0204-	●	●
20	PIPE; INJ NO.5	8-94393-758-1	01	1	9811-0201	●
20	PIPE; INJ NO.5 EXC. EURO2 SPECIFICATION<THN>	8-94393-758-1	01	1	0202-0203	●
20	PIPE; INJ NO.5	8-94394-227-1	01	1	9903-0108		●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0109-0201		●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION<THN>	8-94391-426-0	01	1	0202-0203	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0202-0203		●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0204-	●	●
21	PIPE; INJ NO.6	8-94393-759-1	01	1	9811-0201	●
21	PIPE; INJ NO.6 EXC. EURO2 SPECIFICATION<THN>	8-94393-759-1	01	1	0202-0203	●
21	PIPE; INJ NO.6	8-94394-228-1	01	1	9903-0108		●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0109-0201		●
21	PIPE; INJ NO.6 EURO2 SPECIFICATION<THN>	8-94391-427-0	01	1	0202-0203	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0202-0203		●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0204-	●	●
31	NOZZLE ASM; INJ (A)	8-94395-923-2	06	1	9811-0201	●
31	NOZZLE ASM; INJ EXC. EURO2 SPECIFICATION<THN> (A)	8-94395-923-2	06	1	0202-0203	●
31	NOZZLE ASM; INJ (B)	8-94394-606-6	06	1	9903-0201		●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<THN> (B)	8-94394-606-6	06	1	0202-0203	●
31	NOZZLE ASM; INJ (B)	8-94394-606-6	06	1	0202-0203		●
31	NOZZLE ASM; INJ (B)	8-94394-606-6	06	1	0204-	●	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09563-215-0	06	1	9811-9902	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09563-215-0	06	1	9903-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9811-9902	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9903-0602	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97171-333-0	06	1	9811-0201	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	8-97171-333-0	06	1	0202-0203	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	12	1	9903-0201		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	12	1	0202-	●	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	9811-0201	●
107	NUT; INJ PIPE CLIP EXC. EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	04	1	0202-0203	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	05	1	9903-0108		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0109-0201		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0202-0602	●	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91180-106-0	06	1	0603-	●	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	9811-9902	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	05	1	9903-0108		●
113	CLIP; INJ PIPE (C)	1-09701-132-0	10	1	0109-0201		●
113	CLIP; INJ PIPE EURO2 SPECIFICATION<THN> (C)	1-09701-132-0	10	1	0202-0203	●
113	CLIP; INJ PIPE (C)	1-09701-132-0	10	1	0202-0203		●
113	CLIP; INJ PIPE (C)	1-09701-132-1	10	1	0204-1202	●	●
113	CLIP; INJ PIPE (C)	1-09701-240-0	10	1	1203-	●	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	9811-0201	●
113	CLIP; INJ PIPE EXC. EURO2 SPECIFICATION<THN> (B)	8-94397-444-0	04	1	0202-0203	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	9903-0108	●	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0109-0201	●
113	CLIP; INJ PIPE EXC. EURO2 SPECIFICATION<THN> (A)	8-94396-793-0	04	1	0202-0203	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	9811-0201	●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. EURO2 SPECIFICATION<THN>	8-94394-408-0	01	1	0202-0203	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	9903-0201		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0202-	●	●
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	9811-0201	●
124	BOLT; EYE LEAK OFF PIPE EXC. EURO2 SPECIFICATION<THN> (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0202-0203	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	9903-0201		●
124	BOLT; EYE LEAK OFF PIPE EURO2 SPECIFICATION<THN> (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	0202-0203	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	0202-0203		●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	0204-	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	9903-0201		●
124	BOLT; EYE LEAK OFF PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	1-09675-039-1	01	1	0202-0203	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	0202-0203		●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	0204-	●	●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-456-1	01	1	9811-0201	●
130	BRACKET; OVERFLOW TO LEAK OFF EXC. EURO2 SPECIFICATION<THN>	8-94394-456-1	01	1	0202-0203	●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-980-2	01	1	9903-0201		●
130	BRACKET; OVERFLOW TO LEAK OFF EURO2 SPECIFICATION<THN>	8-94394-980-2	01	1	0202-0203	●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-980-2	01	1	0202-0203		●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-980-2	01	1	0204-	●	●
131	CLIP; OVERFLOW LEAK OFF	8-94394-267-0	01	1	9811-0201	●
131	CLIP; OVERFLOW LEAK OFF EXC. EURO2 SPECIFICATION<THN>	8-94394-267-0	01	1	0202-0203	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	9903-0201		●
131	CLIP; OVERFLOW LEAK OFF EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0202-0203	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	0202-0203		●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	0204-	●	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-145-0	01	1	9811-0201	●
133	PIPE; INJ NOZZLE LEAK OFF EXC. EURO2 SPECIFICATION<THN>	8-94395-145-0	01	1	0202-0203	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-071-0	01	1	9903-0201		●
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<THN>	8-94390-071-0	01	1	0202-0203	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-071-0	01	1	0202-0203		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-071-0	01	1	0204-	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9811-0201	●
134	BOLT; JOINT,LEAK OFF PIPE EXC. EURO2 SPECIFICATION<THN> M8X18 EYE-BOLT	1-09675-037-1	01	1	0202-0203	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	9811-0201	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=8.2 OD=13.2	1-09630-082-0	14	1	0202-0203	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	9903-0201		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0202-0203	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0202-0203		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0204-	●	●

31 31 32 124 135 32 135 34 36 36 58 58 145 140 140 44 44 43 146 46 43 146 46 33 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ (A)	8-94395-923-2	06	1	9811-0201	●
31	NOZZLE ASM; INJ EXC. EURO2 SPECIFICATION<THN> (A)	8-94395-923-2	06	1	0202-0203	●
31	NOZZLE ASM; INJ (B)	8-94394-606-6	06	1	9903-0201		●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<THN> (B)	8-94394-606-6	06	1	0202-0203	●
31	NOZZLE ASM; INJ (B)	8-94394-606-6	06	1	0202-0203		●
31	NOZZLE ASM; INJ (B)	8-94394-606-6	06	1	0204-	●	●
32	HOLDER ASM; NOZZLE (A)	8-94394-788-0	06	1	9811-0201	●
32	HOLDER ASM; NOZZLE EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-788-0	06	1	0202-0203	●
32	HOLDER ASM; NOZZLE (B)	8-94395-197-1	06	1	9903-0201		●
32	HOLDER ASM; NOZZLE EURO2 SPECIFICATION<THN> (B)	8-94395-197-1	06	1	0202-0203	●
32	HOLDER ASM; NOZZLE (B)	8-94395-197-1	06	1	0202-0203		●
32	HOLDER ASM; NOZZLE (B)	8-94395-197-1	06	1	0204-	●	●
33	NOZZLE; INJ (A)	8-94390-399-0	06	1	9811-0201	●
33	NOZZLE; INJ EXC. EURO2 SPECIFICATION<THN> (A)	8-94390-399-0	06	1	0202-0203	●
33	NOZZLE; INJ (B)	8-94394-699-0	06	1	9903-0201		●
33	NOZZLE; INJ EURO2 SPECIFICATION<THN> (B)	8-94394-699-0	06	1	0202-0203	●
33	NOZZLE; INJ (B)	8-94394-699-0	06	1	0202-0203		●
33	NOZZLE; INJ (B)	8-94394-699-0	06	1	0204-	●	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9903-0201		●
34	BOLT; EYE,NOZZLE HOLDER EURO2 SPECIFICATION<THN>	1-15339-009-0	06	1	0202-0203	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0202-0203		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0204-	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	9811-	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9903-0201		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	0202-0203	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	0202-0203		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	0204-	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	06	1	9811-	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	9811-	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	12	1	9811-	●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	06	1	9811-9902	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	06	1	9903-	●	●
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	9811-0201	●
124	BOLT; EYE LEAK OFF PIPE EXC. EURO2 SPECIFICATION<THN> (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0202-0203	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	9903-0201		●
124	BOLT; EYE LEAK OFF PIPE EURO2 SPECIFICATION<THN> (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	0202-0203	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	0202-0203		●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	05	1	0204-	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	9903-0201		●
124	BOLT; EYE LEAK OFF PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	1-09675-039-1	01	1	0202-0203	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	0202-0203		●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	0204-	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	9811-0201	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=8.2 OD=13.2	1-09630-082-0	14	1	0202-0203	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	9903-0201		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0202-0203	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0202-0203		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0204-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.10	8-97116-029-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.10	8-97116-029-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.20	8-97116-032-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.20	8-97116-032-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.30	8-97116-033-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.30	8-97116-033-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	8-97116-034-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.40	8-97116-034-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	8-97116-035-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.50	8-97116-035-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.51	8-97116-036-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.51	8-97116-036-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	8-97116-037-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.52	8-97116-037-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.53	8-97116-038-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.53	8-97116-038-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	8-97116-039-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.54	8-97116-039-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.55	8-97116-040-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.55	8-97116-040-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	8-97116-041-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.56	8-97116-041-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.57	8-97116-042-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.57	8-97116-042-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	8-97116-043-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.58	8-97116-043-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.59	8-97116-044-0	AR	1	9811-0201	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO2 SPECIFICATION<THN> (A) T=0.59	8-97116-044-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.10	8-97027-432-0	AR	1	9903-0201		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION<THN> (B) T=0.10	8-97027-432-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.10	8-97027-432-0	AR	1	0202-0203		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.10	8-97027-432-0	AR	1	0204-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.20	8-97027-433-0	AR	1	9903-0201		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION<THN> (B) T=0.20	8-97027-433-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.20	8-97027-433-0	AR	1	0202-0203		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.20	8-97027-433-0	AR	1	0204-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.30	8-97027-434-0	AR	1	9903-0201		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION<THN> (B) T=0.30	8-97027-434-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.30	8-97027-434-0	AR	1	0202-0203		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.30	8-97027-434-0	AR	1	0204-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	8-97027-435-0	AR	1	9903-0201		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION<THN> (B) T=0.40	8-97027-435-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	8-97027-435-0	AR	1	0202-0203		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	8-97027-435-0	AR	1	0204-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	8-97027-436-0	AR	1	9903-0201		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION<THN> (B) T=0.50	8-97027-436-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	8-97027-436-0	AR	1	0202-0203		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	8-97027-436-0	AR	1	0204-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	8-97027-437-0	AR	1	9903-0201		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION<THN> (B) T=0.52	8-97027-437-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	8-97027-437-0	AR	1	0202-0203		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	8-97027-437-0	AR	1	0204-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	8-97027-438-0	AR	1	9903-0201		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION<THN> (B) T=0.54	8-97027-438-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	8-97027-438-0	AR	1	0202-0203		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	8-97027-438-0	AR	1	0204-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	8-97027-439-0	AR	1	9903-0201		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION<THN> (B) T=0.56	8-97027-439-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	8-97027-439-0	AR	1	0202-0203		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	8-97027-439-0	AR	1	0204-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	8-97027-440-0	AR	1	9903-0201		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EURO2 SPECIFICATION<THN> (B) T=0.58	8-97027-440-0	AR	1	0202-0203	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	8-97027-440-0	AR	1	0202-0203		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	8-97027-440-0	AR	1	0204-	●	●
145	GASKET; RET NUT	8-94128-915-0	06	1	9903-0201		●
145	GASKET; RET NUT EURO2 SPECIFICATION<THN>	8-94128-915-0	06	1	0202-0203	●
145	GASKET; RET NUT	8-94128-915-0	06	1	0202-0203		●
145	GASKET; RET NUT	8-94128-915-0	06	1	0204-	●	●
146	SPACER; NOZZLE	1-15339-095-0	06	1	9811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
