Sayfa 0-39 - Isuzu EPC

0-39 — AIR COMPRESSOR; BRAKE (#24257) — 242 parça

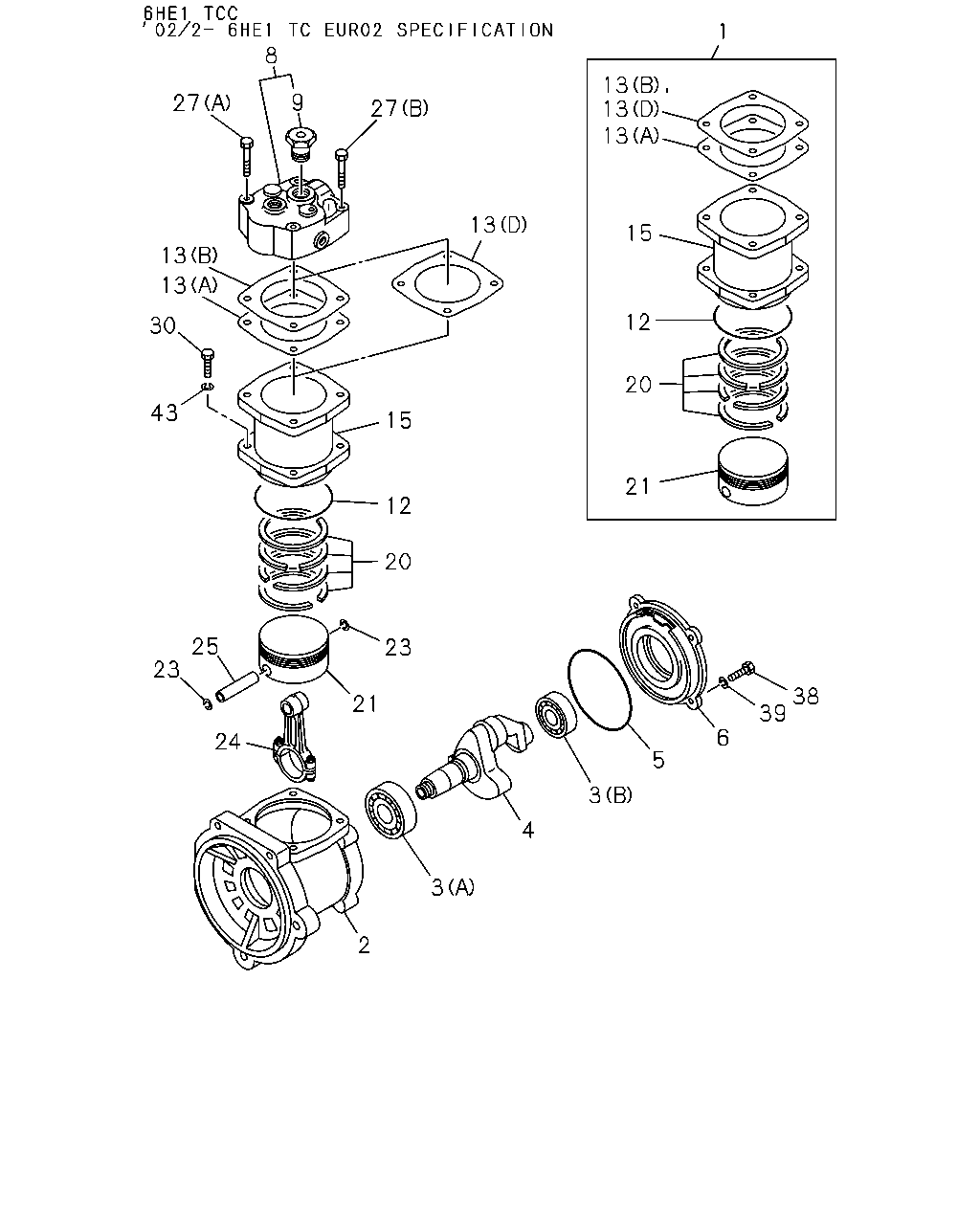

1 13 13 13 15 12 20 21 8 9 27 13 27 13 30 3 43 15 12 20 23 21 25 23 24 2 3 4 5 3 6 38 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	9811-0201	●
1	LINER KIT; CYL,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19163-050-1	01	1	0202-0203	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9903-0201		●
1	LINER KIT; CYL,AIR CMPR EURO2 SPECIFICATION<THN>	1-19163-052-1	01	1	0202-0203	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	0202-0203		●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	0204-0812	●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-	●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9811-0201	●
2	CRANKCASE; AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19151-266-1	01	1	0202-0203	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9903-0201		●
2	CRANKCASE; AIR CMPR EURO2 SPECIFICATION<THN>	1-19151-274-0	01	1	0202-0203	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0202-0203		●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0204-	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9811-9902	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9903-1202	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9811-9902	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9903-	●	●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9811-0201	●
4	CRANKSHAFT; AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19171-047-1	01	1	0202-0203	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9903-0201		●
4	CRANKSHAFT; AIR CMPR EURO2 SPECIFICATION<THN>	1-19171-028-0	01	1	0202-0203	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0202-0203		●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0204-1202	●	●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9811-9902	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9903-1107	●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9811-0201	●
6	COVER ASM; BRG,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19156-058-1	01	1	0202-0203	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9903-0201		●
6	COVER ASM; BRG,AIR CMPR EURO2 SPECIFICATION<THN>	1-19156-039-0	01	1	0202-0203	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0202-0203		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0204-1202	●	●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-	●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9811-0201	●
8	HEAD ASM; CYL,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19110-019-0	01	1	0202-0203	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9903-0201		●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<THN>	1-19110-056-1	01	1	0202-0203	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0202-0203		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0204-	●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9903-0201		●
9	VALVE ASM; UNLOADER,AIR CMPR EURO2 SPECIFICATION<THN>	1-19120-017-1	01	1	0202-0203	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0202-0203		●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0204-	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9811-9902	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9903-1107	●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-	●	●
13	GASKET; AIR CMPR (D)	1-19139-016-0	01	1	0204-	●	●
13	GASKET; AIR CMPR (C)	1-19115-006-1	01	1	9811-0201	●
13	GASKET; AIR CMPR EXC. EURO2 SPECIFICATION<THN> (C)	1-19115-006-1	01	1	0202-0203	●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	9903-0201		●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> (A)	1-19139-002-0	01	1	0202-0203	●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	0202-0203		●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	9903-0201		●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> (B) T=0.8	1-19139-004-0	01	1	0202-0203	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	0202-0203		●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9811-0201	●
15	CYLINDER; AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19151-250-0	01	1	0202-0203	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9903-0201		●
15	CYLINDER; AIR CMPR EURO2 SPECIFICATION<THN>	1-19151-218-0	01	1	0202-0203	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0202-0203		●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0204-	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9811-0201	●
20	RING KIT; PISTON,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19163-043-0	01	1	0202-0203	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9903-0201		●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN>	1-19163-051-1	01	1	0202-0203	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0202-0203		●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0204-0812	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-	●	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9811-0201	●
21	PISTON; AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19161-021-0	01	1	0202-0203	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9903-0201		●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN>	1-19161-016-0	01	1	0202-0203	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0202-0203		●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0204-0812	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9811-0201	●
23	RING; SNAP,PISTON,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	9-19168-003-0	02	1	0202-0203	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9903-0201		●
23	RING; SNAP,PISTON,AIR CMPR EURO2 SPECIFICATION<THN>	9-19168-008-0	02	1	0202-0203	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0202-0203		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0204-0812	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9811-0201	●
24	ROD ASM; CONN,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19173-017-0	01	1	0202-0203	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9903-0201		●
24	ROD ASM; CONN,AIR CMPR EURO2 SPECIFICATION<THN>	1-19173-010-0	01	1	0202-0203	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0202-0203		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0204-1202	●	●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-	●	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9811-0201	●
25	PIN; PISTON,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	9-19167-006-0	01	1	0202-0203	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9903-0201		●
25	PIN; PISTON,AIR CMPR EURO2 SPECIFICATION<THN>	9-19167-003-0	01	1	0202-0203	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0202-0203		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0204-0812	●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-	●	●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9903-0201		●
27	BOLT; HD EURO2 SPECIFICATION<THN> (A) M10X45	9-01066-045-0	02	1	0202-0203	●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	0202-0203		●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	0204-	●	●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9903-0201		●
27	BOLT; HD EURO2 SPECIFICATION<THN> (B) M10X60	9-01066-060-0	02	1	0202-0203	●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	0202-0203		●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	0204-	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9811-0201	●
30	BOLT; CYL TO CRANKCASE EXC. EURO2 SPECIFICATION<THN> M10X25	9-01911-025-0	04	1	0202-0203	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9903-0201		●
30	BOLT; CYL TO CRANKCASE EURO2 SPECIFICATION<THN> M10X25	9-02051-025-0	04	1	0202-0203	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0202-0203		●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0204-	●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9811-0201	●
38	BOLT; COVER FIX EXC. EURO2 SPECIFICATION<THN>	9-81385-023-0	04	1	0202-0203	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9903-0201		●
38	BOLT; COVER FIX EURO2 SPECIFICATION<THN>	1-19179-011-0	04	1	0202-0203	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0202-0203		●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0204-	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9811-9902	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9903-	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9903-0201		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EURO2 SPECIFICATION<THN> ID=10.2	9-09150-610-0	04	1	0202-0203	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0202-0203		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0204-	●	●

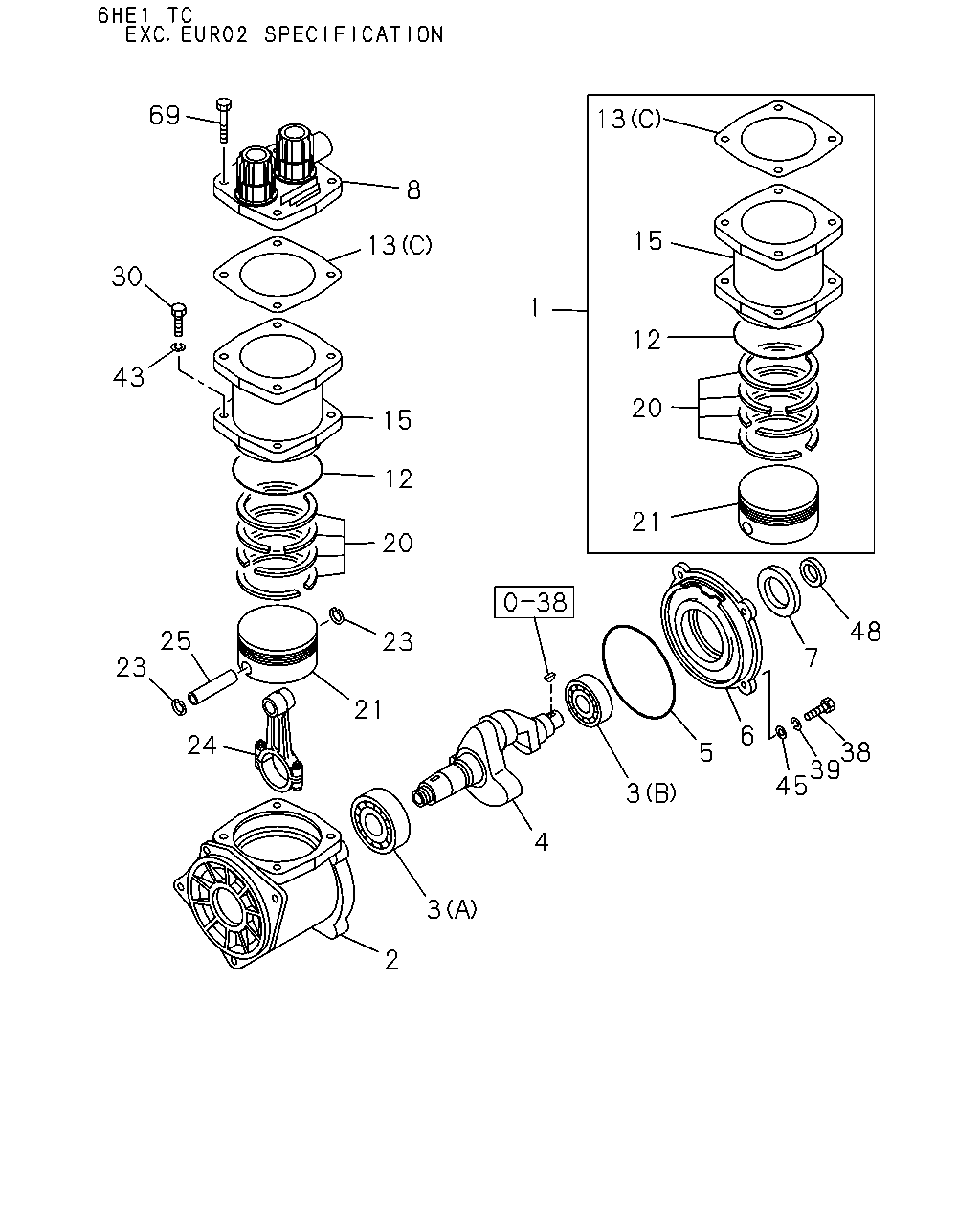

69 8 13 30 43 15 12 20 23 21 25 24 23 3 2 4 5 3 6 7 48 21 1 20 12 15 13 38 39 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	9811-0201	●
1	LINER KIT; CYL,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19163-050-1	01	1	0202-0203	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9903-0201		●
1	LINER KIT; CYL,AIR CMPR EURO2 SPECIFICATION<THN>	1-19163-052-1	01	1	0202-0203	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	0202-0203		●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	0204-0812	●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-	●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9811-0201	●
2	CRANKCASE; AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19151-266-1	01	1	0202-0203	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9903-0201		●
2	CRANKCASE; AIR CMPR EURO2 SPECIFICATION<THN>	1-19151-274-0	01	1	0202-0203	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0202-0203		●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0204-	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9811-9902	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9903-1202	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9811-9902	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9903-	●	●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9811-0201	●
4	CRANKSHAFT; AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19171-047-1	01	1	0202-0203	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9903-0201		●
4	CRANKSHAFT; AIR CMPR EURO2 SPECIFICATION<THN>	1-19171-028-0	01	1	0202-0203	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0202-0203		●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0204-1202	●	●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9811-9902	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9903-1107	●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9811-0201	●
6	COVER ASM; BRG,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19156-058-1	01	1	0202-0203	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9903-0201		●
6	COVER ASM; BRG,AIR CMPR EURO2 SPECIFICATION<THN>	1-19156-039-0	01	1	0202-0203	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0202-0203		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0204-1202	●	●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9811-0201	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19158-026-0	01	1	0202-0203	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9811-0201	●
8	HEAD ASM; CYL,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19110-019-0	01	1	0202-0203	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9903-0201		●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<THN>	1-19110-056-1	01	1	0202-0203	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0202-0203		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0204-	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9811-9902	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9903-1107	●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-	●	●
13	GASKET; AIR CMPR (D)	1-19139-016-0	01	1	0204-	●	●
13	GASKET; AIR CMPR (C)	1-19115-006-1	01	1	9811-0201	●
13	GASKET; AIR CMPR EXC. EURO2 SPECIFICATION<THN> (C)	1-19115-006-1	01	1	0202-0203	●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	9903-0201		●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> (A)	1-19139-002-0	01	1	0202-0203	●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	0202-0203		●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	9903-0201		●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> (B) T=0.8	1-19139-004-0	01	1	0202-0203	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	0202-0203		●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9811-0201	●
15	CYLINDER; AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19151-250-0	01	1	0202-0203	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9903-0201		●
15	CYLINDER; AIR CMPR EURO2 SPECIFICATION<THN>	1-19151-218-0	01	1	0202-0203	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0202-0203		●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0204-	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9811-0201	●
20	RING KIT; PISTON,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19163-043-0	01	1	0202-0203	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9903-0201		●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN>	1-19163-051-1	01	1	0202-0203	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0202-0203		●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0204-0812	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-	●	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9811-0201	●
21	PISTON; AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19161-021-0	01	1	0202-0203	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9903-0201		●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN>	1-19161-016-0	01	1	0202-0203	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0202-0203		●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0204-0812	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9811-0201	●
23	RING; SNAP,PISTON,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	9-19168-003-0	02	1	0202-0203	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9903-0201		●
23	RING; SNAP,PISTON,AIR CMPR EURO2 SPECIFICATION<THN>	9-19168-008-0	02	1	0202-0203	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0202-0203		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0204-0812	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9811-0201	●
24	ROD ASM; CONN,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	1-19173-017-0	01	1	0202-0203	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9903-0201		●
24	ROD ASM; CONN,AIR CMPR EURO2 SPECIFICATION<THN>	1-19173-010-0	01	1	0202-0203	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0202-0203		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0204-1202	●	●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-	●	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9811-0201	●
25	PIN; PISTON,AIR CMPR EXC. EURO2 SPECIFICATION<THN>	9-19167-006-0	01	1	0202-0203	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9903-0201		●
25	PIN; PISTON,AIR CMPR EURO2 SPECIFICATION<THN>	9-19167-003-0	01	1	0202-0203	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0202-0203		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0204-0812	●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9811-0201	●
30	BOLT; CYL TO CRANKCASE EXC. EURO2 SPECIFICATION<THN> M10X25	9-01911-025-0	04	1	0202-0203	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9903-0201		●
30	BOLT; CYL TO CRANKCASE EURO2 SPECIFICATION<THN> M10X25	9-02051-025-0	04	1	0202-0203	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0202-0203		●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0204-	●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9811-0201	●
38	BOLT; COVER FIX EXC. EURO2 SPECIFICATION<THN>	9-81385-023-0	04	1	0202-0203	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9903-0201		●
38	BOLT; COVER FIX EURO2 SPECIFICATION<THN>	1-19179-011-0	04	1	0202-0203	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0202-0203		●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0204-	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9811-9902	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9903-	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9903-0201		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EURO2 SPECIFICATION<THN> ID=10.2	9-09150-610-0	04	1	0202-0203	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0202-0203		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0204-	●	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9811-0201	●
45	WASHER; PL,COVER FIX,AIR CMPR EXC. EURO2 SPECIFICATION<THN> ID=8.4	9-09160-508-0	04	1	0202-0203	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9811-0201	●
48	SLEEVE; CR/SHF EXC. EURO2 SPECIFICATION<THN>	1-19179-014-0	01	1	0202-0203	●
69	BOLT ASM; AIR COMP	1-19119-031-0	04	1	9811-0201	●
69	BOLT ASM; AIR COMP EXC. EURO2 SPECIFICATION<THN>	1-19119-031-0	04	1	0202-0203	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
