Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#24256) — 233 parça

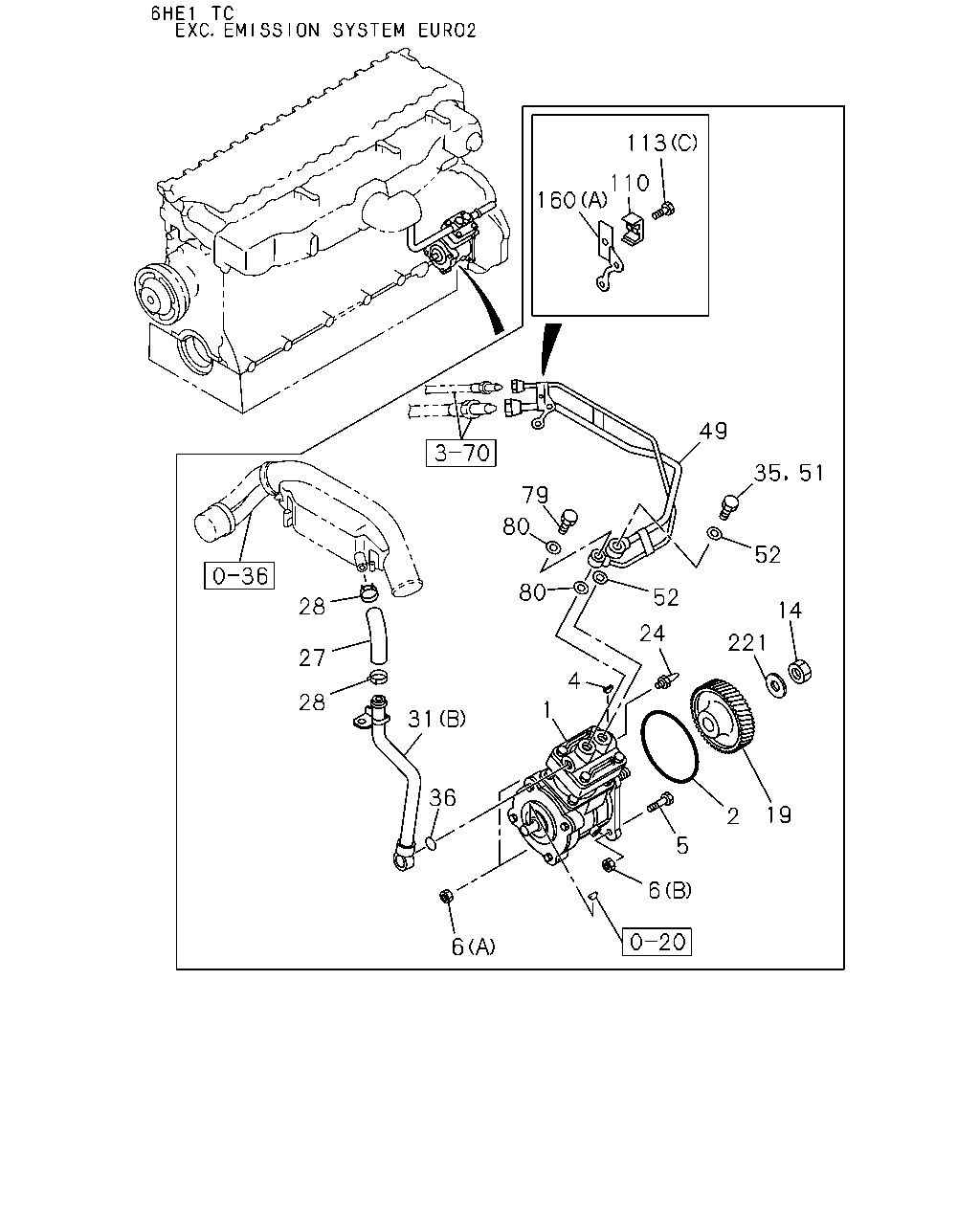

113 110 160 49 35 51 79 80 52 80 52 28 14 24 221 27 4 28 1 31 36 19 2 5 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9811-0201	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94396-891-4	01	1	0202-0203	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9903-0201		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94394-039-3	01	1	0202-0203	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0202-0203		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0204-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9811-0201	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> ID=139.6	1-09623-464-0	01	1	0202-0203	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9903-0201		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=162	1-09623-570-0	01	1	0202-0203	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0202-0203		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0204-	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9811-0201	●
4	KEY; INJ PUMP GEAR EXC. EURO2 SPECIFICATION<THN>	9-08055-516-0	01	1	0202-0203	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9811-0201	●
5	BOLT; AIR CMPR FIX EXC. EURO2 SPECIFICATION<THN> M12X95 FLANGE	8-94396-485-1	01	1	0202-0203	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9811-0201	●
6	NUT; AIR CMPR EXC. EURO2 SPECIFICATION<THN> (A) M10 FLANGE	0-91150-110-0	02	1	0202-0203	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9811-0201	●
6	NUT; AIR CMPR EXC. EURO2 SPECIFICATION<THN> (B) M12 FLANGE	0-91150-112-0	01	1	0202-0203	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9903-0201		●
6	NUT; AIR CMPR EURO2 SPECIFICATION<THN> (C) M12 FLANGE	0-91150-212-0	01	1	0202-0203	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0202-0203		●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0204-0602	●	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9811-9902	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9903-0512	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9811-0201	●
19	GEAR; INJ PUMP EXC. EURO2 SPECIFICATION<THN> Z=35	8-94336-157-4	01	1	0202-0203	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9811-0201	●
24	POINTER; AIR CMPR EXC. EURO2 SPECIFICATION<THN> L=21	9-11327-602-0	01	1	0202-0203	●
27	HOSE; AIR CMPR,SUCTION	8-94394-515-0	01	1	9811-0201	●
27	HOSE; AIR CMPR,SUCTION EXC. EURO2 SPECIFICATION<THN>	8-94394-515-0	01	1	0202-0203	●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9903-0201		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0202-	●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9811-9902	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9903-	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-516-0	01	1	9811-0201	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. EURO2 SPECIFICATION<THN> (B)	8-94390-516-0	01	1	0202-0203	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94390-405-0	01	1	9903-0201		●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94390-405-0	01	1	0202-	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-0	01	1	9811-0201	●
35	BOLT; EYE,AIR PIPE EXC. EURO2 SPECIFICATION<THN> M24X39	1-09675-132-0	01	1	0202-0203	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-0201	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> ID=24.5 OD=32	9-09571-424-0	02	1	0202-0203	●
49	PIPE; AIR,CHARGE	8-94390-063-1	01	1	9811-0201	●
49	PIPE; AIR,CHARGE EXC. EURO2 SPECIFICATION<THN>	8-94390-063-1	01	1	0202-0203	●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	9903-0201		●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	0202-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9811-0201	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. EURO2 SPECIFICATION<THN> M20X38	1-09675-133-0	01	1	0202-0203	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9903-0201		●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> M24X39	1-09675-132-0	01	1	0202-0203	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0202-0203		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0204-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	9811-0201	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> ID=20.5 OD=28.0	9-09571-420-0	02	1	0202-0203	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9903-0201		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=24.5 OD=32	9-09571-424-0	02	1	0202-0203	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0202-0203		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0204-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9811-0201	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. EURO2 SPECIFICATION<THN> M18X33	1-09675-058-0	01	1	0202-0203	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9903-0201		●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> M14X27 FLANGE	1-09675-086-0	01	1	0202-0203	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0202-0203		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0204-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9811-0201	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=18.2 OD=24.4	1-09630-087-0	02	1	0202-0203	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9903-0201		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0202-0203	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0202-0203		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-1312	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9811-0201	●
110	CLIP; AIR PIPE EXC. EURO2 SPECIFICATION<THN>	8-94393-037-0	01	1	0202-0203	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9903-0201		●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	0202-	●	●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	01	1	9811-0201	●
113	BOLT; CLIP,AIR PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X40 FLANGE	0-28080-640-0	01	1	0202-0203	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9903-0201		●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<THN> (B) M6X40 FLANGE	0-28080-640-0	02	1	0202-0203	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0202-0203		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0204-0512	●	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	9903-0201		●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0202-0512	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28650-620-0	01	1	0601-0611	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X30 FLANGE	0-28050-630-0	01	1	0612-	●	●
160	BRACKET; AIR PIPE (A)	8-94394-406-0	01	1	9811-0201	●
160	BRACKET; AIR PIPE EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-406-0	01	1	0202-0203	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<THN> (B)	8-94391-073-0	01	1	0202-0203	●
160	BRACKET; AIR PIPE (B)	8-94391-073-0	01	1	0204-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9811-9902	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9903-0605	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●	●

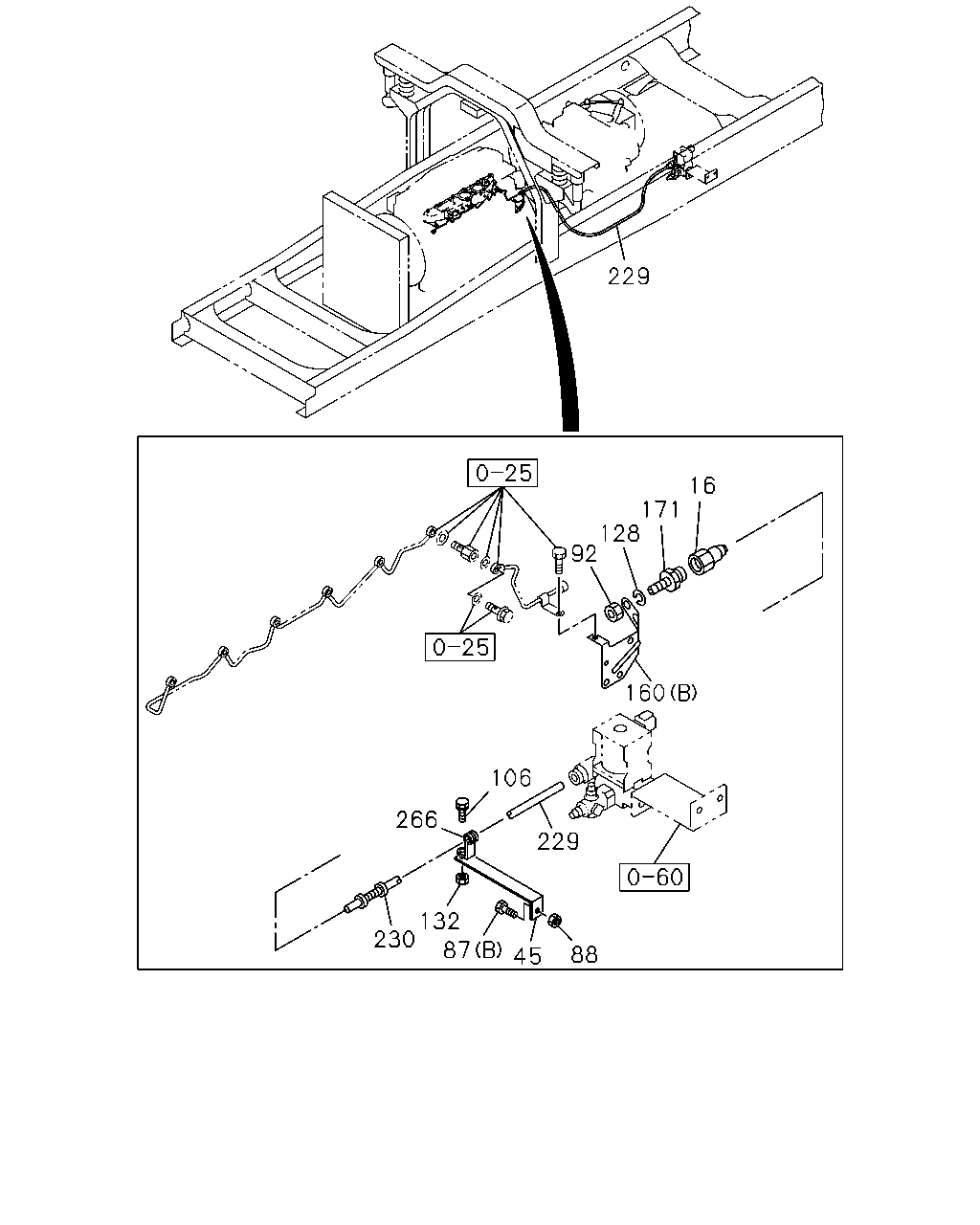

229 16 171 128 92 160 106 266 229 132 230 87 88 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADAPTER EURO2 SPECIFICATION<THN> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0202-	●
45	BRACKET; CLIP EURO2 SPECIFICATION<THN> L=90 B=25	1-47475-530-0	01	1	0202-	●
87	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28680-825-0	01	1	0202-0512	●
87	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28080-816-0	02	1	9903-0201		●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28080-816-0	02	1	0202-0512	●	●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
88	NUT; BRKT FIX EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	01	1	0202-0602	●
88	NUT; BRKT FIX EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-108-0	01	1	0603-	●
92	NUT; UNION EURO2 SPECIFICATION<THN> M12	9-09840-280-0	01	1	0202-	●
106	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	0202-0512	●
106	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
128	WASHER; LK,UNION EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	01	1	0202-0603	●
128	WASHER; LK,UNION EURO2 SPECIFICATION<THN> ID=12.2	0-91510-512-0	01	1	0604-	●
132	NUT; CLIP EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	01	1	0202-0602	●
132	NUT; CLIP EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-108-0	01	1	0603-	●
160	BRACKET; AIR PIPE (A)	8-94394-406-0	01	1	9811-0201	●
160	BRACKET; AIR PIPE EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-406-0	01	1	0202-0203	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<THN> (B)	8-94391-073-0	01	1	0202-0203	●
160	BRACKET; AIR PIPE (B)	8-94391-073-0	01	1	0204-	●
171	UNION EURO2 SPECIFICATION<THN> M12 L=56.5	9-09223-106-1	01	1	0202-0607	●
171	UNION EURO2 SPECIFICATION<THN> M12 L=56.5	0-92113-106-0	01	1	0608-	●
229	TUBE; NYLON EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-	●
230	TUBE; CORRUGATE EURO2 SPECIFICATION<THN> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-	●
266	CLIP; NYLON TUBE EURO2 SPECIFICATION<THN> D=9 T=45	5-09700-021-0	01	1	0202-	●

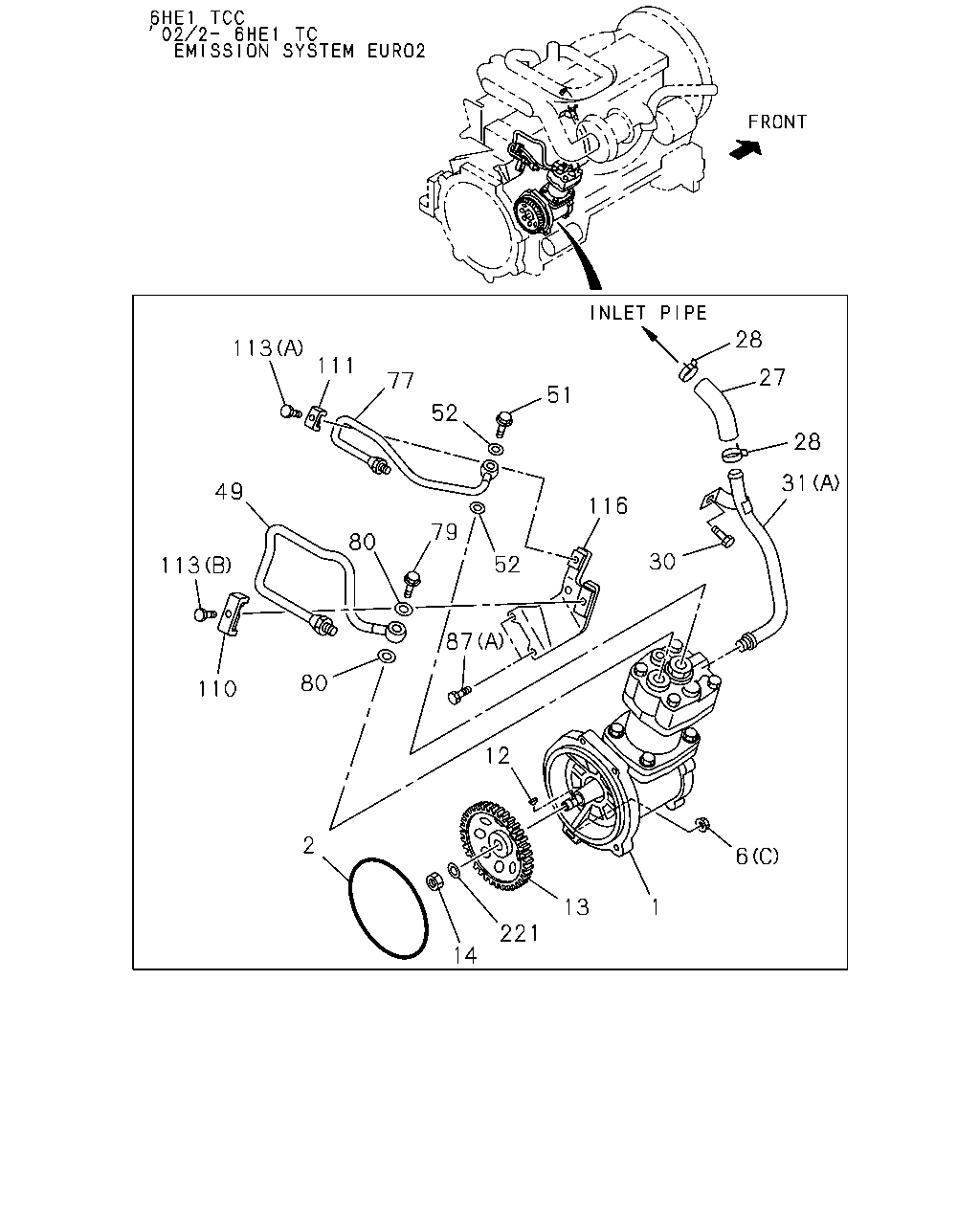

28 113 111 27 77 51 52 28 31 49 116 79 80 30 52 113 87 80 110 12 2 6 13 1 221 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9811-0201	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94396-891-4	01	1	0202-0203	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9903-0201		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94394-039-3	01	1	0202-0203	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0202-0203		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0204-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9811-0201	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> ID=139.6	1-09623-464-0	01	1	0202-0203	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9903-0201		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=162	1-09623-570-0	01	1	0202-0203	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0202-0203		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0204-	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9811-0201	●
6	NUT; AIR CMPR EXC. EURO2 SPECIFICATION<THN> (A) M10 FLANGE	0-91150-110-0	02	1	0202-0203	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9811-0201	●
6	NUT; AIR CMPR EXC. EURO2 SPECIFICATION<THN> (B) M12 FLANGE	0-91150-112-0	01	1	0202-0203	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9903-0201		●
6	NUT; AIR CMPR EURO2 SPECIFICATION<THN> (C) M12 FLANGE	0-91150-212-0	01	1	0202-0203	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0202-0203		●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0204-0602	●	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9903-0201		●
12	KEY; AIR CMPR GEAR EURO2 SPECIFICATION<THN>	9-08055-516-0	01	1	0202-0203	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0202-0203		●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0204-	●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9903-0201		●
13	GEAR; AIR CMPR DRIVE EURO2 SPECIFICATION<THN> Z=49	8-94394-511-4	01	1	0202-0203	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0202-0203		●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0204-	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9811-9902	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9903-0512	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●	●
27	HOSE; AIR CMPR,SUCTION	8-94394-515-0	01	1	9811-0201	●
27	HOSE; AIR CMPR,SUCTION EXC. EURO2 SPECIFICATION<THN>	8-94394-515-0	01	1	0202-0203	●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9903-0201		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0202-	●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9811-9902	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9903-	●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9903-0201		●
30	BOLT; PIPE CLIP EURO2 SPECIFICATION<THN> M8X12 FLANGE	0-28080-812-0	01	1	0202-0203	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0202-0203		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0204-0512	●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-516-0	01	1	9811-0201	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. EURO2 SPECIFICATION<THN> (B)	8-94390-516-0	01	1	0202-0203	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94390-405-0	01	1	9903-0201		●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94390-405-0	01	1	0202-	●	●
49	PIPE; AIR,CHARGE	8-94390-063-1	01	1	9811-0201	●
49	PIPE; AIR,CHARGE EXC. EURO2 SPECIFICATION<THN>	8-94390-063-1	01	1	0202-0203	●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	9903-0201		●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	0202-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9811-0201	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. EURO2 SPECIFICATION<THN> M20X38	1-09675-133-0	01	1	0202-0203	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9903-0201		●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> M24X39	1-09675-132-0	01	1	0202-0203	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0202-0203		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0204-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	9811-0201	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> ID=20.5 OD=28.0	9-09571-420-0	02	1	0202-0203	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9903-0201		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=24.5 OD=32	9-09571-424-0	02	1	0202-0203	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0202-0203		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0204-	●	●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	9903-0201		●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0202-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9811-0201	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. EURO2 SPECIFICATION<THN> M18X33	1-09675-058-0	01	1	0202-0203	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9903-0201		●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> M14X27 FLANGE	1-09675-086-0	01	1	0202-0203	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0202-0203		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0204-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9811-0201	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=18.2 OD=24.4	1-09630-087-0	02	1	0202-0203	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9903-0201		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0202-0203	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0202-0203		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-1312	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
87	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28680-825-0	01	1	0202-0512	●
87	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28080-816-0	02	1	9903-0201		●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28080-816-0	02	1	0202-0512	●	●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9811-0201	●
110	CLIP; AIR PIPE EXC. EURO2 SPECIFICATION<THN>	8-94393-037-0	01	1	0202-0203	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9903-0201		●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	0202-	●	●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	9903-0201		●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	0202-	●	●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	01	1	9811-0201	●
113	BOLT; CLIP,AIR PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X40 FLANGE	0-28080-640-0	01	1	0202-0203	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9903-0201		●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<THN> (B) M6X40 FLANGE	0-28080-640-0	02	1	0202-0203	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0202-0203		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0204-0512	●	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	9903-0201		●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0202-0512	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28650-620-0	01	1	0601-0611	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X30 FLANGE	0-28050-630-0	01	1	0612-	●	●
116	BRACKET; AIR PIPE	8-94394-594-1	01	1	9903-0201		●
116	BRACKET; AIR PIPE	8-94394-594-2	01	1	0202-	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9811-9902	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9903-0605	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
