Isuzu WW
▶
TRUCKS
▶
FTR
▶
10896 - FTR BUS CHASSIS LHD
▶
0 - Engine, Emission, Engine Electrical
▶

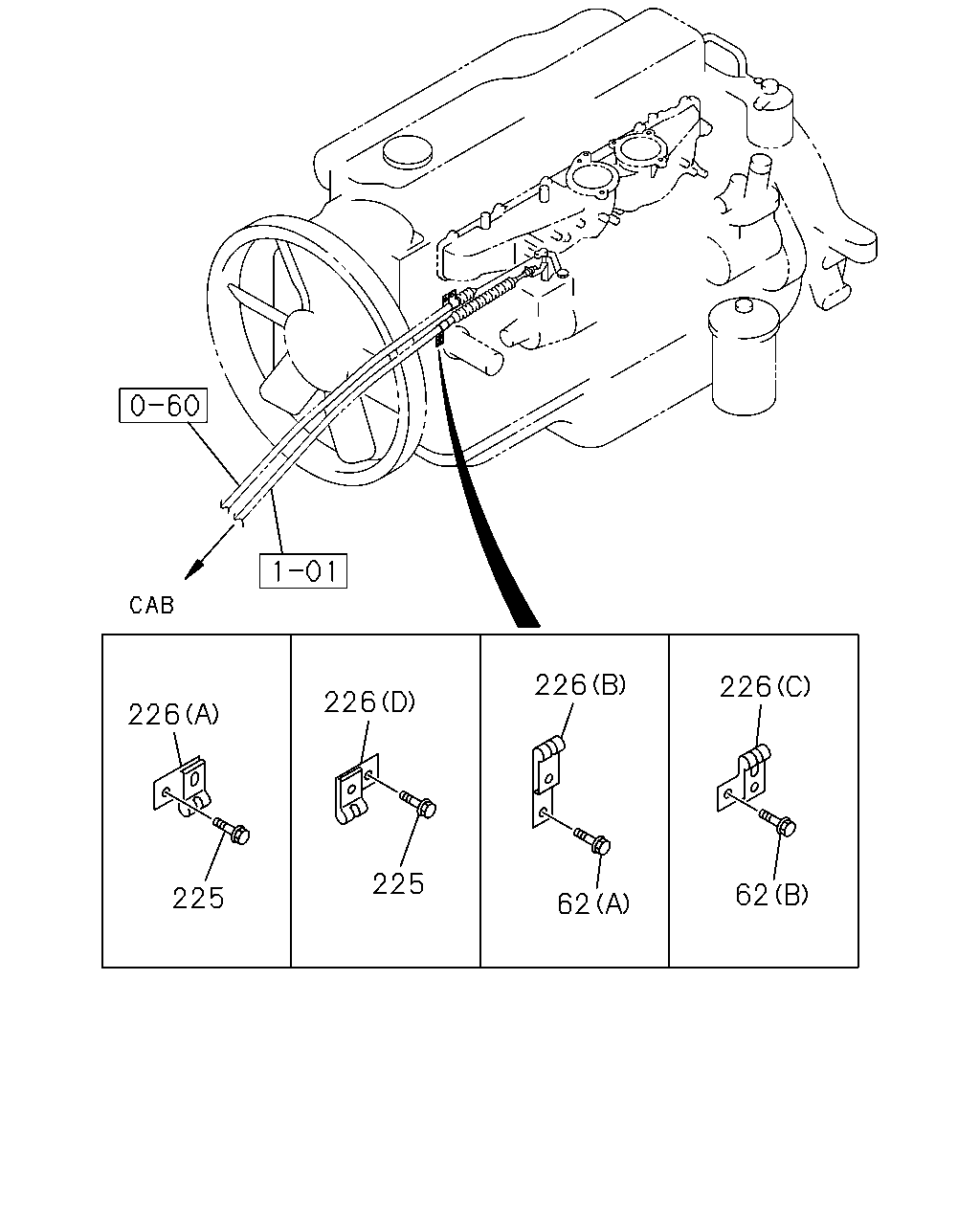

0-35 - ENGINE CONTROL VALVE AND LEVER
▶
0-35 — ENGINE CONTROL VALVE AND LEVER
(#24253) — 24 parça
Tümü
A - 6HE1 TC ENG
B - 6HE1 TCC ENG
226
226
226
226
225
62
225
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
62
BOLT; CABLE END
(A) M6X20 FLANGE
0-28680-620-0
02
1
9811-0201
●
62
BOLT; CABLE END
EXC. EURO2 SPECIFICATION<THN> (A) M6X20 FLANGE
0-28680-620-0
02
1
0202-0203
●
62
BOLT; CABLE END
EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X20 FLANGE
0-28680-820-0
02
1
9906-0201
●
62
BOLT; CABLE END
EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE
0-28680-820-0
02
1
0202-0203
●
62
BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X20 FLANGE
0-28680-820-0
02
1
0202-0203
●
62
BOLT; CABLE END
(B) M8X20 FLANGE
0-28680-820-0
02
1
0204-0512
●
62
BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X20 FLANGE
0-28680-820-0
02
1
0204-0512
●
62
BOLT; CABLE END
(B) M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
62
BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
02
1
9811-0512
●
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
226
CLIP; CABLE END
(B) L=30
1-09700-326-0
01
1
9811-0201
●
226
CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (B) L=30
1-09700-326-0
01
1
0202-0203
●
226
CLIP; CABLE END
(A)
1-09700-787-1
01
1
9811-9902
●
226
CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (A)
1-09700-787-1
01
1
9903-0203
●
226
CLIP; CABLE END
(A)
1-09700-787-1
01
1
9903-0203
●
226
CLIP; CABLE END
(D)
1-23219-032-0
01
1
9903-0201
●
226
CLIP; CABLE END
EURO2 SPECIFICATION<THN> (D)
1-23219-032-0
01
1
0202-0203
●
●
226
CLIP; CABLE END
(D)
1-23219-032-0
01
1
0204-
●
●
226
CLIP; CABLE END
EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)
8-94397-228-0
01
1
9906-0201
●
226
CLIP; CABLE END
EURO2 SPECIFICATION<THN> (C)
8-94397-228-0
01
1
0202-0203
●
226
CLIP; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)
8-94397-228-0
01
1
0202-0203
●
226
CLIP; CABLE END
(C)
8-94397-228-0
01
1
0204-
●
226
CLIP; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)
8-94397-228-0
01
1
0204-
●
