0-32 — WATER PIPING; ENGINE (#24251) — 112 parça

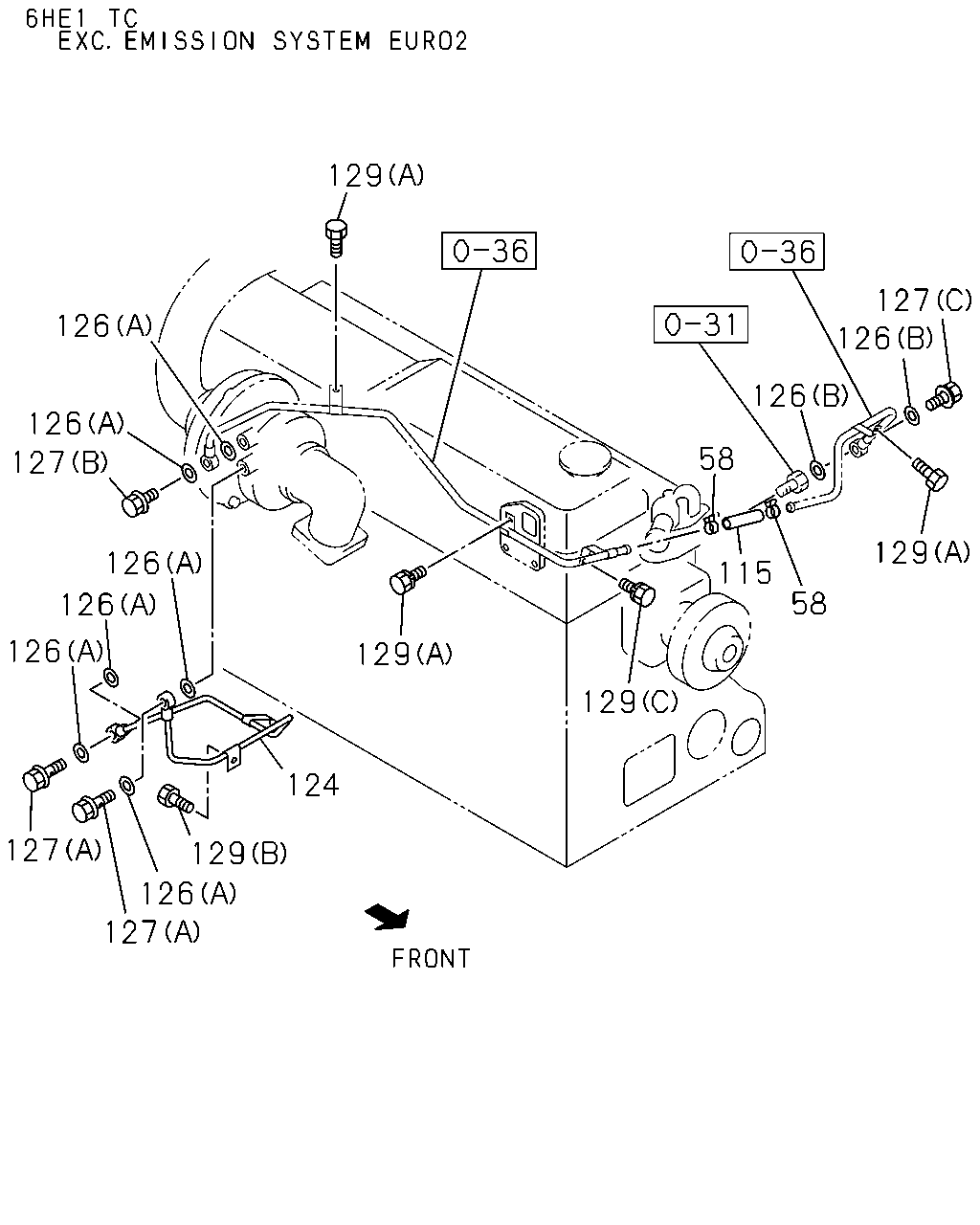

129 127 126 126 126 126 58 127 129 126 115 58 126 126 129 129 124 127 129 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9811-9902	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9903-	●	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9811-9902	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9903-0206	●	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-	●	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	8-94394-534-1	01	1	9811-0201	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EXC. EURO2 SPECIFICATION<THN>	8-94394-534-1	01	1	0202-0203	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9811-0201	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0202-0203	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	9811-0201	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (B) ID=16.2	1-09630-086-0	02	1	0202-0203	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	9811-0201	●
127	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> (A) M14X31	1-09675-191-0	02	1	0202-0203	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	9811-0201	●
127	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> (B) M14X27 FLANGE	1-09675-192-0	01	1	0202-0203	●
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	9811-0201	●
127	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> (C) M16X25	5-09675-028-2	01	1	0202-0203	●
129	BOLT; WATER PIPE TO BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9811-0201	●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	0202-0203	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	03	1	9811-0201	●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	03	1	0202-0203	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9811-9902	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	9903-0201		●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0202-0512	●	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9903-	●	●

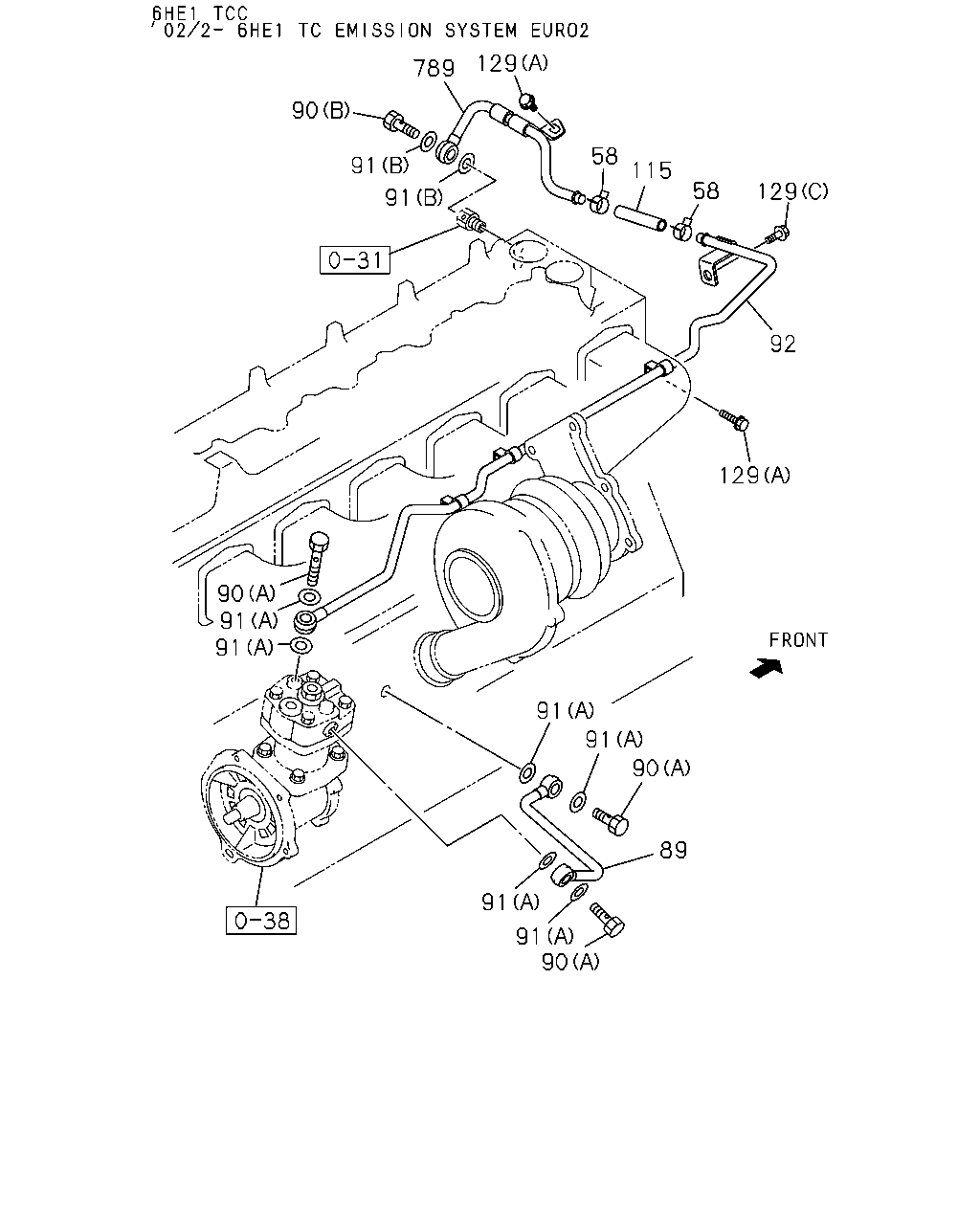

129 789 90 58 91 115 58 129 91 92 129 90 91 91 91 91 90 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9811-9902	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9903-	●	●
89	PIPE; WATER,AIR CMPR,IN	8-94395-452-2	01	1	9903-0201		●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<THN>	8-94395-452-2	01	1	0202-0203	●
89	PIPE; WATER,AIR CMPR,IN	8-94395-452-2	01	1	0202-0203		●
89	PIPE; WATER,AIR CMPR,IN	8-94395-452-2	01	1	0204-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9903-0201		●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0202-0203	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0202-0203		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0204-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9903-0201		●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (B) M16X25	5-09675-028-2	01	1	0202-0203	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0202-0203		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0204-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9903-0201		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0202-0203	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0202-0203		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0204-1312	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9903-0201		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0202-0203	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0202-0203		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0204-	●	●
92	PIPE; WATER,AIR CMPR,OUT	8-94390-070-0	01	1	9903-0201		●
92	PIPE; WATER,AIR CMPR,OUT	8-94390-070-0	01	1	0202-	●	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9811-9902	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9903-0206	●	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-	●	●
129	BOLT; WATER PIPE TO BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9811-0201	●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	0202-0203	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	03	1	9811-0201	●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	03	1	0202-0203	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9811-9902	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	9903-0201		●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0202-0512	●	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9903-	●	●
789	PIPE; WATER,AIR CMPR TO CYL HD	8-94395-454-4	01	1	9903-0201		●
789	PIPE; WATER,AIR CMPR TO CYL HD	8-94395-454-4	01	1	0202-	●	●

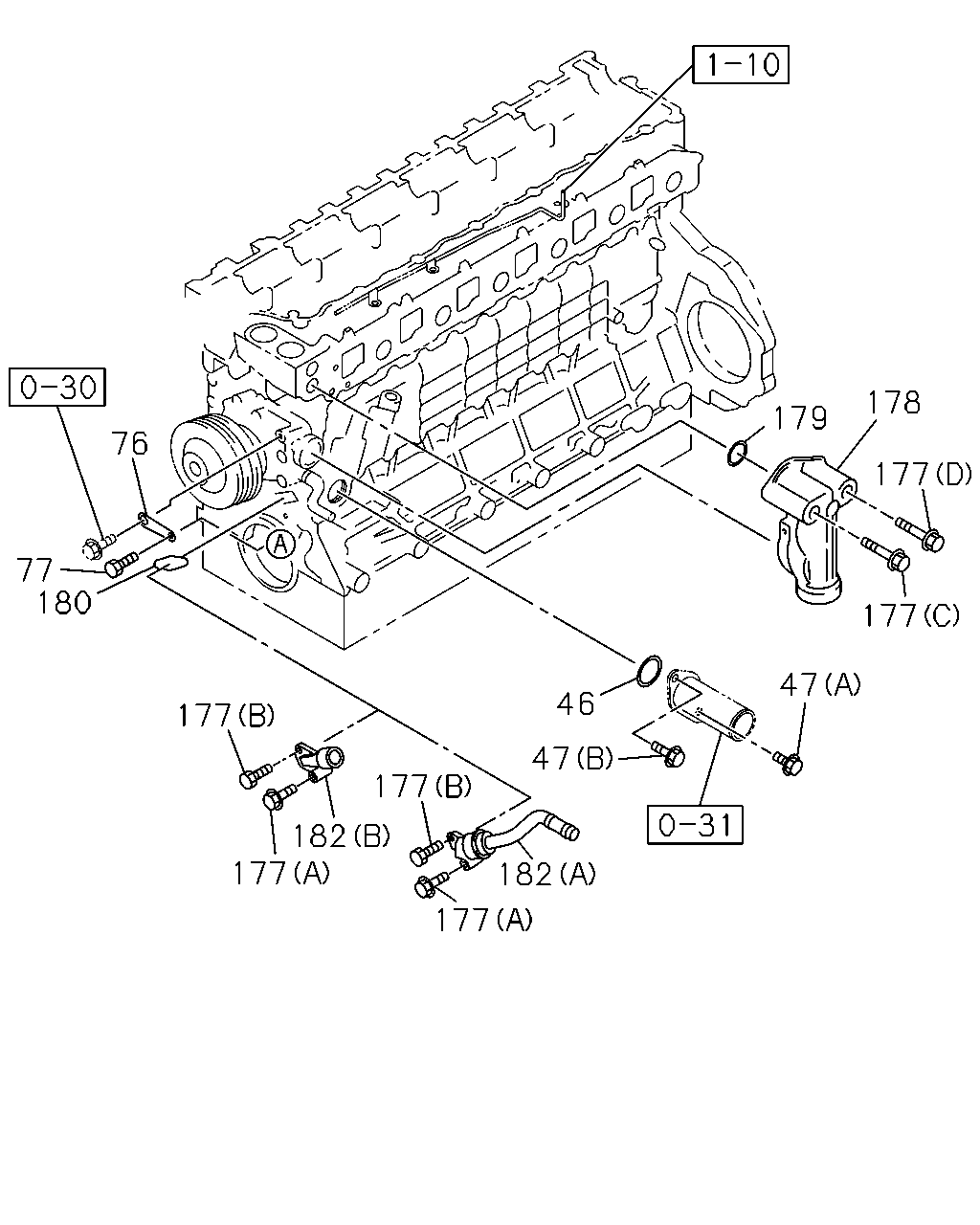

178 179 76 177 77 180 177 47 46 177 47 177 182 177 182 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9811-9902	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9903-	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28080-845-0	01	1	9811-9902	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28080-845-0	01	1	9903-0512	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-9902	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28680-825-0	01	1	9903-0512	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9811-9902	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9903-	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9811-9902	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9903-9906	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9907-0201	●
77	BOLT; BRKT,WATER DUCT EXC. EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28080-850-0	01	1	0202-0203	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	02	1	9907-0201		●
77	BOLT; BRKT,WATER DUCT EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28080-850-0	02	1	0202-0203	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	02	1	0202-0203		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	02	1	0204-0512	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9811-9902	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9903-0512	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-9902	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9903-0512	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9811-9902	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9903-	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9811-9902	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9903-	●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9811-9902	●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	9903-	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9811-9902	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9903-1408	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9811-9902	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9903-	●	●
182	DUCT; WATER,HTR (B)	8-94390-283-0	01	1	9811-9811	●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	9811-9811	●
182	DUCT; WATER,HTR (B)	8-94390-283-0	01	1	9812-0011	●
182	DUCT; WATER,HTR (B)	8-94390-283-0	01	1	0012-0106	●
182	DUCT; WATER,HTR EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)	8-94390-283-0	01	1	0012-0106		●
182	DUCT; WATER,HTR (B)	8-94390-283-0	01	1	0107-0203	●	●
182	DUCT; WATER,HTR HEAVY DUTY P/S OIL PUMP<E1N> (B)	8-94390-283-0	01	1	0204-	●
182	DUCT; WATER,HTR TACHOMETER<UD7> CAUTIONS SPANISH<YN1> (B)	8-94390-283-0	01	1	0204-		●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	9812-9905		●
182	DUCT; WATER,HTR EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (A)	8-94394-348-5	01	1	9906-0011		●
182	DUCT; WATER,HTR SPEED LIMITER CABLE STROKE CONTROL<TDT> (A)	8-97600-236-1	01	1	9906-0011		●
