◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#24250) — 150 parça

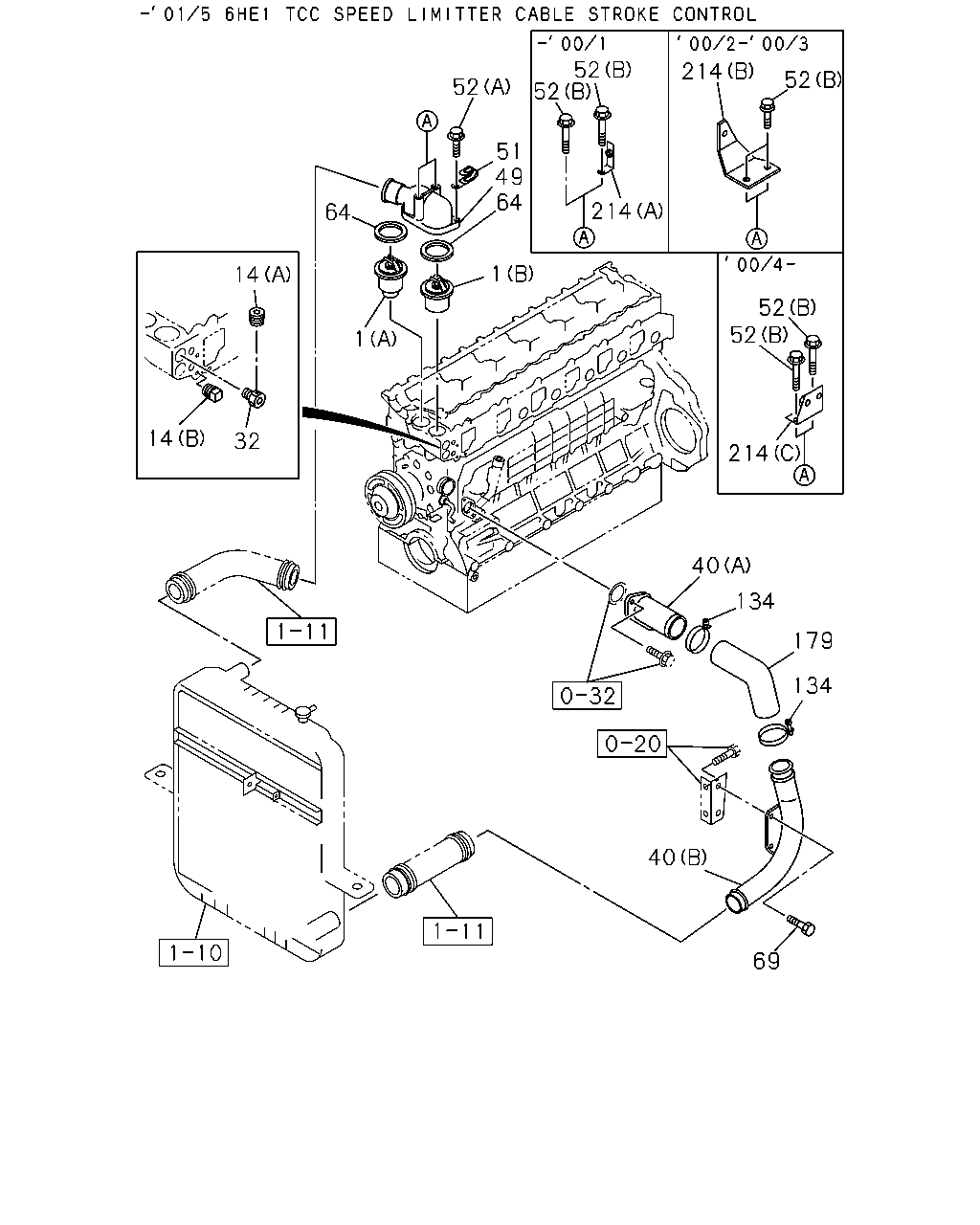

çizim 79639
52 52 214 52 52 51 49 64 214 64 1 14 52 52 1 14 32 214 40 134 179 134 40 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9811-9902 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9903-0105 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0201-1501 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9811-9902 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9903-0105 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0106- ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9811-9902 ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9903-1008 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9811-9902 ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9903- ● ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9811-9902 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9903-1008 ● ●
32 CONNECTOR; HTR 8-98177-501-0 01 1 1009- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9811-9902 ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 9903- ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9811- ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9811-9902 ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9903-0105 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9811-9902 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9903-0801 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0204-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9811-9902 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9903-9905 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9906-0203 ●
52 BOLT; JOINT,THERMOSTAT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X80 FLANGE 		0-28080-880-0 02 1 9906-0203 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-9902 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9903-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X80 FLANGE 		0-28080-880-0 01 1 9906-0001 ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X85 FLANGE 		8-97023-062-0 01 1 9906-0001 ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X85 FLANGE 		8-97023-062-0 02 1 0002- ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9811-9902 ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9903-0105 ● ●
69 BOLT; DUCT,WATER OUTLET
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 0202-0203 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 9811-0201 ● ●
69 BOLT; DUCT,WATER OUTLET
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 0202-0203 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 0202-0203 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 0204-0512 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9811- ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 9811- ● ●
214 BRACKET; HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		8-94393-074-1 01 1 9906-0001 ●
214 BRACKET; HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) 		8-97601-170-0 01 1 0002-0003 ●
214 BRACKET; HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) 		8-97601-383-0 01 1 0004- ●

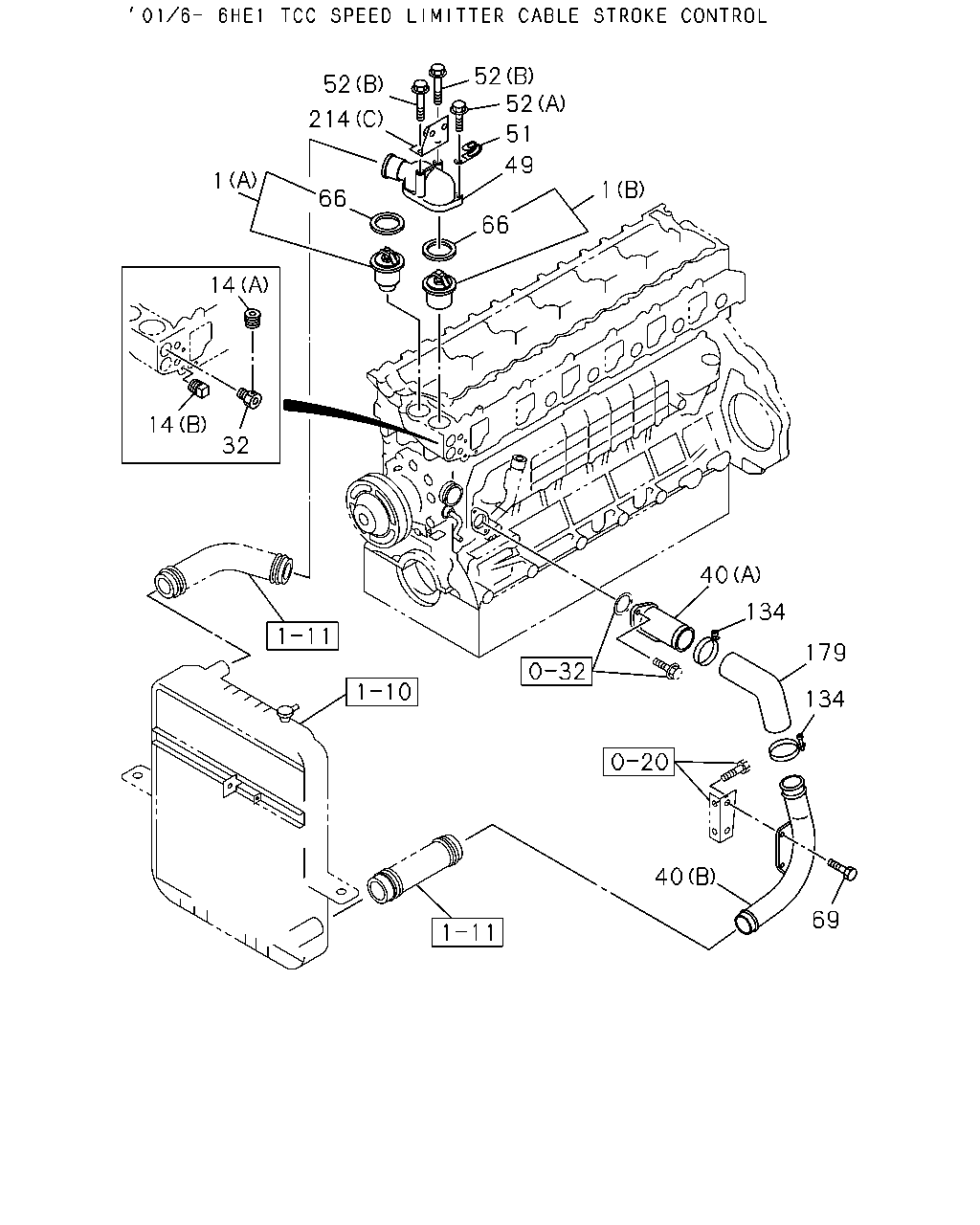

çizim 79921
52 52 52 214 51 49 1 1 66 66 14 14 32 40 134 179 134 40 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9811-9902 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9903-0105 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0201-1501 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9811-9902 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9903-0105 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0106- ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9811-9902 ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9903-1008 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9811-9902 ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9903- ● ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9811-9902 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9903-1008 ● ●
32 CONNECTOR; HTR 8-98177-501-0 01 1 1009- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9811-9902 ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 9903- ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9811- ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9811-9902 ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9903-0105 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9811-9902 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9903-0801 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0204-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9811-9902 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9903-9905 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9906-0203 ●
52 BOLT; JOINT,THERMOSTAT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X80 FLANGE 		0-28080-880-0 02 1 9906-0203 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-9902 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9903-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X80 FLANGE 		0-28080-880-0 01 1 9906-0001 ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X85 FLANGE 		8-97023-062-0 01 1 9906-0001 ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X85 FLANGE 		8-97023-062-0 02 1 0002- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-1501 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ●
69 BOLT; DUCT,WATER OUTLET
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 0202-0203 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 9811-0201 ● ●
69 BOLT; DUCT,WATER OUTLET
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 0202-0203 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 0202-0203 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 0204-0512 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9811- ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 9811- ● ●
214 BRACKET; HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		8-94393-074-1 01 1 9906-0001 ●
214 BRACKET; HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) 		8-97601-170-0 01 1 0002-0003 ●
214 BRACKET; HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) 		8-97601-383-0 01 1 0004- ●

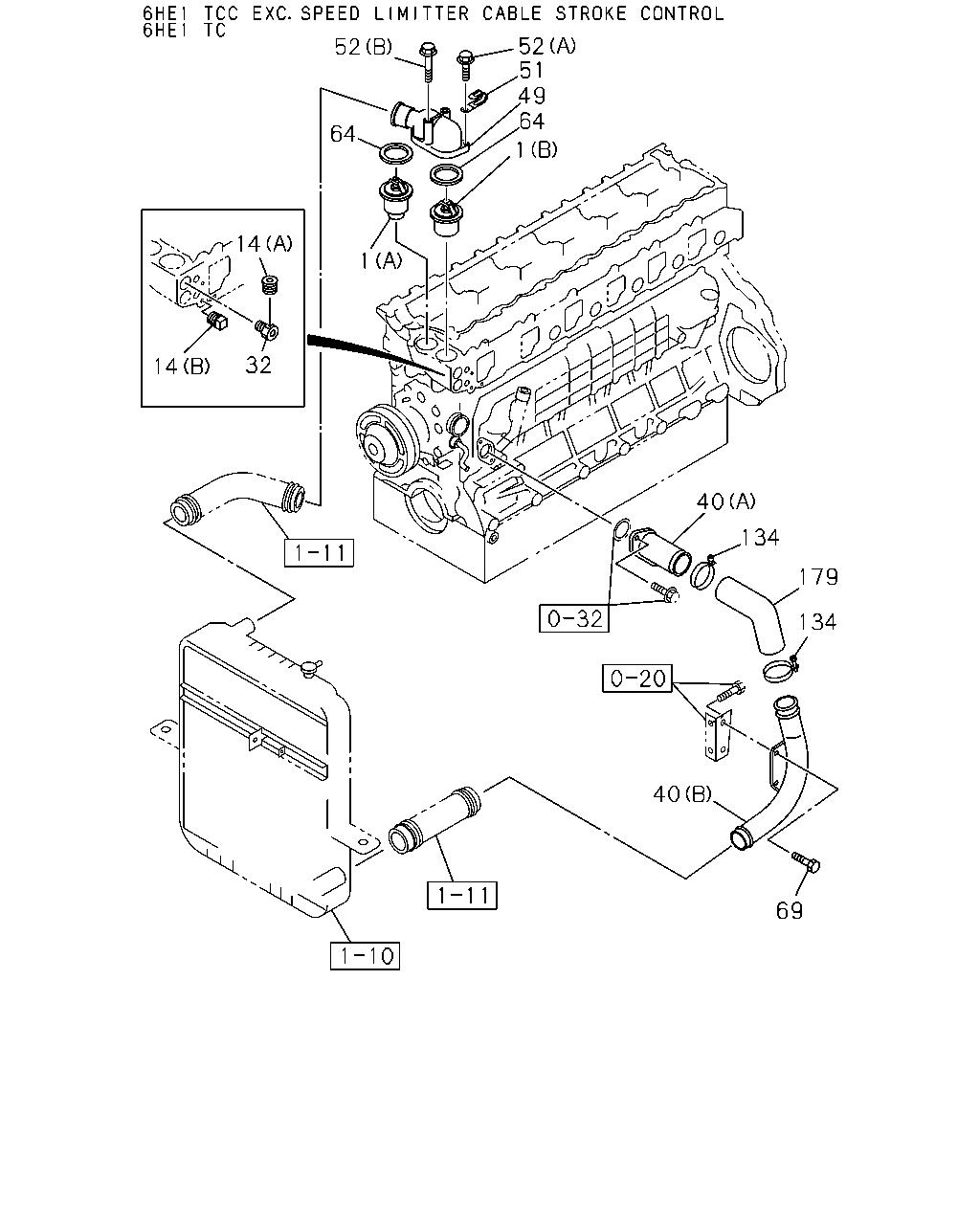

çizim 80429
52 51 49 64 52 64 1 14 1 32 14 40 134 179 134 40 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9811-9902 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9903-0105 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0201-1501 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9811-9902 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9903-0105 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0106- ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9811-9902 ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9903-1008 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9811-9902 ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9903- ● ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9811-9902 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9903-1008 ● ●
32 CONNECTOR; HTR 8-98177-501-0 01 1 1009- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9811-9902 ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 9903- ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9811- ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9811-9902 ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9903-0105 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9811-9902 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9903-0801 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0204-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9811-9902 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9903-9905 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9906-0203 ●
52 BOLT; JOINT,THERMOSTAT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X80 FLANGE 		0-28080-880-0 02 1 9906-0203 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-9902 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9903-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X80 FLANGE 		0-28080-880-0 01 1 9906-0001 ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X85 FLANGE 		8-97023-062-0 01 1 9906-0001 ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X85 FLANGE 		8-97023-062-0 02 1 0002- ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9811-9902 ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9903-0105 ● ●
69 BOLT; DUCT,WATER OUTLET
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 0202-0203 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 9811-0201 ● ●
69 BOLT; DUCT,WATER OUTLET
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 0202-0203 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 0202-0203 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 0204-0512 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9811- ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 9811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
