0-84 — FEED PUMP; INJECTION PUMP (#2425) — 73 parça

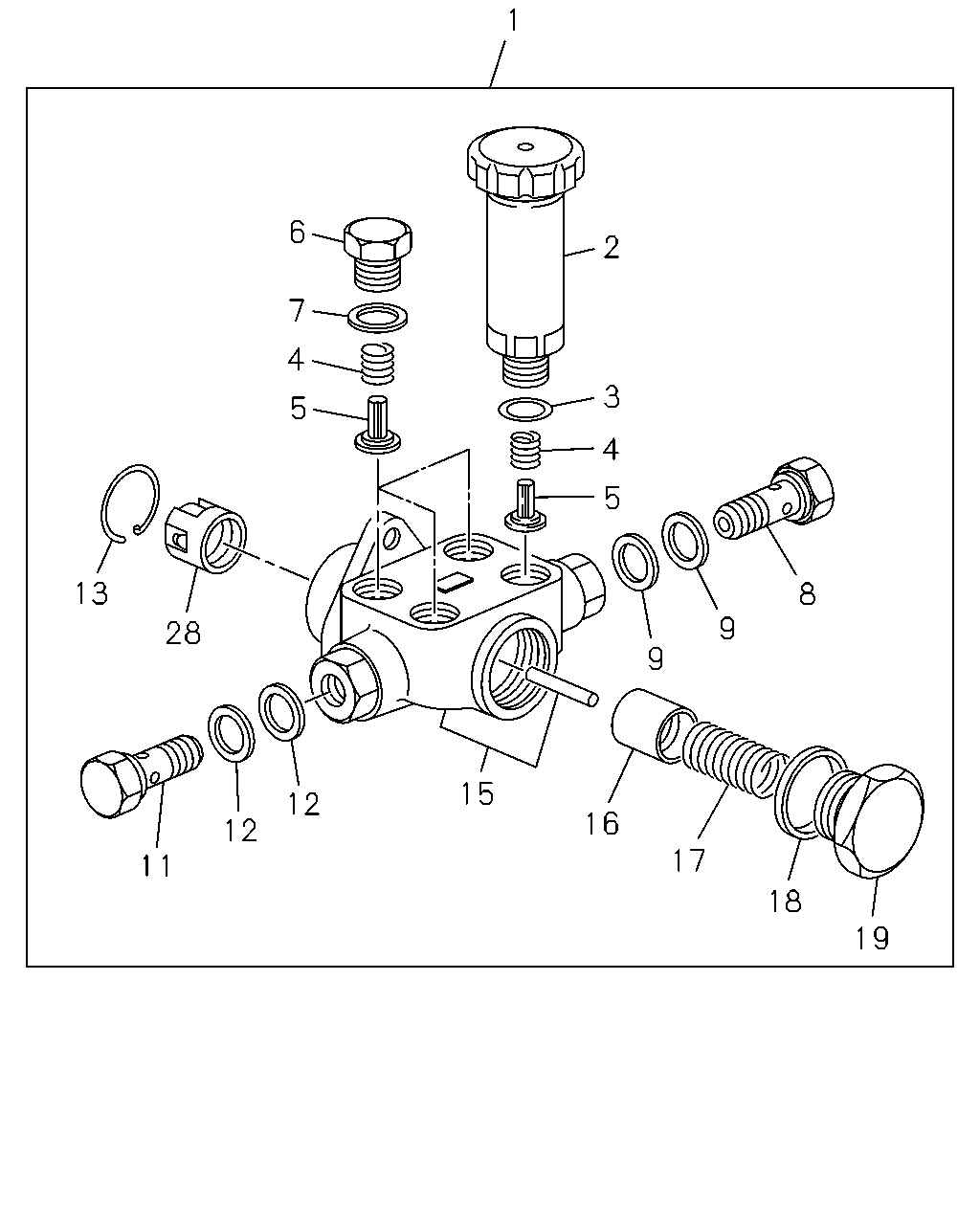

1 6 2 7 4 3 5 4 5 13 8 9 28 9 15 12 16 12 17 11 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: J = 1-15602-950-1	1-15750-068-0	01	1	-9404
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, G = 1-15602-734-3	1-15750-068-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, H = 1-15602-922-0, K = 1-15602-993-1	1-15750-084-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: L = 1-15603-021-3	1-15750-130-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: I = 1-15602-949-1	9-81350-047-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: J = 1-15602-950-1	9-81350-047-0	01	1	9405-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, H = 1-15602-922-0, K = 1-15602-993-1, L = 1-15603-021-3	1-15761-006-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, G = 1-15602-734-3, I = 1-15602-949-1, J = 1-15602-950-1	8-94131-130-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81351-602-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, H = 1-15602-922-0, K = 1-15602-993-1, L = 1-15603-021-3	1-15759-009-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, G = 1-15602-734-3, I = 1-15602-949-1, J = 1-15602-950-1	1-15759-009-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, K = 1-15602-993-1, L = 1-15603-021-3	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: E = 1-15602-457-2	1-15759-011-0	01	1	9105-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: E = 1-15602-457-2	1-15759-029-0	01	1	-9104
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, I = 1-15602-949-1, J = 1-15602-950-1	1-15759-029-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: L = 1-15603-021-3	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1	1-15759-012-0	02	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, I = 1-15602-949-1, J = 1-15602-950-1	1-15759-011-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: E = 1-15602-457-2	1-15759-011-0	01	1	-9104
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: E = 1-15602-457-2	1-15759-029-0	01	1	9105-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, K = 1-15602-993-1, L = 1-15603-021-3	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: L = 1-15603-021-3	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, G = 1-15602-734-3, I = 1-15602-949-1, J = 1-15602-950-1	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, H = 1-15602-922-0, K = 1-15602-993-1, L = 1-15603-021-3	1-15751-011-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	1-15754-004-0	01	1	-

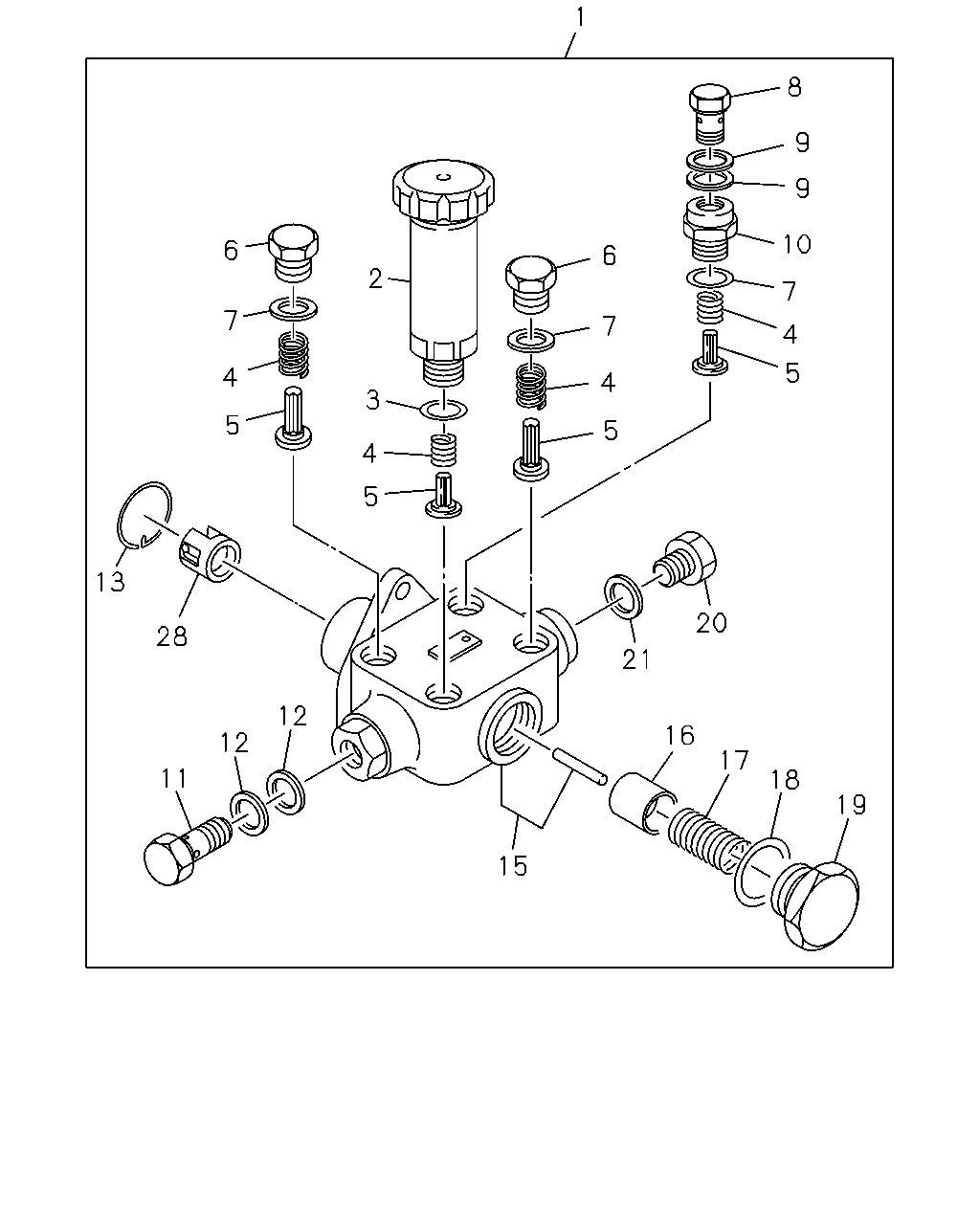

1 8 9 9 10 6 6 2 7 7 7 4 5 4 4 3 5 5 4 5 13 20 28 21 12 16 12 17 11 18 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: J = 1-15602-950-1	1-15750-068-0	01	1	-9404
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, G = 1-15602-734-3	1-15750-068-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, H = 1-15602-922-0, K = 1-15602-993-1	1-15750-084-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: L = 1-15603-021-3	1-15750-130-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: I = 1-15602-949-1	9-81350-047-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: J = 1-15602-950-1	9-81350-047-0	01	1	9405-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, H = 1-15602-922-0, K = 1-15602-993-1, L = 1-15603-021-3	1-15761-006-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, G = 1-15602-734-3, I = 1-15602-949-1, J = 1-15602-950-1	8-94131-130-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81351-602-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, H = 1-15602-922-0, K = 1-15602-993-1, L = 1-15603-021-3	1-15759-009-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, G = 1-15602-734-3, I = 1-15602-949-1, J = 1-15602-950-1	1-15759-009-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, K = 1-15602-993-1, L = 1-15603-021-3	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: E = 1-15602-457-2	1-15759-011-0	01	1	9105-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: E = 1-15602-457-2	1-15759-029-0	01	1	-9104
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, I = 1-15602-949-1, J = 1-15602-950-1	1-15759-029-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: L = 1-15603-021-3	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1	1-15759-012-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: L = 1-15603-021-3	1-15759-052-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, H = 1-15602-922-0, K = 1-15602-993-1	1-89967-393-5	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, I = 1-15602-949-1, J = 1-15602-950-1	1-15759-011-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: E = 1-15602-457-2	1-15759-011-0	01	1	-9104
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: E = 1-15602-457-2	1-15759-029-0	01	1	9105-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, K = 1-15602-993-1, L = 1-15603-021-3	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: L = 1-15603-021-3	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, G = 1-15602-734-3, I = 1-15602-949-1, J = 1-15602-950-1	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, H = 1-15602-922-0, K = 1-15602-993-1, L = 1-15603-021-3	1-15751-011-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, H = 1-15602-922-0, K = 1-15602-993-1, L = 1-15603-021-3	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: L = 1-15603-021-3	1-09630-085-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-434-7, F = 1-15602-599-2, H = 1-15602-922-0, K = 1-15602-993-1	1-15759-012-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-444-1, E = 1-15602-457-2, F = 1-15602-599-2, G = 1-15602-734-3, H = 1-15602-922-0, I = 1-15602-949-1, J = 1-15602-950-1, K = 1-15602-993-1, L = 1-15603-021-3	1-15754-004-0	01	1	-
