◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#24249) — 71 parça

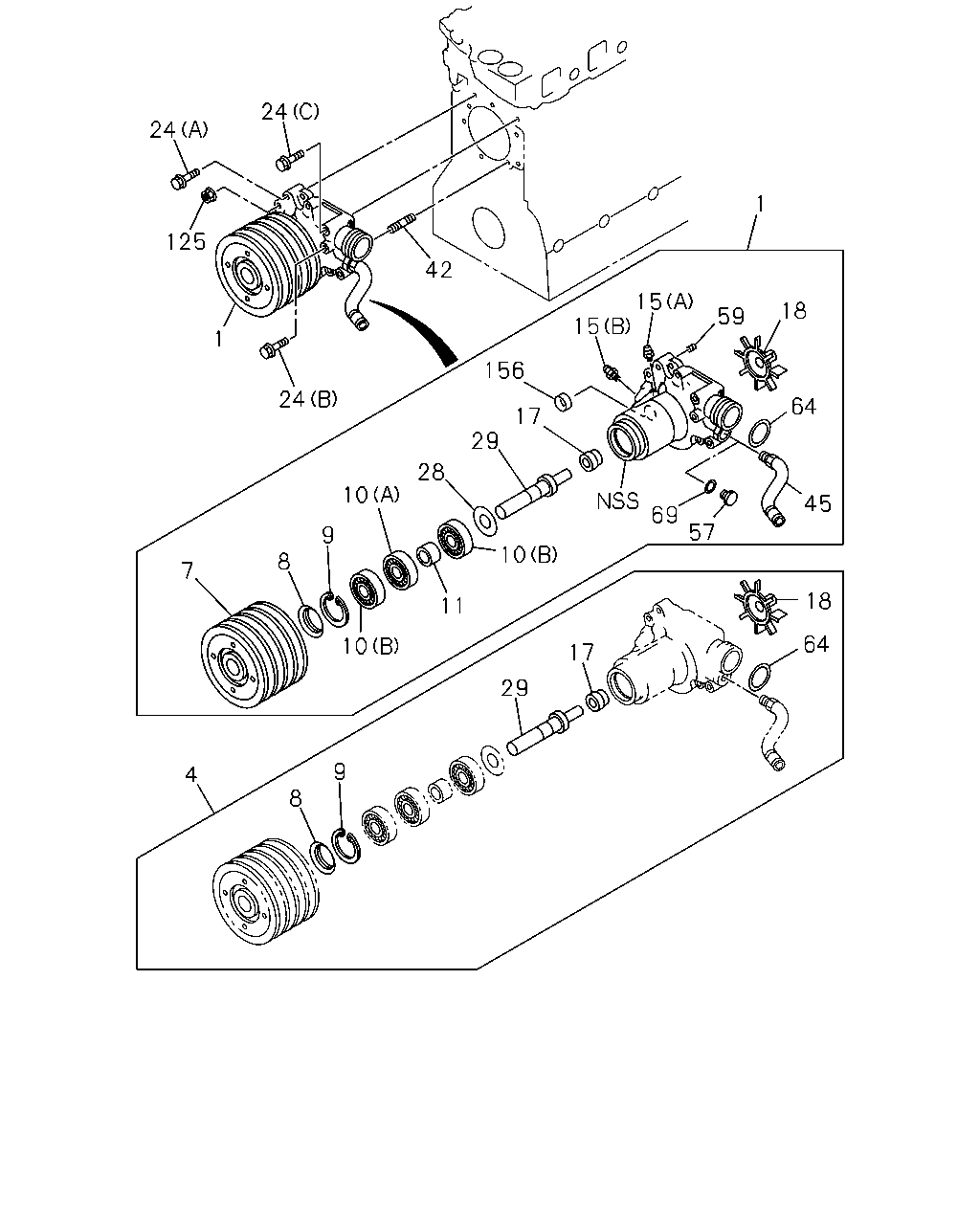

çizim 80141
24 24 1 125 42 15 15 18 59 1 156 24 64 17 29 28 10 45 69 57 9 10 8 7 18 11 64 10 17 29 9 4 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET 8-94391-059-1 01 1 9811-9811 ●
1 PUMP ASM; WATER,W/GASKET 8-94391-060-4 01 1 9812-0011 ●
1 PUMP ASM; WATER,W/GASKET 8-94391-060-5 01 1 0012-0301 ● ●
1 PUMP ASM; WATER,W/GASKET 8-97602-781-2 01 1 0302-1208 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-839-0 01 1 1209-1312 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-911-0 01 1 1401-1405 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-983-0 01 1 1406- ● ●
1 PUMP ASM; WATER,W/GASKET 8-94391-059-2 01 1 9903-9905 ●
1 PUMP ASM; WATER,W/GASKET
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94391-059-4 01 1 9906-0011 ●
1 PUMP ASM; WATER,W/GASKET
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-97600-352-2 01 1 9906-0011 ●
4 REPAIR KIT; WATER PUMP 1-87814-172-0 01 1 1401-1405 ● ●
4 REPAIR KIT; WATER PUMP 1-87814-612-0 01 1 1406- ● ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9811-9902 ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9903-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-028-1 01 1 9912-1208 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-946-0 01 1 1209-1312 ● ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 9811-9902 ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 9903- ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9811-9902 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9903- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9811-9902 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9903- ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-298-0 02 1 9811-9902 ●
10 BEARING; WATER PUMP
(B) 		8-94391-298-0 02 1 9903- ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-299-0 01 1 9811-9902 ●
10 BEARING; WATER PUMP
(A) 		8-94391-299-0 01 1 9903- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9811-9902 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9903- ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9811-9902 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9903- ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9811-9902 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9903-0512 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9811-9902 ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9903-9912 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-1208 ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9811-9902 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9903- ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9811-9902 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9903-0512 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9811-9902 ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9903- ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9811-9902 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9903- ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9811-9902 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9903- ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9811-9902 ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9903- ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9811-9902 ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9903-0604 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 9811-9811 ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 9903-9905 ●
45 JOINT; HTR HOSE,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94394-389-0 01 1 9906-0011 ●
45 JOINT; HTR HOSE,WATER PUMP
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94392-827-1 01 1 9906-0011 ●
57 PLUG; HTR,WATER PUMP
HEAVY DUTY P/S OIL PUMP<E1N> M20 		9-99202-320-0 01 1 0304- ●
57 PLUG; HTR,WATER PUMP
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> M20 		9-99202-320-0 01 1 0304- ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9811-9902 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9903- ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9811-9902 ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9903- ● ●
69 GASKET; PLUG,HTR
HEAVY DUTY P/S OIL PUMP<E1N> ID=20.5 OD=28.0 		9-09571-420-0 01 1 0304- ●
69 GASKET; PLUG,HTR
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> ID=20.5 OD=28.0 		9-09571-420-0 01 1 0304- ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9811-9902 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9903-0602 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
