◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶
0-27 — EXHAUST MANIFOLD (#24247) — 71 parça

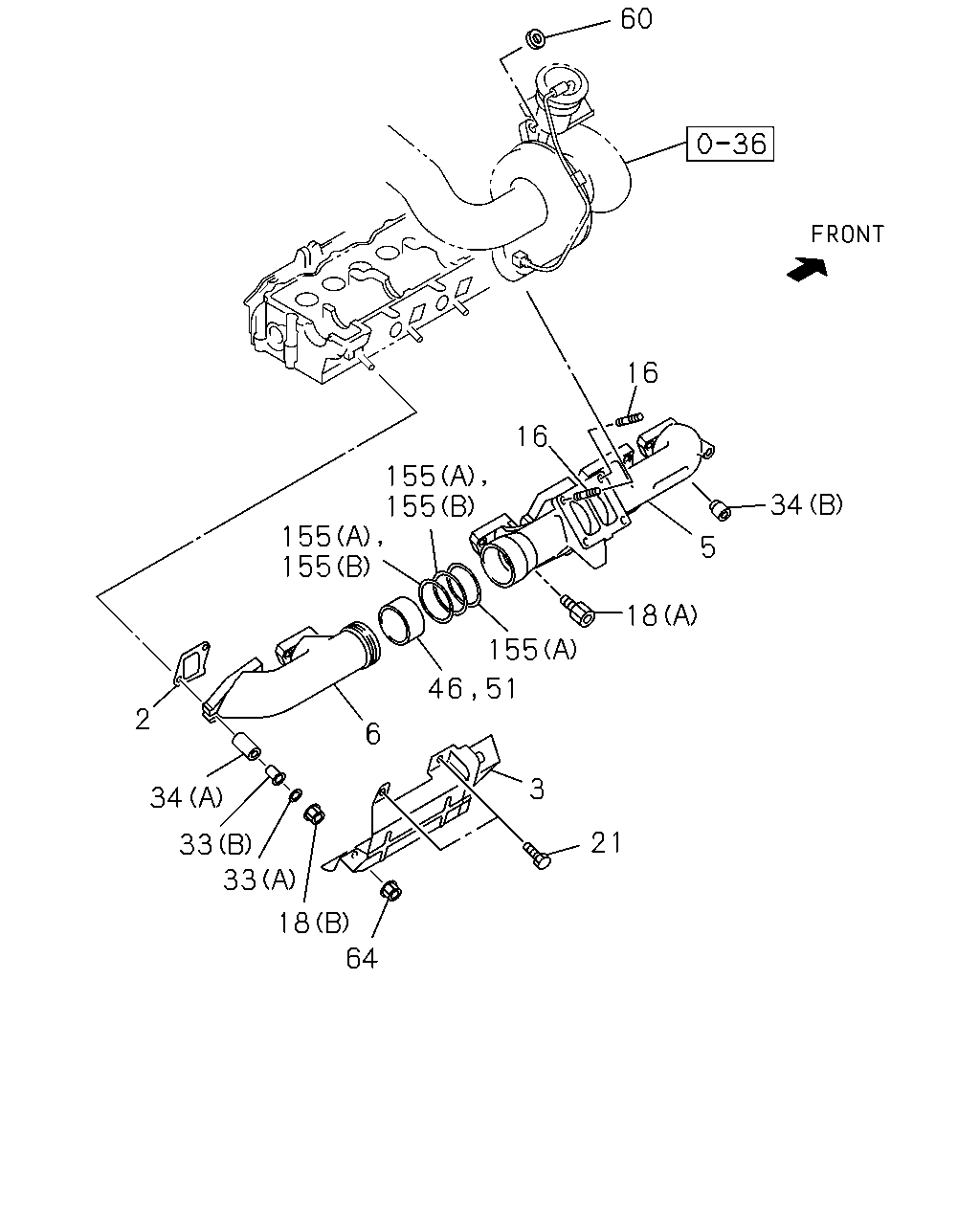

çizim 82586
60 16 16 155 155 34 155 155 5 18 155 2 6 3 34 21 33 33 18 64 46 51
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9811-0201 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94396-351-1 06 1 0202-0203 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-1 06 1 9903-0201 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-1 06 1 0202-0203 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-1 06 1 0202-0203 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0204- ● ●
3 PROTECTOR; HEAT,EXH MANIF 8-94391-582-1 01 1 9903-0201 ●
3 PROTECTOR; HEAT,EXH MANIF
EURO2 SPECIFICATION<THN> 		8-94391-582-1 01 1 0202-0203 ●
3 PROTECTOR; HEAT,EXH MANIF 8-94391-582-1 01 1 0202-0203 ●
3 PROTECTOR; HEAT,EXH MANIF 8-94391-582-1 01 1 0204- ● ●
5 MANIFOLD; EXH,FRT 8-94394-366-2 01 1 9811-0201 ●
5 MANIFOLD; EXH,FRT
EXC. EURO2 SPECIFICATION<THN> 		8-94394-366-2 01 1 0202-0203 ●
5 MANIFOLD; EXH,FRT 8-94395-422-2 01 1 9903-0104 ●
5 MANIFOLD; EXH,FRT 8-97602-056-0 01 1 0105-0201 ●
5 MANIFOLD; EXH,FRT
EURO2 SPECIFICATION<THN> 		8-97602-056-0 01 1 0202-0203 ●
5 MANIFOLD; EXH,FRT 8-97602-056-0 01 1 0202-0203 ●
5 MANIFOLD; EXH,FRT 8-97602-056-0 01 1 0204- ● ●
6 MANIFOLD; EXH,RR 8-94393-744-0 01 1 9811-0201 ●
6 MANIFOLD; EXH,RR
EXC. EURO2 SPECIFICATION<THN> 		8-94393-744-0 01 1 0202-0203 ●
6 MANIFOLD; EXH,RR 8-94394-636-1 01 1 9903-0104 ●
6 MANIFOLD; EXH,RR 8-97600-970-0 01 1 0105-0201 ●
6 MANIFOLD; EXH,RR
EURO2 SPECIFICATION<THN> 		8-97600-970-0 01 1 0202-0203 ●
6 MANIFOLD; EXH,RR 8-97600-970-0 01 1 0202-0203 ●
6 MANIFOLD; EXH,RR 8-97600-970-0 01 1 0204- ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9811-9902 ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9903- ● ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91150-210-0 12 1 9811-0201 ●
18 NUT; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 12 1 0202-0203 ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91150-210-0 10 1 9903-0201 ●
18 NUT; EXH MANIF
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 10 1 0202-0203 ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91150-210-0 10 1 0202-0203 ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91150-210-0 10 1 0204-0602 ● ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91180-210-0 10 1 0603- ● ●
18 NUT; EXH MANIF
(A) M10 L=51 		8-94394-991-1 02 1 9903-0201 ●
18 NUT; EXH MANIF
EURO2 SPECIFICATION<THN> (A) M10 L=51 		8-94394-991-1 02 1 0202-0203 ●
18 NUT; EXH MANIF
(A) M10 L=51 		8-94394-991-1 02 1 0202-0203 ●
18 NUT; EXH MANIF
(A) M10 L=51 		8-94394-991-1 02 1 0204-1202 ● ●
18 NUT; EXH MANIF
(A) M10 		8-98205-394-0 02 1 1203- ● ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28080-816-0 02 1 9903-0201 ●
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 0202-0203 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28080-816-0 02 1 0202-0203 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28080-816-0 02 1 0204-0512 ● ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9811-9902 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9903-0203 ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9811-0201 ●
33 WASHER; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (B) T=5.5 		1-14149-042-0 11 1 0202-0203 ●
33 WASHER; EXH MANIF
(B) T=2.2 		1-09556-015-0 12 1 0204- ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9811-0201 ●
34 COLLAR; DIST,EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (B) L=28 		8-94395-679-0 01 1 0202-0203 ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9811-0201 ●
34 COLLAR; DIST,EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (A) L=43 		8-94396-406-0 11 1 0202-0203 ●
34 COLLAR; DIST,EXH MANIF
(A) L=28 		8-94395-679-0 12 1 9903-0201 ●
34 COLLAR; DIST,EXH MANIF
EURO2 SPECIFICATION<THN> (A) L=28 		8-94395-679-0 12 1 0202-0203 ●
34 COLLAR; DIST,EXH MANIF
(A) L=28 		8-94395-679-0 12 1 0202-0203 ●
34 COLLAR; DIST,EXH MANIF
(A) L=28 		8-94395-679-0 12 1 0204-0209 ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=28 		8-97250-073-1 12 1 0210- ● ●
46 PIPE; SEAL,EXH MANIF
OD=49.5 L=43 		1-14149-131-1 01 1 9903-0104 ●
51 PIPE; SEAL
OD=49.5 L=43 		1-14149-131-1 01 1 9811-0201 ●
51 PIPE; SEAL
EXC. EURO2 SPECIFICATION<THN> OD=49.5 L=43 		1-14149-131-1 01 1 0202-0203 ●
60 WASHER; PL,EXH PIPE
ID=10 		1-09503-033-1 02 1 9811-0201 ●
60 WASHER; PL,EXH PIPE
EXC. EURO2 SPECIFICATION<THN> ID=10 		1-09503-033-1 02 1 0202-0203 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91150-210-0 02 1 9903-0201 ●
64 NUT; HEAT PROTECTOR
EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91150-210-0 02 1 0202-0203 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91150-210-0 02 1 0202-0203 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ● ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0502- ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 03 1 9811-9902 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 03 1 9903-0501 ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 01 1 0502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
