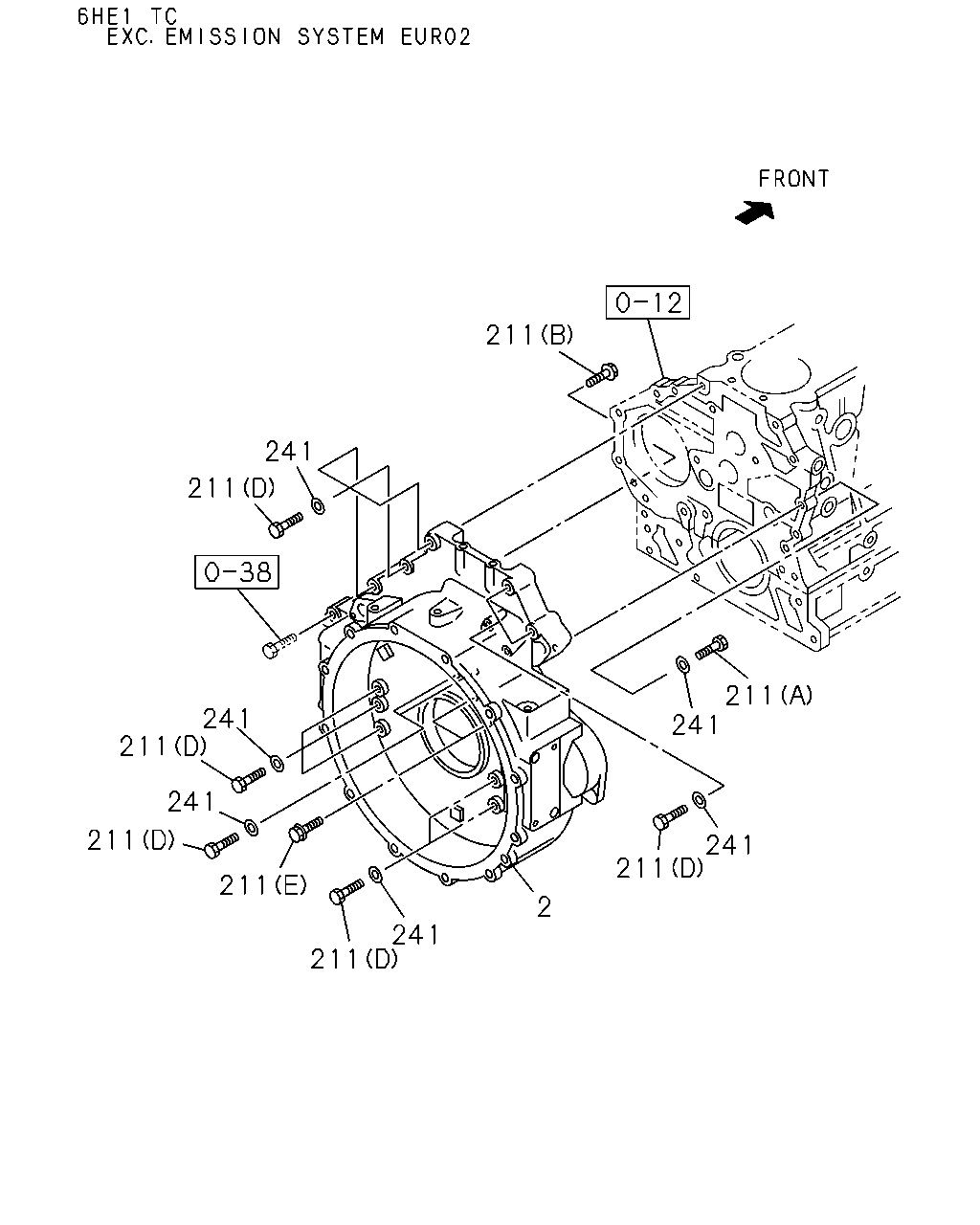

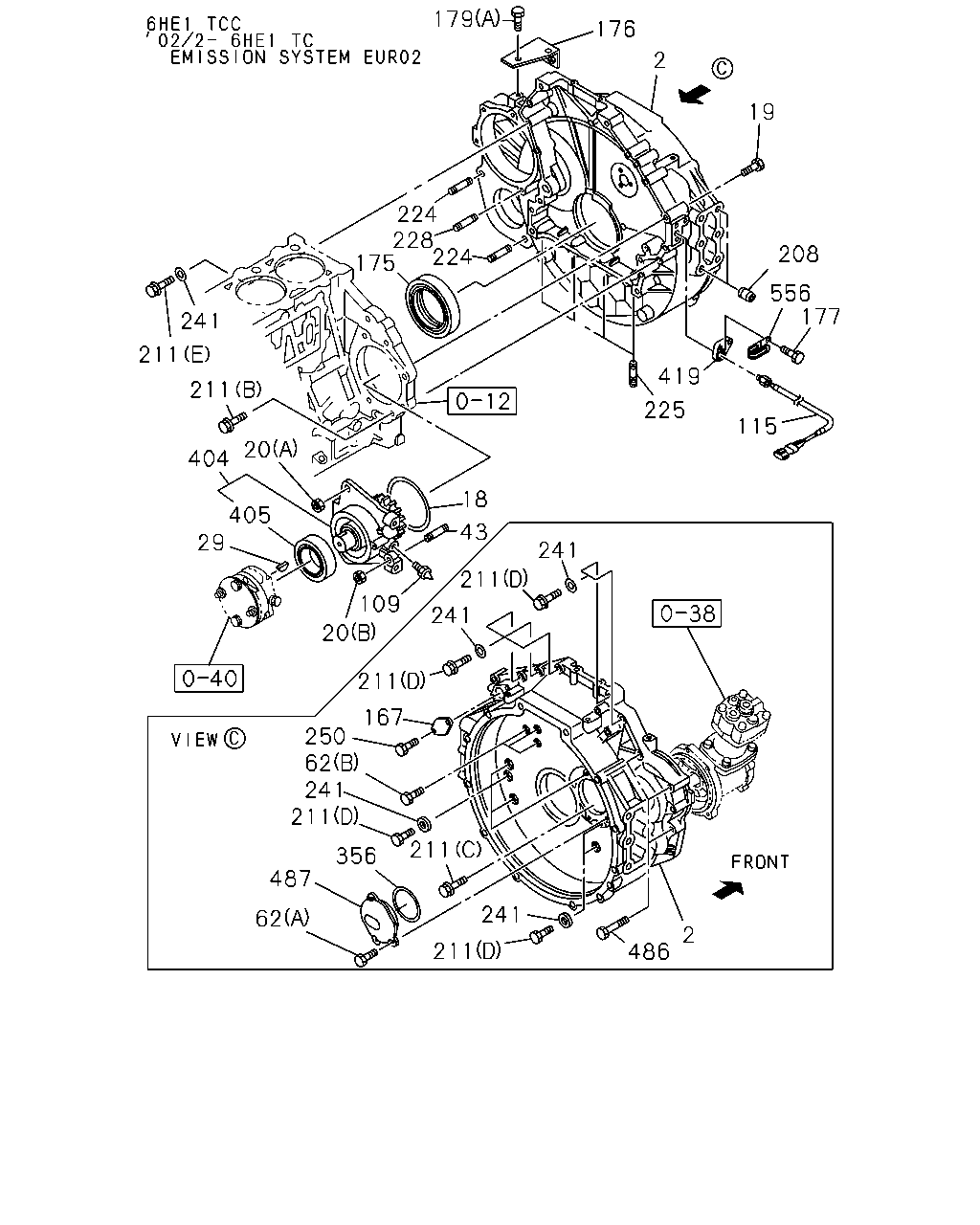

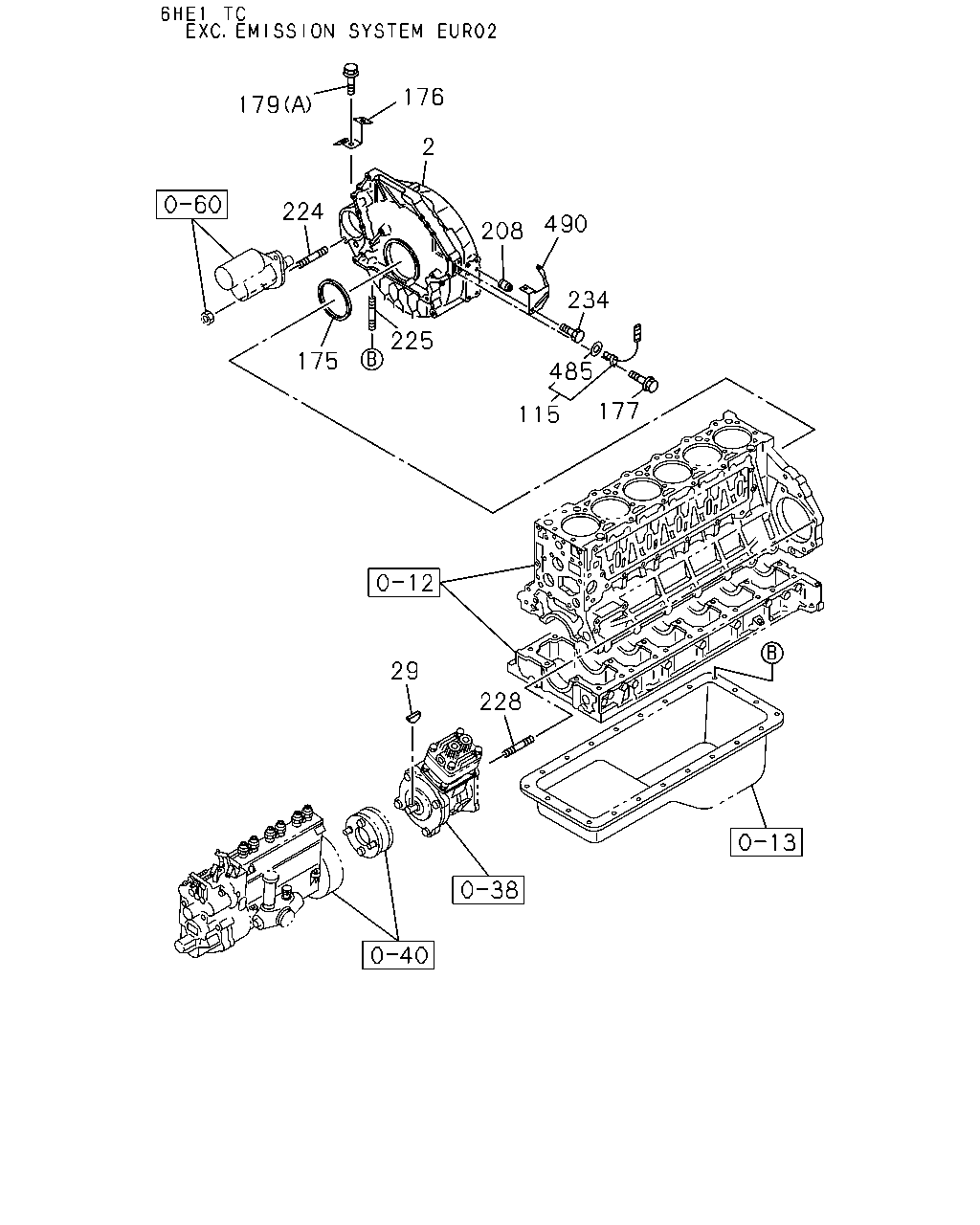

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#24244) — 315 parça

179 176 2 19 224 228 224 175 208 556 177 241 211 419 211 225 115 20 404 18 405 29 43 241 211 109 241 20 211 167 250 62 241 211 211 356 487 241 62 2 211 486

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-94393-404-3	01	1	9811-0201	●
2	HOUSING; FLYWHEEL EXC. EURO2 SPECIFICATION<THN>	8-94393-404-3	01	1	0202-0203	●
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9903-9903		●
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	9904-0201		●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	8-97600-260-2	01	1	0202-0203	●
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	0202-0203		●
2	HOUSING; FLYWHEEL	8-97600-260-9	01	1	0204-	●	●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9903-0201		●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=139.6	1-09623-464-0	01	1	0202-0203	●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0202-0203		●
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0204-	●	●
19	BOLT; BRG CASE M12X100 FLANGE	0-28181-200-0	01	1	9903-0201		●
19	BOLT; BRG CASE EURO2 SPECIFICATION<THN> M12X100 FLANGE	0-28181-200-0	01	1	0202-0203	●
19	BOLT; BRG CASE M12X100 FLANGE	0-28181-200-0	01	1	0202-0203		●
19	BOLT; BRG CASE M12X100 FLANGE	0-28181-200-0	01	1	0204-0512	●	●
19	BOLT; BRG CASE M12X100 FLANGE	0-28151-200-0	01	1	0601-	●	●
20	NUT; BRG CASE (A) M10 FLANGE	0-91150-110-0	02	1	9903-0201		●
20	NUT; BRG CASE EURO2 SPECIFICATION<THN> (A) M10 FLANGE	0-91150-110-0	02	1	0202-0203	●
20	NUT; BRG CASE (A) M10 FLANGE	0-91150-110-0	02	1	0202-0203		●
20	NUT; BRG CASE (A) M10 FLANGE	0-91150-110-0	02	1	0204-0602	●	●
20	NUT; BRG CASE (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●
20	NUT; BRG CASE (B) M12 FLANGE	0-91150-212-0	01	1	9903-0201		●
20	NUT; BRG CASE EURO2 SPECIFICATION<THN> (B) M12 FLANGE	0-91150-212-0	01	1	0202-0203	●
20	NUT; BRG CASE (B) M12 FLANGE	0-91150-212-0	01	1	0202-0203		●
20	NUT; BRG CASE (B) M12 FLANGE	0-91150-212-0	01	1	0204-0602	●	●
20	NUT; BRG CASE (B) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
29	KEY; COUPLING	9-08055-416-0	01	1	9811-0201	●
29	KEY; COUPLING EXC. EURO2 SPECIFICATION<THN>	9-08055-416-0	01	1	0202-0203	●
29	KEY; COUPLING	9-08055-516-0	01	1	9903-0201		●
29	KEY; COUPLING EURO2 SPECIFICATION<THN>	9-08055-516-0	01	1	0202-0203	●
29	KEY; COUPLING	9-08055-516-0	01	1	0202-0203		●
29	KEY; COUPLING	9-08055-516-0	01	1	0204-	●	●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	9903-0201		●
43	STUD; BRG COVER EURO2 SPECIFICATION<THN> M12X67 L=82	1-09302-112-0	01	1	0202-0203	●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	0202-0203		●
43	STUD; BRG COVER M12X67 L=82	1-09302-112-0	01	1	0204-	●	●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	9903-0201		●
62	BOLT; COVER EURO2 SPECIFICATION<THN> (A) M8X14 FLANGE	0-28080-814-0	03	1	0202-0203	●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0202-0203		●
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	0204-	●	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	9903-0201		●
62	BOLT; COVER EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28080-820-0	03	1	0202-0203	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0202-0203		●
62	BOLT; COVER (B) M8X20 FLANGE	0-28080-820-0	03	1	0204-0512	●	●
62	BOLT; COVER (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-	●	●
109	POINTER; TIMING L=21	9-11327-602-0	01	1	9903-0201		●
109	POINTER; TIMING EURO2 SPECIFICATION<THN> L=21	9-11327-602-0	01	1	0202-0203	●
109	POINTER; TIMING L=21	9-11327-602-0	01	1	0202-0203		●
109	POINTER; TIMING L=21	9-11327-602-0	01	1	0204-	●	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9811-0201	●
115	SENSOR; REVOLUTION,ENG SPD EXC. EURO2 SPECIFICATION<THN>	1-81510-561-0	01	1	0202-0203	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-549-1	01	1	9903-0002		●
115	SENSOR; REVOLUTION,ENG SPD	8-97601-117-0	01	1	0003-0201		●
115	SENSOR; REVOLUTION,ENG SPD	8-97601-117-2	01	1	0202-	●	●
167	COVER; OIL	1-11219-163-0	01	1	9903-0201		●
167	COVER; OIL EURO2 SPECIFICATION<THN>	1-11219-163-0	01	1	0202-0203	●
167	COVER; OIL	1-11219-163-0	01	1	0202-0203		●
167	COVER; OIL	1-11219-163-0	01	1	0204-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9811-9902	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9903-0112	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0201-	●	●
176	BRACKET; HARNESS	1-82699-412-1	01	1	9811-0201	●
176	BRACKET; HARNESS EXC. EURO2 SPECIFICATION<THN>	1-82699-412-1	01	1	0202-0203	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9903-0201		●
176	BRACKET; HARNESS EURO2 SPECIFICATION<THN>	1-82699-828-1	01	1	0202-0203	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	0202-0203		●
176	BRACKET; HARNESS	1-82699-828-1	01	1	0204-	●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9811-0201	●
177	BOLT; SENSOR EXC. EURO2 SPECIFICATION<THN> M6X16 FLANGE	0-28080-616-0	01	1	0202-0203	●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	0202-0203	●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●
177	BOLT; SENSOR M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
177	BOLT; SENSOR M8X20 FLANGE	0-28680-820-0	02	1	9903-0512		●
177	BOLT; SENSOR M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-9902	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9903-0512	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9811-9902	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9903-0512	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9811-9902	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9903-0203	●	●
208	DOWEL; ENG FOOT HEAVY DUTY P/S OIL PUMP<E1N>	9-43269-009-1	04	1	0204-	●
208	DOWEL; ENG FOOT TACHOMETER<UD7> CAUTIONS SPANISH<YN1>	9-43269-009-1	04	1	0204-		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	02	1	9811-0201	●
211	BOLT; HSG EXC. EURO2 SPECIFICATION<THN> (B) M10X50 FLANGE	0-28181-050-0	02	1	0202-0203	●
211	BOLT; HSG (A) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	9811-0201	●
211	BOLT; HSG EXC. EURO2 SPECIFICATION<THN> (A) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	0202-0203	●
211	BOLT; HSG (E) M12X65	9-01666-265-0	03	1	9811-0201	●
211	BOLT; HSG EXC. EURO2 SPECIFICATION<THN> (E) M12X65	9-01666-265-0	03	1	0202-0203	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	10	1	9811-0201	●
211	BOLT; HSG EXC. EURO2 SPECIFICATION<THN> (D) M12X70	9-01666-270-0	10	1	0202-0203	●
211	BOLT; HSG (E) M12X60	0-16806-260-0	01	1	9903-0201		●
211	BOLT; HSG EURO2 SPECIFICATION<THN> (E) M12X60	0-16806-260-0	01	1	0202-0203	●
211	BOLT; HSG (E) M12X60	0-16806-260-0	01	1	0202-0203		●
211	BOLT; HSG (E) M12X60	0-16806-260-0	01	1	0204-0512	●	●
211	BOLT; HSG (E) M12X60	0-16856-260-0	01	1	0601-	●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9903-0201		●
211	BOLT; HSG EURO2 SPECIFICATION<THN> (B) M10X50 FLANGE	0-28181-050-0	01	1	0202-0203	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0202-0203		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0204-0512	●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-	●	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9903-0201		●
211	BOLT; HSG EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	8-94393-995-0	01	1	0202-0203	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0202-0203		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0204-	●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9903-0201		●
211	BOLT; HSG EURO2 SPECIFICATION<THN> (D) M12X70	9-01666-270-0	11	1	0202-0203	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0202-0203		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0204-0512	●	●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9811-9902	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9903-0604	●	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-	●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9811-9902	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9903-	●	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9811-0201	●
228	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M12X60 L=78	9-94411-260-0	01	1	0202-0203	●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9903-0201		●
228	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M12X35 L=53	9-94411-235-0	01	1	0202-0203	●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0202-0203		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0204-0604	●	●
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0605-	●	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	9811-0201	●
241	WASHER; PL,HSG EXC. EURO2 SPECIFICATION<THN> ID=12.5 OD=22	8-94393-140-1	13	1	0202-0203	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9903-0201		●
241	WASHER; PL,HSG EURO2 SPECIFICATION<THN> ID=12.5 OD=22	8-94393-140-1	12	1	0202-0203	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0202-0203		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0204-	●	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9903-0201		●
250	BOLT; COVER,OIL EURO2 SPECIFICATION<THN> M8X18 FLANGE	0-28080-818-0	02	1	0202-0203	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0202-0203		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0204-	●	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	9903-0201		●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=110	8-94394-186-0	01	1	0202-0203	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0202-0203		●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0204-	●	●
404	CASE ASM; BRG,INJ PUMP	8-94391-643-0	01	1	9903-0201		●
404	CASE ASM; BRG,INJ PUMP EURO2 SPECIFICATION<THN>	8-94391-643-0	01	1	0202-0203	●
404	CASE ASM; BRG,INJ PUMP	8-94391-643-0	01	1	0202-0203		●
404	CASE ASM; BRG,INJ PUMP	8-94391-643-0	01	1	0204-	●	●
405	SEAL; OIL,BRG CASE	1-09625-576-0	01	1	9903-0201		●
405	SEAL; OIL,BRG CASE EURO2 SPECIFICATION<THN>	1-09625-576-0	01	1	0202-0203	●
405	SEAL; OIL,BRG CASE	1-09625-576-0	01	1	0202-0203		●
405	SEAL; OIL,BRG CASE	1-09625-576-0	01	1	0204-	●	●
419	BRACKET; SENSOR	8-94394-773-1	01	1	9903-0201		●
419	BRACKET; SENSOR EURO2 SPECIFICATION<THN>	8-94394-773-1	01	1	0202-0203	●
419	BRACKET; SENSOR	8-94394-773-1	01	1	0202-0203		●
419	BRACKET; SENSOR	8-94394-773-1	01	1	0204-	●	●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28181-270-0	03	1	9903-0201		●
486	BOLT; AIR CMPR EURO2 SPECIFICATION<THN> M12X70 FLANGE	0-28181-270-0	03	1	0202-0203	●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28181-270-0	03	1	0202-0203		●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28181-270-0	03	1	0204-0512	●	●
486	BOLT; AIR CMPR M12X70 FLANGE	0-28151-270-0	03	1	0601-	●	●
487	COVER; HOLE	8-94394-513-1	01	1	9903-0201		●
487	COVER; HOLE EURO2 SPECIFICATION<THN>	8-94394-513-1	01	1	0202-0203	●
487	COVER; HOLE	8-94394-513-1	01	1	0202-0203		●
487	COVER; HOLE	8-94394-513-1	01	1	0204-0805	●	●
487	COVER; HOLE	8-98023-824-1	01	1	0806-	●	●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0003-0201		●
556	CLIP; HARNESS,SENSOR EURO2 SPECIFICATION<THN> ID=18 L=44	8-94225-185-0	01	1	0202-0203	●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0202-0203		●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-94225-185-0	01	1	0204-0801	●	●
556	CLIP; HARNESS,SENSOR ID=18 L=44	8-97367-985-1	01	1	0802-	●	●

211 241 211 211 241 241 211 241 211 241 211 211 2 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-94393-404-3	01	1	9811-0201	●
2	HOUSING; FLYWHEEL EXC. EURO2 SPECIFICATION<THN>	8-94393-404-3	01	1	0202-0203	●
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9903-9903		●
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	9904-0201		●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	8-97600-260-2	01	1	0202-0203	●
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	0202-0203		●
2	HOUSING; FLYWHEEL	8-97600-260-9	01	1	0204-	●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	02	1	9811-0201	●
211	BOLT; HSG EXC. EURO2 SPECIFICATION<THN> (B) M10X50 FLANGE	0-28181-050-0	02	1	0202-0203	●
211	BOLT; HSG (A) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	9811-0201	●
211	BOLT; HSG EXC. EURO2 SPECIFICATION<THN> (A) M14X70 FLANGE W/PL WASHER	8-94396-095-0	01	1	0202-0203	●
211	BOLT; HSG (E) M12X65	9-01666-265-0	03	1	9811-0201	●
211	BOLT; HSG EXC. EURO2 SPECIFICATION<THN> (E) M12X65	9-01666-265-0	03	1	0202-0203	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	10	1	9811-0201	●
211	BOLT; HSG EXC. EURO2 SPECIFICATION<THN> (D) M12X70	9-01666-270-0	10	1	0202-0203	●
211	BOLT; HSG (E) M12X60	0-16806-260-0	01	1	9903-0201		●
211	BOLT; HSG EURO2 SPECIFICATION<THN> (E) M12X60	0-16806-260-0	01	1	0202-0203	●
211	BOLT; HSG (E) M12X60	0-16806-260-0	01	1	0202-0203		●
211	BOLT; HSG (E) M12X60	0-16806-260-0	01	1	0204-0512	●	●
211	BOLT; HSG (E) M12X60	0-16856-260-0	01	1	0601-	●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9903-0201		●
211	BOLT; HSG EURO2 SPECIFICATION<THN> (B) M10X50 FLANGE	0-28181-050-0	01	1	0202-0203	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0202-0203		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0204-0512	●	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-	●	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	9903-0201		●
211	BOLT; HSG EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	8-94393-995-0	01	1	0202-0203	●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0202-0203		●
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0204-	●	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	9903-0201		●
211	BOLT; HSG EURO2 SPECIFICATION<THN> (D) M12X70	9-01666-270-0	11	1	0202-0203	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0202-0203		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	11	1	0204-0512	●	●
211	BOLT; HSG (D) M12X70	0-16956-270-0	11	1	0601-	●	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	9811-0201	●
241	WASHER; PL,HSG EXC. EURO2 SPECIFICATION<THN> ID=12.5 OD=22	8-94393-140-1	13	1	0202-0203	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	9903-0201		●
241	WASHER; PL,HSG EURO2 SPECIFICATION<THN> ID=12.5 OD=22	8-94393-140-1	12	1	0202-0203	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0202-0203		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0204-	●	●

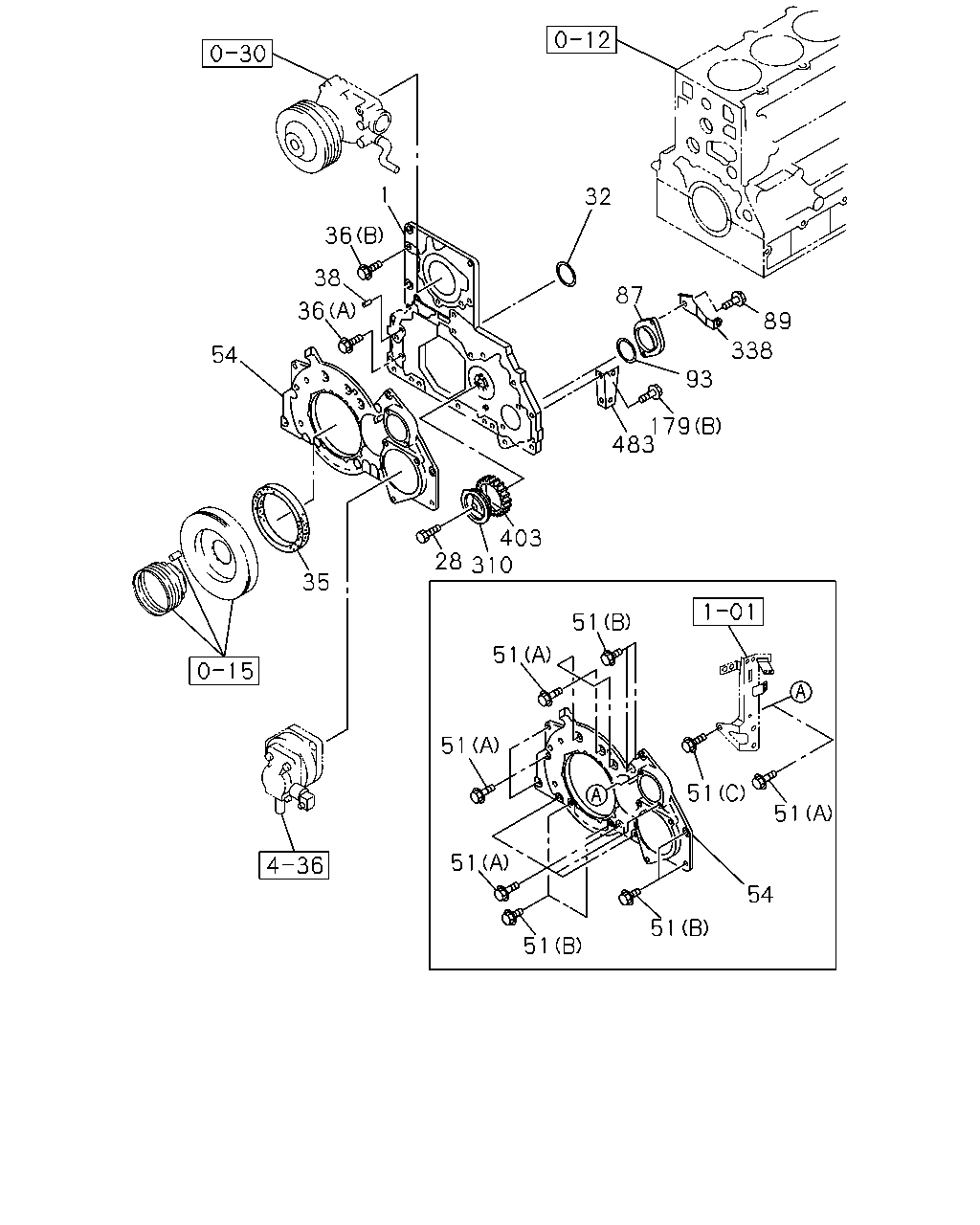

1 32 36 38 87 36 89 338 54 93 179 483 403 28 310 35 51 51 51 51 51 51 54 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	8-94396-434-5	01	1	9811-9902	●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	9903-	●	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9811-9902	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9903-	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	9811-9902	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	9903-	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9811-9902	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9903-0112	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0201-	●	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9811-9902	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9903-0801	●	●
36	BOLT; GEAR CASE (A) M8X30 FLANGE	0-28650-830-0	02	1	0802-	●	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9811-9902	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9903-0801	●	●
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0802-	●	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9811-9902	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9903-	●	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9811-0201	●
51	BOLT; GEAR CASE COVER EXC. EURO2 SPECIFICATION<THN> (A) M8X40 FLANGE	0-28080-840-0	10	1	0202-0203	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9811-0201	●
51	BOLT; GEAR CASE COVER EXC. EURO2 SPECIFICATION<THN> (C) M8X45 FLANGE	0-28080-845-0	01	1	0202-0203	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9811-9902	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	9903-0201		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0202-0512	●	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-	●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9903-0512	●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-	●	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9811-9902	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9903-	●	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9811-9902	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9903-	●	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9811-9902	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9903-	●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9811-9902	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9903-	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-9902	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9903-0512	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9811-9902	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9903-0512	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9811-9902	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9903-	●	●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	9811-9902	●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	9903-	●	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9811-9902	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9903-	●	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9811-9902	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9903-	●	●

176 179 2 224 208 490 234 485 225 175 177 115 29 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-94393-404-3	01	1	9811-0201	●
2	HOUSING; FLYWHEEL EXC. EURO2 SPECIFICATION<THN>	8-94393-404-3	01	1	0202-0203	●
2	HOUSING; FLYWHEEL	8-94395-018-8	01	1	9903-9903		●
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	9904-0201		●
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<THN>	8-97600-260-2	01	1	0202-0203	●
2	HOUSING; FLYWHEEL	8-97600-260-2	01	1	0202-0203		●
2	HOUSING; FLYWHEEL	8-97600-260-9	01	1	0204-	●	●
29	KEY; COUPLING	9-08055-416-0	01	1	9811-0201	●
29	KEY; COUPLING EXC. EURO2 SPECIFICATION<THN>	9-08055-416-0	01	1	0202-0203	●
29	KEY; COUPLING	9-08055-516-0	01	1	9903-0201		●
29	KEY; COUPLING EURO2 SPECIFICATION<THN>	9-08055-516-0	01	1	0202-0203	●
29	KEY; COUPLING	9-08055-516-0	01	1	0202-0203		●
29	KEY; COUPLING	9-08055-516-0	01	1	0204-	●	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	9811-0201	●
115	SENSOR; REVOLUTION,ENG SPD EXC. EURO2 SPECIFICATION<THN>	1-81510-561-0	01	1	0202-0203	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-549-1	01	1	9903-0002		●
115	SENSOR; REVOLUTION,ENG SPD	8-97601-117-0	01	1	0003-0201		●
115	SENSOR; REVOLUTION,ENG SPD	8-97601-117-2	01	1	0202-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9811-9902	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9903-0112	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0201-	●	●
176	BRACKET; HARNESS	1-82699-412-1	01	1	9811-0201	●
176	BRACKET; HARNESS EXC. EURO2 SPECIFICATION<THN>	1-82699-412-1	01	1	0202-0203	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	9903-0201		●
176	BRACKET; HARNESS EURO2 SPECIFICATION<THN>	1-82699-828-1	01	1	0202-0203	●
176	BRACKET; HARNESS	1-82699-828-1	01	1	0202-0203		●
176	BRACKET; HARNESS	1-82699-828-1	01	1	0204-	●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9811-0201	●
177	BOLT; SENSOR EXC. EURO2 SPECIFICATION<THN> M6X16 FLANGE	0-28080-616-0	01	1	0202-0203	●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	0202-0203	●
177	BOLT; SENSOR M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●
177	BOLT; SENSOR M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
177	BOLT; SENSOR M8X20 FLANGE	0-28680-820-0	02	1	9903-0512		●
177	BOLT; SENSOR M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-9902	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9903-0512	●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9811-9902	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9903-0512	●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9811-9902	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9903-0203	●	●
208	DOWEL; ENG FOOT HEAVY DUTY P/S OIL PUMP<E1N>	9-43269-009-1	04	1	0204-	●
208	DOWEL; ENG FOOT TACHOMETER<UD7> CAUTIONS SPANISH<YN1>	9-43269-009-1	04	1	0204-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9811-9902	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9903-0604	●	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-	●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9811-9902	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9903-	●	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9811-0201	●
228	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M12X60 L=78	9-94411-260-0	01	1	0202-0203	●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	9903-0201		●
228	STUD; AIR CMPR EURO2 SPECIFICATION<THN> M12X35 L=53	9-94411-235-0	01	1	0202-0203	●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0202-0203		●
228	STUD; AIR CMPR M12X35 L=53	9-94411-235-0	01	1	0204-0604	●	●
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0605-	●	●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9811-0201	●
234	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> M8X12 FLANGE	0-28080-812-0	02	1	0202-0203	●
485	GASKET; SENSOR	9-09565-212-0	01	1	9811-0201	●
485	GASKET; SENSOR EXC. EURO2 SPECIFICATION<THN>	9-09565-212-0	01	1	0202-0203	●
490	BRACKET; AIR PIPE,VSS	8-94394-857-0	01	1	9811-0201	●
490	BRACKET; AIR PIPE,VSS EXC. EURO2 SPECIFICATION<THN>	8-94394-857-0	01	1	0202-0203	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
