◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#24243) — 101 parça

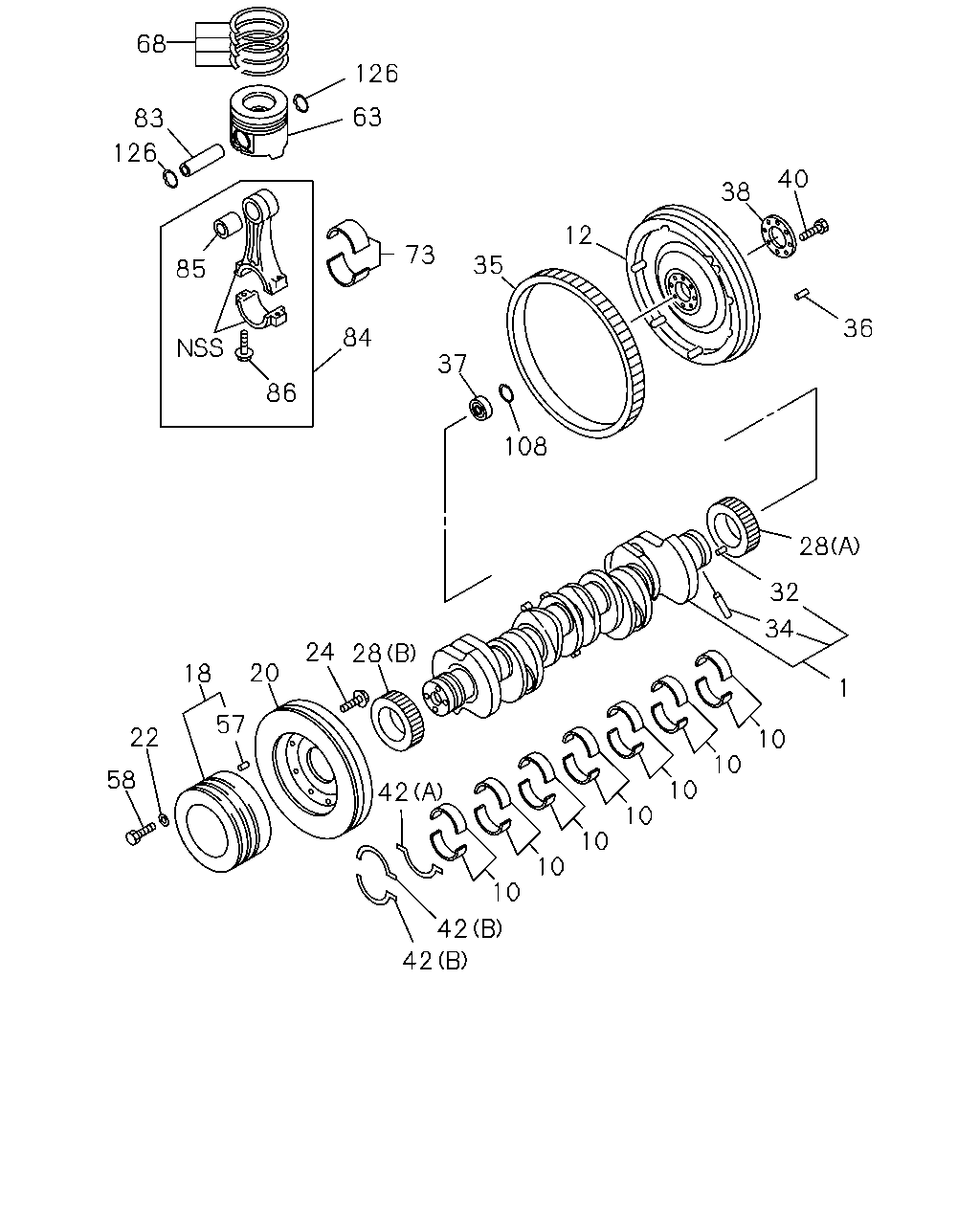

çizim 25050
126 63 68 83 126 85 86 84 73 37 35 12 108 38 40 36 28 32 34 1 10 10 10 10 10 10 10 42 42 42 28 24 20 57 18 22 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 8-94396-737-3 01 1 9811-9902 ●
1 CRANKSHAFT 8-94396-737-4 01 1 9903-0305 ● ●
1 CRANKSHAFT 8-97603-004-0 01 1 0306- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 07 1 0309- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 07 1 0309- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 07 1 0309- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK 		8-94391-514-0 07 1 9811-9902 ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK 		8-94391-514-0 07 1 9903-0305 ● ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-94391-515-0 07 1 9811-9902 ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-94391-515-0 07 1 9903-0305 ● ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-94391-516-0 07 1 9811-9902 ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-94391-516-0 07 1 9903-0305 ● ●
12 FLYWHEEL 8-94393-849-1 01 1 9811-9902 ●
12 FLYWHEEL 8-94393-849-1 01 1 9903-0201 ● ●
12 FLYWHEEL
EXC. EURO2 SPECIFICATION<THN> 		8-94393-849-1 01 1 0202-0203 ●
12 FLYWHEEL 8-94393-849-1 01 1 0202-0203 ●
12 FLYWHEEL 8-94393-849-2 01 1 0204- ●
12 FLYWHEEL
EURO2 SPECIFICATION<THN> 		8-94395-450-1 01 1 0202-0203 ●
12 FLYWHEEL 8-94395-450-2 01 1 0204- ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94390-166-2 01 1 9811-9902 ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94390-166-2 01 1 9903- ● ●
20 DAMPER; CR/SHF 8-94394-354-4 01 1 9811-0201 ●
20 DAMPER; CR/SHF
EXC. EURO2 SPECIFICATION<THN> 		8-94394-354-4 01 1 0202-0203 ●
20 DAMPER; CR/SHF 8-94394-354-5 01 1 9903-0201 ●
20 DAMPER; CR/SHF
EURO2 SPECIFICATION<THN> 		8-94394-354-5 01 1 0202-0203 ●
20 DAMPER; CR/SHF 8-94394-354-5 01 1 0202-0203 ●
20 DAMPER; CR/SHF 8-94394-354-7 01 1 0204-1110 ● ●
20 DAMPER; CR/SHF 8-94392-276-3 01 1 1111- ● ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 9811-9902 ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 9903- ● ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28181-016-0 06 1 9811-9902 ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28181-016-0 06 1 9903-0512 ● ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28151-016-0 06 1 0601- ● ●
28 GEAR; CR/SHF
(A) Z=42 		8-94394-342-4 01 1 9811-9902 ●
28 GEAR; CR/SHF
(A) Z=42 		8-94394-342-4 01 1 9903- ● ●
28 GEAR; CR/SHF
(B) Z=41 		8-94396-954-2 01 1 9811-9902 ●
28 GEAR; CR/SHF
(B) Z=41 		8-94396-954-2 01 1 9903- ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 02 1 9811-9902 ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 02 1 9903- ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 9811-9902 ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 9903- ● ●
35 GEAR; RING
Z=140 		8-94396-784-0 01 1 9811-9902 ●
35 GEAR; RING
Z=140 		8-94396-784-1 01 1 9903- ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 9811-9902 ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 9903- ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-214-0 01 1 9811-9901 ●
37 BEARING; PILOT,TOP GEAR SHAFT 8-94392-288-0 01 1 9902-9902 ●
37 BEARING; PILOT,TOP GEAR SHAFT 8-94392-288-0 01 1 9903- ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		1-87610-157-0 01 1 0204- ● ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 9811-9902 ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 9903- ● ●
40 BOLT; FLYWHEEL
M16X62 		8-94393-070-1 08 1 9811-9902 ●
40 BOLT; FLYWHEEL
M16X62 		8-94393-070-2 08 1 9903- ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9811-9902 ●
42 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9903-0703 ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 0704- ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9811-9902 ●
42 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9903-0703 ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704- ● ●
57 PIN; PULLEY
OD=8 L=16 		8-94391-156-0 01 1 9811-9902 ●
57 PIN; PULLEY
OD=8 L=16 		8-94391-156-0 01 1 9903- ● ●
58 BOLT; CR/SHF PULLEY
M16X50 		9-92061-650-0 04 1 9811-9902 ●
58 BOLT; CR/SHF PULLEY
M16X50 		9-92061-650-0 04 1 9903-0512 ● ●
58 BOLT; CR/SHF PULLEY
M16X50 		0-20951-650-0 04 1 0601- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-594-2 06 1 9811-0201 ●
63 PISTON
ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<THN> NON GRADE 		8-94391-594-2 06 1 0202-0203 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-596-1 06 1 9903-0201 ●
63 PISTON
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-596-1 06 1 0202-0203 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-596-1 06 1 0202-0203 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-596-1 06 1 0204- ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94395-061-5 06 1 9811-9902 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94395-061-7 06 1 9903- ● ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-0 06 1 9811-9902 ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-1 06 1 9903-0701 ● ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-0 06 1 9811-9902 ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-1 06 1 9903-0701 ● ●
73 METAL SET; CONN ROD,STANDARD
HEAVY DUTY P/S OIL PUMP<E1N> YELLOW 		8-98064-281-0 06 1 0702-0706 ●
73 METAL SET; CONN ROD,STANDARD
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> YELLOW 		8-98064-281-0 06 1 0702-0706 ●
73 METAL SET; CONN ROD,STANDARD
HEAVY DUTY P/S OIL PUMP<E1N> GREEN 		8-98064-282-0 06 1 0702-0706 ●
73 METAL SET; CONN ROD,STANDARD
TACHOMETER<UD7> CAUTIONS SPANISH<YN1> GREEN 		8-98064-282-0 06 1 0702-0706 ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-97616-358-0 06 1 0707- ● ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97616-359-0 06 1 0707- ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-0 06 1 9811-9902 ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 06 1 9903- ● ●
84 ROD ASM; CONN 8-94399-661-1 06 1 9811-9902 ●
84 ROD ASM; CONN 8-94399-661-1 06 1 9903-0108 ● ●
84 ROD ASM; CONN 8-94391-791-1 06 1 0109-0305 ● ●
84 ROD ASM; CONN 8-94399-661-2 06 1 0306-0706 ● ●
84 ROD ASM; CONN 8-98018-425-2 06 1 0707- ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 06 1 9811-9902 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 06 1 9903-0108 ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-0 06 1 0109-0305 ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 06 1 0306-0706 ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-1 06 1 0707- ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 9811-9902 ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 9903-1004 ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 12 1 1005- ● ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 9811-9902 ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 9903- ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 12 1 9811-9902 ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 12 1 9903- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
