0-14 — CAMSHAFT AND VALVE (#24242) — 164 parça

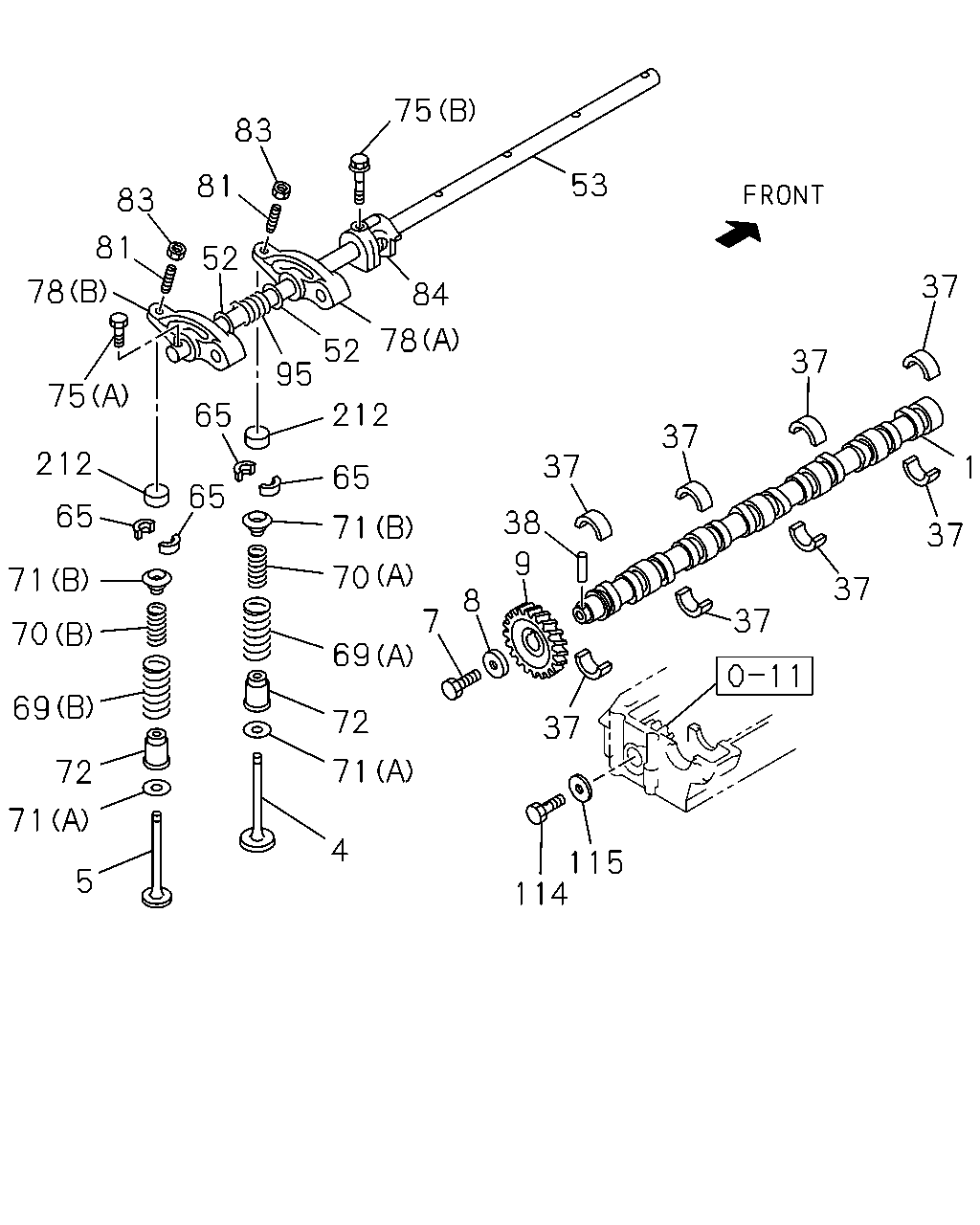

75 83 53 81 83 81 52 37 84 78 52 95 37 75 212 65 37 212 37 1 65 65 65 38 71 37 9 71 37 8 37 7 72 37 71 72 71 4 115 114 5 70 69 70 69 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-94395-758-2	01	1	9811-9902	●
1	CAMSHAFT	8-94395-758-2	01	1	9903-1311	●	●
1	CAMSHAFT	8-98227-258-1	01	1	1312-	●	●
4	VALVE; INL	8-94395-113-1	06	1	9811-9902	●
4	VALVE; INL	8-94395-113-1	06	1	9903-	●	●
5	VALVE; EXH	8-94395-462-0	06	1	9811-9902	●
5	VALVE; EXH	8-94395-462-2	06	1	9903-	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9811-9902	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9903-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9811-9902	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9903-	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9811-9902	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9903-	●	●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0401-0706	●	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0707-	●	●
37	METAL; CM/SHF	8-94363-100-0	08	1	9811-9902	●
37	METAL; CM/SHF	8-94363-100-1	08	1	9903-0206	●	●
37	METAL; CM/SHF LOWER B=22	8-97602-698-0	08	1	0207-0312	●	●
37	METAL; CM/SHF LOWER B=22	8-97602-698-0	04	1	0401-	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9811-9902	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9903-	●	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9811-9902	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9903-	●	●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	9811-9902	●
53	SHAFT; ROCKER ARM	8-94393-984-4	01	1	9903-	●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9811-9902	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9903-	●	●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	9811-9902	●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	9903-	●	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	9811-9902	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	9903-0111	●	●
69	SPRING; VLV,OUTER (A) INLET MARK PINK	8-97120-912-0	06	1	0112-	●	●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9811-9902	●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9903-0111	●	●
70	SPRING; VLV,INNER (A) INLET MARK PINK	8-97120-911-0	06	1	0112-	●	●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9811-9902	●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9903-	●	●
71	SEAT; SPR (B) OD=38	8-94385-029-1	12	1	9811-9902	●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	9903-	●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9811-9902	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9903-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9811-9902	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9903-	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9811-9902	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9903-0512	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9811-9902	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9903-	●	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-1	06	1	9811-9902	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-2	06	1	9903-	●	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-0	06	1	9811-9902	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-1	06	1	9903-	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9811-9902	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9903-	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9811-9902	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9903-0512	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-	●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9811-9902	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9903-	●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9811-9902	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9903-	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9811-9902	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9903-	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9811-9902	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9903-0306	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	9811-9902	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	9903-	●	●

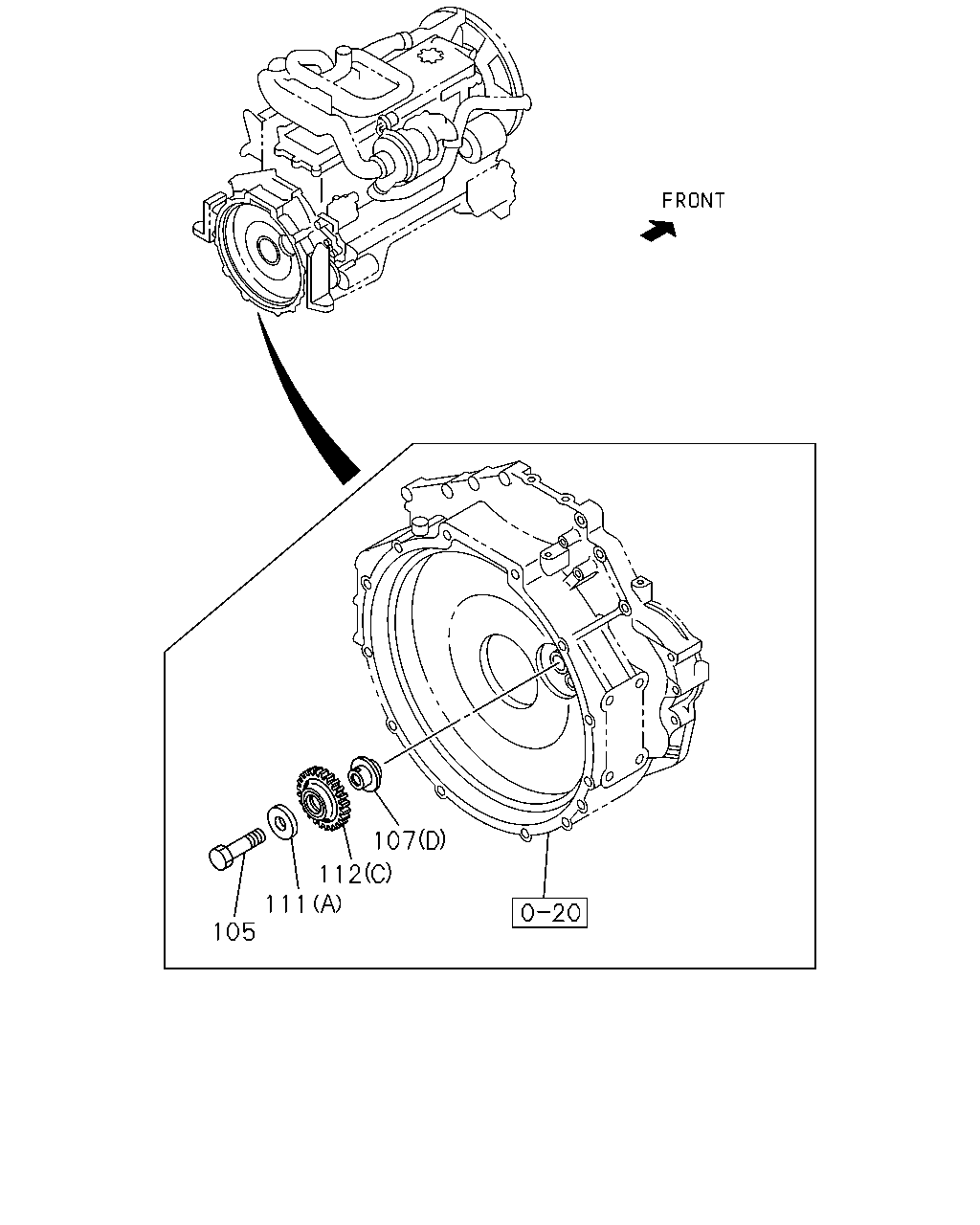

107 112 111 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	9903-0201		●
105	BOLT; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> M14X65	8-97066-798-0	01	1	0202-0203	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0202-0203		●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0204-	●	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9811-0201	●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	0202-0203	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9811-9902	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	9903-0204	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-	●	●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9903-0201		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-94395-073-2	01	1	0202-0203	●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0202-0203		●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0204-0205	●	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0206-	●	●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9903-0201		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	0202-0203	●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	0202-0203		●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	0204-0304	●	●
107	SHAFT; IDLE GEAR (D)	8-94334-682-1	01	1	0305-	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9811-9902	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	9903-0201		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	0202-0203	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0202-0203		●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0204-	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9903-0306	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-	●	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9811-0201	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	0202-0203	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9811-0201	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-1	01	1	0202-0203	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9903-0201		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	0202-0203	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	0202-0203		●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0204-	●	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9903-0201		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	0202-0203	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0202-0203		●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0204-	●	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9903-0201		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-2	01	1	0202-0203	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	0202-0203		●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	0204-	●	●

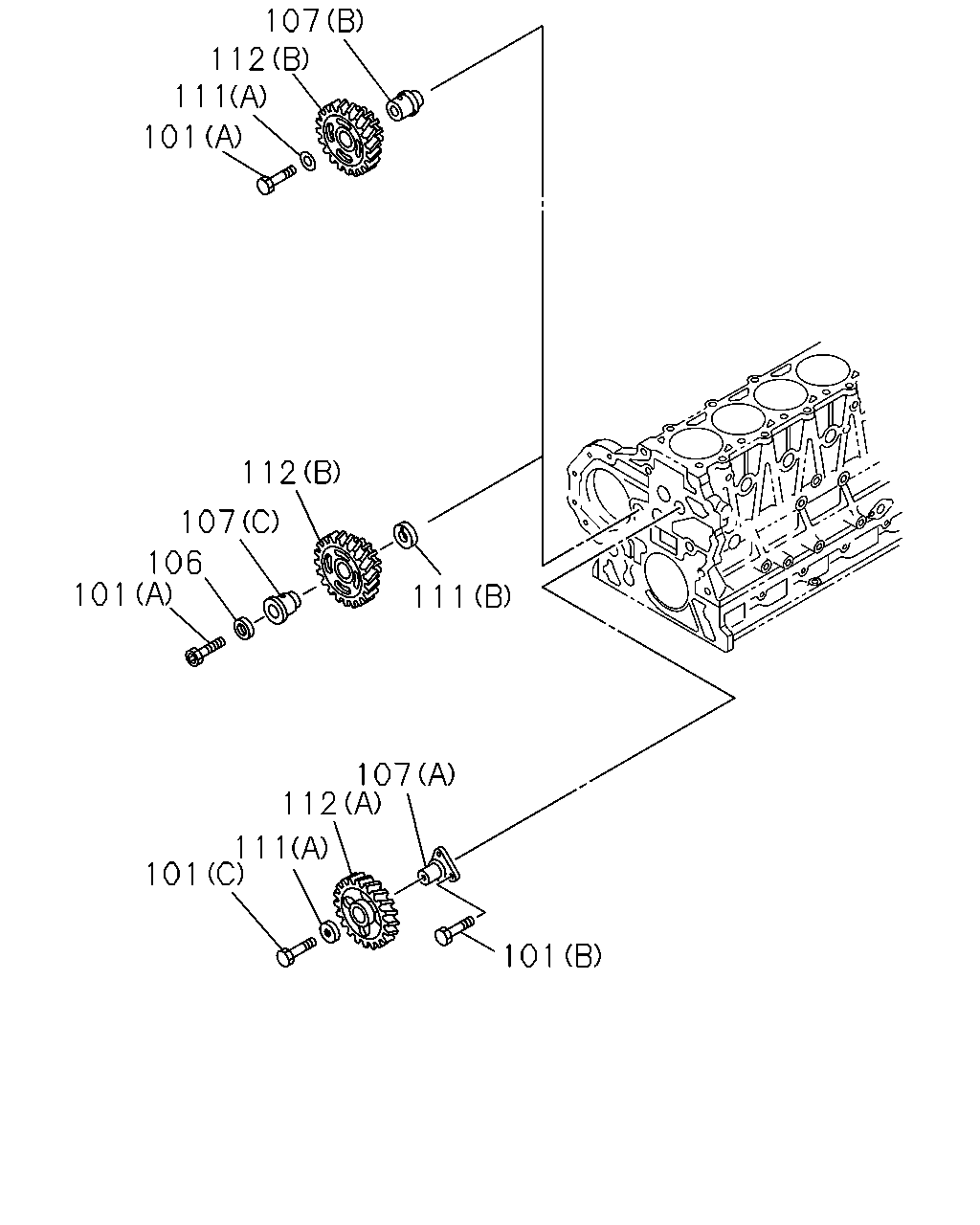

107 112 101 112 107 106 101 111 107 112 101 101 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9811-9902	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9903-0512	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-	●	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9811-0201	●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	9-91666-460-0	01	1	0202-0203	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9811-9902	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9903-0512	●	●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0601-	●	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9903-0201		●
101	BOLT; THRUST COLLAR EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0202-0203	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0202-0203		●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0204-	●	●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	9903-0201		●
106	WASHER; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> ID=14.2 OD=23	1-09503-031-0	01	1	0202-0203	●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0202-0203		●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0204-	●	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9811-0201	●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	0202-0203	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9811-9902	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	9903-0204	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-	●	●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9903-0201		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-94395-073-2	01	1	0202-0203	●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0202-0203		●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0204-0205	●	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0206-	●	●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9903-0201		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	0202-0203	●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	0202-0203		●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	0204-0304	●	●
107	SHAFT; IDLE GEAR (D)	8-94334-682-1	01	1	0305-	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9811-9902	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	9903-0201		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	0202-0203	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0202-0203		●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0204-	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9903-0306	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-	●	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9811-0201	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	0202-0203	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9811-0201	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-1	01	1	0202-0203	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9903-0201		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	0202-0203	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	0202-0203		●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0204-	●	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9903-0201		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	0202-0203	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0202-0203		●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0204-	●	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9903-0201		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-2	01	1	0202-0203	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	0202-0203		●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	0204-	●	●
