◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11020 - CXZ AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#24237) — 16 parça

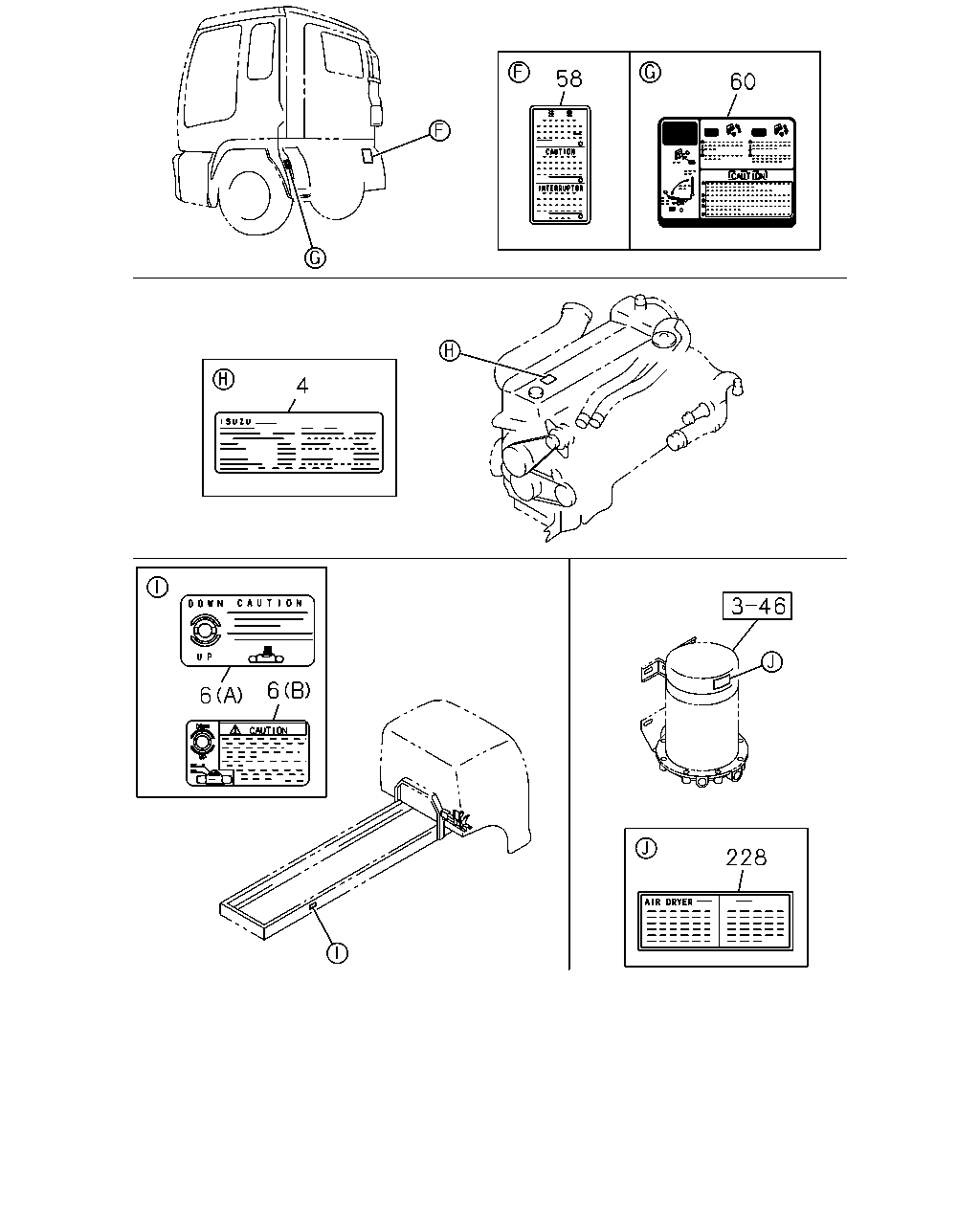

çizim 103924
58 60 4 6 6 228
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE 1-85875-174-1 01 1 0603-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53639-004-0 01 1 0603-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98082-437-0 01 1 0709-
58 PLATE; CAUTION,ENG START 1-85887-457-0 01 1 0603-
60 PLATE; CAUTION,CAB TILT 1-85883-174-0 01 1 0603-
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0603-1001

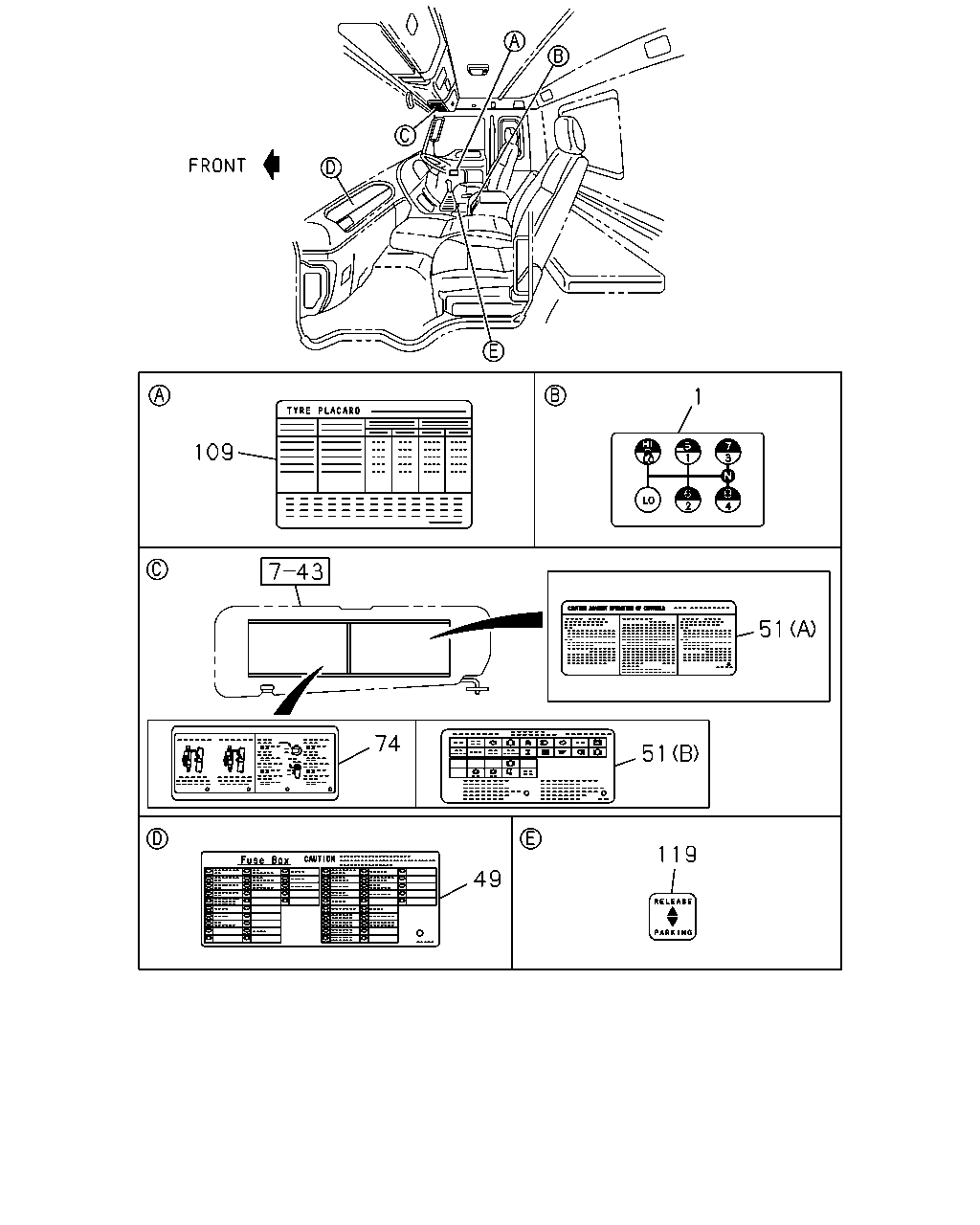

çizim 103925
1 109 51 74 51 119 49
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN 1-85881-519-0 01 1 0603-
49 PLATE; CAUTION,FUSE BOX 1-85878-393-0 01 1 0603-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-333-1 01 1 0603-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0603-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-85881-845-0 01 1 0603-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) 		1-85881-846-0 01 1 0603-
109 PLATE; CAUTION,TIRE PLACARD 1-85881-932-0 01 1 0603-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0603-
çizim 105096
181 181
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0603-
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 0603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
