Sayfa 0-82 - Isuzu EPC

0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#2423) — 207 parça

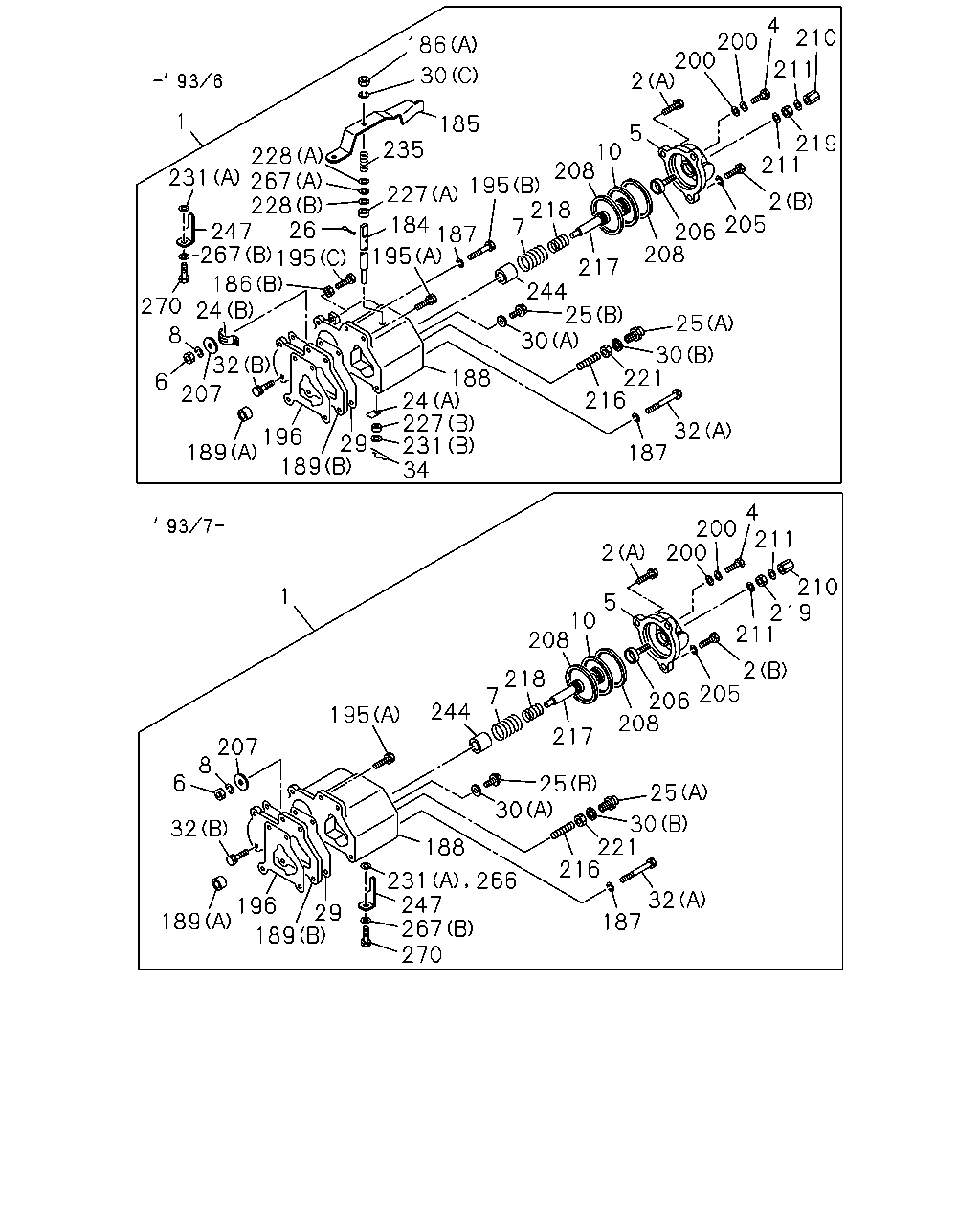

4 200 200 210 186 211 30 2 1 185 5 10 208 235 219 211 228 267 228 267 195 186 24 231 195 218 7 227 2 205 206 208 184 187 195 217 244 25 30 270 25 8 32 30 221 216 188 24 227 231 34 6 207 32 187 29 189 196 189 4 200 211 200 2 210 219 211 1 5 10 208 2 205 206 208 218 7 244 195 217 207 8 6 25 30 25 30 221 216 32 188 231 247 267 270 266 32 187 196 29 189 189 247

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: B = 1-15602-734-3	1-15728-063-0	01	1	-9306
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: B = 1-15602-734-3	1-15728-085-0	01	1	9307-
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: D = 1-15602-950-1	1-15728-090-0	01	1	-9404
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: D = 1-15602-950-1	1-15728-091-0	01	1	9405-
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: C = 1-15602-949-1	1-15728-091-0	01	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (A) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-81325-187-0	01	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-88410-463-0	02	1	-
4	BOLT; EYE,BOOST PIPE,COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-325-0	01	1	-
5	COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15619-283-0	01	1	-
6	NUT; DIAPH,BOOST COMPENSATOR M6 ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09110-406-0	01	1	-
7	SPRING; DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15723-402-0	01	1	-
8	WASHER; LK,DIAPH,BOOST COMPENSATOR ID=6.1 ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09150-506-0	01	1	-
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: B = 1-15602-734-3	1-15712-001-0	01	1	-9306
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15712-007-0	01	1	-
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: B = 1-15602-734-3	1-15712-007-0	01	1	9307-
24	LEVER; BOOST COMPENSATOR,GOV (A) ASM PART: D = 1-15602-950-1	1-15725-197-0	01	1	-9404
24	LEVER; BOOST COMPENSATOR,GOV (A) ASM PART: B = 1-15602-734-3	1-15725-197-0	01	1	-9306
24	LEVER; BOOST COMPENSATOR,GOV (B) ASM PART: B = 1-15602-734-3	1-15725-239-0	01	1	-9306
24	LEVER; BOOST COMPENSATOR,GOV (B) ASM PART: D = 1-15602-950-1	1-15725-239-0	01	1	-9404
25	PLUG; HSG,BOOST COMPENSATOR (A) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-254-0	01	1	-
25	PLUG; HSG,BOOST COMPENSATOR (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-276-0	01	1	-
29	GASKET; HSG,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-305-0	01	1	-
29	GASKET; HSG,BOOST COMPENSATOR ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15779-186-0	01	1	-
30	GASKET; HSG PLUG,BOOST COMPENSATOR (C) ASM PART: B = 1-15602-734-3	1-83579-492-0	01	1	-9306
30	GASKET; HSG PLUG,BOOST COMPENSATOR (A) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09571-412-0	01	1	-
30	GASKET; HSG PLUG,BOOST COMPENSATOR (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-19139-024-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (A) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-312-0	02	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-81325-187-0	02	1	-
34	PIN; LEVER,BOOST CONT,GOV ASM PART: B = 1-15602-734-3	1-15779-019-0	01	1	-9306
34	PIN; LEVER,BOOST CONT,GOV ASM PART: D = 1-15602-950-1	1-15779-019-0	01	1	-9404
184	SHAFT; COMPENSATOR ASM PART: D = 1-15602-950-1	1-15729-418-0	01	1	-9404
184	SHAFT; COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-418-0	01	1	-9306
185	LEVER; COMPENSATOR ASM PART: B = 1-15602-734-3	1-15725-198-0	01	1	-9306
185	LEVER; COMPENSATOR ASM PART: D = 1-15602-950-1	1-15725-198-0	01	1	-9404
186	NUT; SHAFT,COMPENSATOR (A) ASM PART: B = 1-15602-734-3	1-15779-001-0	01	1	-9306
186	NUT; SHAFT,COMPENSATOR (A) ASM PART: D = 1-15602-950-1	1-15779-001-0	01	1	-9404
186	NUT; SHAFT,COMPENSATOR (B) ASM PART: B = 1-15602-734-3	9-81325-081-0	01	1	-9306
186	NUT; SHAFT,COMPENSATOR (B) ASM PART: D = 1-15602-950-1	9-81325-081-0	01	1	-9404
187	WASHER; LK,BOOST COMPENSATOR FIX ID=6.1 ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09150-506-0	02	1	-
187	WASHER; LK,BOOST COMPENSATOR FIX ID=6.1 ASM PART: D = 1-15602-950-1	9-09150-506-0	01	1	-9404
187	WASHER; LK,BOOST COMPENSATOR FIX ID=6.1 ASM PART: B = 1-15602-734-3	9-09150-506-0	01	1	-9306
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: B = 1-15602-734-3	1-15721-140-0	01	1	-9306
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: D = 1-15602-950-1	1-15721-140-0	01	1	-9404
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: C = 1-15602-949-1	1-15721-293-0	01	1	-
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: B = 1-15602-734-3	1-15721-293-0	01	1	9307-
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: D = 1-15602-950-1	1-15721-293-0	01	1	9405-
189	SPACER; BOOST COMPENSATOR HSG (A) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15619-280-0	01	1	-
189	SPACER; BOOST COMPENSATOR HSG (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-304-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: D = 1-15602-950-1	1-15729-242-0	01	1	-9404
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: D = 1-15602-950-1	1-15729-242-0	02	1	9405-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: B = 1-15602-734-3	1-15729-242-0	01	1	-9306
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: B = 1-15602-734-3	1-15729-242-0	02	1	9307-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: C = 1-15602-949-1	1-15729-242-0	02	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (B), M6X24 ASM PART: B = 1-15602-734-3	1-15729-383-0	01	1	-9306
195	BOLT; SPACER FIX,BOOST COMPENSATOR (B), M6X24 ASM PART: D = 1-15602-950-1	1-15729-383-0	01	1	-9404
195	BOLT; SPACER FIX,BOOST COMPENSATOR (C) ASM PART: B = 1-15602-734-3	1-15729-505-0	01	1	-9306
195	BOLT; SPACER FIX,BOOST COMPENSATOR (C) ASM PART: D = 1-15602-950-1	1-15729-505-0	01	1	-9404
196	GASKET; SPACER,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-306-0	01	1	-
196	GASKET; SPACER,BOOST COMPENSATOR ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15779-187-0	01	1	-
200	GASKET; EYE BOLT,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15639-009-0	02	1	-
205	WASHER; LK,COVER FIX,BOOST COMPENSATOR ID=6.1 ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09150-506-0	02	1	-
206	SCREW; GUIDE,DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-386-0	01	1	-
207	DISC; DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-248-0	01	1	-
208	GASKET; DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15728-006-0	02	1	-
208	GASKET; DIAPH,BOOST COMPENSATOR ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15779-129-0	02	1	-
210	NUT; CAP,BOOST COMPENSATOR CAP NUT ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15729-093-0	01	1	-
210	NUT; CAP,BOOST COMPENSATOR CAP NUT ASM PART: B = 1-15602-734-3	1-15729-093-0	01	1	9401-
211	GASKET; CAP NUT,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	5-15729-099-0	02	1	-
216	SCREW; ADJ,DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-273-0	01	1	-9306
216	SCREW; ADJ,DIAPH,BOOST COMPENSATOR ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15729-274-0	01	1	-
216	SCREW; ADJ,DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-274-0	01	1	9307-
217	ROD; PUSH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-265-1	01	1	-
218	SPRING; PUSH ROD,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-333-0	01	1	-
219	NUT; CAP,ADJ SCREW,BOOST COMPENSATOR CAP NUT ASM PART: B = 1-15602-734-3	1-15729-093-0	01	1	-9312
219	NUT; CAP,ADJ SCREW,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-88410-525-0	01	1	-
221	NUT; ADJ SCREW LOCK,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-88410-525-0	01	1	-
227	SEAL; OIL,CONT LEVER,FUEL AID,GOV (A) ASM PART: B = 1-15602-734-3	1-09625-310-0	01	1	-9306
227	SEAL; OIL,CONT LEVER,FUEL AID,GOV (A) ASM PART: D = 1-15602-950-1	1-09625-310-0	01	1	-9404
227	SEAL; OIL,CONT LEVER,FUEL AID,GOV (B) ASM PART: D = 1-15602-950-1	1-09625-311-0	01	1	-9404
227	SEAL; OIL,CONT LEVER,FUEL AID,GOV (B) ASM PART: B = 1-15602-734-3	1-09625-311-0	01	1	-9306
228	SHIM; CONT LEVER,FUEL AID,GOV (A) ASM PART: B = 1-15602-734-3	1-15729-338-0	02	1	-9306
228	SHIM; CONT LEVER,FUEL AID,GOV (A) ASM PART: D = 1-15602-950-1	1-15729-338-0	02	1	-9404
228	SHIM; CONT LEVER,FUEL AID,GOV (B), T=0.5 ASM PART: B = 1-15602-734-3	9-88410-122-0	AR	1	-9306
228	SHIM; CONT LEVER,FUEL AID,GOV (B), T=0.5 ASM PART: D = 1-15602-950-1	9-88410-122-0	AR	1	-9404
228	SHIM; CONT LEVER,FUEL AID,GOV (B), T=0.2 ASM PART: D = 1-15602-950-1	9-88410-123-0	AR	1	-9404
228	SHIM; CONT LEVER,FUEL AID,GOV (B), T=0.2 ASM PART: B = 1-15602-734-3	9-88410-123-0	AR	1	-9306
231	SHIM; LEVER,BOOST CONT (A) ASM PART: B = 1-15602-734-3	1-15729-308-0	01	1	-9312
231	SHIM; LEVER,BOOST CONT (B) ASM PART: B = 1-15602-734-3	1-15729-337-0	01	1	-9306
231	SHIM; LEVER,BOOST CONT (B) ASM PART: D = 1-15602-950-1	1-15729-337-0	01	1	-9404
235	SPRING CAPSULE; ADJ,BOOST CONT ASM PART: B = 1-15602-734-3	1-15729-339-0	01	1	-9306
235	SPRING CAPSULE; ADJ,BOOST CONT ASM PART: D = 1-15602-950-1	1-15729-339-0	01	1	-9404
244	COLLAR; BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-746-0	01	1	-9306
244	COLLAR; BOOST COMPENSATOR ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15779-174-0	01	1	-
244	COLLAR; BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15779-174-0	01	1	9307-
247	LEVER; BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15725-172-0	01	1	-
266	SPACER; LEVER ASM PART: B = 1-15602-734-3	1-15729-308-0	01	1	9401-
266	SPACER; LEVER ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15729-308-0	01	1	-
267	WASHER; LEVER (A) ASM PART: D = 1-15602-950-1	1-15729-419-0	01	1	-9404
267	WASHER; LEVER (A) ASM PART: B = 1-15602-734-3	1-15729-419-0	01	1	-9306
267	WASHER; LEVER (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09150-504-0	01	1	-
270	BOLT; LEVER ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15779-030-0	01	1	-

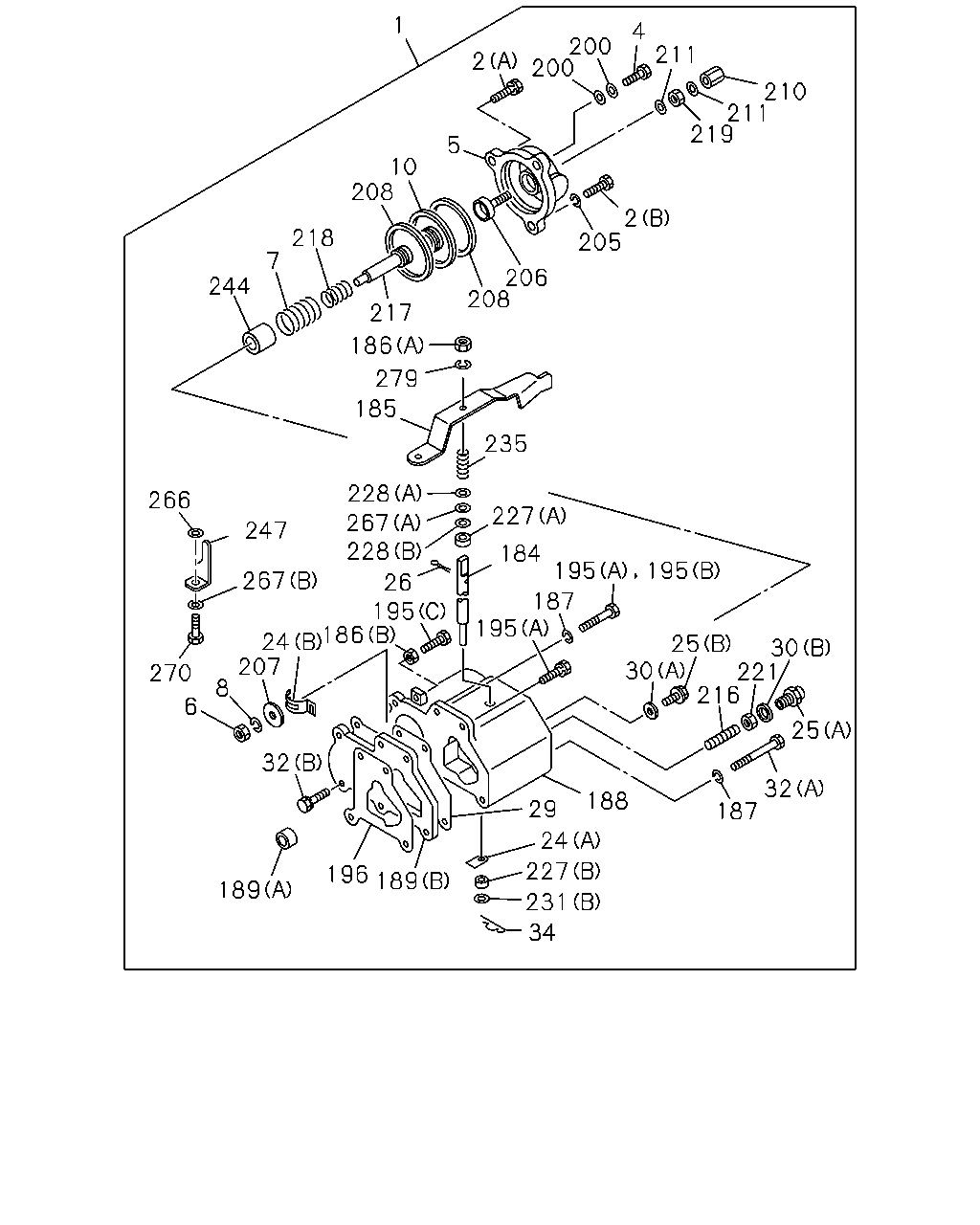

1 4 211 200 200 2 210 211 219 5 10 208 2 205 218 7 206 208 244 217 186 279 185 235 228 266 227 267 228 247 184 195 195 267 26 195 186 24 207 8 187 195 25 30 30 221 216 270 6 25 32 32 187 188 29 24 227 196 189 189 231 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: B = 1-15602-734-3	1-15728-063-0	01	1	-9306
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: B = 1-15602-734-3	1-15728-085-0	01	1	9307-
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: D = 1-15602-950-1	1-15728-090-0	01	1	-9404
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: D = 1-15602-950-1	1-15728-091-0	01	1	9405-
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: C = 1-15602-949-1	1-15728-091-0	01	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (A) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-81325-187-0	01	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-88410-463-0	02	1	-
4	BOLT; EYE,BOOST PIPE,COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-325-0	01	1	-
5	COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15619-283-0	01	1	-
6	NUT; DIAPH,BOOST COMPENSATOR M6 ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09110-406-0	01	1	-
7	SPRING; DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15723-402-0	01	1	-
8	WASHER; LK,DIAPH,BOOST COMPENSATOR ID=6.1 ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09150-506-0	01	1	-
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: B = 1-15602-734-3	1-15712-001-0	01	1	-9306
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15712-007-0	01	1	-
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: B = 1-15602-734-3	1-15712-007-0	01	1	9307-
24	LEVER; BOOST COMPENSATOR,GOV (A) ASM PART: D = 1-15602-950-1	1-15725-197-0	01	1	-9404
24	LEVER; BOOST COMPENSATOR,GOV (A) ASM PART: B = 1-15602-734-3	1-15725-197-0	01	1	-9306
24	LEVER; BOOST COMPENSATOR,GOV (B) ASM PART: B = 1-15602-734-3	1-15725-239-0	01	1	-9306
24	LEVER; BOOST COMPENSATOR,GOV (B) ASM PART: D = 1-15602-950-1	1-15725-239-0	01	1	-9404
25	PLUG; HSG,BOOST COMPENSATOR (A) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-254-0	01	1	-
25	PLUG; HSG,BOOST COMPENSATOR (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-276-0	01	1	-
26	PIN; CONT LEVER,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	9-81315-191-0	01	1	-9306
26	PIN; CONT LEVER,BOOST COMPENSATOR ASM PART: D = 1-15602-950-1	9-81315-191-0	01	1	-9404
29	GASKET; HSG,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-305-0	01	1	-
29	GASKET; HSG,BOOST COMPENSATOR ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15779-186-0	01	1	-
30	GASKET; HSG PLUG,BOOST COMPENSATOR (C) ASM PART: B = 1-15602-734-3	1-83579-492-0	01	1	-9306
30	GASKET; HSG PLUG,BOOST COMPENSATOR (A) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09571-412-0	01	1	-
30	GASKET; HSG PLUG,BOOST COMPENSATOR (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-19139-024-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (A) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-312-0	02	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-81325-187-0	02	1	-
34	PIN; LEVER,BOOST CONT,GOV ASM PART: B = 1-15602-734-3	1-15779-019-0	01	1	-9306
34	PIN; LEVER,BOOST CONT,GOV ASM PART: D = 1-15602-950-1	1-15779-019-0	01	1	-9404
184	SHAFT; COMPENSATOR ASM PART: D = 1-15602-950-1	1-15729-418-0	01	1	-9404
184	SHAFT; COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-418-0	01	1	-9306
185	LEVER; COMPENSATOR ASM PART: B = 1-15602-734-3	1-15725-198-0	01	1	-9306
185	LEVER; COMPENSATOR ASM PART: D = 1-15602-950-1	1-15725-198-0	01	1	-9404
186	NUT; SHAFT,COMPENSATOR (A) ASM PART: B = 1-15602-734-3	1-15779-001-0	01	1	-9306
186	NUT; SHAFT,COMPENSATOR (A) ASM PART: D = 1-15602-950-1	1-15779-001-0	01	1	-9404
186	NUT; SHAFT,COMPENSATOR (B) ASM PART: B = 1-15602-734-3	9-81325-081-0	01	1	-9306
186	NUT; SHAFT,COMPENSATOR (B) ASM PART: D = 1-15602-950-1	9-81325-081-0	01	1	-9404
187	WASHER; LK,BOOST COMPENSATOR FIX ID=6.1 ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09150-506-0	02	1	-
187	WASHER; LK,BOOST COMPENSATOR FIX ID=6.1 ASM PART: D = 1-15602-950-1	9-09150-506-0	01	1	-9404
187	WASHER; LK,BOOST COMPENSATOR FIX ID=6.1 ASM PART: B = 1-15602-734-3	9-09150-506-0	01	1	-9306
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: B = 1-15602-734-3	1-15721-140-0	01	1	-9306
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: D = 1-15602-950-1	1-15721-140-0	01	1	-9404
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: C = 1-15602-949-1	1-15721-293-0	01	1	-
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: B = 1-15602-734-3	1-15721-293-0	01	1	9307-
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: D = 1-15602-950-1	1-15721-293-0	01	1	9405-
189	SPACER; BOOST COMPENSATOR HSG (A) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15619-280-0	01	1	-
189	SPACER; BOOST COMPENSATOR HSG (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-304-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: D = 1-15602-950-1	1-15729-242-0	01	1	-9404
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: D = 1-15602-950-1	1-15729-242-0	02	1	9405-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: B = 1-15602-734-3	1-15729-242-0	01	1	-9306
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: B = 1-15602-734-3	1-15729-242-0	02	1	9307-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: C = 1-15602-949-1	1-15729-242-0	02	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (B), M6X24 ASM PART: B = 1-15602-734-3	1-15729-383-0	01	1	-9306
195	BOLT; SPACER FIX,BOOST COMPENSATOR (B), M6X24 ASM PART: D = 1-15602-950-1	1-15729-383-0	01	1	-9404
195	BOLT; SPACER FIX,BOOST COMPENSATOR (C) ASM PART: B = 1-15602-734-3	1-15729-505-0	01	1	-9306
195	BOLT; SPACER FIX,BOOST COMPENSATOR (C) ASM PART: D = 1-15602-950-1	1-15729-505-0	01	1	-9404
196	GASKET; SPACER,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-306-0	01	1	-
196	GASKET; SPACER,BOOST COMPENSATOR ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15779-187-0	01	1	-
200	GASKET; EYE BOLT,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15639-009-0	02	1	-
205	WASHER; LK,COVER FIX,BOOST COMPENSATOR ID=6.1 ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09150-506-0	02	1	-
206	SCREW; GUIDE,DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-386-0	01	1	-
207	DISC; DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-248-0	01	1	-
208	GASKET; DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15728-006-0	02	1	-
208	GASKET; DIAPH,BOOST COMPENSATOR ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15779-129-0	02	1	-
210	NUT; CAP,BOOST COMPENSATOR CAP NUT ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15729-093-0	01	1	-
210	NUT; CAP,BOOST COMPENSATOR CAP NUT ASM PART: B = 1-15602-734-3	1-15729-093-0	01	1	9401-
211	GASKET; CAP NUT,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	5-15729-099-0	02	1	-
216	SCREW; ADJ,DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-273-0	01	1	-9306
216	SCREW; ADJ,DIAPH,BOOST COMPENSATOR ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15729-274-0	01	1	-
216	SCREW; ADJ,DIAPH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-274-0	01	1	9307-
217	ROD; PUSH,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-265-1	01	1	-
218	SPRING; PUSH ROD,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15729-333-0	01	1	-
219	NUT; CAP,ADJ SCREW,BOOST COMPENSATOR CAP NUT ASM PART: B = 1-15602-734-3	1-15729-093-0	01	1	-9312
219	NUT; CAP,ADJ SCREW,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-88410-525-0	01	1	-
221	NUT; ADJ SCREW LOCK,BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-88410-525-0	01	1	-
227	SEAL; OIL,CONT LEVER,FUEL AID,GOV (A) ASM PART: B = 1-15602-734-3	1-09625-310-0	01	1	-9306
227	SEAL; OIL,CONT LEVER,FUEL AID,GOV (A) ASM PART: D = 1-15602-950-1	1-09625-310-0	01	1	-9404
227	SEAL; OIL,CONT LEVER,FUEL AID,GOV (B) ASM PART: D = 1-15602-950-1	1-09625-311-0	01	1	-9404
227	SEAL; OIL,CONT LEVER,FUEL AID,GOV (B) ASM PART: B = 1-15602-734-3	1-09625-311-0	01	1	-9306
228	SHIM; CONT LEVER,FUEL AID,GOV (A) ASM PART: B = 1-15602-734-3	1-15729-338-0	02	1	-9306
228	SHIM; CONT LEVER,FUEL AID,GOV (A) ASM PART: D = 1-15602-950-1	1-15729-338-0	02	1	-9404
228	SHIM; CONT LEVER,FUEL AID,GOV (B), T=0.5 ASM PART: B = 1-15602-734-3	9-88410-122-0	AR	1	-9306
228	SHIM; CONT LEVER,FUEL AID,GOV (B), T=0.5 ASM PART: D = 1-15602-950-1	9-88410-122-0	AR	1	-9404
228	SHIM; CONT LEVER,FUEL AID,GOV (B), T=0.2 ASM PART: D = 1-15602-950-1	9-88410-123-0	AR	1	-9404
228	SHIM; CONT LEVER,FUEL AID,GOV (B), T=0.2 ASM PART: B = 1-15602-734-3	9-88410-123-0	AR	1	-9306
231	SHIM; LEVER,BOOST CONT (A) ASM PART: B = 1-15602-734-3	1-15729-308-0	01	1	-9312
231	SHIM; LEVER,BOOST CONT (B) ASM PART: B = 1-15602-734-3	1-15729-337-0	01	1	-9306
231	SHIM; LEVER,BOOST CONT (B) ASM PART: D = 1-15602-950-1	1-15729-337-0	01	1	-9404
235	SPRING CAPSULE; ADJ,BOOST CONT ASM PART: B = 1-15602-734-3	1-15729-339-0	01	1	-9306
235	SPRING CAPSULE; ADJ,BOOST CONT ASM PART: D = 1-15602-950-1	1-15729-339-0	01	1	-9404
244	COLLAR; BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15729-746-0	01	1	-9306
244	COLLAR; BOOST COMPENSATOR ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15779-174-0	01	1	-
244	COLLAR; BOOST COMPENSATOR ASM PART: B = 1-15602-734-3	1-15779-174-0	01	1	9307-
247	LEVER; BOOST COMPENSATOR ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15725-172-0	01	1	-
266	SPACER; LEVER ASM PART: B = 1-15602-734-3	1-15729-308-0	01	1	9401-
266	SPACER; LEVER ASM PART: C = 1-15602-949-1, D = 1-15602-950-1	1-15729-308-0	01	1	-
267	WASHER; LEVER (A) ASM PART: D = 1-15602-950-1	1-15729-419-0	01	1	-9404
267	WASHER; LEVER (A) ASM PART: B = 1-15602-734-3	1-15729-419-0	01	1	-9306
267	WASHER; LEVER (B) ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	9-09150-504-0	01	1	-
270	BOLT; LEVER ASM PART: B = 1-15602-734-3, C = 1-15602-949-1, D = 1-15602-950-1	1-15779-030-0	01	1	-
279	WASHER; LK,COMPENSATOR LEVER ASM PART: D = 1-15602-950-1	1-83579-492-0	01	1	-9404

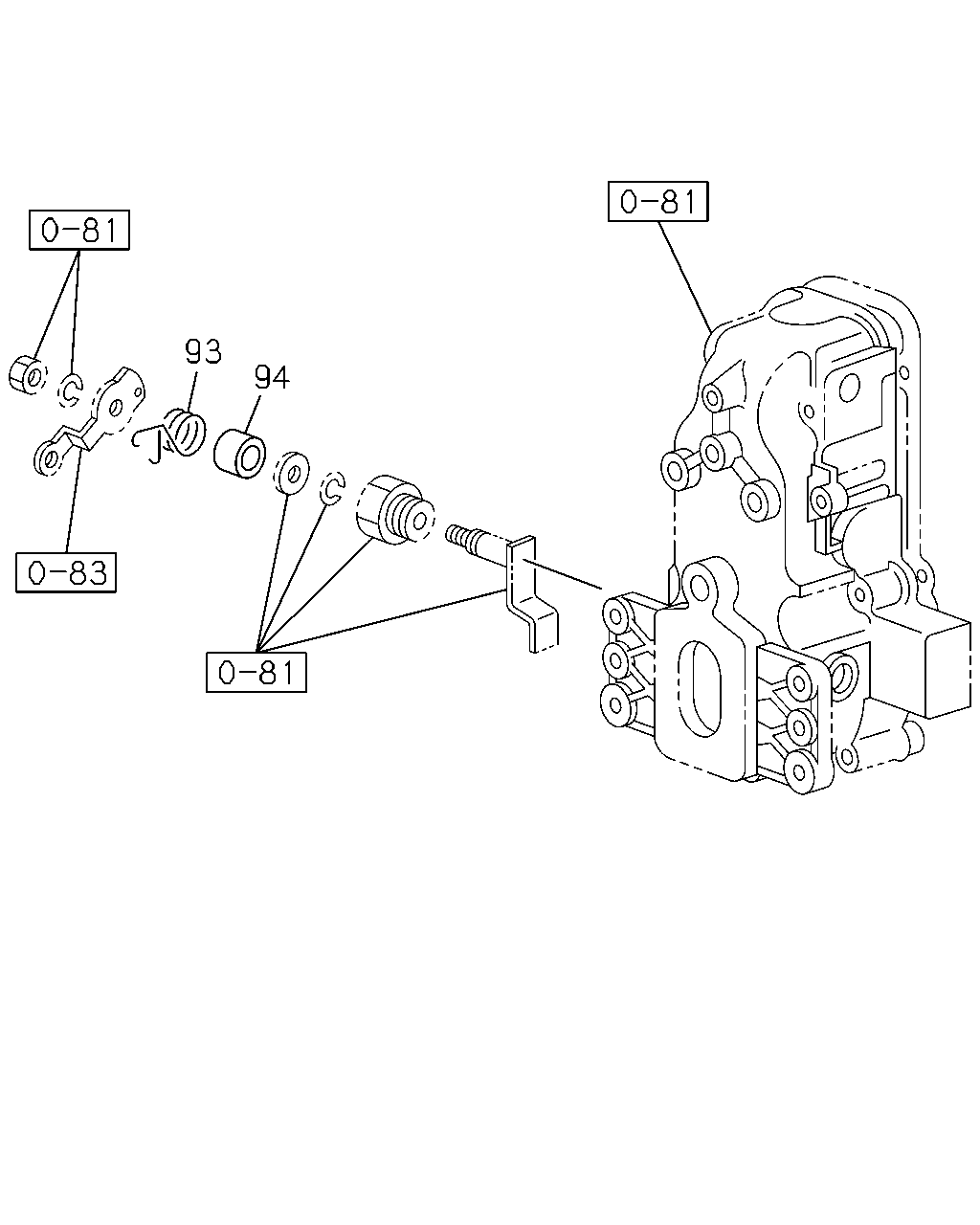

93 94

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	93	SPRING; LEVER ASM PART: A = 1-15602-439-2	1-15723-129-0	01	1	-
	94	COLLAR; LEVER ASM PART: A = 1-15602-439-2	1-15729-364-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
