6-20 — SIDE PANEL AND STEP
(#24217) — 109 parça
◀

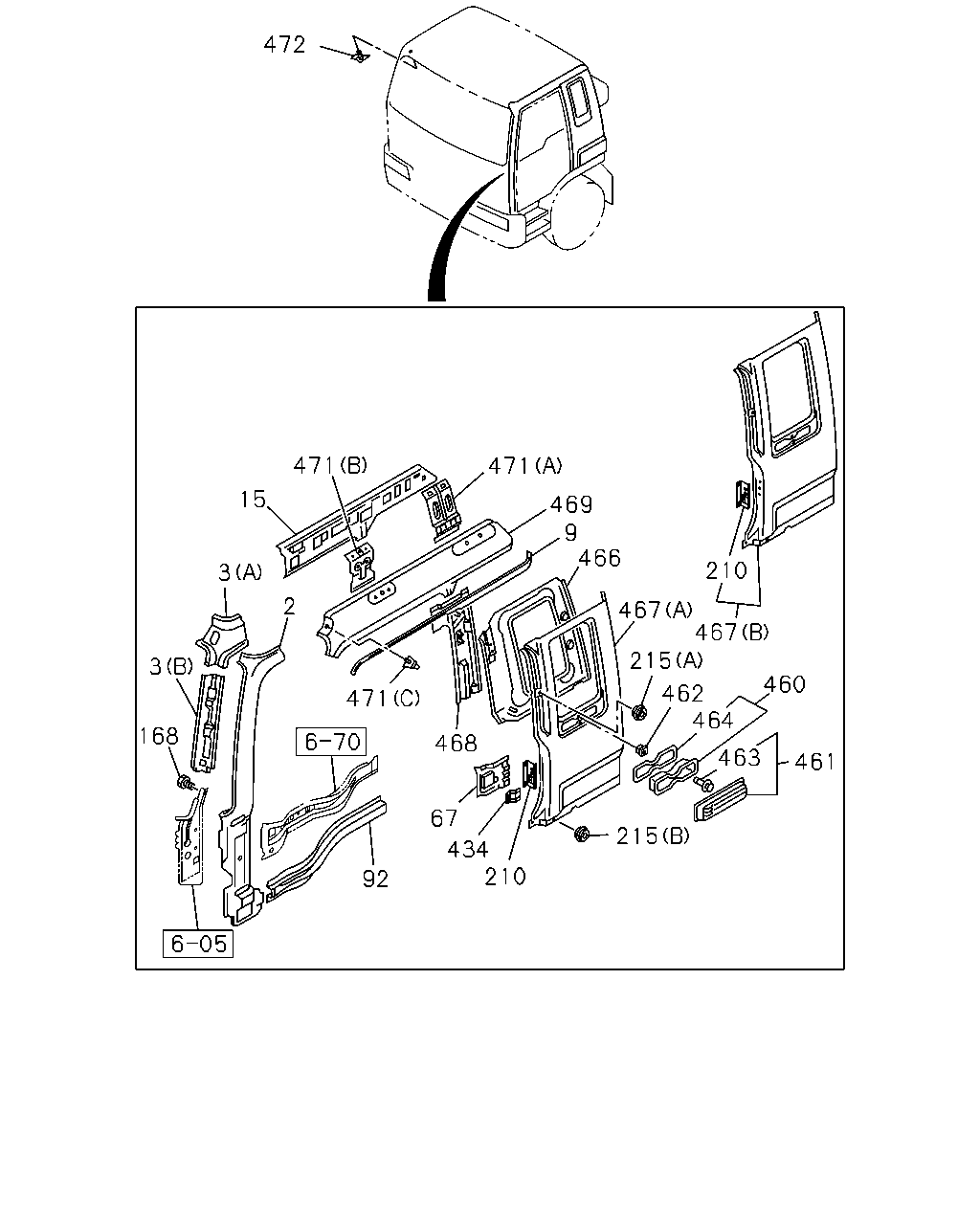

[620A] SIDE PANEL (42 parça)

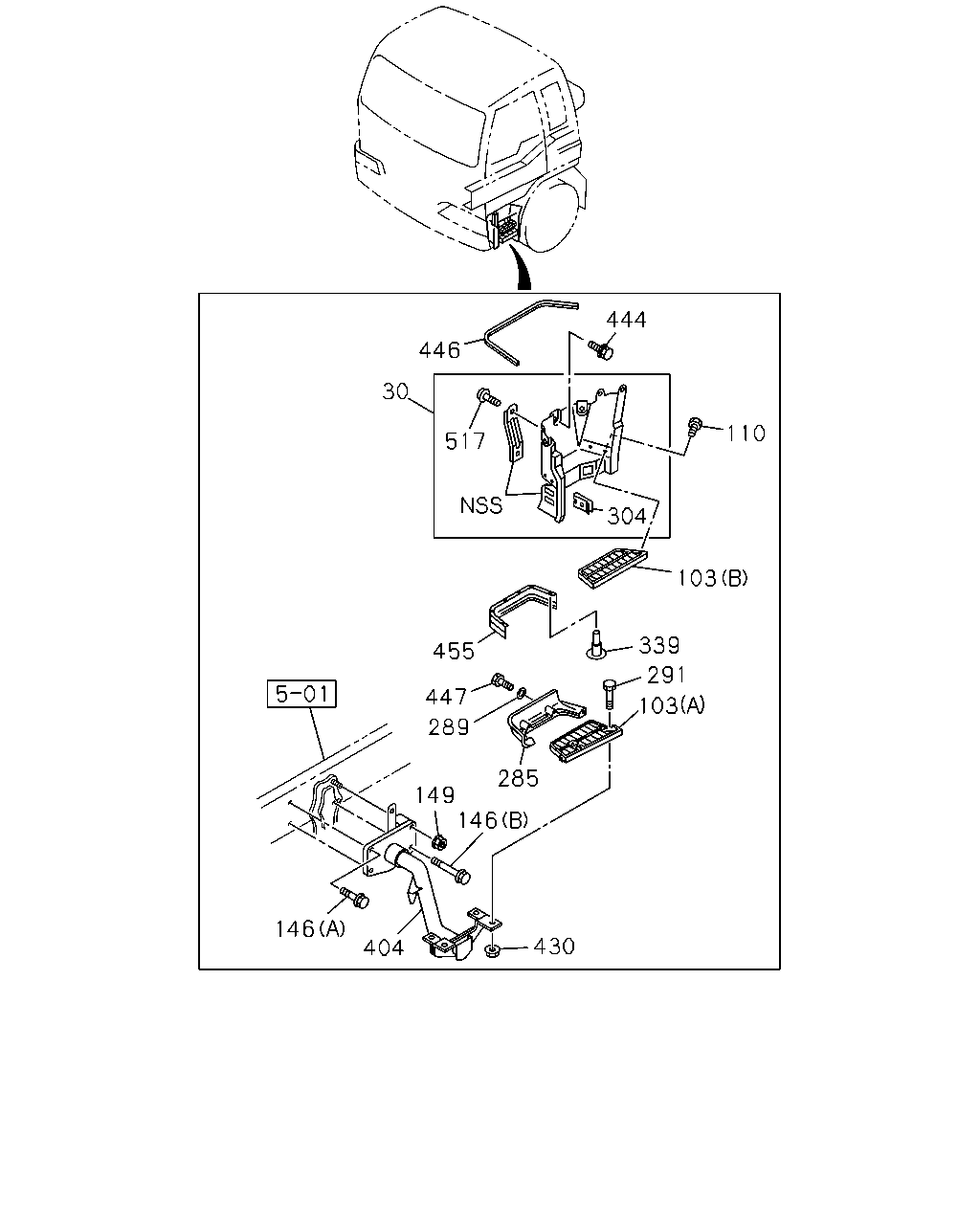

[620A] STEP;RH (34 parça)

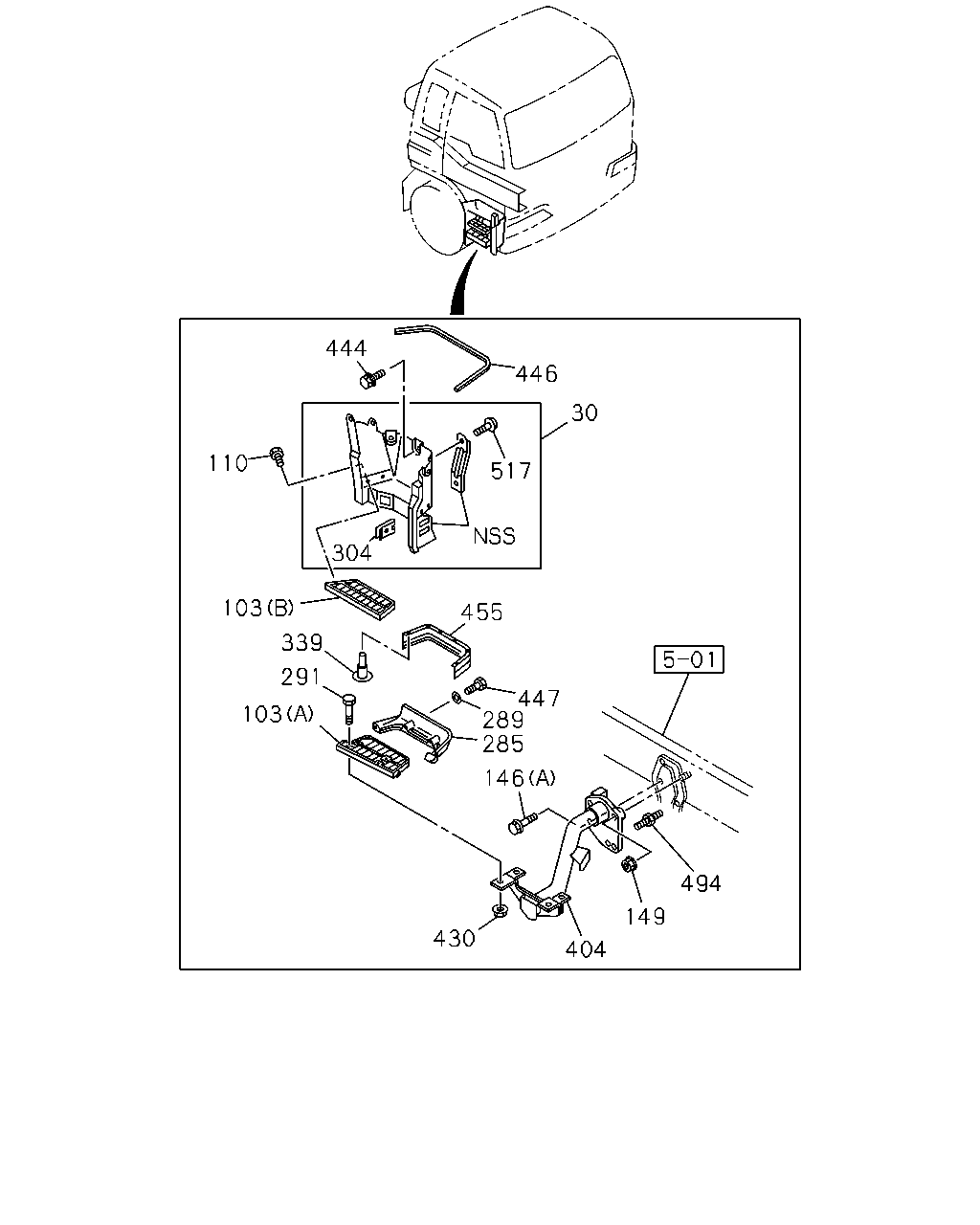

[620A] STEP;LH (33 parça)
▶
472
471
15
3
2
3
168
92
210
434
67
468
471
471
9
469
466
467
210
467
215
462
464
460
463
461
215
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PILLAR; FRT
1-61281-155-4
01
1
0603-
2
PILLAR; FRT
1-61281-156-4
01
1
0603-
3
PANEL; CLOSING,FRT PILLAR
(A)
1-61281-169-5
01
1
0603-
3
PANEL; CLOSING,FRT PILLAR
(A)
1-61281-170-5
01
1
0603-
3
PANEL; CLOSING,FRT PILLAR
(B)
1-61281-343-5
01
1
0603-
3
PANEL; CLOSING,FRT PILLAR
(B)
1-61281-344-5
01
1
0603-
9
MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F>
1-61270-791-4
01
1
0603-
9
MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F>
1-61270-792-4
01
1
0603-
9
MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F>
1-61281-280-5
01
1
0603-
9
MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F>
1-61281-281-5
01
1
0603-
15
PANEL; CANT RAIL SIDE
1-61281-177-8
01
1
0603-
15
PANEL; CANT RAIL SIDE
1-61281-178-8
01
1
0603-
67
PANEL; INNER,RR PILLAR LWR
1-61281-194-5
01
1
0603-
67
PANEL; INNER,RR PILLAR LWR
1-61281-195-5
01
1
0603-
92
PANEL; SIDE SILL,CAB
1-61281-211-9
01
1
0603-
92
PANEL; SIDE SILL,CAB
1-61281-212-8
01
1
0603-
168
BOLT; BODY SIDE PANEL
M6X10 FLANGE
0-28050-610-0
04
1
0603-
210
PANEL; DOOR STRIKER REINF
8-97851-446-1
01
1
0603-
215
GROMMET; RR PILLAR
(A) OD=23.5
1-09983-101-0
02
1
0603-
215
GROMMET; RR PILLAR
(B) OD=28.5
8-94279-711-0
02
1
0603-
434
PATCH; ASSIST GRIP
1-61270-763-1
01
1
0603-
460
VENTILATOR; BODY SIDE
1-76378-292-4
02
1
0603-
461
ORNAMENT; VENTILATOR
1-76378-302-6
01
1
0603-
461
ORNAMENT; VENTILATOR
1-76378-303-6
01
1
0603-
462
GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
08
1
0603-
463
PIN; ORNAMENT
D4.2X13
1-09983-161-0
08
1
0603-
464
SEAL; VENTILATOR
1-76378-299-0
02
1
0603-
466
PANEL; INNER,BACK CORNER
1-61281-415-1
01
1
0603-
466
PANEL; INNER,BACK CORNER
1-61281-416-1
01
1
0603-
467
PANEL; OUTER,BACK CORNER
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A)
1-61281-478-5
01
1
0603-
467
PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> (B)
1-61270-939-2
01
1
0603-
467
PANEL; OUTER,BACK CORNER
(A)
1-61281-477-3
01
1
0603-
468
REINFORCEMENT; SEAT BELT ANCHOR
1-61281-417-2
01
1
0603-
468
REINFORCEMENT; SEAT BELT ANCHOR
1-61281-418-2
01
1
0603-
469
ROOF; SIDE
1-61281-198-8
01
1
0603-
469
ROOF; SIDE
1-61281-199-8
01
1
0603-
471
PATCH; AIR DEFLECTOR
(B)
1-61281-200-3
01
1
0603-
471
PATCH; AIR DEFLECTOR
(B)
1-61281-201-3
01
1
0603-
471
PATCH; AIR DEFLECTOR
(A)
1-61281-202-3
01
1
0603-
471
PATCH; AIR DEFLECTOR
(C)
1-61281-233-4
01
1
0603-0812
471
PATCH; AIR DEFLECTOR
(C)
8-98132-463-0
01
1
0901-
472
PATCH; STAY,ROOF
1-61270-943-1
01
1
0603-
444
446
110
517
304
103
103
455
339
291
447
289
285
146
430
404
149
494
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
CLOSING; SIDE STEP
1-71907-464-0
01
1
0603-0910
30
CLOSING; SIDE STEP
8-98156-823-0
01
1
0911-
30
CLOSING; SIDE STEP
1-71907-465-0
01
1
0603-0910
30
CLOSING; SIDE STEP
8-98156-824-0
01
1
0911-
103
PLATE; STEP
(A)
1-53414-180-0
01
1
0603-
103
PLATE; STEP
(A)
1-53414-181-0
01
1
0603-
103
PLATE; STEP
(B)
1-71907-174-1
01
1
0603-
103
PLATE; STEP
(B)
1-71907-249-1
01
1
0603-
110
BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER
8-94279-218-0
08
1
0603-
146
BOLT; STEP BRKT
(B) M12X30 FLANGE
0-28051-230-0
01
1
0603-
146
BOLT; STEP BRKT
(A) M12X70 FLANGE
0-28051-270-0
04
1
0603-
149
NUT; STEP BRKT
M12 FLANGE
0-91150-212-0
03
1
0603-0603
149
NUT; STEP BRKT
M12 FLANGE
0-91180-212-0
03
1
0603-
285
PLATE; STEP,1ST STEP
1-53414-047-2
01
1
0603-
285
PLATE; STEP,1ST STEP
1-53414-182-0
01
1
0603-
289
WASHER; PL,STEP
ID=15
8-98010-627-1
01
1
0708-
289
WASHER; PL,STEP
ID=6.4 OD=18
9-09160-706-0
08
1
0603-0605
289
WASHER; PL,STEP
ID=6.4 OD=18
0-91610-706-0
08
1
0606-
291
BOLT; STEP PLATE
M8X40 FLANGE
0-28050-840-0
08
1
0603-
304
NUT; SPIRE
M6
1-09984-182-0
04
1
0603-
339
FASTENER; SIDE
ID=6X6 OD=8
1-09987-194-0
12
1
0603-
404
BRACKET
8-97611-685-1
01
1
0603-
404
BRACKET
8-97611-688-1
01
1
0603-
430
NUT; PANEL
M8 FLANGE
0-91150-108-0
08
1
0603-0603
430
NUT; PANEL
M8 FLANGE
0-91180-108-0
08
1
0603-
444
BOLT; CLOSING
M8X24.5 W/LK&PL WASHER
8-94279-208-0
06
1
0603-0904
444
BOLT; CLOSING
M8X24.5 W/LK&PL WASHER
8-98059-720-0
06
1
0905-
446
FINISHER; STEP
ID=18 L=80
1-71996-051-0
02
1
0603-
447
BOLT; PANEL
M6X12 FLANGE
0-28050-612-0
08
1
0603-
455
PROTECTOR; STEP
1-71907-186-2
01
1
0603-
455
PROTECTOR; STEP
1-71907-187-2
01
1
0603-
494
STUD; BRKT
M12X35,M14X45 L=100
1-09029-075-0
01
1
0708-
517
SCREW; TAP
M5X10 TAPPING W/PL WASHER
0-74100-510-0
04
1
0603-0604
517
SCREW; TAP
M5X10 TAPPING W/PL WASHER
0-74160-510-0
04
1
0605-
444
446
30
110
517
304
103
339
455
291
447
103
289
285
149
146
146
430
404
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
CLOSING; SIDE STEP
1-71907-464-0
01
1
0603-0910
30
CLOSING; SIDE STEP
8-98156-823-0
01
1
0911-
30
CLOSING; SIDE STEP
1-71907-465-0
01
1
0603-0910
30
CLOSING; SIDE STEP
8-98156-824-0
01
1
0911-
103
PLATE; STEP
(A)
1-53414-180-0
01
1
0603-
103
PLATE; STEP
(A)
1-53414-181-0
01
1
0603-
103
PLATE; STEP
(B)
1-71907-174-1
01
1
0603-
103
PLATE; STEP
(B)
1-71907-249-1
01
1
0603-
110
BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER
8-94279-218-0
08
1
0603-
146
BOLT; STEP BRKT
(B) M12X30 FLANGE
0-28051-230-0
01
1
0603-
146
BOLT; STEP BRKT
(A) M12X70 FLANGE
0-28051-270-0
04
1
0603-
149
NUT; STEP BRKT
M12 FLANGE
0-91150-212-0
03
1
0603-0603
149
NUT; STEP BRKT
M12 FLANGE
0-91180-212-0
03
1
0603-
285
PLATE; STEP,1ST STEP
1-53414-047-2
01
1
0603-
285
PLATE; STEP,1ST STEP
1-53414-182-0
01
1
0603-
289
WASHER; PL,STEP
ID=15
8-98010-627-1
01
1
0708-
289
WASHER; PL,STEP
ID=6.4 OD=18
9-09160-706-0
08
1
0603-0605
289
WASHER; PL,STEP
ID=6.4 OD=18
0-91610-706-0
08
1
0606-
291
BOLT; STEP PLATE
M8X40 FLANGE
0-28050-840-0
08
1
0603-
304
NUT; SPIRE
M6
1-09984-182-0
04
1
0603-
339
FASTENER; SIDE
ID=6X6 OD=8
1-09987-194-0
12
1
0603-
404
BRACKET
8-97611-685-1
01
1
0603-
404
BRACKET
8-97611-688-1
01
1
0603-
430
NUT; PANEL
M8 FLANGE
0-91150-108-0
08
1
0603-0603
430
NUT; PANEL
M8 FLANGE
0-91180-108-0
08
1
0603-
444
BOLT; CLOSING
M8X24.5 W/LK&PL WASHER
8-94279-208-0
06
1
0603-0904
444
BOLT; CLOSING
M8X24.5 W/LK&PL WASHER
8-98059-720-0
06
1
0905-
446
FINISHER; STEP
ID=18 L=80
1-71996-051-0
02
1
0603-
447
BOLT; PANEL
M6X12 FLANGE
0-28050-612-0
08
1
0603-
455
PROTECTOR; STEP
1-71907-186-2
01
1
0603-
455
PROTECTOR; STEP
1-71907-187-2
01
1
0603-
517
SCREW; TAP
M5X10 TAPPING W/PL WASHER
0-74100-510-0
04
1
0603-0604
517
SCREW; TAP
M5X10 TAPPING W/PL WASHER
0-74160-510-0
04
1
0605-
