Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11020 - CXZ AUSTRALIA
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#24206) — 53 parça
◀

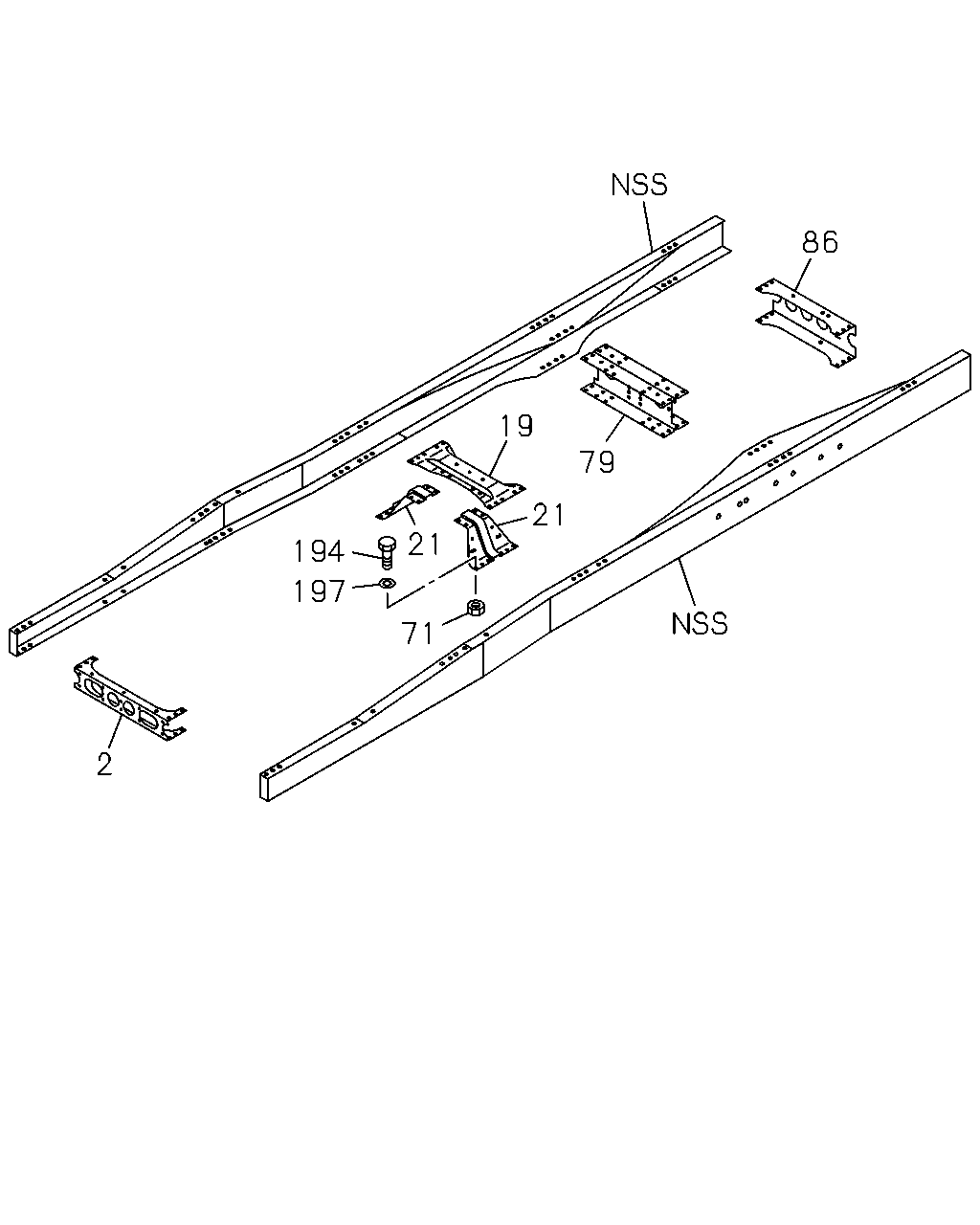

[501A] CROSS MEMBER (10 parça)

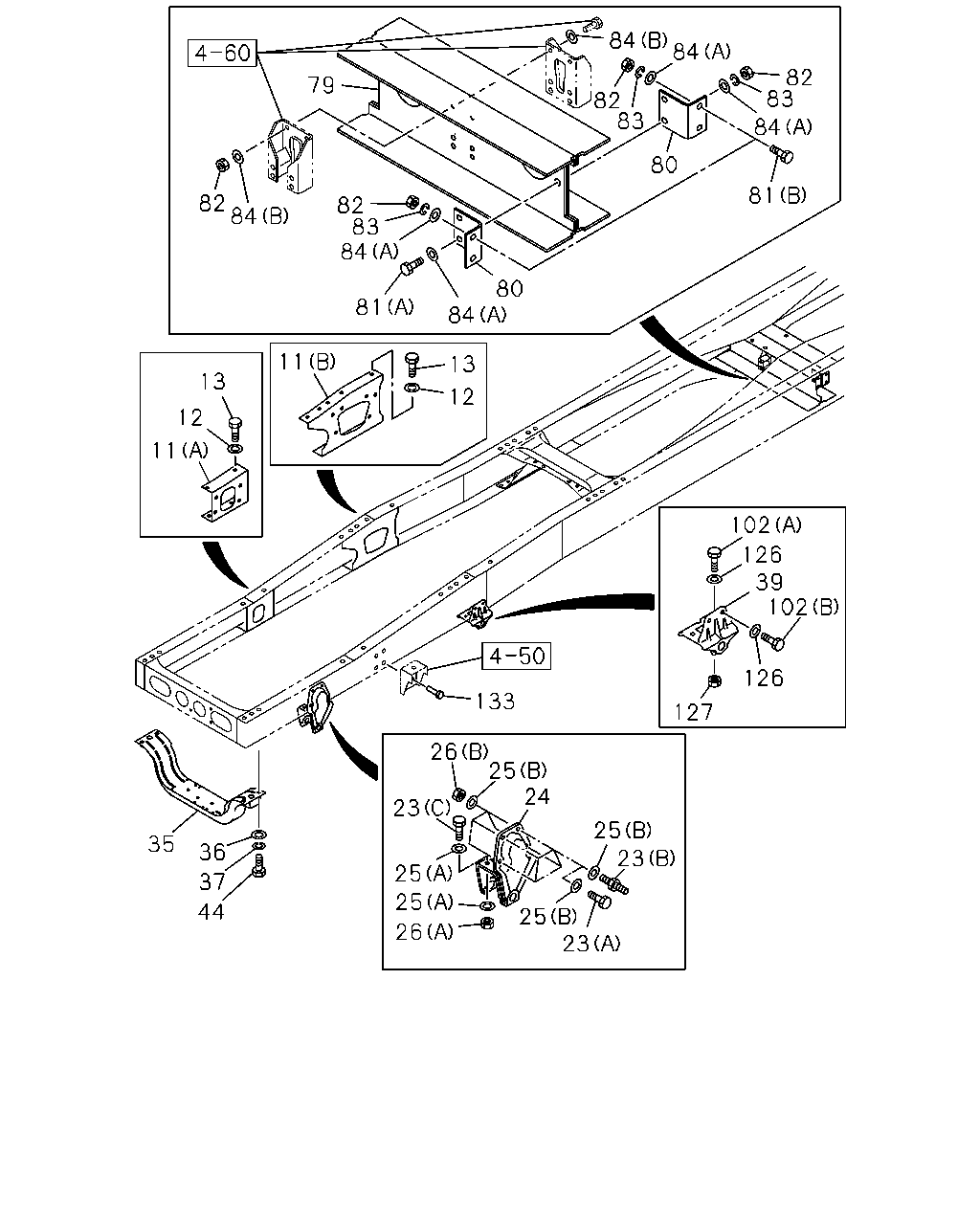

[501A] BRACKET AND UNDER MEMBER (43 parça)
▶
86
19
79
21
21
194
197
71
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0603-
19
MEMBER; CROSS,2ND
1-53174-231-1
01
1
0603-
21
GUSSET; 2ND CROSS
1-53164-226-1
01
1
0603-
21
GUSSET; 2ND CROSS
1-53164-227-1
01
1
0603-
71
NUT; 2ND C/MBR
M14
0-91110-514-0
08
1
0603-
79
MEMBER; CROSS,TRUNNION ASM
1-53181-923-0
01
1
0603-
86
MEMBER; CROSS,RR SUSP RR
1-53181-646-8
01
1
0603-
194
BOLT; 2ND C/MBR
M14X50
0-20951-450-0
08
1
0603-
197
WASHER; PL,2ND C/MBR
ID=15
9-09651-069-0
08
1
0603-1201
197
WASHER; PL,2ND C/MBR
ID=15
8-98010-627-1
08
1
1202-
84
84
82
83
79
82
83
84
80
81
82
84
82
83
84
80
81
84
11
13
13
12
12
11
102
126
39
102
126
133
127
26
25
24
23
25
23
35
36
25
37
25
23
25
44
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53219-777-1
01
1
0603-
11
BRACKET; ENG MTG
(A)
1-53219-778-1
01
1
0603-
11
BRACKET; ENG MTG
(B)
1-53219-941-0
01
1
0603-
11
BRACKET; ENG MTG
(B)
1-53219-942-1
01
1
0603-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
04
1
0603-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
04
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
04
1
0603-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
04
1
0603-
23
BOLT; BRKT,SPR
(C) M16X50
0-20951-650-0
04
1
0603-
23
BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100
1-09029-075-0
04
1
0603-
24
BRACKET; FRT SPR,FRT
1-53351-219-0
01
1
0603-
24
BRACKET; FRT SPR,FRT
1-53351-220-0
01
1
0603-
25
WASHER; PL,BRKT
(A) ID=16.2
1-09503-223-0
08
1
0603-
25
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
16
1
0603-1201
25
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
16
1
1202-
26
NUT; BRKT,SPR
(B) M14
0-91110-514-0
08
1
0603-
26
NUT; BRKT,SPR
(A) M16
0-91110-516-0
04
1
0603-
35
MEMBER; UNDER
1-53174-263-2
01
1
0603-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0603-
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
04
1
0603-0603
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0604-
39
BRACKET; FRT SPR,RR
1-53352-146-0
01
1
0603-
39
BRACKET; FRT SPR,RR
1-53352-147-0
01
1
0603-
44
BOLT; UNDER MBR
M16X45
9-92061-645-0
04
1
0603-1402
44
BOLT; UNDER MBR
M16X45
0-20951-645-0
04
1
1403-
79
MEMBER; CROSS,TRUNNION ASM
1-53181-923-0
01
1
0603-
80
BRACKET; C/MBR
1-53167-610-0
04
1
0603-
81
BOLT; BRKT
(B) M14X40
0-20951-440-0
08
1
0603-
81
BOLT; BRKT
(A) M14X55
9-91066-455-0
04
1
0603-
82
NUT; BRKT
M14
0-91110-514-0
16
1
0603-
83
WASHER; LK,BRKT
ID=14.2
9-09150-614-0
12
1
0603-0603
83
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
12
1
0604-
84
WASHER; PL,BRKT
(A) ID=15 OD=26
9-09164-514-0
16
1
0603-1104
84
WASHER; PL,BRKT
(A) ID=15 OD=26
0-91614-514-0
16
1
1105-
84
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
08
1
0603-1201
84
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
08
1
1202-
102
BOLT; BRKT,RR SPR
(B) M14X40
0-20951-440-0
04
1
0603-
102
BOLT; BRKT,RR SPR
(A) M14X50
0-20951-450-0
04
1
0603-
126
WASHER; PL,BRKT
ID=15
9-09651-069-0
08
1
0603-1201
126
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1202-
127
NUT; BRKT
M14
0-91110-514-0
02
1
0603-
133
RIVET; BRKT
D13X36 PLATED TAPER END
9-06771-336-0
08
1
0603-0607
133
RIVET; BRKT
D13X36 PLATED TAPER END
0-67901-336-0
08
1
0608-
