4-55 — FRONT LEAF SPRING (#24202) — 11 parça

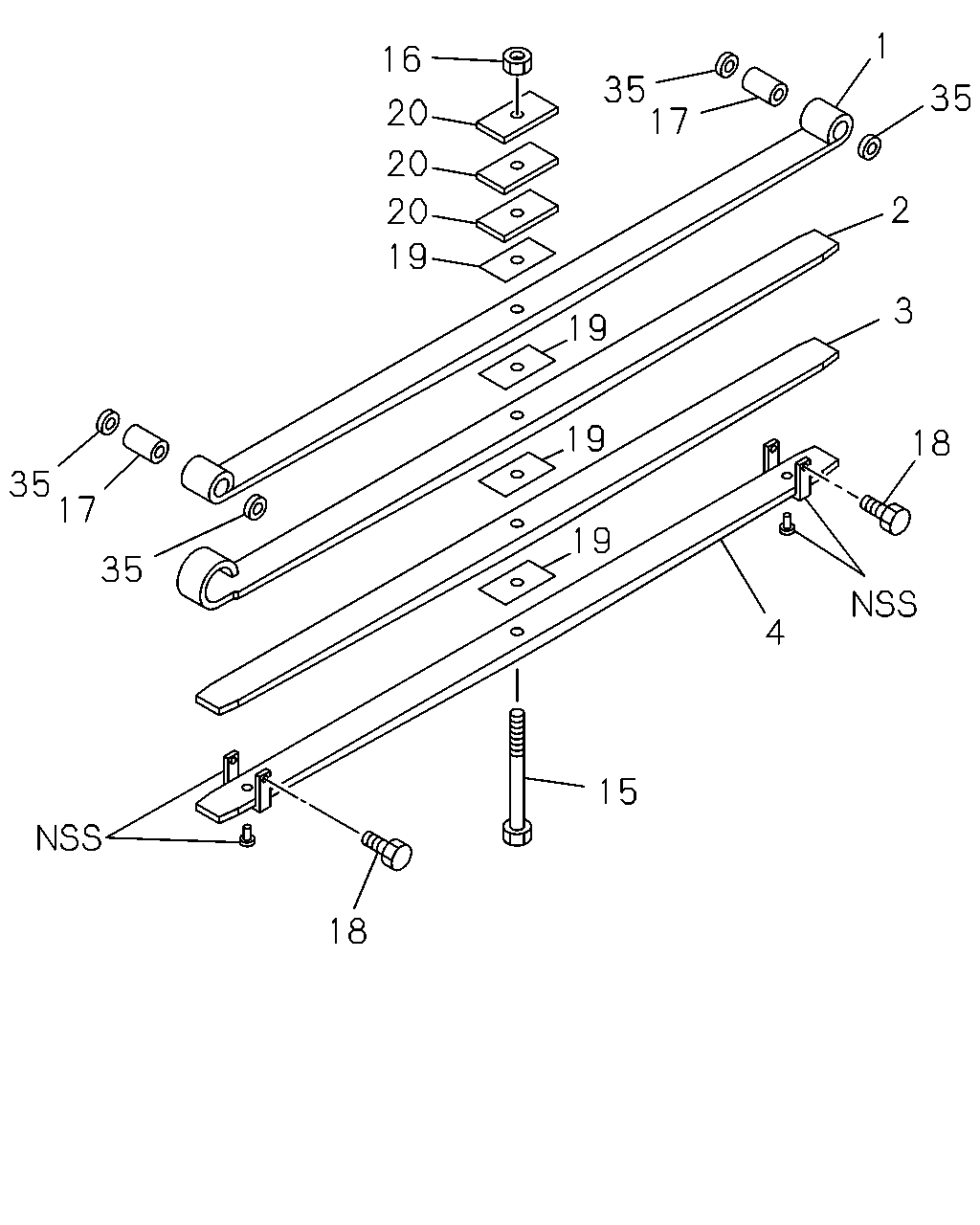

çizim 89440
1 16 35 17 35 20 20 2 20 19 3 19 19 18 35 17 19 35 4 15 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-939-0 		1-51131-939-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-939-0 		1-51132-939-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-939-0 		1-51133-939-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-939-0 		1-51134-939-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=155 ASM PART: A = 1-51130-939-0 		1-51156-336-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-939-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-939-0 		1-51351-036-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-939-0 		1-09000-328-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-939-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
T=13 ASM PART: A = 1-51130-939-0 		1-51177-346-0 03 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-939-0 		1-51177-321-0 04 1 -
