Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11020 - CXZ AUSTRALIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#24201) — 39 parça
◀

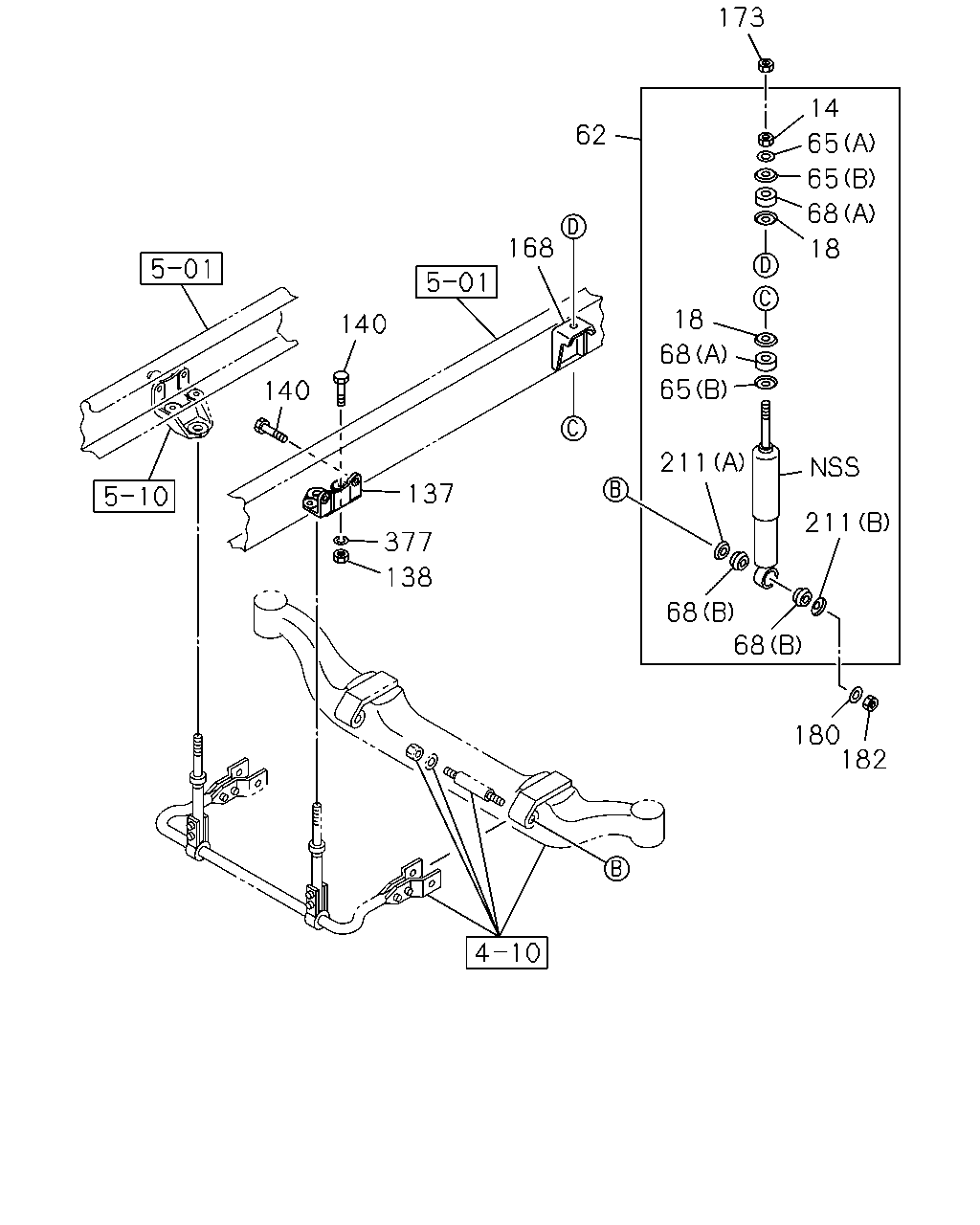

[450A] S/ABS AND BRACKET (19 parça)

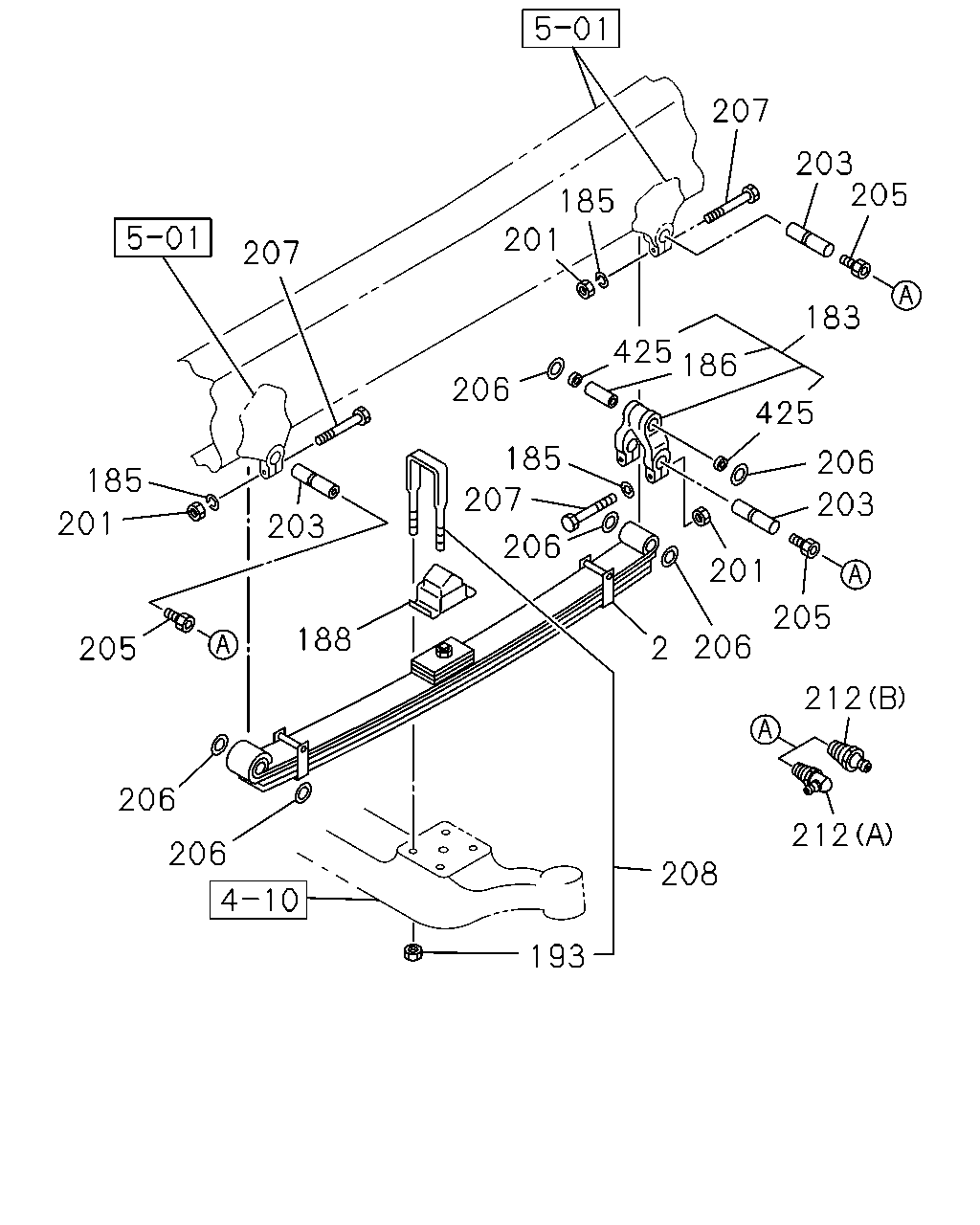

[450A] LEAF SPRING AND OTHER PARTS (20 parça)
▶
173
14
62
65
65
68
168
18
18
140
68
65
140
211
137
211
377
138
68
68
180
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
0603-
18
WASHER; CENTERING,S/ABS
ID=24
1-51631-067-0
04
1
0603-
62
ABSORBER ASM; SHOCK,FRT
1-51600-415-0
02
1
0603-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
0603-
65
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
04
1
0603-
68
BUSHING; S/ABS
(A) ID=16 T=25
1-51631-069-0
04
1
0603-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
0603-
137
BRACKET; STAB BAR TO FRAME
1-51781-111-0
01
1
0603-
138
NUT; BRKT
M14
0-91110-514-0
02
1
0603-
140
BOLT; BRKT
M14X50
0-20951-450-0
04
1
0603-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
0603-
173
NUT; S/ABS
M14
0-91111-514-0
02
1
0603-
180
WASHER; PL,PIN
ID=21
9-09160-520-0
02
1
0603-0605
180
WASHER; PL,PIN
ID=21
0-91610-520-0
02
1
0606-
182
NUT; S/ABS LWR
M20
0-91110-520-0
02
1
0603-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
0603-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
0603-
377
WASHER; LK,BRKT
ID=15
9-09651-069-0
04
1
0603-1201
377
WASHER; LK,BRKT
ID=15
8-98010-627-1
04
1
1202-
207
203
205
185
201
207
183
425
186
206
425
185
206
185
207
203
201
203
206
201
205
188
206
2
205
212
206
212
206
208
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF
1-51130-939-0
02
1
0603-
183
SHACKLE; FRT SUSP
1-51162-071-0
02
1
0603-1005
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1006-
185
WASHER; LK,PIN
ID=12.2
9-09150-612-0
12
1
0603-0603
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0604-
186
BUSHING; SHACKLE
OD=42
1-51351-044-0
02
1
0603-1005
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1006-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-097-1
02
1
0603-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0603-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0603-
203
PIN; SPR TO SHACKLE
1-51161-031-0
06
1
0603-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0603-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0603-
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0603-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-269-2
04
1
0603-1206
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1207-
212
NIPPLE; GREASE,ELBOW
(B) PT1/8 STRAIGHT
0-90301-410-0
02
1
0603-
212
NIPPLE; GREASE,ELBOW
(A) PT1/8 ELBOW
0-90301-610-0
04
1
0603-
425
SEAL; DUST
1-51177-321-0
04
1
0603-1005
