◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#2420) — 29 parça

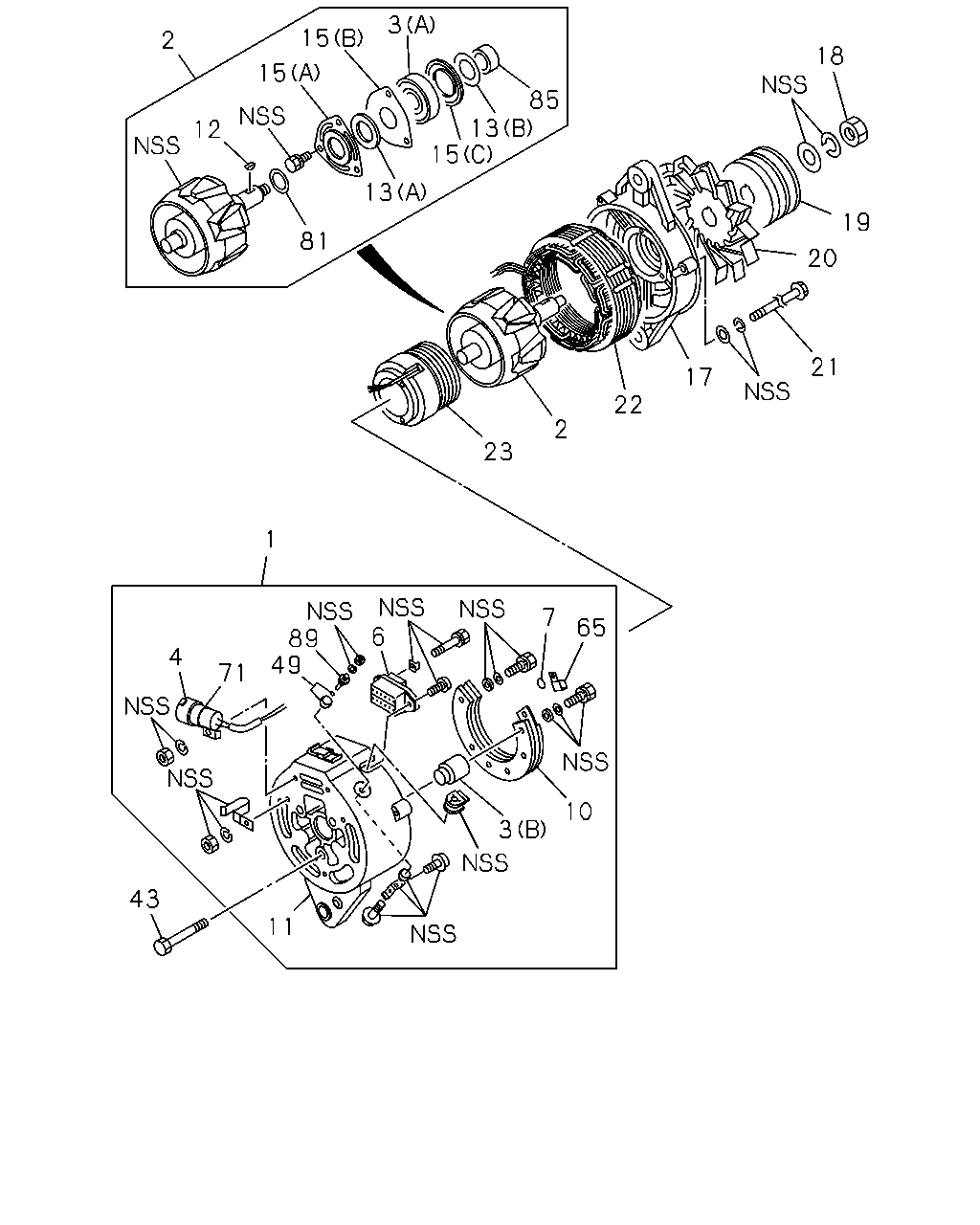

çizim 96407
3 15 2 18 15 85 13 15 12 13 19 81 20 21 17 22 2 23 1 6 89 49 7 65 4 71 10 3 43 11
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 1-81200-420-2 		1-81214-316-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 1-81200-420-2 		1-81221-056-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-420-2 		1-81229-381-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-420-2 		1-81229-514-0 01 1 -
4 TERMINAL; BRUSH,GEN
ASM PART: A = 1-81200-420-2 		1-81229-540-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 1-81200-420-2 		1-81270-001-1 01 1 -
7 WASHER; INSULATE,RECTIFIER,GEN
ASM PART: A = 1-81200-420-2 		1-81129-031-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 1-81200-420-2 		1-81219-056-1 01 1 -
11 COVER; RR,GEN
ASM PART: A = 1-81200-420-2 		1-81214-317-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: A = 1-81200-420-2 		9-82215-867-0 01 1 -
13 GASKET; ROTOR,GEN
(A) ASM PART: A = 1-81200-420-2 		1-81229-383-0 01 1 -
13 GASKET; ROTOR,GEN
(B) ASM PART: A = 1-81200-420-2 		1-81229-384-0 01 1 -
15 RETAINER; ROTOR,GEN
(B) ASM PART: A = 1-81200-420-2 		1-81229-376-0 01 1 -
15 RETAINER; ROTOR,GEN
(C) ASM PART: A = 1-81200-420-2 		1-81229-377-0 01 1 -
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 1-81200-420-2 		1-81229-513-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 1-81200-420-2 		1-81213-082-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 1-81200-420-2 		1-81229-474-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 1-81200-420-2 		1-81222-055-0 01 1 -
20 FAN; GEN
ASM PART: A = 1-81200-420-2 		1-81223-005-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: A = 1-81200-420-2 		1-81229-382-0 03 1 -
22 STATOR; GEN
ASM PART: A = 1-81200-420-2 		1-81211-062-0 01 1 -
23 COIL; ROTOR GEN
40A ASM PART: A = 1-81200-420-2 		1-81212-003-0 01 1 -
43 SCREW; RR END COVER
ASM PART: A = 1-81200-420-2 		1-81229-473-0 03 1 -
49 BUSHING; RECTIFIER,GEN
ASM PART: A = 1-81200-420-2 		1-81229-592-0 01 1 -
65 CONDENSER; GEN
ASM PART: A = 1-81200-420-2 		1-81229-539-0 01 1 -
71 HOLDER; TERMINAL,GEN
ASM PART: A = 1-81200-420-2 		1-81217-053-0 01 1 -
81 SPACER; ROTOR,GEN
ASM PART: A = 1-81200-420-2 		1-81229-373-0 01 1 -
85 SPACER; PULLEY,GEN
ASM PART: A = 1-81200-420-2 		1-81229-374-0 01 1 -
89 BOLT; RECTIFIER,GEN
ASM PART: A = 1-81200-420-2 		1-81229-591-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
