4-30 — STEERING WHEEL AND COWL (#24194) — 52 parça

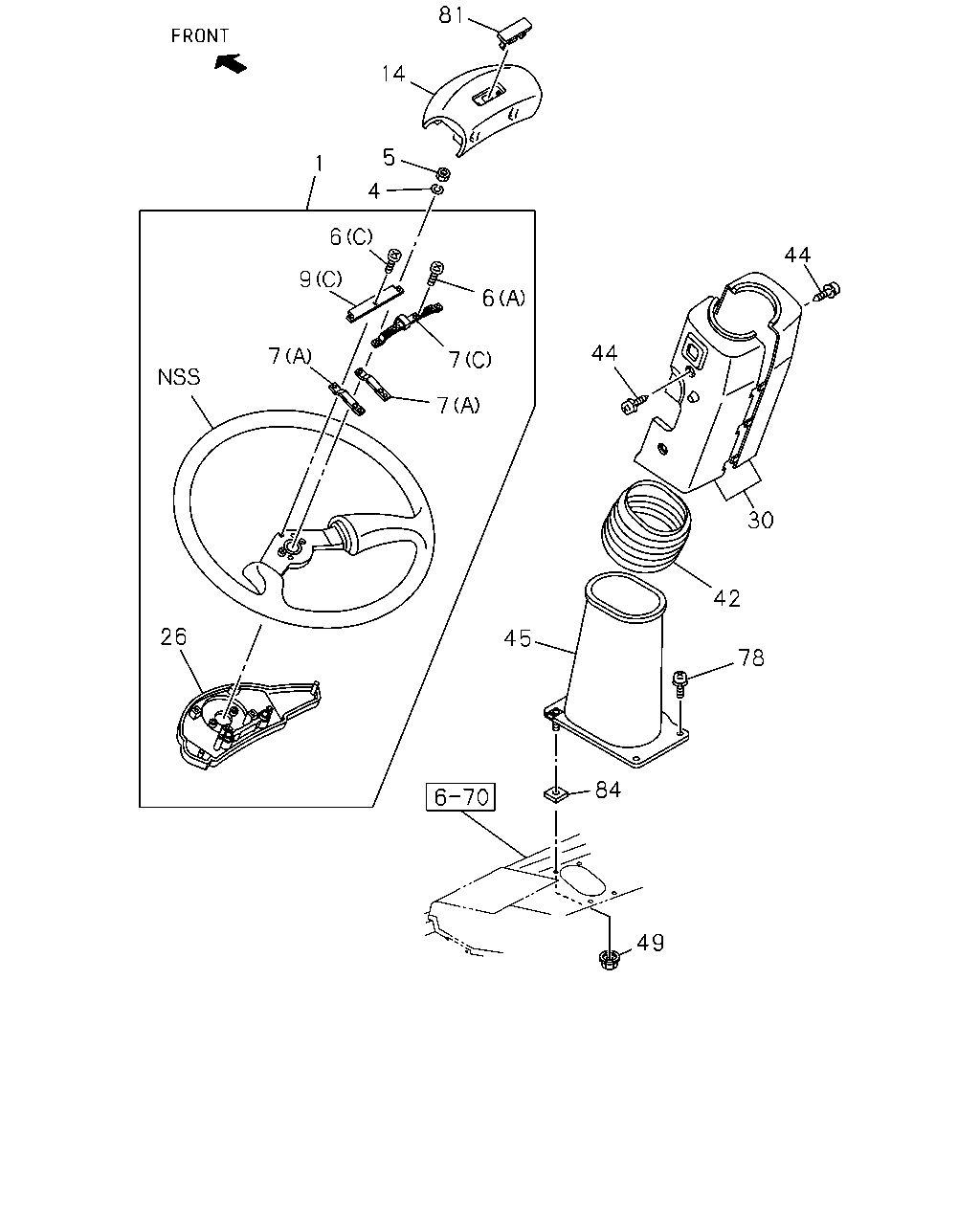

çizim 89142
81 14 5 1 4 6 44 9 6 44 7 7 7 30 42 26 45 78 84 49
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
STRG WHEEL LEATHER WRAPPED<NP5> 		1-44110-157-1 01 1 0603-
1 WHEEL; STRG
EXC. STRG WHEEL LEATHER WRAPPED<NP5> 		1-44110-146-1 01 1 0603-
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 0603-0603
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0604-
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0603-
6 SCREW; HORN SPR CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) M5X10 		1-44129-049-0 01 1 0603-
6 SCREW; HORN SPR CONTACT
(A) M4X16 		1-44129-036-0 04 1 0603-
6 SCREW; HORN SPR CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C) M4X10 		1-44129-034-0 01 1 0603-
7 SPRING; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) 		1-44129-060-0 01 1 0603-
7 SPRING; HORN CONTACT
(A) 		1-44129-033-0 02 1 0603-
7 SPRING; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C) 		1-44129-037-0 01 1 0603-
9 PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (A) 		1-44129-048-0 02 1 0603-
9 PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) 		1-44129-059-0 01 1 0603-
9 PLATE; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C) 		1-44129-038-0 01 1 0603-
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 0603-
26 COVER; STRG WHEEL,LWR
STRG WHEEL LEATHER WRAPPED<NP5> 		1-44129-050-0 01 1 0603-
26 COVER; STRG WHEEL,LWR
EXC. STRG WHEEL LEATHER WRAPPED<NP5> 		1-44129-039-1 01 1 0603-
30 COWL; STEERING 1-79998-932-0 01 1 0603-
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0603-
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0603-
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0603-
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0603-1205
49 NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1206-
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0603-
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 0603-
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0603-1205

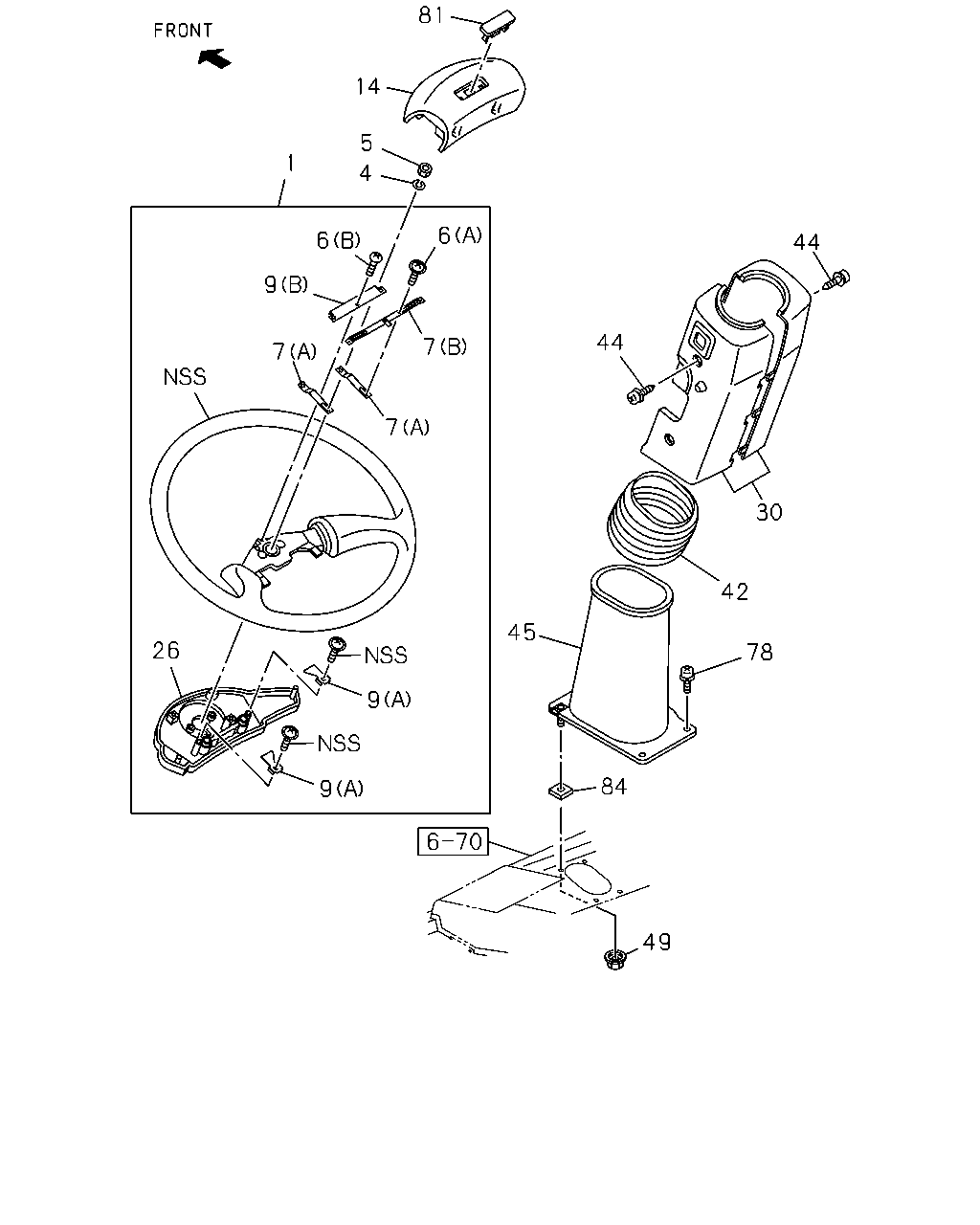

çizim 89143
81 14 5 1 4 6 6 44 9 44 7 7 7 30 42 45 26 78 9 84 9 49
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
STRG WHEEL LEATHER WRAPPED<NP5> 		1-44110-157-1 01 1 0603-
1 WHEEL; STRG
EXC. STRG WHEEL LEATHER WRAPPED<NP5> 		1-44110-146-1 01 1 0603-
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 0603-0603
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0604-
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0603-
6 SCREW; HORN SPR CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) M5X10 		1-44129-049-0 01 1 0603-
6 SCREW; HORN SPR CONTACT
(A) M4X16 		1-44129-036-0 04 1 0603-
6 SCREW; HORN SPR CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C) M4X10 		1-44129-034-0 01 1 0603-
7 SPRING; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) 		1-44129-060-0 01 1 0603-
7 SPRING; HORN CONTACT
(A) 		1-44129-033-0 02 1 0603-
7 SPRING; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C) 		1-44129-037-0 01 1 0603-
9 PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (A) 		1-44129-048-0 02 1 0603-
9 PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) 		1-44129-059-0 01 1 0603-
9 PLATE; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C) 		1-44129-038-0 01 1 0603-
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 0603-
26 COVER; STRG WHEEL,LWR
STRG WHEEL LEATHER WRAPPED<NP5> 		1-44129-050-0 01 1 0603-
26 COVER; STRG WHEEL,LWR
EXC. STRG WHEEL LEATHER WRAPPED<NP5> 		1-44129-039-1 01 1 0603-
30 COWL; STEERING 1-79998-932-0 01 1 0603-
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0603-
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0603-
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0603-
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0603-1205
49 NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1206-
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0603-
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 0603-
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0603-1205
