◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11020 - CXZ AUSTRALIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#24192) — 91 parça

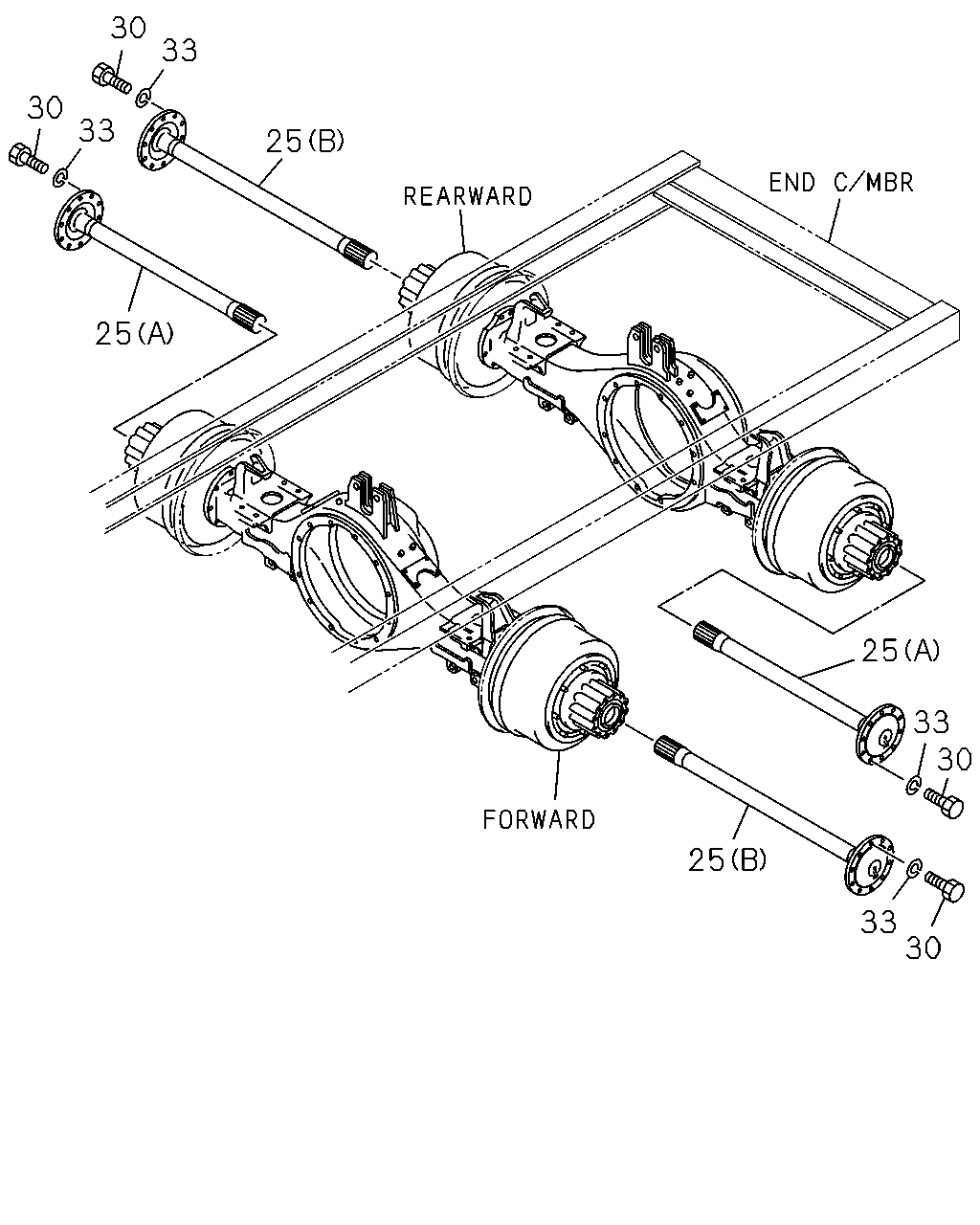

çizim 89218
30 33 30 33 25 25 25 33 30 25 33 30
BalonParca AdiParca NoAdetTipApplied Date
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0603-0910
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0603-0910
25 SHAFT; AXLE,RR
(A) L=990 		8-98146-166-0 01 1 0911-
25 SHAFT; AXLE,RR
(A) L=990 		8-98146-166-0 01 1 0911-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0603-0910
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0603-0910
25 SHAFT; AXLE,RR
(B) L=1110 		8-98146-167-0 01 1 0911-
25 SHAFT; AXLE,RR
(B) L=1110 		8-98146-167-0 01 1 0911-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0603-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0603-
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0603-0603
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0603-0603
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604-
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604-

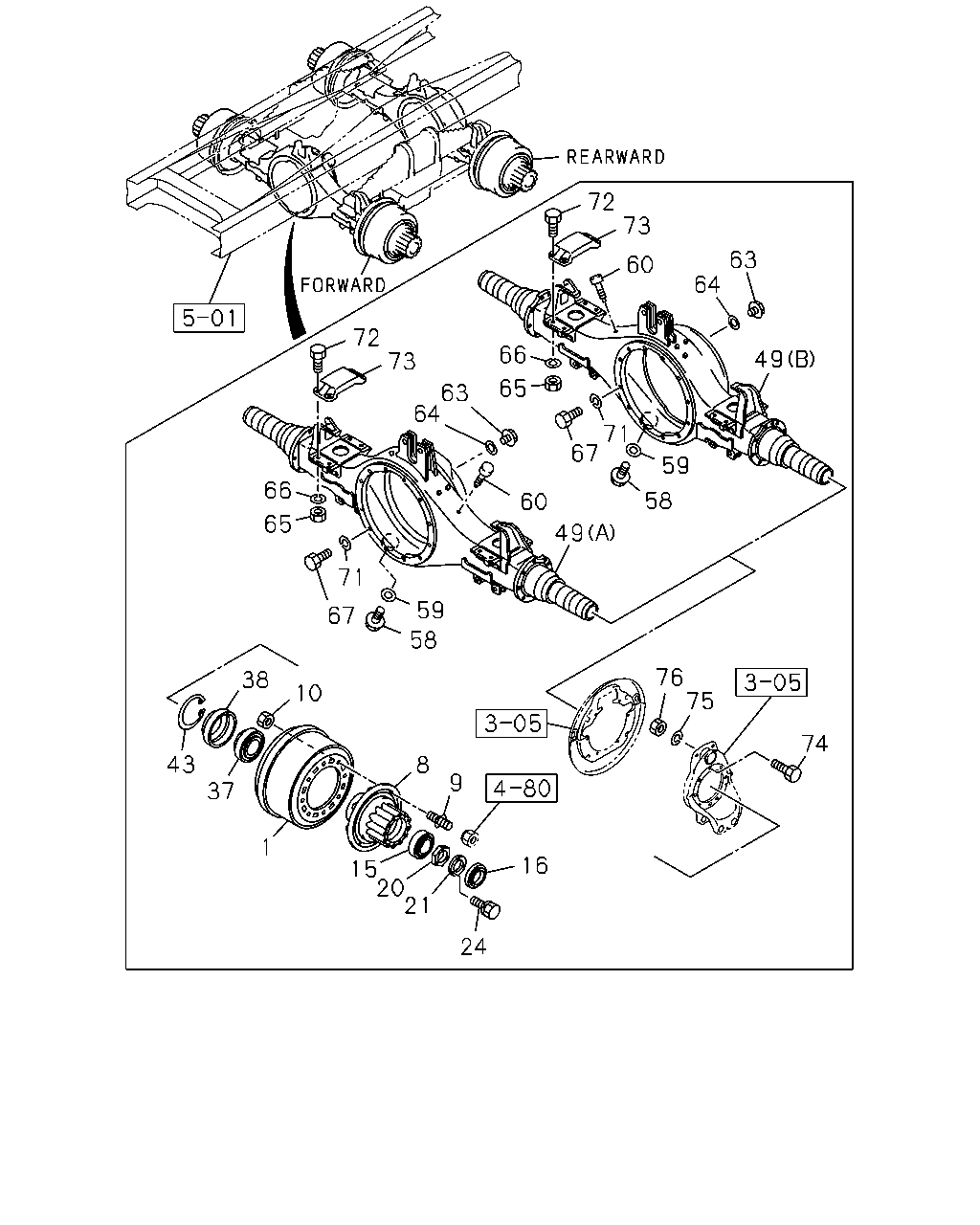

çizim 103582
72 73 63 64 60 72 73 66 49 65 63 64 71 67 59 66 58 60 65 49 71 59 67 58 76 75 38 10 74 43 8 9 37 1 16 15 20 21 24
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR 1-42315-220-4 02 1 0603-
1 DRUM; BRK,RR 1-42315-220-4 02 1 0603-
8 HUB; RR AXLE 1-42311-085-0 02 1 0603-
8 HUB; RR AXLE 1-42311-085-0 02 1 0603-
9 PIN; WHEEL,RR AXLE
M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0603-
9 PIN; WHEEL,RR AXLE
M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0603-
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0603-
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0603-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0603-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0603-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0603-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0603-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0603-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0603-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0603-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0603-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0603-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0603-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0603-
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0603-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0603-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0603-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0603-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0603-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0603-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0603-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0603-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0603-
49 CASE; RR AXLE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42190-558-0 01 1 0603-
49 CASE; RR AXLE
(B) 		1-42190-412-0 01 1 0603-
49 CASE; RR AXLE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42190-410-0 01 1 0603-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0603-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0603-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0603-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0603-
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0603-1412
60 BREATHER; RR AXLE CASE 1-09893-003-0 02 1 1501-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0603-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0603-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0603-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0603-
65 NUT
M14 		0-91110-514-0 08 1 0603-
65 NUT
M14 		0-91110-514-0 08 1 0603-
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0603-0603
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0603-0603
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604-
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604-
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0603-
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0603-
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 07 1 0603-
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 0603-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0603-0603
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0603-0603
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0603-0805
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0603-0805
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806-
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0603-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0603-
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0603-1209
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0603-1209
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 16 1 1210-
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 16 1 1210-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0603-0603
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0603-0603
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0603-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
