Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11020 - CXZ AUSTRALIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶
4-01 — PROPELLER SHAFT
(#24189) — 34 parça
◀

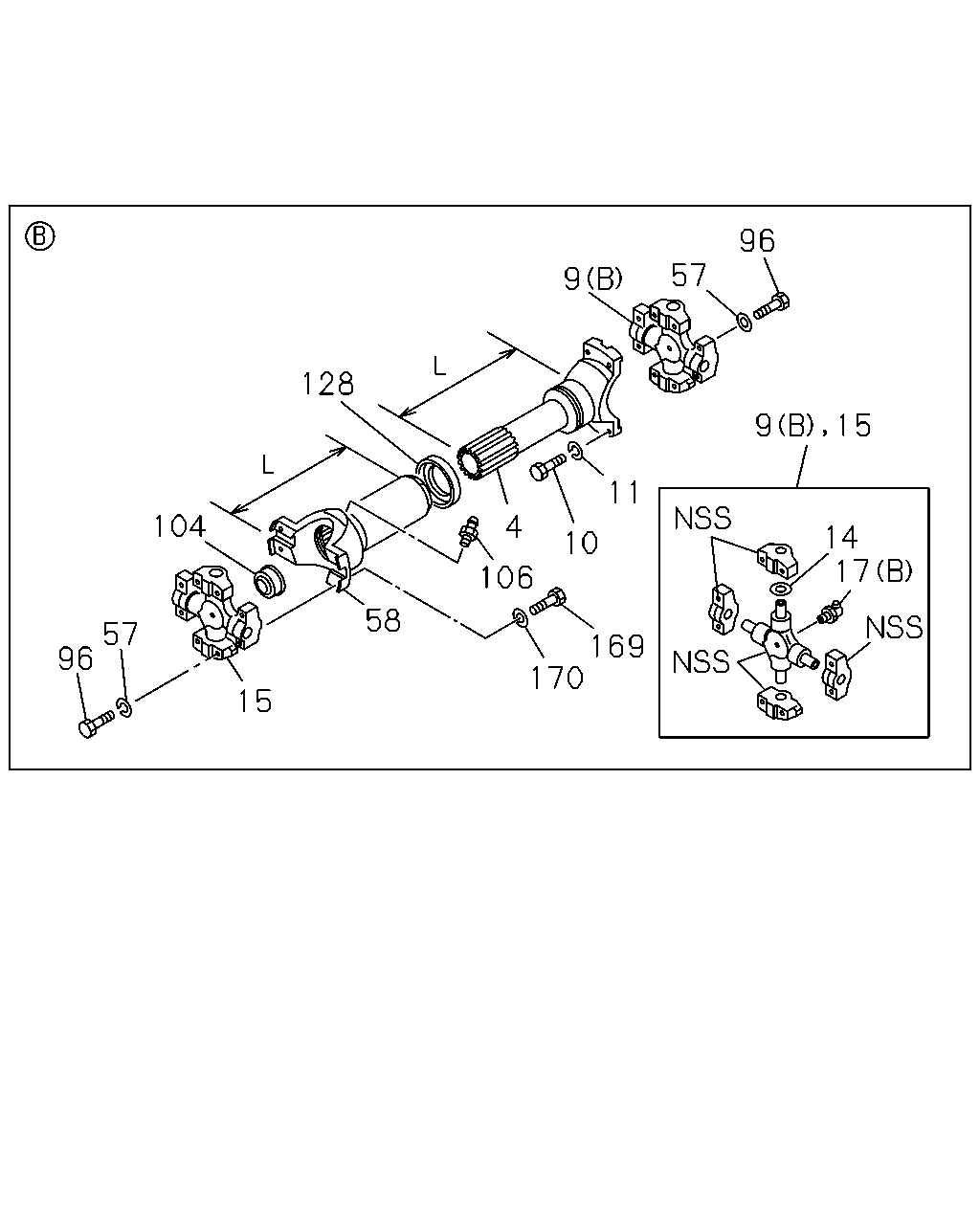

[401A] REAR (23 parça)

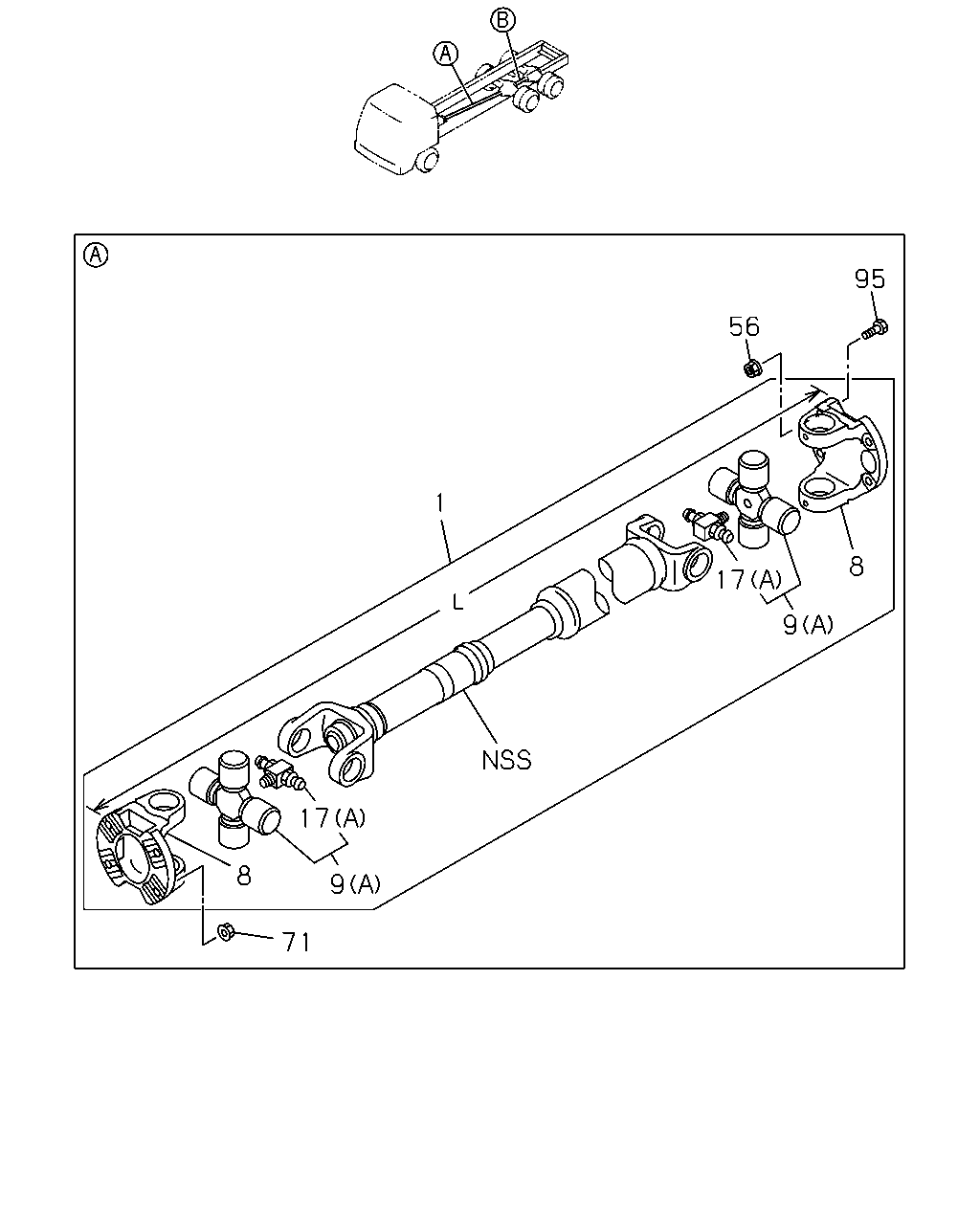

[401A] END (11 parça)
▶
96
57
9
128
9
15
11
104
4
14
17
10
106
58
57
96
169
170
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
SHAFT; PROP
L=348
1-37171-127-2
01
1
0603-
9
JOURNAL ASM; PROP SHAFT
(B)
1-37300-100-1
01
1
0603-
9
JOURNAL ASM; PROP SHAFT
(A)
1-37300-118-0
02
1
0603-
10
BOLT; UJT
M12X45
9-91066-245-0
04
1
0603-0805
10
BOLT; UJT
M12X45
8-98036-382-0
04
1
0806-
11
WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2
9-09150-612-0
04
1
0603-0603
11
WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2
0-91510-612-0
04
1
0604-
14
COVER; DUST,SPIDER
1-37319-004-0
08
1
0603-
15
UNIVERSAL CENTER
1-37300-100-1
01
1
0603-
17
NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
0603-
17
NIPPLE; GREASE,PROP SHAFT
(A)
1-37319-013-0
02
1
0603-
57
WASHER; LK,YOKE
ID=12.2
9-09150-612-0
08
1
0603-0603
57
WASHER; LK,YOKE
ID=12.2
0-91510-612-0
08
1
0604-
58
FLANGE; SPLINED
L=265
1-37245-317-0
01
1
0603-
96
BOLT; PROP SHAFT
M12X45
9-91066-245-0
08
1
0603-0805
96
BOLT; PROP SHAFT
M12X45
8-98036-382-0
08
1
0806-
104
PLUG; SLEEVE YOKE
1-09600-049-0
01
1
0603-
106
NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT
0-90301-410-0
01
1
0603-
128
SEAL; SLEEVE
8-97603-618-0
01
1
0603-
169
BOLT; YOKE,SLEEVE
M12X45
9-91066-245-0
04
1
0603-0805
169
BOLT; YOKE,SLEEVE
M12X45
8-98036-382-0
04
1
0806-
170
WASHER; LK,YOKE,SLEEVE
ID=12.2
9-09150-612-0
04
1
0603-0603
170
WASHER; LK,YOKE,SLEEVE
ID=12.2
0-91510-612-0
04
1
0604-
95
56
1
8
17
9
17
8
9
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHAFT; PROP
L=1265
1-37125-167-0
01
1
0603-
8
YOKE; FLANGE,PROP SHAFT
1-37211-083-0
02
1
0603-
9
JOURNAL ASM; PROP SHAFT
(B)
1-37300-100-1
01
1
0603-
9
JOURNAL ASM; PROP SHAFT
(A)
1-37300-118-0
02
1
0603-
17
NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
0603-
17
NIPPLE; GREASE,PROP SHAFT
(A)
1-37319-013-0
02
1
0603-
56
NUT; YOKE
M14 FLANGE
1-09440-048-0
04
1
0603-0805
56
NUT; YOKE
M14 FLANGE
8-97365-444-0
04
1
0806-
71
NUT; YOKE
M14 FLANGE
1-09440-048-0
04
1
0603-0805
71
NUT; YOKE
M14 FLANGE
8-97365-444-0
04
1
0806-
95
BOLT; YOKE,FINAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50
1-09000-645-0
04
1
0603-
