3-78 — FIXING PARTS; AIR PIPING (#24186) — 128 parça

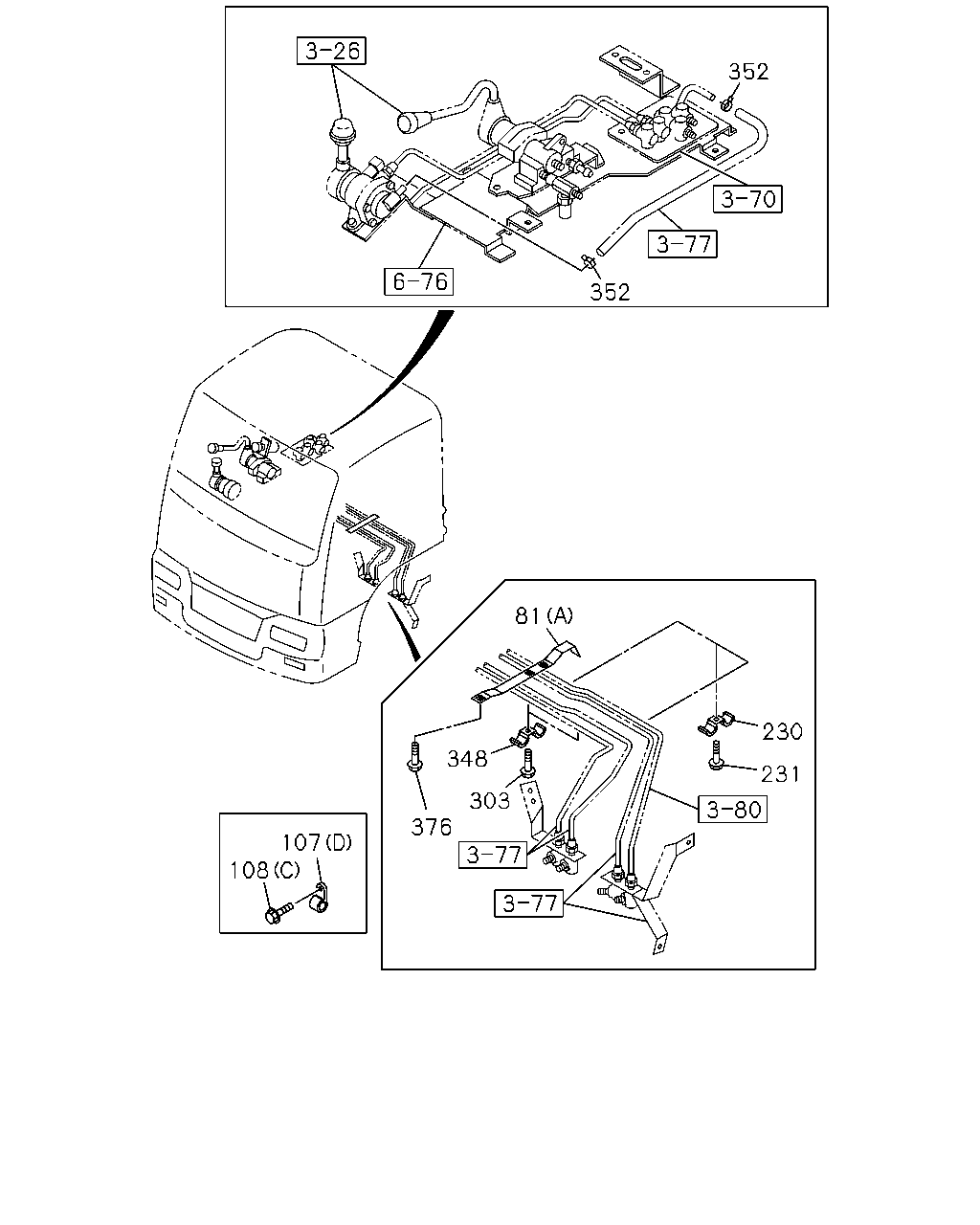

çizim 89140
352 352 81 230 348 231 303 376 107 108
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0603-
81 BRACKET; CLIP
(B) L=125 		1-47477-975-1 01 1 0603-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0603-
107 CLIP; NYLON TUBE
(D) ID=35 L=35 		1-09700-895-0 01 1 0603-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 02 1 0603-
107 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09701-047-0 02 1 0603-
108 BOLT; TUBE CLIP
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0603-
108 BOLT; TUBE CLIP
(A) M8X25 FLANGE 		0-28050-825-0 03 1 0603-
108 BOLT; TUBE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0603-
108 BOLT; TUBE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0603-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0603-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0603-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0603-
376 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0603-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-

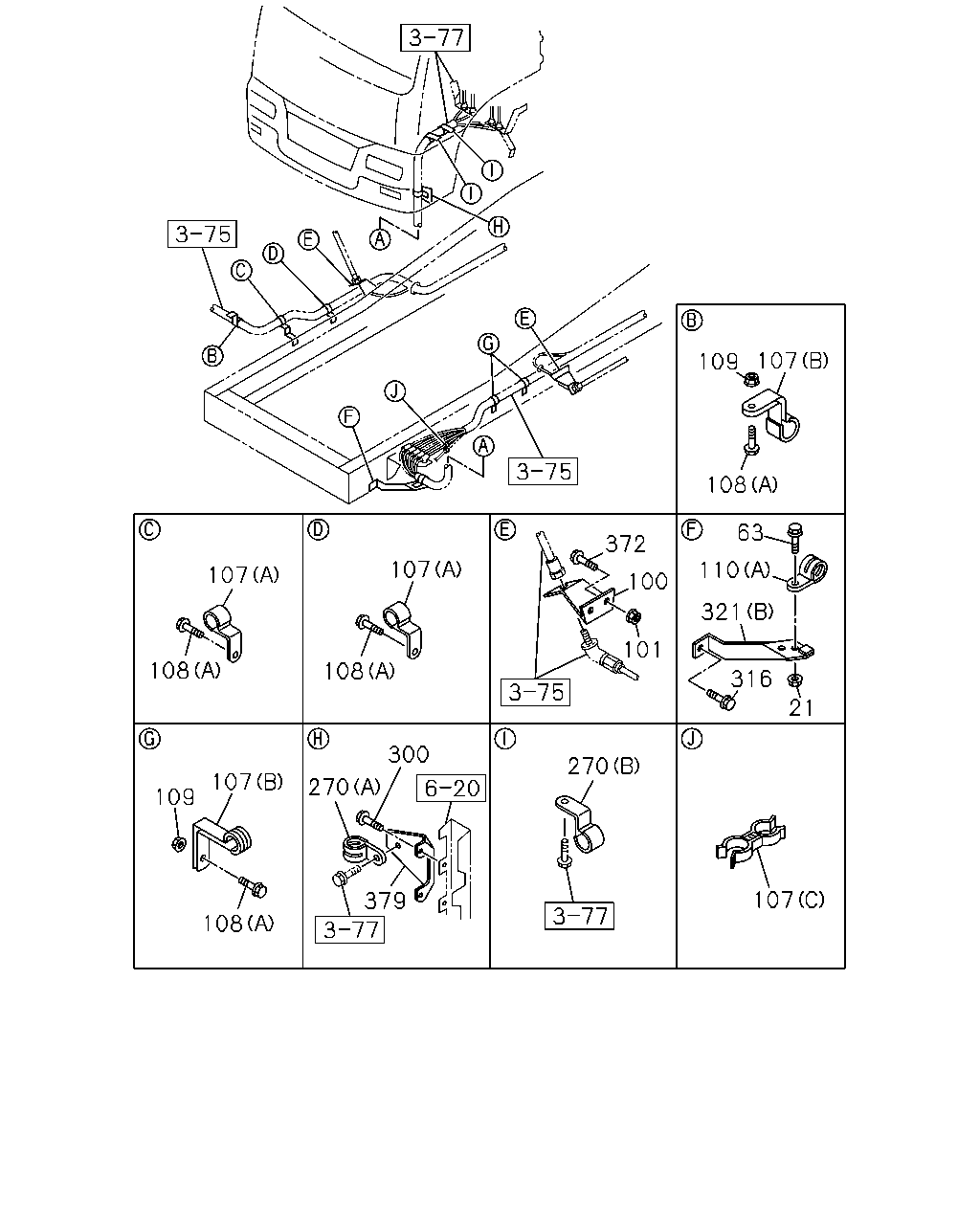

çizim 89270
108 63 372 107 110 107 100 321 101 108 108 316 21 300 270 107 270 109 107 108 379 109 107
BalonParca AdiParca NoAdetTipApplied Date
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
63 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0603-
100 BRACKET; PIPE CLIP 1-47477-365-0 01 1 0603-
100 BRACKET; PIPE CLIP 1-47477-770-0 01 1 0603-
101 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0603-0603
101 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0603-
107 CLIP; NYLON TUBE
(D) ID=35 L=35 		1-09700-895-0 01 1 0603-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 02 1 0603-
107 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09701-047-0 02 1 0603-
108 BOLT; TUBE CLIP
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0603-
108 BOLT; TUBE CLIP
(A) M8X25 FLANGE 		0-28050-825-0 03 1 0603-
108 BOLT; TUBE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0603-
108 BOLT; TUBE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0603-0603
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603-
110 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0603-
110 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 46 1 0603-
110 CLIP; BAND,NYLON TUBE
(B) L=140 		5-09707-031-1 01 1 0603-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0603-
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 01 1 0603-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0603-
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0603-
316 BOLT; CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0603-
321 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 01 1 0603-
321 BRACKET; CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 0603-
321 BRACKET; CLIP
(B) 		1-47477-810-0 01 1 0603-0609
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0603-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0603-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0603-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0603-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 0603-

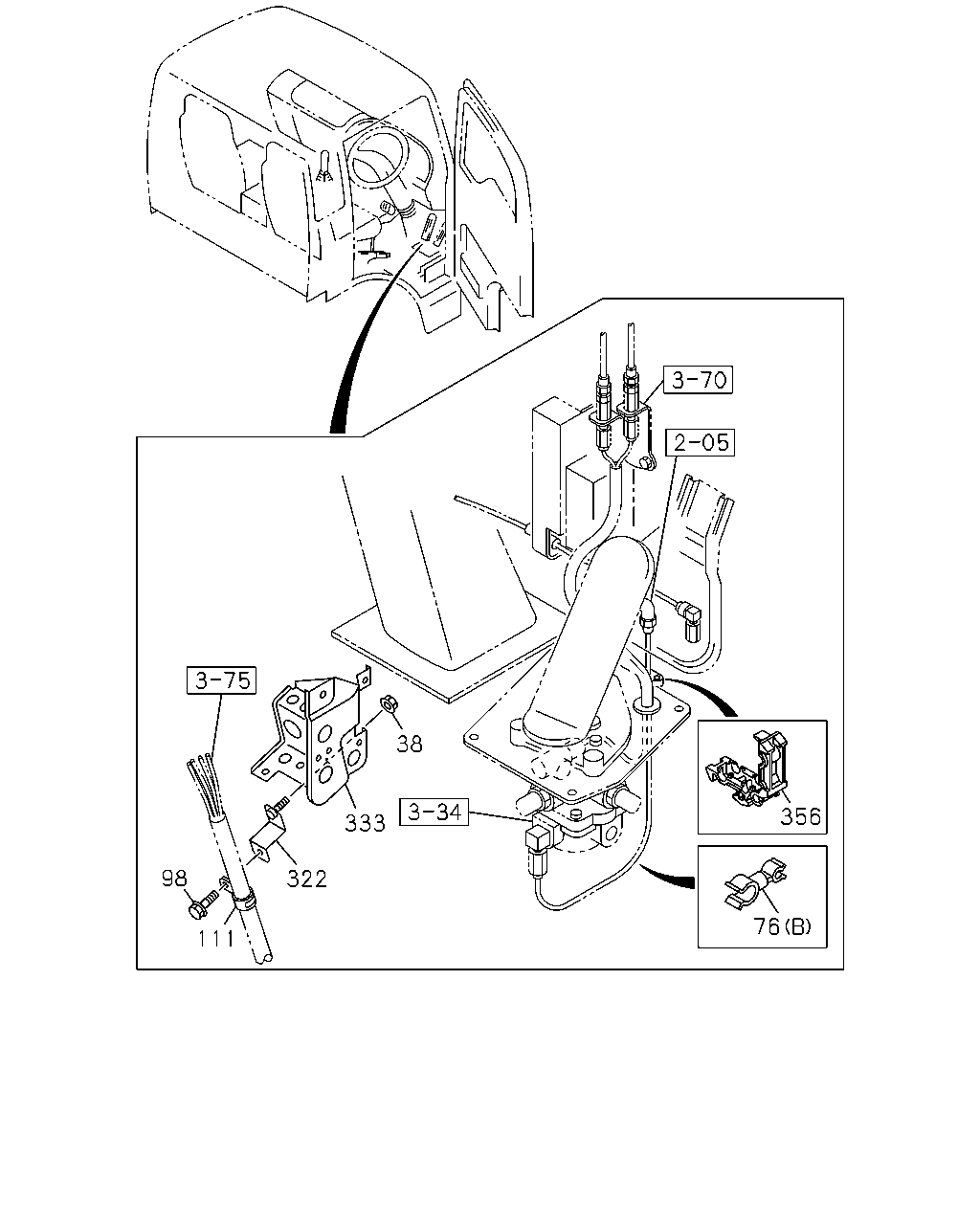

çizim 89296
38 356 333 98 322 76 111
BalonParca AdiParca NoAdetTipApplied Date
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-0702
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 07 1 0603-
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0603-
76 CLIP; NYLON TUBE
(B) ID=6 & 8.3 		8-94167-742-0 02 1 0603-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0603-
111 CLIP; AIR PIPE
ID=32 L=50 		1-09701-055-1 01 1 0603-
322 BRACKET; CLIP 1-79996-659-1 01 1 0603-0702
333 BRACKET; BRK AIR PIPE 1-79997-360-6 01 1 0603-0702
333 BRACKET; BRK AIR PIPE 1-79907-131-0 01 1 0703-0801
333 BRACKET; BRK AIR PIPE 1-79907-150-0 01 1 0802-
356 CLIP; AIR PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) BLACK 		8-94222-876-0 01 1 0603-
çizim 90605
370 133 294 295 11 110 110 22 108 22 321 34 297 110 110 109 316 286 80 369 266 76 128 286 22 81 78 266 79 372 269 266
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0603-
22 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 01 1 0603-
22 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 02 1 0603-
22 BRACKET; CLIP
(C) L=225 		1-47477-646-3 01 1 0603-
22 BRACKET; CLIP
(B) L=125 		1-47477-975-1 02 1 0603-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 07 1 0603-
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0603-
76 CLIP; NYLON TUBE
(B) ID=6 & 8.3 		8-94167-742-0 02 1 0603-
78 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0603-
79 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0603-
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0603-
81 BRACKET; CLIP
(B) L=125 		1-47477-975-1 01 1 0603-
108 BOLT; TUBE CLIP
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0603-
108 BOLT; TUBE CLIP
(A) M8X25 FLANGE 		0-28050-825-0 03 1 0603-
108 BOLT; TUBE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0603-
108 BOLT; TUBE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0603-0603
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603-
110 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0603-
110 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 46 1 0603-
110 CLIP; BAND,NYLON TUBE
(B) L=140 		5-09707-031-1 01 1 0603-
128 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 04 1 0603-
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 0603-
133 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0603-
266 CLIP; NYLON TUBE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0603-
266 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0603-
266 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 02 1 0603-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 21 1 0603-
286 CLIP; NYLON TUBE
(B) ID=18 L=28 H=30 		1-09701-110-0 01 1 0603-
286 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 02 1 0603-
294 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
294 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0603-0603
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0603-
316 BOLT; CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0603-
321 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 01 1 0603-
321 BRACKET; CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 0603-
321 BRACKET; CLIP
(B) 		1-47477-810-0 01 1 0603-0609
369 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0603-
370 BRACKET; PIPE CLIP 1-47477-669-1 01 1 0603-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0603-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0603-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0603-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0603-

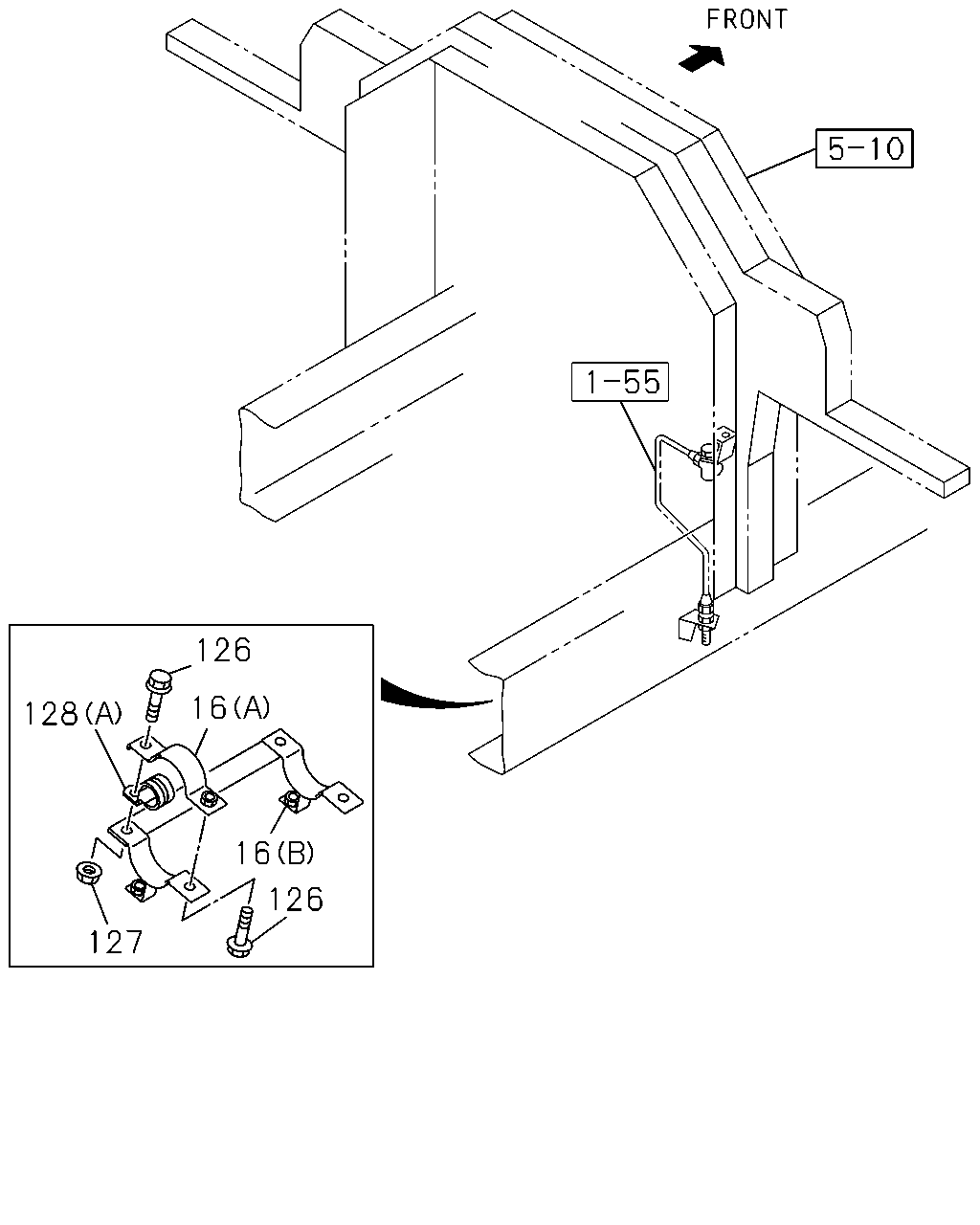

çizim 103583
126 16 128 16 126 127
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(A) 		1-47477-743-0 04 1 0603-
16 BRACKET; PIPE CLIP
(B) 		1-47477-744-0 02 1 0603-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0603-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0603-0603
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
128 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 04 1 0603-
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 0603-
