◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11141 - FVR-LHD(EUROPE)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#24184) — 65 parça

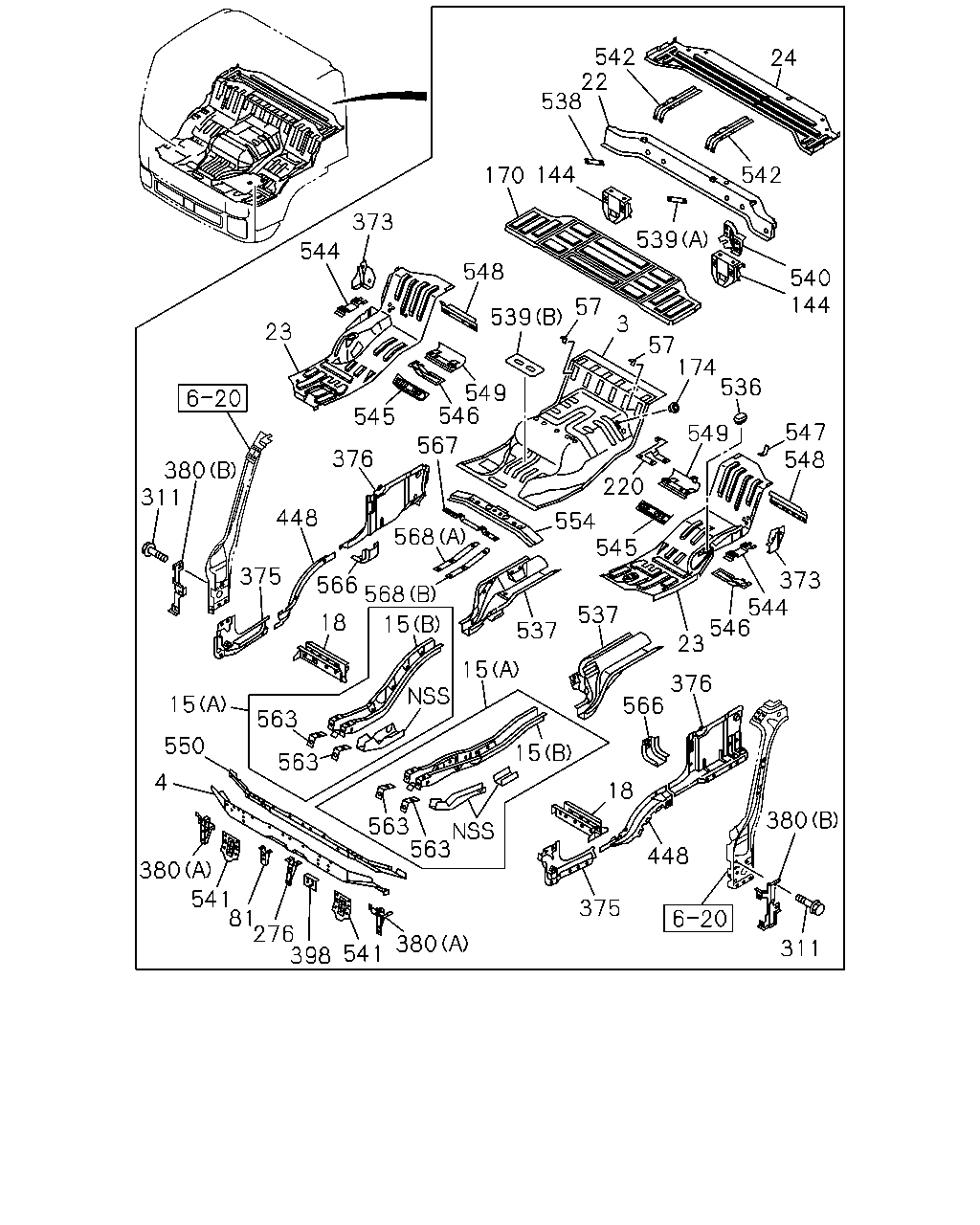

çizim 101759
542 22 538 24 144 542 170 373 539 544 548 540 144 57 539 3 23 57 174 536 549 546 545 547 548 549 567 376 380 311 220 448 554 545 568 375 373 544 546 23 566 568 537 18 15 537 15 376 566 15 563 550 563 15 4 18 563 563 380 448 380 541 81 276 398 375 380 311 541
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
FULLER FSO5206B OD M/T(Y4V) 		8-98081-363-4 01 1 0809-1009
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-363-4 01 1 0809-1009
3 HOOD ASM; ENG
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-363-4 01 1 1010-
3 HOOD ASM; ENG
FULLER FSO5206B OD M/T(Y4V) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-363-4 01 1 1010-
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-365-4 01 1 0809-
4 FRAME; FLOOR,FRT 8-98077-807-1 01 1 0809-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0809-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0809-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0809-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0809-
18 FRAME; FLOOR,CENTER SIDE 8-98017-381-1 01 1 0809-
18 FRAME; FLOOR,CENTER SIDE 8-98017-387-1 01 1 0809-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 0809-
23 PANEL; FLOOR,SIDE 8-98017-359-4 01 1 0809-
23 PANEL; FLOOR,SIDE 8-98080-739-0 01 1 0809-
24 PANEL; BED PAN 8-97584-378-6 01 1 0809-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0809-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0809-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0809-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0809-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 0809-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0809-
220 PATCH 8-97589-704-0 01 1 0809-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0809-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0809-
373 REINFORCEMENT; SEAT BELT 8-97584-367-2 01 1 0809-
373 REINFORCEMENT; SEAT BELT 8-97584-375-2 01 1 0809-
375 CLOSING; PILLAR 8-98044-897-3 01 1 0809-
375 CLOSING; PILLAR 8-98044-898-3 01 1 0809-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0809-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 0809-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 0809-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 0809-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0809-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0809-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0809-
448 CLOSING; ROCKER 8-97589-551-2 01 1 0809-
448 CLOSING; ROCKER 8-97589-552-2 01 1 0809-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0809-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 0809-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 0809-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0809-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0809-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0809-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0809-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0809-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0809-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0809-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0809-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 0809-
545 BRACKET; SEAT FRT 8-98050-188-0 01 1 0809-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 0809-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0809-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 0809-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 0809-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 0809-
549 BRACKET; SEAT RR 8-98050-189-1 01 1 0809-
550 CLOSING ASM; MTG,FRT 8-97589-710-3 01 1 0809-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 0809-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0809-
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 0809-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 0809-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 0809-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
