9-01 — TOOLS (#24171) — 65 parça
çizim 144255
57 70 70 52 85 77 87 102 88 93 154 91 158
BalonParca AdiParca NoAdetTipApplied Date
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 0711-
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 0711-
70 TOOL; SETTING,OIL SEAL
(A) 		1-85220-025-1 01 1 0711-1108
70 TOOL; SETTING,OIL SEAL
(B) 		8-98194-607-0 01 1 1109-
77 TOOL; SETTING,CYL LINER 1-85221-073-0 01 1 0711-
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 0711-
87 TOOL; PISTON 1-85221-082-0 01 1 0711-
88 TOOL; CONNROD BUSHING 1-85220-037-0 01 1 0711-
91 REPLACER ASM; CYL LINER 1-85231-021-0 01 1 0711-
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0711-
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 0711-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0711-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0711-
çizim 144263
274 271 268 209 160 162 162 174 180 227 192
BalonParca AdiParca NoAdetTipApplied Date
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 0711-
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0711-
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0711-
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0711-
180 PULLER; FRT & RR HUB 1-85210-002-0 02 1 0711-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0711-
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0711-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0711-
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0711-
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0711-
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0711-

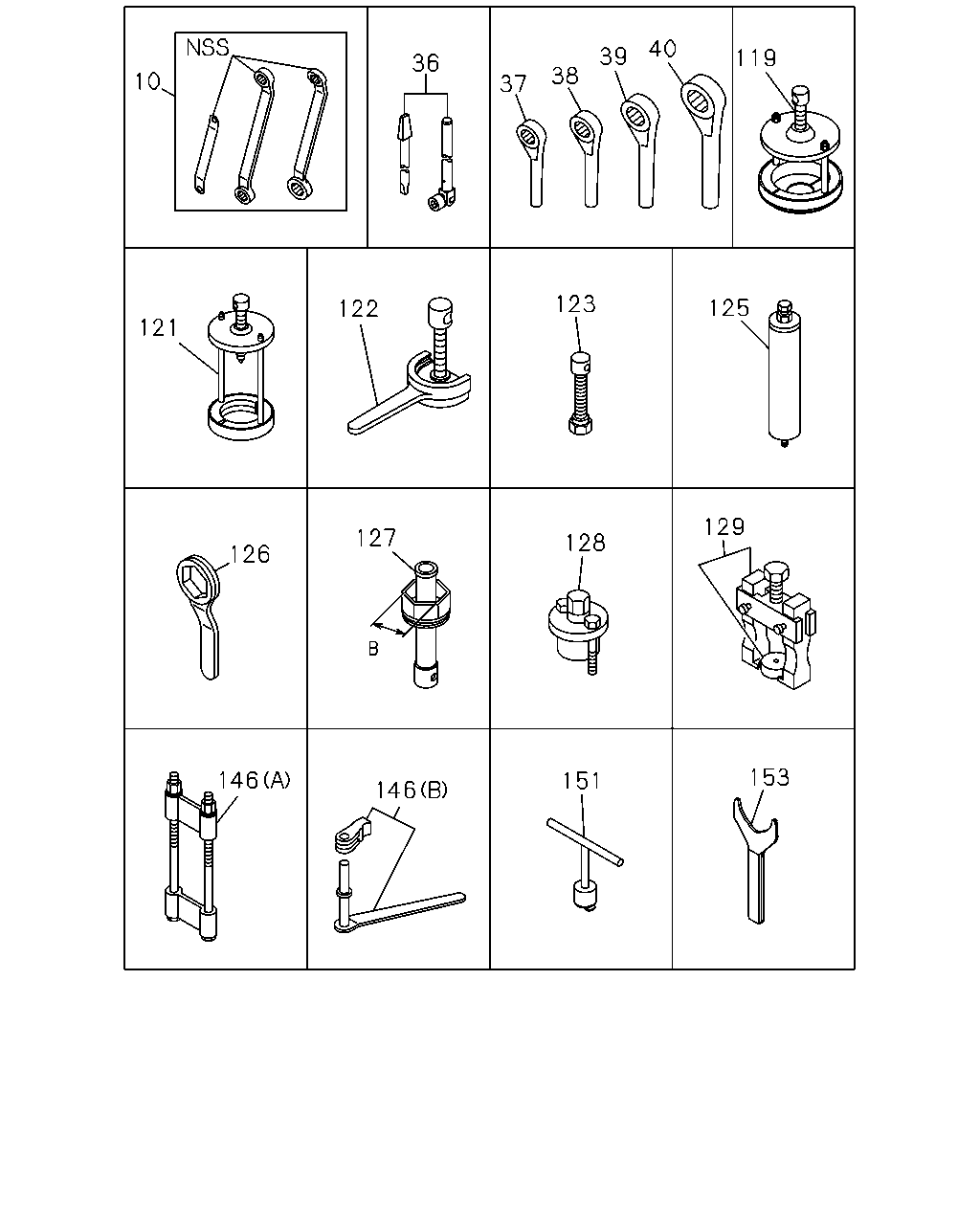

çizim 144264
40 39 119 36 38 10 37 123 125 122 121 129 127 128 126 153 146 151 146
BalonParca AdiParca NoAdetTipApplied Date
10 WRENCH KIT; BRK ADJ 9-85110-013-0 01 1 0711-
36 WRENCH; 24 9-85111-377-0 01 1 0711-
37 WRENCH; 27 9-85111-375-0 01 1 0711-
38 WRENCH; 32 9-85111-358-0 01 1 0711-
39 WRENCH; 36 9-85111-374-0 01 1 0711-
40 WRENCH; 41 9-85111-356-0 01 1 0711-
119 PULLER ASM; TOP GEAR BRG
L=235 		9-85210-190-0 01 1 0711-
121 PULLER ASM; COUNTER REAR
L=285 		9-85210-184-0 01 1 0711-
122 PULLER ASM; COUNTER FRT 9-85210-195-0 01 1 0711-
123 PULLER; SPEEDOMETER BUSHING 9-85210-091-0 01 1 0711-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0711-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0711-
127 WRENCH ASM; HUB BRG NUT
L=400 B=105 		9-85113-509-0 01 1 0711-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0711-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0711-
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-016-0 01 1 0711-
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 0711-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0711-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0711-

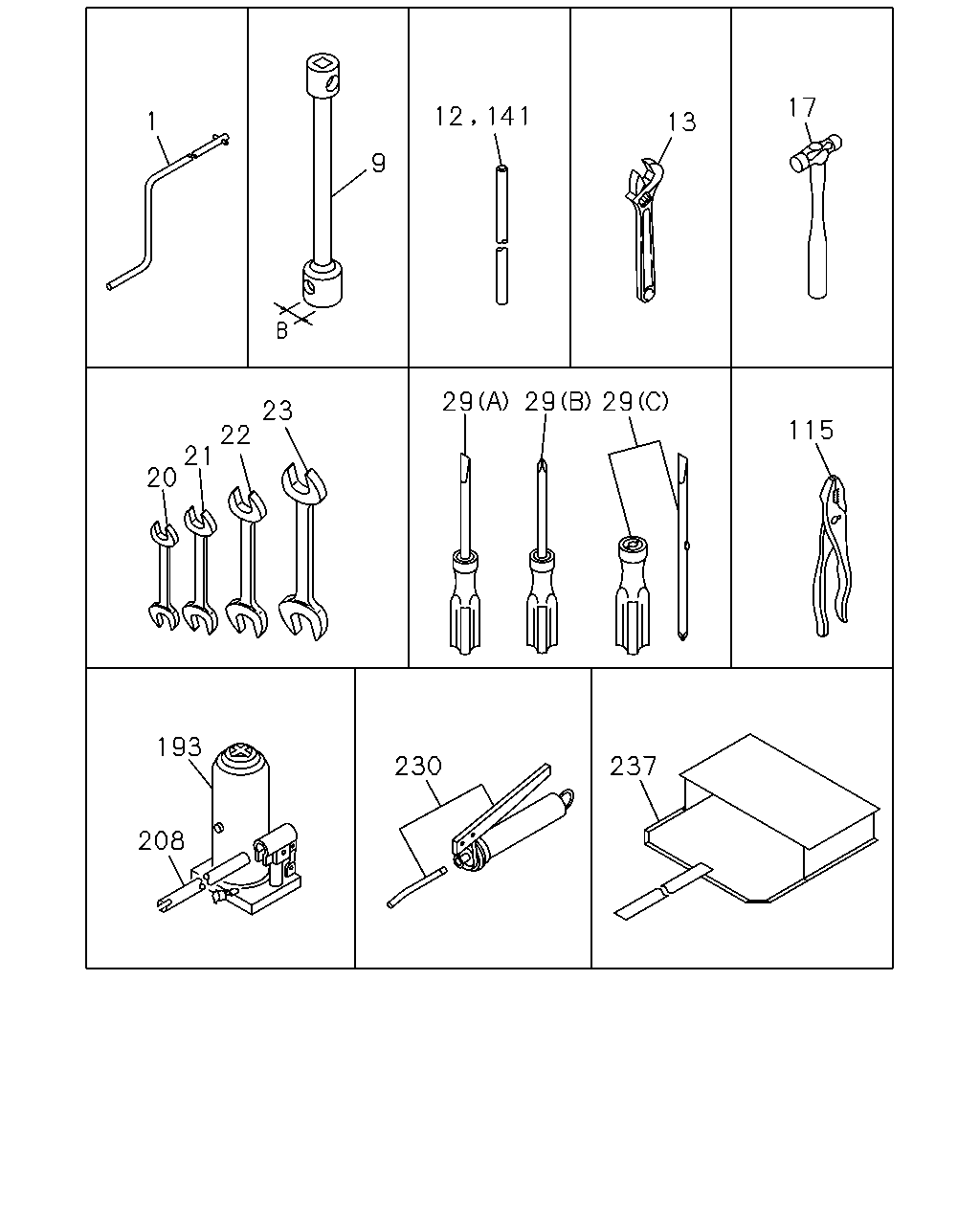

çizim 144267
17 12 141 1 13 9 29 23 22 21 20 115 193 230 237 208 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR(P10) IDN 		9-23110-018-0 01 1 0711-
9 WRENCH; WHEEL PIN
B=41X21 L=440 IDN 		1-85113-015-1 01 1 0711-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 IDN 		1-85116-011-0 01 1 0711-1411
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 IDN 		8-98257-407-0 01 1 1412-
13 WRENCH; MONKEY
L=247 IDN 		1-85117-006-0 01 1 0711-1407
13 WRENCH; MONKEY
L=255 IDN 		8-98270-303-0 01 1 1408-
17 HAMMER
IDN 		9-85121-406-0 01 1 0711-
20 WRENCH; 10X12
10X12 IDN 		0-95902-510-0 01 1 0711-
21 WRENCH; 14X17
14X17 IDN 		0-95902-514-0 01 1 0711-
22 WRENCH; 19X22
19X22 IDN 		0-95902-519-0 01 1 0711-
23 WRENCH; 24X27
24X27 IDN 		0-95902-524-0 01 1 0711-
29 DRIVER; SCREW
(C) <+>,<-> L=160 IDN 		8-94242-798-1 01 1 0711-
29 DRIVER; SCREW
(A) <-> L=275 IDN 		8-98061-105-0 01 1 0711-
29 DRIVER; SCREW
(B) <+> L=190 IDN 		9-09595-522-0 01 1 0711-
115 PLIER
IDN 		5-85171-002-0 01 1 0711-
141 HANDLE; WRENCH
OD=25 L=480 IDN 		1-85116-011-0 01 1 0711-1411
141 HANDLE; WRENCH
OD=25 L=480 IDN 		8-98257-407-0 01 1 1412-
193 JACK ASM
10TON 		8-97607-599-0 01 1 0711-
208 HANDLE; JACK
L=600 IDN 		1-85515-009-0 01 1 0711-1107
208 HANDLE; JACK
L=600 IDN 		8-98181-437-0 01 1 1108-
230 PUMP; GREASE
IDN 		1-85556-007-5 01 1 0711-
237 BAG; TOOL
IDN 		8-97130-902-1 01 1 0711-
