8-15 — FIXING PARTS; WIRING HARNESS (#24159) — 125 parça
çizim 144237
14 81 121 206 16 48 217 16 48 194 231 16 171 305 48 178 178 178 513 530 53 334 335 59
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=140 IDN 		5-09707-031-1 01 1 0711-
16 CLIP; HARNESS
(C) ID=23 L=32 		1-09700-346-0 01 1 0711-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0711-
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 0711-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0711-
16 CLIP; HARNESS
(I) ID=24 L=40 		1-09701-139-0 01 1 0711-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0711-
16 CLIP; HARNESS
(H) L=180 		1-09707-162-1 02 1 0711-
16 CLIP; HARNESS
(A) L=250 IDN 		5-09707-030-1 01 1 0711-
16 CLIP; HARNESS
(G) ID=20 L=50 		9-09917-430-0 03 1 0711-
48 CLIP; FRAME HARNESS
(H) ID=19 L=60 		0-95235-896-0 01 1 0711-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 14 1 0711-
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 		1-09700-858-0 03 1 0711-
48 CLIP; FRAME HARNESS
(I) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0711-
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0711-
48 CLIP; FRAME HARNESS
(K) L=350 		1-09707-183-0 01 1 0711-
48 CLIP; FRAME HARNESS
(L) L=250 IDN 		5-09707-030-1 01 1 0711-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 03 1 0711-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 23 1 0711-
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0711-
48 CLIP; FRAME HARNESS
(B) ID=35 L=75 		1-09700-608-2 01 1 0711-
48 CLIP; FRAME HARNESS
(C) ID=32 L=75 		1-09700-704-1 02 1 0711-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0711-
53 BRACKET; HARNESS 1-47476-200-0 01 1 0711-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0711-
81 CLIP; HARNESS
L=140 IDN 		5-09707-031-1 02 1 0711-
121 CLIP; FACIA HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0711-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0711-
171 CLIP; STARTER HARNESS
(G) ID=11 L=16 		0-95235-025-0 01 1 0711-
171 CLIP; STARTER HARNESS
(F) ID=19 L=40 		0-95235-876-0 01 1 0711-
171 CLIP; STARTER HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0711-
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 02 1 0711-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0711-
171 CLIP; STARTER HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0711-
171 CLIP; STARTER HARNESS
(C) ID=10 & 16.5 		8-94360-745-0 01 1 0711-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0711-
178 GROMMET; HARNESS
(C) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0711-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0711-
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 0711-
206 CLIP; FUEL TANK HARNESS
L=140 IDN 		5-09707-031-1 02 1 0711-
217 CLIP; RR BODY HARNESS
L=250 IDN 		5-09707-030-1 02 1 0711-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0711-
305 CLIP; ENG HARNESS
L=300 		1-09707-001-1 01 1 0711-
334 BRACKET 1-82699-425-0 01 1 0711-
335 BRACKET; CONNECTOR 1-82699-963-0 01 1 0711-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0711-0906
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0711-

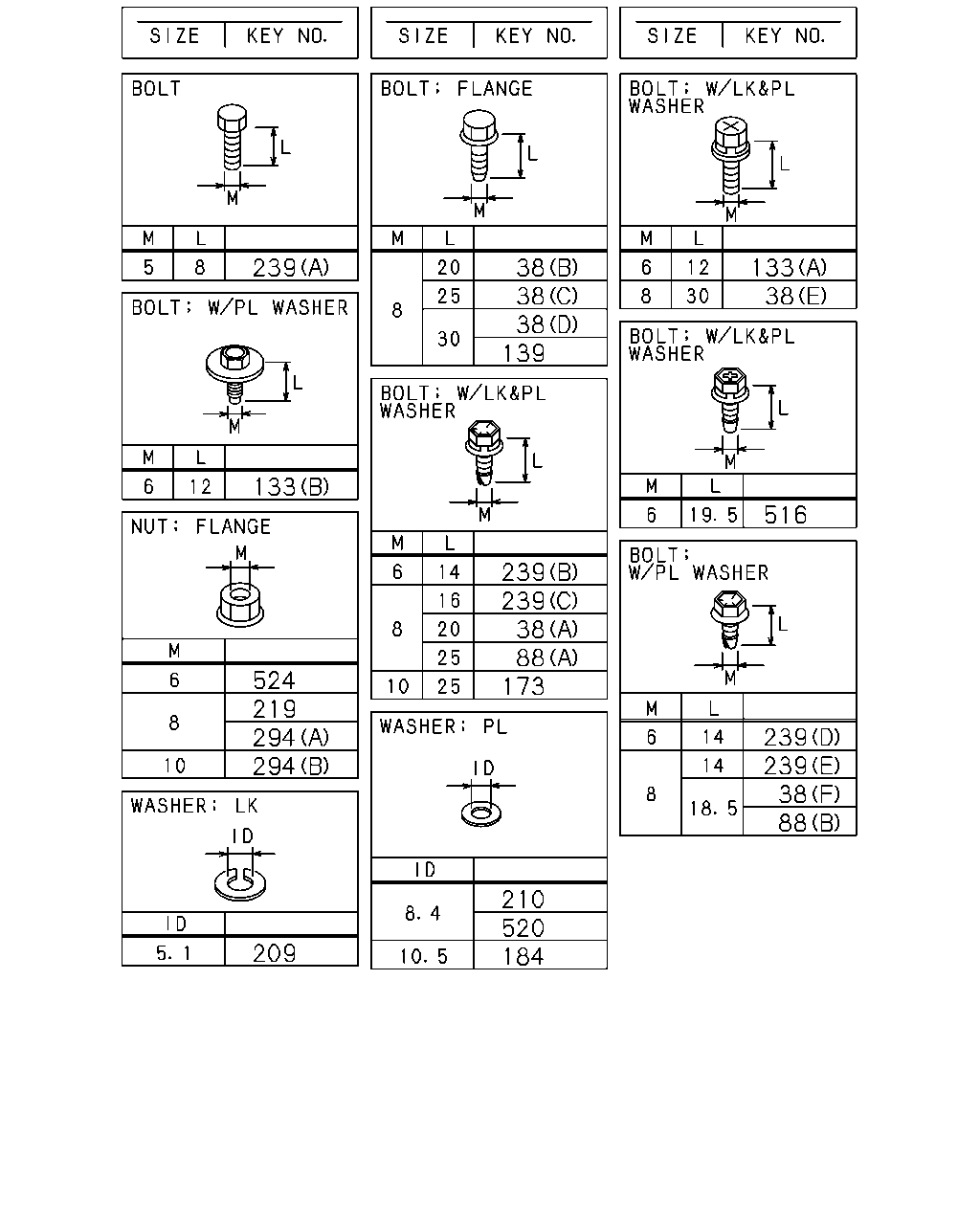

çizim 144244
239 38 38 38 139 133 38 133 516 239 239 38 88 173 524 219 294 294 239 239 38 88 210 520 184 209
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE IDN 		0-28650-820-0 02 1 0711-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE IDN 		0-28650-820-0 04 1 0711-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0711-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE IDN 		0-28650-825-0 03 1 0711-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 06 1 0711-
38 BOLT; CLIP,HARNESS
(A) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 0711-1202
38 BOLT; CLIP,HARNESS
(A) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 0711-1202
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203-
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203-
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0711-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0711-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0711-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0711-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0711-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0711-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0711-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0711-
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0711-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0711-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0711-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0711-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0711-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0711-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0711-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0711-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0711-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER IDN 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0711-1202
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1203-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0711-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0711-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0711-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0711-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0711-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0711-

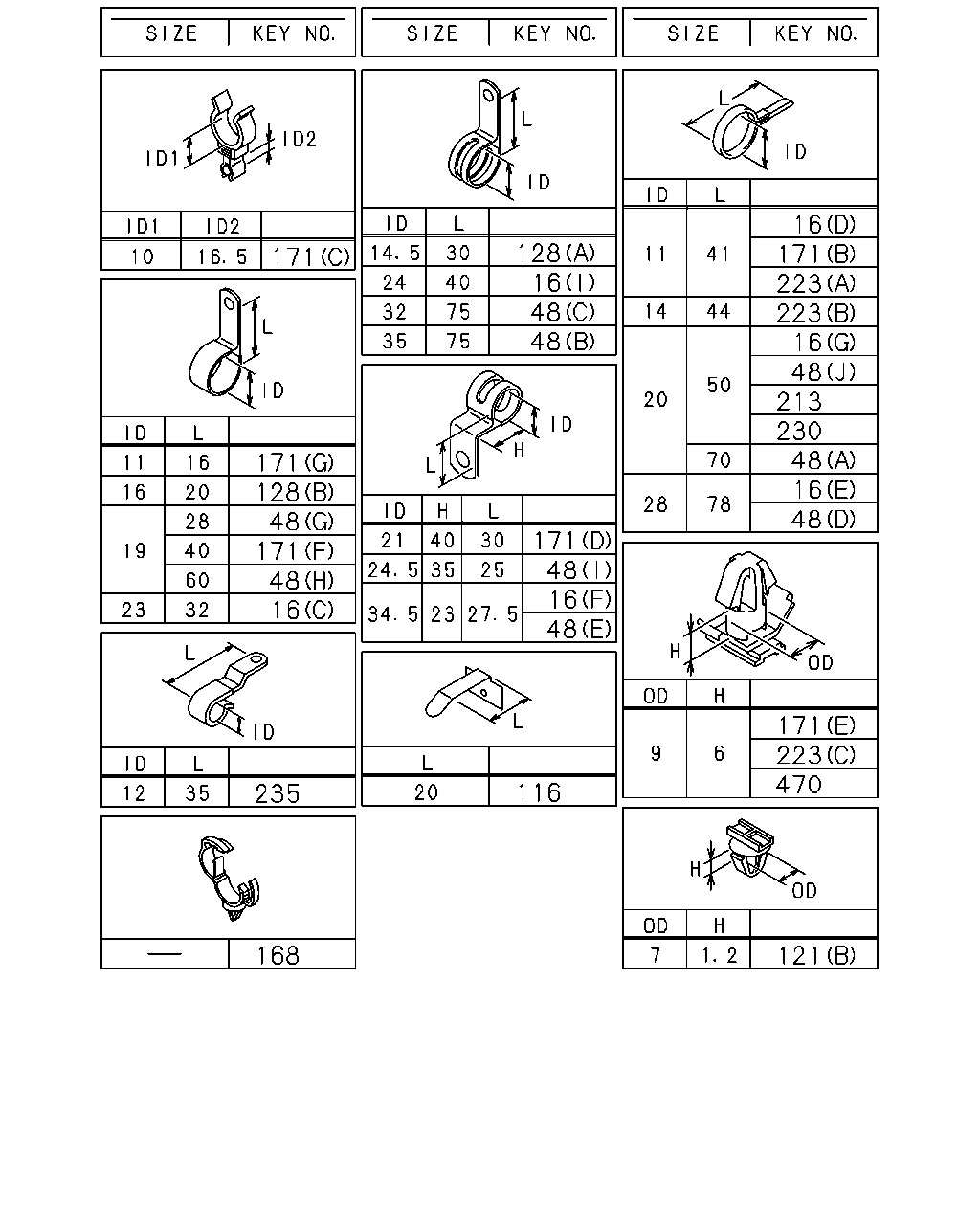

çizim 144248
16 171 223 223 16 48 213 230 48 16 48 128 16 48 48 171 171 128 48 171 48 16 171 48 16 48 171 223 470 116 235 168 121
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=23 L=32 		1-09700-346-0 01 1 0711-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0711-
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 0711-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0711-
16 CLIP; HARNESS
(I) ID=24 L=40 		1-09701-139-0 01 1 0711-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0711-
16 CLIP; HARNESS
(H) L=180 		1-09707-162-1 02 1 0711-
16 CLIP; HARNESS
(A) L=250 IDN 		5-09707-030-1 01 1 0711-
16 CLIP; HARNESS
(G) ID=20 L=50 		9-09917-430-0 03 1 0711-
48 CLIP; FRAME HARNESS
(H) ID=19 L=60 		0-95235-896-0 01 1 0711-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 14 1 0711-
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 		1-09700-858-0 03 1 0711-
48 CLIP; FRAME HARNESS
(I) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0711-
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0711-
48 CLIP; FRAME HARNESS
(K) L=350 		1-09707-183-0 01 1 0711-
48 CLIP; FRAME HARNESS
(L) L=250 IDN 		5-09707-030-1 01 1 0711-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 03 1 0711-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 23 1 0711-
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0711-
48 CLIP; FRAME HARNESS
(B) ID=35 L=75 		1-09700-608-2 01 1 0711-
48 CLIP; FRAME HARNESS
(C) ID=32 L=75 		1-09700-704-1 02 1 0711-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0711-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0711-
121 CLIP; FACIA HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0711-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0711-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0711-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0711-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0811-
171 CLIP; STARTER HARNESS
(G) ID=11 L=16 		0-95235-025-0 01 1 0711-
171 CLIP; STARTER HARNESS
(F) ID=19 L=40 		0-95235-876-0 01 1 0711-
171 CLIP; STARTER HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0711-
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 02 1 0711-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0711-
171 CLIP; STARTER HARNESS
(E) OD=9 H=6 		1-09709-178-0 02 1 0711-
171 CLIP; STARTER HARNESS
(C) ID=10 & 16.5 		8-94360-745-0 01 1 0711-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0711-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 07 1 0711-
223 CLIP; AIR TANK HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0711-
223 CLIP; AIR TANK HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0711-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0711-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0711-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0711-
