Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

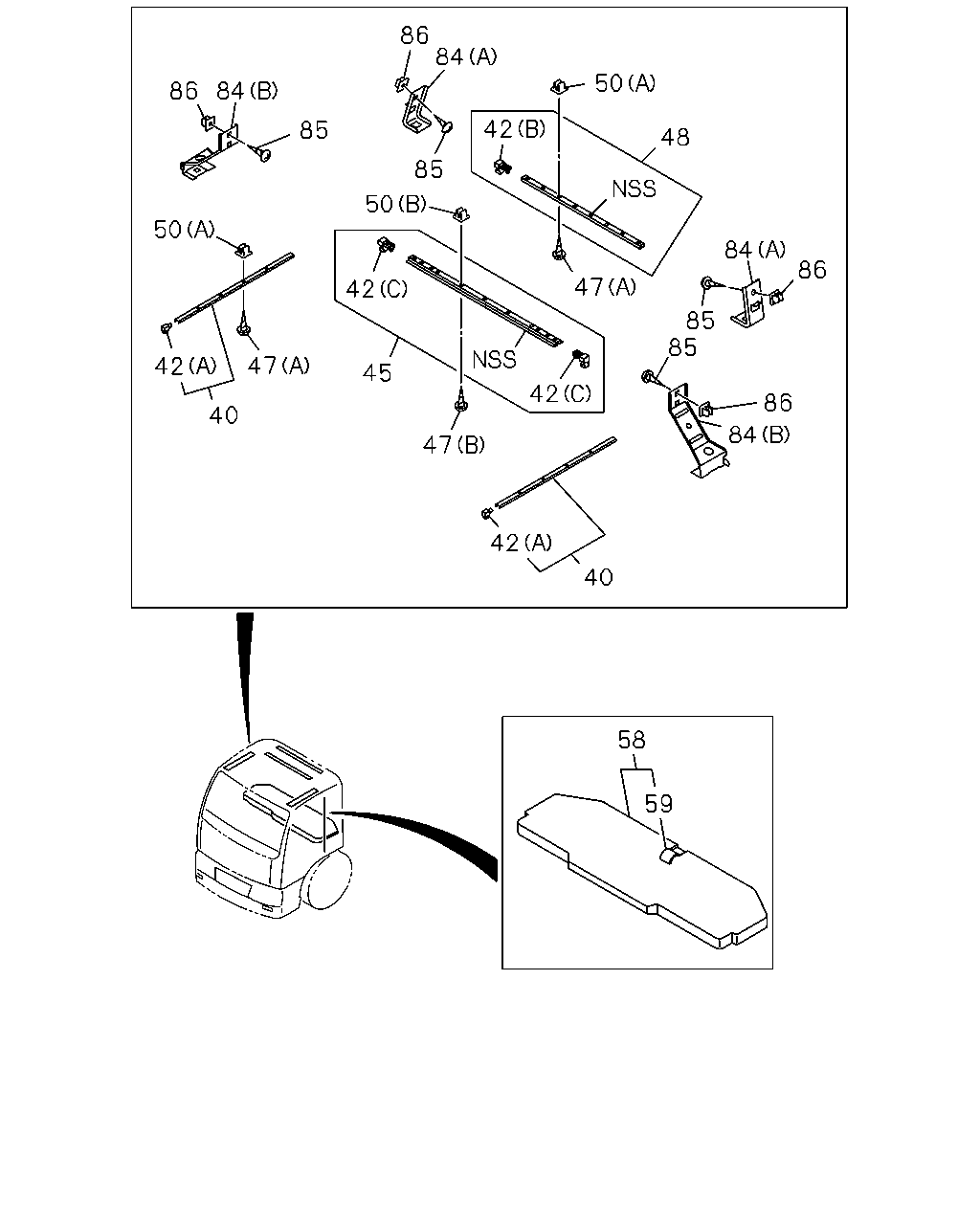

7-70 — SEPARATER AND BED
(#24154) — 16 parça
86
84
50
86
84
42
85
48
85
50
50
84
86
47
42
85
85
47
42
45
42
86
40
84
47
42
40
58
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
RAIL; CURTAIN,SIDE
1-73996-334-2
02
1
0711-
42
STOPPER; CURTAIN RAIL
(C)
1-73907-449-2
02
1
0711-
42
STOPPER; CURTAIN RAIL
(A)
1-73908-193-0
02
1
0711-
42
STOPPER; CURTAIN RAIL
(B)
1-73996-146-2
01
1
0711-
45
RAIL; CURTAIN,FRT
1-73996-303-4
01
1
0711-
47
SCREW; CURTAIN RAIL
(A) M5X20
5-09981-059-0
19
1
0711-
47
SCREW; CURTAIN RAIL
(B) M5X25
5-09981-093-0
07
1
0711-
48
RAIL; CURTAIN,BACK
8-94265-811-1
01
1
0711-
50
GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5
1-09983-159-0
15
1
0711-
50
GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 IDN
8-94279-078-0
11
1
0711-
58
BED; MAT
1-75116-519-1
01
1
0711-
59
COVER ASM; TRIM,BED MAT
1-75116-666-1
01
1
0711-
84
BRACKET; CURTAIN RAIL
(A)
1-73998-986-2
02
1
0711-
84
BRACKET; CURTAIN RAIL
(B)
1-73998-987-4
07
1
0711-
85
SCREW; BRKT
M5X20
5-09981-059-0
09
1
0711-
86
GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 IDN
8-94279-078-0
09
1
0711-
