Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

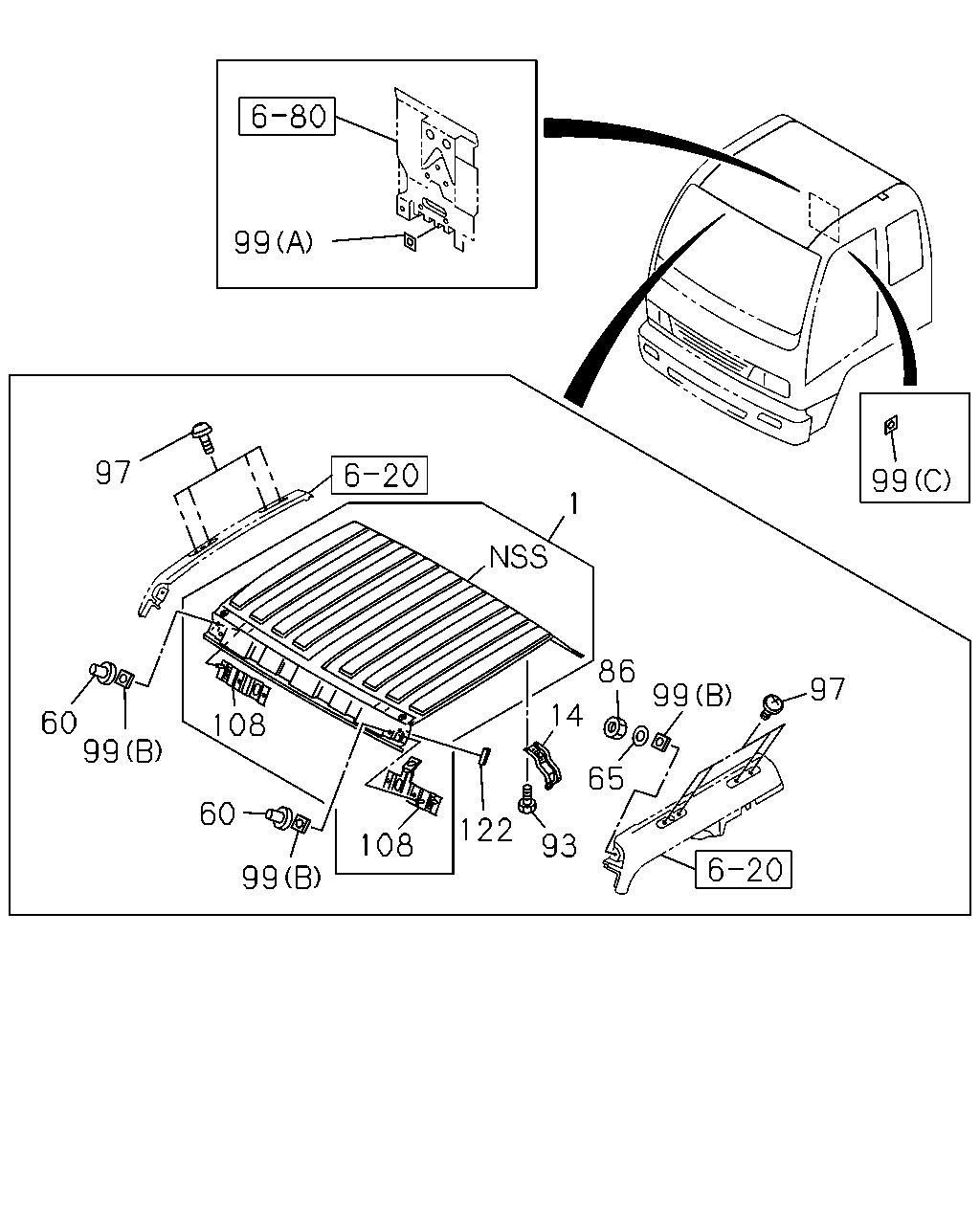

6-60 — ROOF PANEL
(#24135) — 14 parça
99
97
99
1
86
97
99
108
14
60
99
65
60
122
108
93
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
1-61181-152-0
01
1
0711-
14
SUPPORT; ROOF
1-73318-595-3
02
1
0711-
60
COVER; ROOF
1-79998-922-3
02
1
0711-
65
WASHER; PL
ID=8 T=2.3
8-98073-399-0
01
1
0711-
86
NUT; ROOF
M8 LOCK NUT
0-91370-008-0
01
1
0711-
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER
8-94279-200-0
10
1
0711-
97
BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER
1-79198-003-2
08
1
0711-
99
SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7
1-61281-380-2
25
1
0711-
99
SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7
1-61281-427-1
10
1
0711-
99
SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7
1-61281-444-1
02
1
0711-
108
PATCH; MIRROR
IDN
1-61180-956-4
01
1
0711-
108
PATCH; MIRROR
IDN
1-61180-979-4
01
1
0711-
122
SEAL; FRT UPR
1-61270-919-0
02
1
0711-0809
122
SEAL; FRT UPR
1-61270-973-0
02
1
0810-
