Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

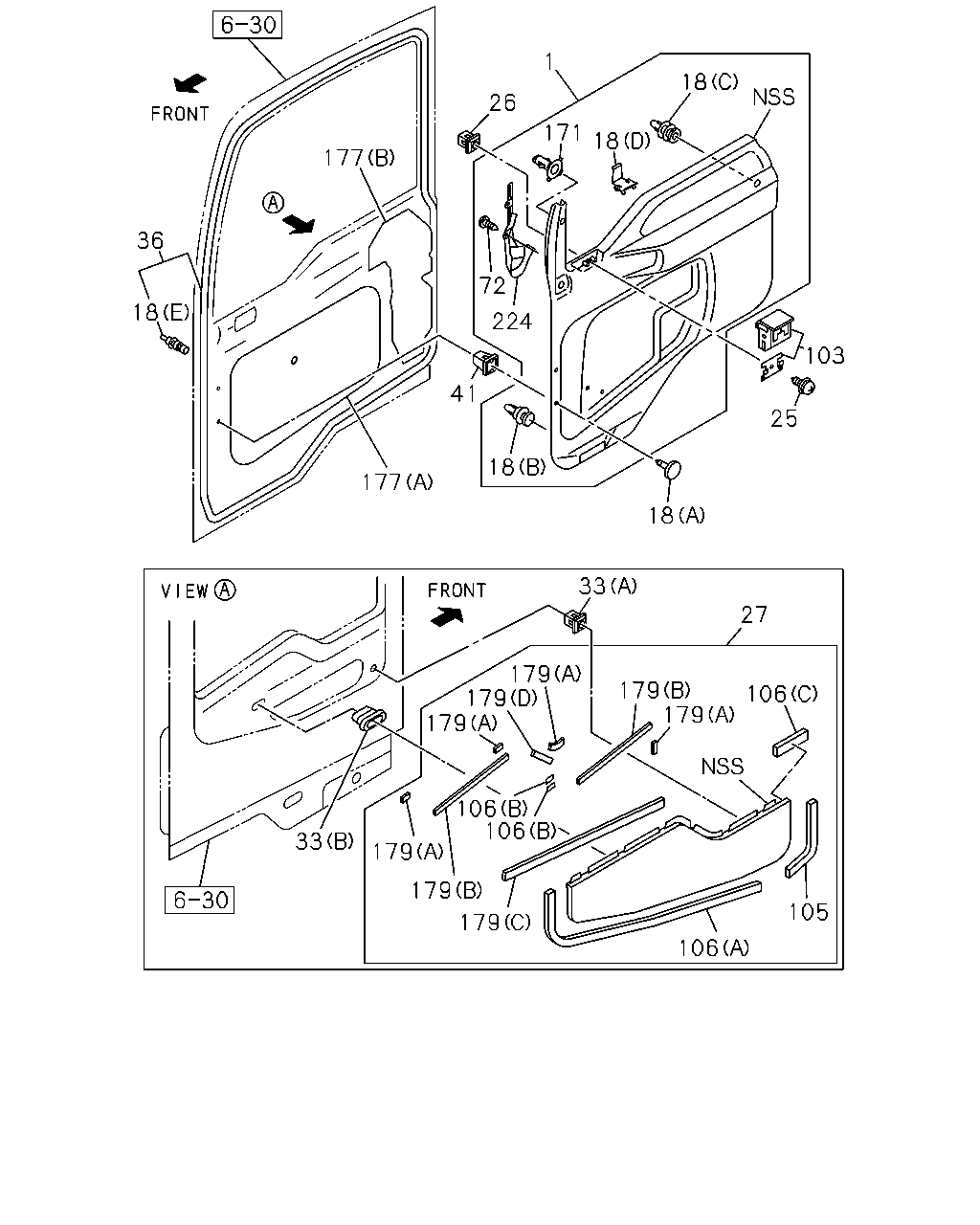

6-35 — FRONT DOOR TRIM
(#24131) — 37 parça
105
106
179
179
179
33
106
106
106
179
179
179
27
179
179
33
18
25
103
18
18
171
1
26
72
41
224
177
177
36
18
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
1-73338-531-1
01
1
0711-
1
PAD; TRIM,FRT DOOR
1-73338-535-1
01
1
0711-
18
CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY
1-09987-242-0
04
1
0711-
18
CLIP; DOOR PAD
(D)
1-09987-262-0
10
1
0711-
18
CLIP; DOOR PAD
(C) OD=7.9 BLACK
8-94279-974-1
02
1
0711-
18
CLIP; DOOR PAD
(B) OD=8.5 GRAY
8-97893-482-0
10
1
0711-
18
CLIP; DOOR PAD
(E) NATURAL
1-09987-257-0
23
1
0711-
18
CLIP; DOOR PAD
(E) NATURAL
1-09987-257-0
23
1
0711-
25
SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING IDN
8-94279-123-0
02
1
0711-
26
GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL IDN
8-94279-043-0
02
1
0711-
27
PANEL; ORNAMENT,DOOR
1-76218-099-7
01
1
0711-
27
PANEL; ORNAMENT,DOOR
1-76218-095-7
01
1
0711-1210
27
PANEL; ORNAMENT,DOOR
8-98229-328-0
01
1
1211-
33
GROMMET; DOOR ORNAMENT
(A)
1-09983-149-1
02
1
0711-0802
33
GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
02
1
0803-
33
GROMMET; DOOR ORNAMENT
(B)
1-74998-111-0
02
1
0711-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-177-9
01
1
0711-1010
36
SEAL; DOOR,MAIN,CAB SIDE
8-98177-764-0
01
1
1011-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-176-9
01
1
0711-1010
36
SEAL; DOOR,MAIN,CAB SIDE
8-98177-763-0
01
1
1011-
41
GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
04
1
0711-
72
SCREW; DOOR TRIM
1-73338-527-0
08
1
0711-
103
TRAY ASM; ASH,DOOR
1-76458-084-1
01
1
0711-
103
TRAY ASM; ASH,DOOR
1-76458-083-1
01
1
0711-
105
SEAL; DOOR ORNAMENT,FRT
1-76218-082-2
02
1
0711-
106
SEAL; DOOR ORNAMENT
(C)
8-98226-642-0
01
1
1211-
106
SEAL; DOOR ORNAMENT
(A)
1-76218-083-2
02
1
0711-
106
SEAL; DOOR ORNAMENT
(B)
1-76218-104-0
02
1
0711-
171
RETAINER; DOOR PAD
1-09987-264-0
02
1
0711-
177
SEAL; WATER,DOOR
(A)
1-76778-047-3
02
1
0711-
177
SEAL; WATER,DOOR
(B)
1-76778-055-2
02
1
0711-
179
TAPE; ORNAMENT
(A) L=45
1-76218-063-2
08
1
0711-
179
TAPE; ORNAMENT
(C) L=770
1-76218-091-2
02
1
0711-
179
TAPE; ORNAMENT
(D) L=160
1-76218-094-1
02
1
0711-
179
TAPE; ORNAMENT
(B) L=235
1-76218-127-1
04
1
0711-
224
DEFLECTOR; DUCT
1-73338-529-0
01
1
0711-
224
DEFLECTOR; DUCT
1-73338-528-0
01
1
0711-
