Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

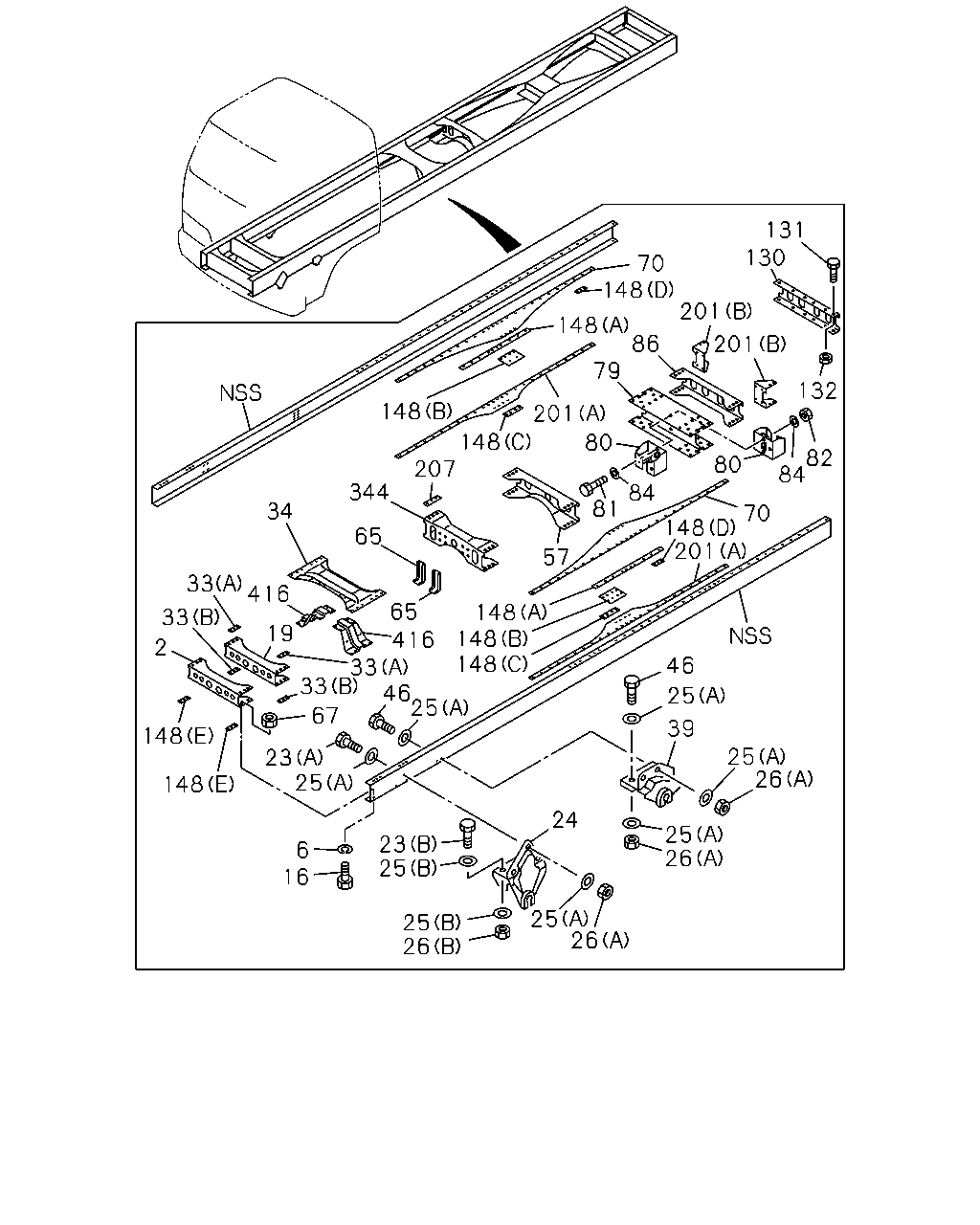

5-01 — FRAME AND OTHER PARTS
(#24118) — 45 parça
131
130
70
148
201
148
86
201
148
148
207
132
80
81
70
148
201
57
148
148
148
201
80
82
84
344
84
34
65
416
33
65
416
33
33
46
25
33
19
2
46
25
67
39
148
25
26
23
25
148
24
25
26
23
25
6
16
25
26
25
26
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53181-939-2
01
1
0711-
6
WASHER; LK,1ST C/MBR
ID=16.2
0-91510-616-0
02
1
0711-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20851-640-0
02
1
0711-
19
MEMBER; CROSS,2ND
IDN
8-97606-306-0
01
1
0711-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0711-
23
BOLT; BRKT,SPR
(A) M14X45
9-92061-445-0
06
1
0711-
24
BRACKET; FRT SPR,FRT
1-53351-148-3
01
1
0711-
24
BRACKET; FRT SPR,FRT
1-53351-149-3
01
1
0711-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0711-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
28
1
0711-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
0711-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0711-
33
SPACER; 2ND C/MBR,UPR
(A)
1-53168-276-0
02
1
0711-
33
SPACER; 2ND C/MBR,UPR
(B)
1-53168-287-0
02
1
0711-
34
MEMBER; CROSS,3RD
IDN
1-53174-231-1
01
1
0711-
39
BRACKET; FRT SPR,RR
1-53352-124-2
01
1
0711-
39
BRACKET; FRT SPR,RR
1-53352-125-2
01
1
0711-
46
BOLT; BRKT FIX
M14X45
9-92061-445-0
08
1
0711-
57
MEMBER; CROSS,RR SUSP FRT
IDN
1-53181-190-4
01
1
0711-
65
BRACKET; CENTER BRG
L=335
1-53271-351-0
02
1
0711-
67
NUT; C/MBR
M16
0-91110-516-0
02
1
0711-
70
GUSSET; TRUNNION,UPR
1-53161-317-2
02
1
0711-
79
MEMBER; CROSS,TRUNNION ASM
1-53181-403-1
01
1
0711-
80
BRACKET; C/MBR
1-53363-068-0
02
1
0711-
81
BOLT; BRKT
M14X50
0-10956-450-0
02
1
0711-
82
NUT; BRKT
M14
0-91110-514-0
02
1
0711-
84
WASHER; PL,BRKT
ID=15
9-09651-069-0
04
1
0711-1201
84
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1202-
86
MEMBER; CROSS,RR SUSP RR
IDN
1-53181-191-3
01
1
0711-
130
MEMBER; CROSS,END
IDN
1-53181-151-2
01
1
0711-
131
BOLT; END C/MBR
M12X30 FLANGE
0-28651-230-0
04
1
0711-
132
NUT; END C/MBR
M12 FLANGE IDN
0-91180-112-0
04
1
0711-
148
SPACER; C/MBR
(D) IDN
1-53168-337-0
04
1
0711-
148
SPACER; C/MBR
(C) IDN
1-53168-338-0
04
1
0711-
148
SPACER; C/MBR
(A)
1-53168-339-0
02
1
0711-
148
SPACER; C/MBR
(B) UPPER
1-53168-340-0
02
1
0711-
148
SPACER; C/MBR
(E)
1-53168-341-0
02
1
0711-
148
SPACER; C/MBR
(B) LOWER
1-53168-352-0
02
1
0711-
201
GUSSET; C/MBR
(A)
1-53161-638-0
02
1
0711-
201
GUSSET; C/MBR
(B) IDN
1-53167-303-0
02
1
0711-
207
SPACER; 4TH C/MBR
1-53168-162-2
02
1
0711-
344
MEMBER; CROSS,4TH
1-53181-580-2
01
1
0711-
416
GUSSET; 3RD C/MBR
IDN
1-53164-213-0
01
1
0711-
416
GUSSET; 3RD C/MBR
IDN
1-53164-214-0
01
1
0711-
