Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

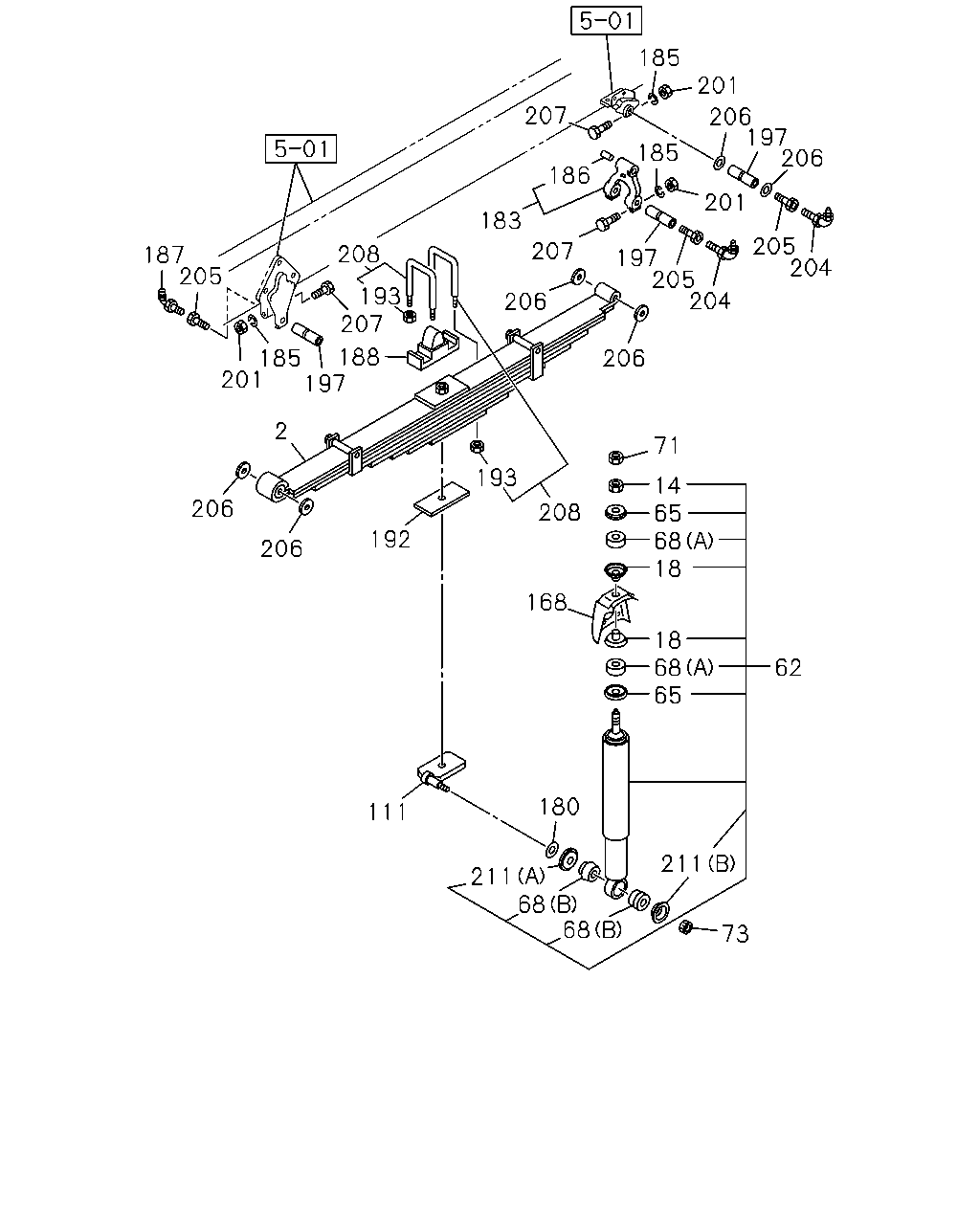

4-50 — FRONT SUSPENSION
(#24113) — 35 parça
185
201
207
206
197
206
185
186
201
183
205
204
207
208
187
205
197
205
204
193
207
206
18
188
201
197
206
2
71
193
14
65
68
18
206
208
192
206
168
18
68
65
62
180
111
211
211
68
68
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
1-51130-349-0
02
1
0711-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
0711-
18
WASHER; CENTERING,S/ABS
ID=20.8 IDN
9-51631-041-0
04
1
0711-
62
ABSORBER ASM; SHOCK,FRT
IDN
1-51630-579-0
02
1
0711-
65
WASHER; S/ABS
ID=16.5 IDN
9-51631-040-0
04
1
0711-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
0711-
68
BUSHING; S/ABS
(A) IDN
9-51631-039-0
04
1
0711-
71
NUT; LK,S/ABS,UPR
M14
0-91111-514-0
02
1
0711-
73
NUT; BRKT,SHOCK
M20
0-91110-520-0
02
1
0711-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-722-1
01
1
0711-1004
111
SUPPORTER; S/ABS,FRT SUSP
8-98153-483-0
01
1
1005-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-723-1
01
1
0711-1004
111
SUPPORTER; S/ABS,FRT SUSP
8-98153-484-0
01
1
1005-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
0711-
180
WASHER; PL,PIN
ID=21
0-91610-520-0
02
1
0711-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
0711-
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0711-
186
BUSHING; SHACKLE
OD=38 IDN
1-51351-009-0
02
1
0711-0902
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
0903-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
0711-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-088-1
02
1
0711-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
01
1
0711-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0711-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
197
PIN; FRT SPR,FRT
1-51161-031-0
06
1
0711-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0711-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
02
1
0711-
204
NIPPLE; GREASE,RR
PT1/8 ELBOW
0-90301-610-0
02
1
0711-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0711-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0711-
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0711-
208
U-BOLT SET; FRT SPRING
L=210
1-87870-380-1
04
1
0711-1206
208
U-BOLT SET; FRT SPRING
L=210
1-87870-498-0
04
1
1207-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
0711-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
0711-
