4-42 — POWER STEERING OIL PUMP (#24112) — 23 parça

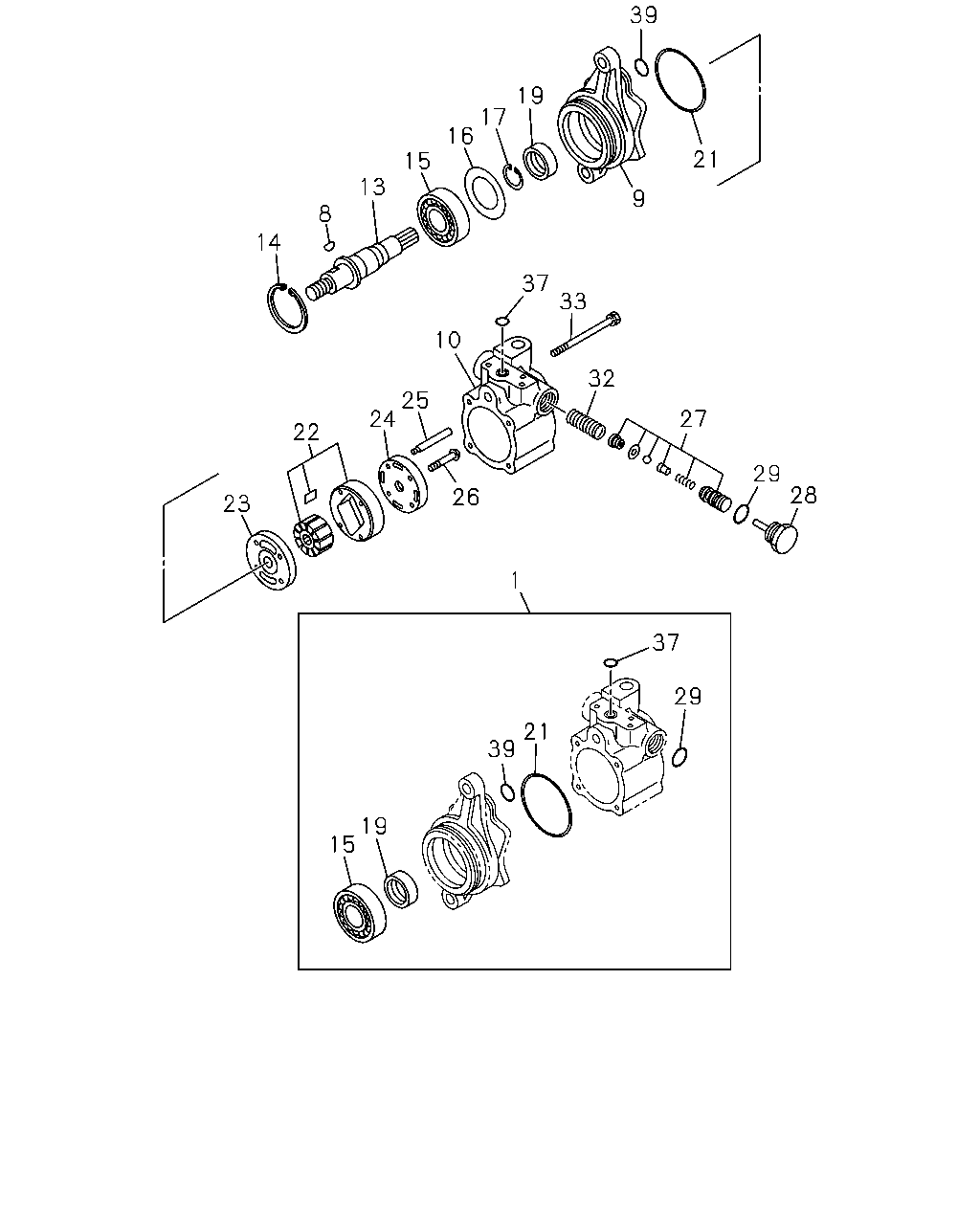

çizim 144178
39 19 17 16 21 15 13 9 8 14 37 33 10 32 25 24 27 22 29 28 26 23 1 37 29 21 39 19 15
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-504-2 		1-85574-008-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-504-2 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-504-2 		1-19511-147-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-504-2 		1-19511-063-1 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-504-2 		1-19521-018-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-504-2 		1-19519-135-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-504-2 		1-19515-004-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-504-2 		9-19519-078-0 01 1 -
17 RING; RET
ASM PART: A = 1-19500-504-2 		1-19519-177-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-504-2 		1-19519-252-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-504-2 		1-19519-314-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-504-2 		1-19519-325-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 1-19500-504-2 		1-19519-133-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-504-2 		1-19519-316-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-504-2 		9-88510-408-0 02 1 -
26 SCREW; PLATE
ASM PART: A = 1-19500-504-2 		1-19519-106-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 1-19500-504-2 		1-19519-183-1 01 1 -
28 PLUG; DRAIN,OIL PUMP
ASM PART: A = 1-19500-504-2 		1-19519-230-0 01 1 -
29 GASKET; PLUG TO VLV
ASM PART: A = 1-19500-504-2 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-504-2 		9-19529-013-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-504-2 		1-19519-244-0 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-504-2 		1-19519-292-0 01 1 -
39 GASKET; OIL PUMP
ASM PART: A = 1-19500-504-2 		1-19519-313-0 01 1 -
