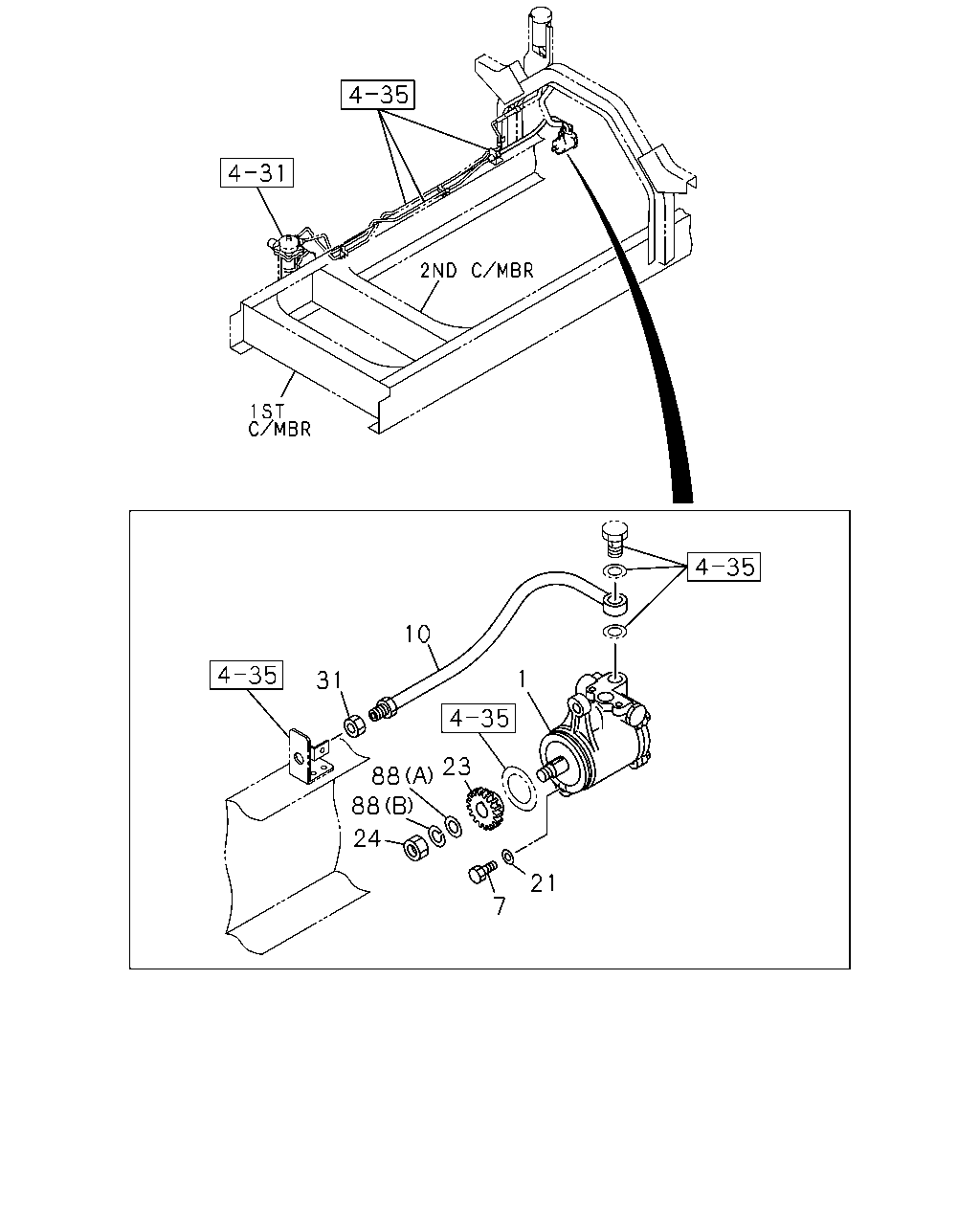

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#24110) — 9 parça

10 1 31 23 88 88 24 21 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-504-2	01	1	0711-
7	BOLT; OIL PUMP,P/S M12X75	9-01666-275-0	02	1	0711-
10	HOSE; FLEX,P/S OIL PUMP,INL	0-89539-520-0	01	1	0711-
21	WASHER; PL,P/S OIL PUMP ID=12.5 OD=22 IDN	0-91610-512-0	02	1	0711-
23	GEAR; OIL PUMP Z=17	1-19581-030-0	01	1	0711-
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0711-
31	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0711-
88	WASHER; GEAR,P/S PUMP (A)	1-19519-293-0	01	1	0711-
88	WASHER; GEAR,P/S PUMP (B)	9-09150-016-0	01	1	0711-
