Isuzu WW
▶
TRUCKS
▶
EXR
▶
10658 - EXR RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-51A - OIL PUMP AND OIL STRAINER
▶

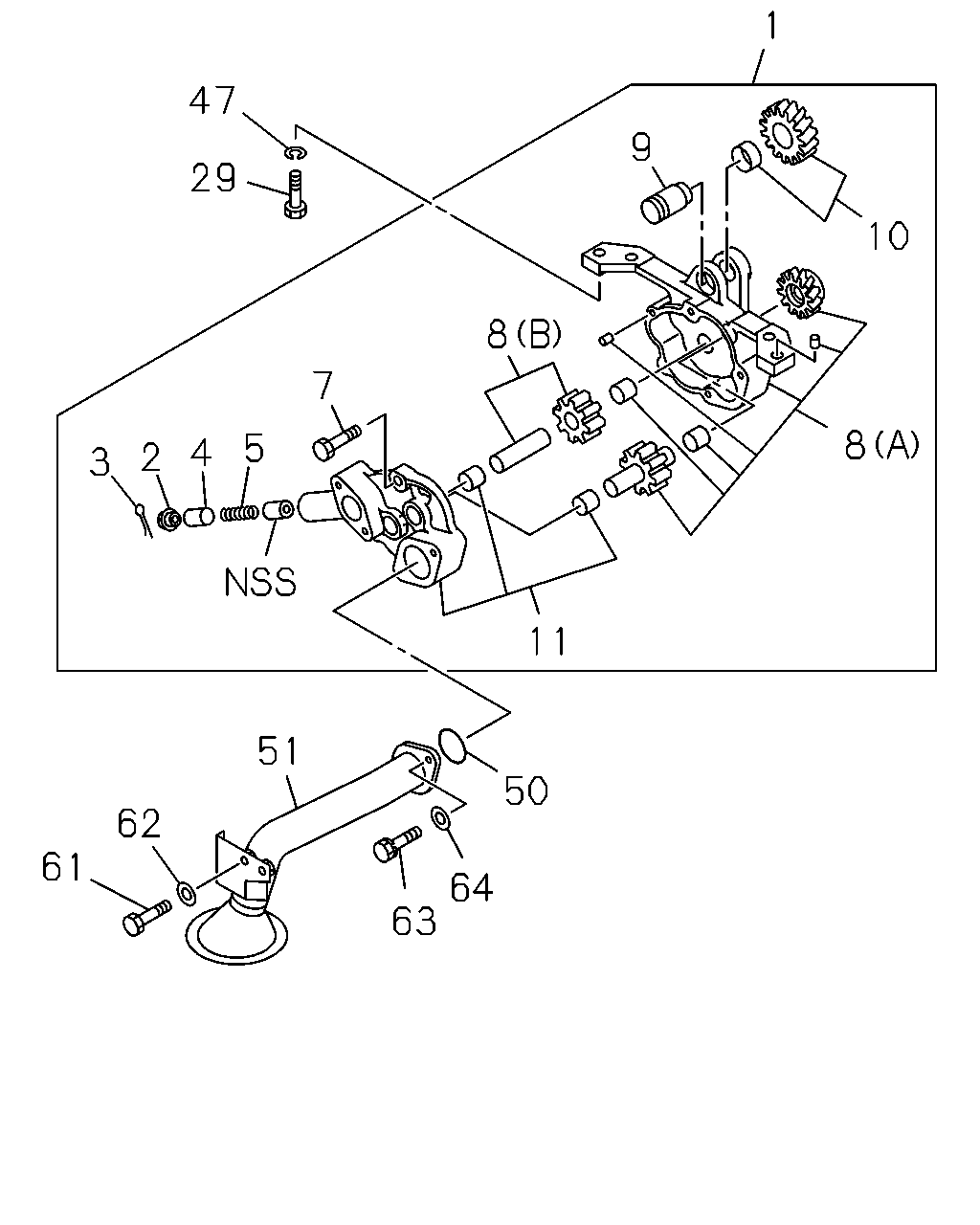

0-51A — OIL PUMP AND OIL STRAINER
(#2411) — 28 parça
Tümü
A - 6RA1TC ENG
B - 6RB1TC-N ENG
C - 6RB1 STD ENG
1
47
9
29
10
8
7
8
5
4
2
3
11
51
50
62
61
64
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PUMP ASM; OIL
1-13100-201-0
01
1
9002-
●
●
1
PUMP ASM; OIL
1-13100-200-0
01
1
9002-
●
2
SEAT; SPR
1-13165-005-0
01
1
9002-
●
●
●
3
PIN; SPLIT
L=40
9-08104-040-0
01
1
9002-
●
●
●
4
STOPPER; OIL RELIEF VLV
1-13169-003-0
01
1
9002-
●
●
●
5
SPRING; COIL
1-09580-202-0
01
1
9002-
●
●
●
7
BOLT; COVER,OIL PUMP
M10X30
9-01931-030-0
02
1
9002-9002
●
●
7
BOLT; COVER,OIL PUMP
M10X30 W/LK WASHER
0-50051-030-0
02
1
9003-
●
●
●
8
GEAR; DRIVEN,OIL PUMP
(A)
1-13120-030-2
01
1
9002-
●
●
8
GEAR; DRIVEN,OIL PUMP
(B)
1-13120-034-1
01
1
9002-
●
●
8
GEAR; DRIVEN,OIL PUMP
(A)
1-13120-040-0
01
1
9002-
●
8
GEAR; DRIVEN,OIL PUMP
(B)
1-13120-048-0
01
1
9002-
●
9
SPINDLE; IDLE GEAR OIL PUMP
1-13129-007-0
01
1
9002-
●
●
●
10
GEAR; W/BUSHING OIL PUMP
1-13120-035-1
01
1
9002-
●
●
●
11
COVER ASM; OIL PUMP
1-13110-022-1
01
1
9002-
●
●
11
COVER ASM; OIL PUMP
1-13110-021-1
01
1
9002-
●
29
BOLT; OIL PUMP
M10X25
9-02361-025-0
02
1
9002-
●
●
●
29
BOLT; OIL PUMP
M10X35
9-02361-035-0
02
1
9002-
●
●
●
47
WASHER; LK,OIL PUMP
ID=10.2
9-09150-610-0
04
1
9002-
●
●
●
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-397-0
01
1
9002-9306
●
●
●
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-397-0
01
1
9307-
●
●
51
STRAINER & PIPE ASM; OIL
1-13311-870-0
01
1
9002-
●
●
●
61
BOLT; OIL STRAINER
M8X16 W/LK WASHER
9-01910-816-0
02
1
9002-9005
●
●
61
BOLT; OIL STRAINER
M8X16 W/LK WASHER
0-50040-816-0
02
1
9006-
●
●
●
62
WASHER; PL,STAY
ID=8.5 OD=20
5-09503-111-0
02
1
9002-
●
●
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
M10X55
9-01656-055-0
02
1
9002-9004
●
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
M10X55
0-16806-055-0
02
1
9005-
●
●
●
64
WASHER; LK,PIPE PUMP STRAINER
ID=10.2
9-09150-510-0
02
1
9002-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
