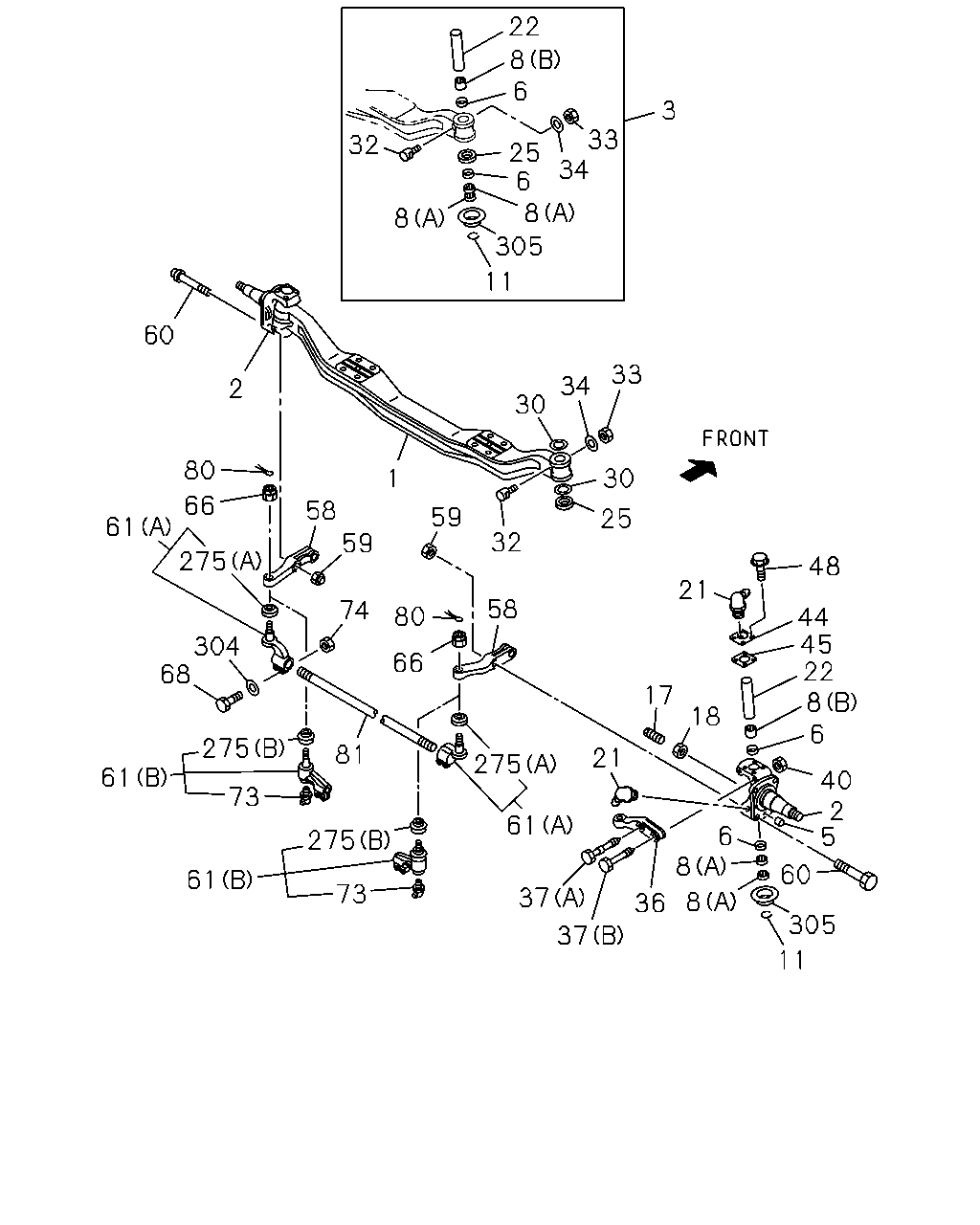

4-10 — FRONT AXLE (#24102) — 63 parça

22 8 6 3 32 33 34 25 6 8 8 305 11 60 33 34 2 30 80 30 1 66 58 59 25 61 32 59 275 48 21 58 74 80 44 45 22 8 6 304 68 66 17 275 18 81 21 275 61 40 2 5 73 61 6 275 8 60 61 73 37 8 36 305 37 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-6	01	1	0711-
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0711-
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0711-
3	KING PIN SET	1-87830-738-5	02	1	0711-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0711-
6	SEAL; KING PIN	9-09926-024-0	04	1	0711-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0711-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0711-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0711-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0711-
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0711-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0711-
22	PIN; KING,FRT AXLE	9-43161-043-3	02	1	0711-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0711-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0711-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0711-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0711-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0711-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0711-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0711-
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0711-
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0711-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0711-
44	COVER; KING PIN	1-43175-014-1	02	1	0711-
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	0711-
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	0711-
58	ARM; TIE ROD	1-43134-042-3	01	1	0711-
58	ARM; TIE ROD	1-43135-042-3	01	1	0711-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0711-
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0711-
61	ROD END; TIE ROD (A)	1-43150-801-0	01	1	0711-1009
61	ROD END; TIE ROD (B)	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD (B)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD (A)	1-43150-802-0	01	1	0711-1009
61	ROD END; TIE ROD (B)	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD (B)	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0711-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0711-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0711-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0711-
81	ROD; TIE	1-43151-119-0	01	1	0711-1009
81	ROD; TIE	8-98172-133-0	01	1	1010-1109
81	ROD; TIE	8-98193-965-0	01	1	1110-
275	BOOT; ROD END,TIE (A)	1-43159-107-0	02	1	0711-1009
275	BOOT; ROD END,TIE (B)	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE (B)	8-98229-116-0	02	1	1307-
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0711-
305	COVER; KNUCKLE	8-98052-291-0	02	1	0711-
