◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11137 - FRR-LHD(EU)SPACE EU4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#24095) — 44 parça

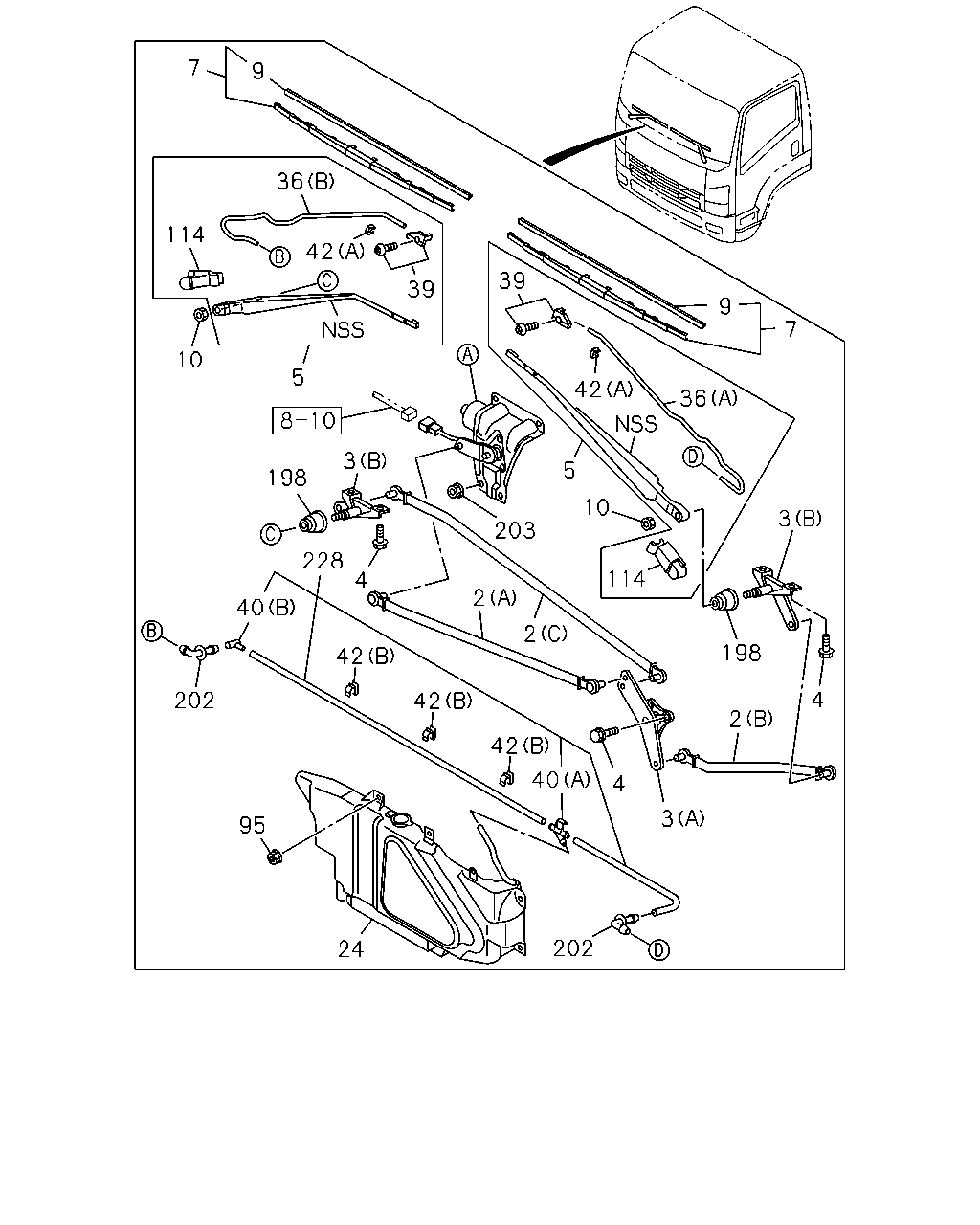

çizim 144458
7 9 36 42 114 39 39 9 7 36 42 5 10 114 198 4 3 10 5 3 198 228 4 40 42 2 203 2 2 40 4 3 42 42 202 95 24 202
BalonParca AdiParca NoAdetTipApplied Date
2 LINK; FRT WIPER
(A) 		8-98078-811-0 01 1 0803-
2 LINK; FRT WIPER
(C) 		8-98078-967-0 01 1 0803-
2 LINK; FRT WIPER
(B) 		8-98078-968-0 01 1 0803-
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-816-1 02 1 0803-
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-970-0 01 1 0803-
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 07 1 0803-
5 ARM; WIPER 8-98078-972-1 01 1 0803-
5 ARM; WIPER 8-98078-973-1 01 1 0803-
7 BLADE; WIPER 1-83315-045-2 01 1 0803-
7 BLADE; WIPER 1-83315-046-2 01 1 0803-
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-035-0 02 1 0803-
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 0803-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 0803-
24 TANK ASM; WASHER 8-98039-663-2 01 1 0803-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0803-
36 HOSE; WASHER
(C) 		8-98070-174-0 01 1 0803-
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 0803-
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 01 1 0803-
39 NOZZLE; WINDSHIELD WASHER 1-83315-086-0 01 1 0803-
40 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 0803-
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 01 1 0803-
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 0803-
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 0803-
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 0803-
114 COVER; FRT WIPER ARM 1-83318-126-0 01 1 0803-
114 COVER; FRT WIPER ARM 1-83318-127-0 01 1 0803-
198 COVER; PIVOT,WIPER 8-98038-892-1 02 1 0803-
202 GROMMET; WIPER 1-86815-003-2 02 1 0803-
203 NUT; WIPER MOTOR
M8 FLANGE 		0-91180-208-0 04 1 0803-
228 HOSE ASM; WASHER 8-98039-705-0 01 1 0803-
çizim 144464
24 34 30 36 46 72 47 74 51 76
BalonParca AdiParca NoAdetTipApplied Date
24 TANK ASM; WASHER 8-98039-663-2 01 1 0803-
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 0803-
34 CAP; WASHER TANK 8-97855-140-0 01 1 0803-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0803-
36 HOSE; WASHER
(C) 		8-98070-174-0 01 1 0803-
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 0803-
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-965-1 01 1 0803-
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 0803-
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 0803-
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 0803-
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 0803-
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 0803-

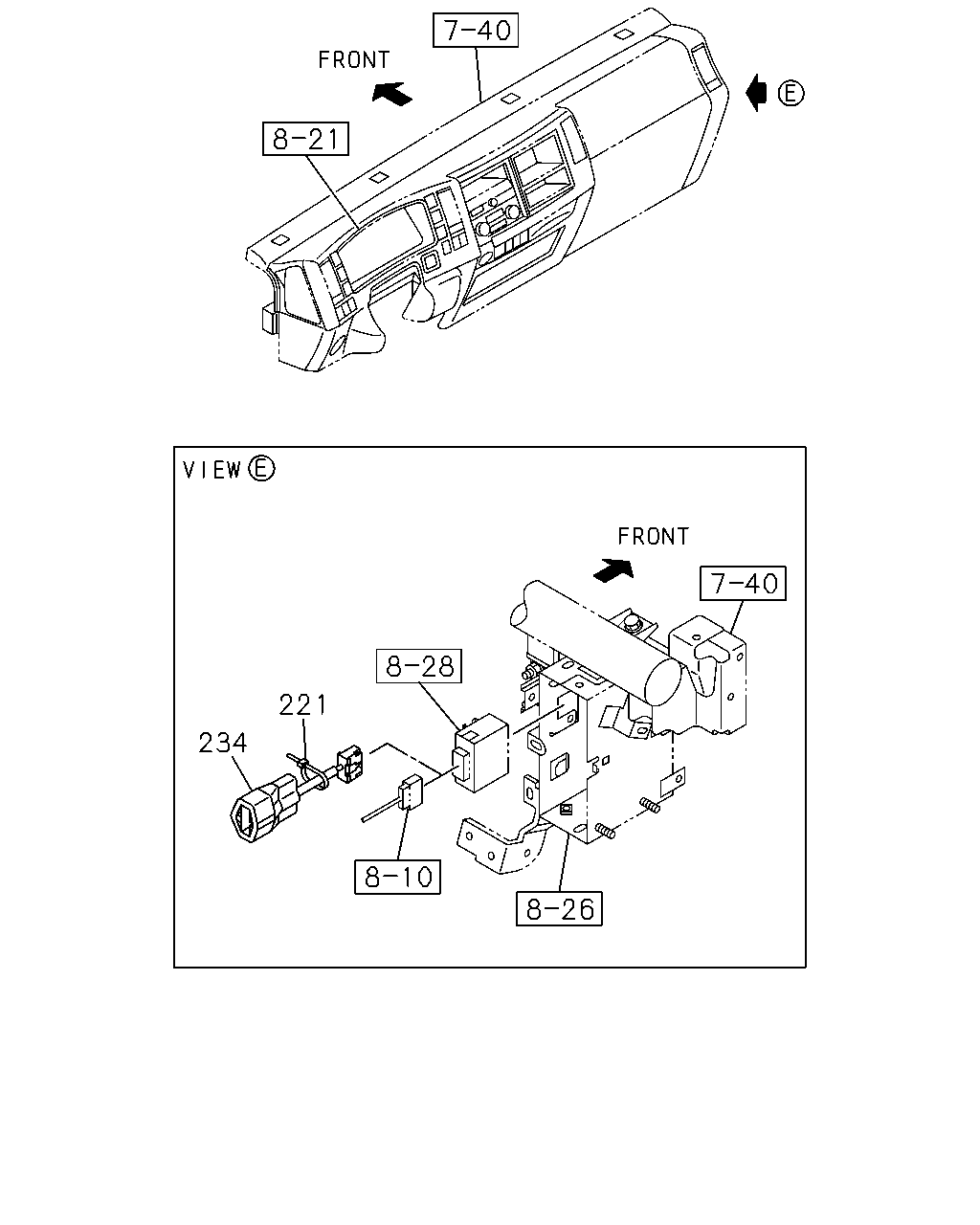

çizim 344683
221 234
BalonParca AdiParca NoAdetTipApplied Date
221 CLIP
L=140 		5-09707-031-1 01 1 1302-1308
234 HARNESS; EXT,WIPER 8-98236-609-0 01 1 1302-1308
