Isuzu WW
▶
TRUCKS
▶
FRR
▶
11137 - FRR-LHD(EU)SPACE EU4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-60 - HEATER UNIT; FRONT
▶
8-60 — HEATER UNIT; FRONT
(#24090) — 85 parça
◀

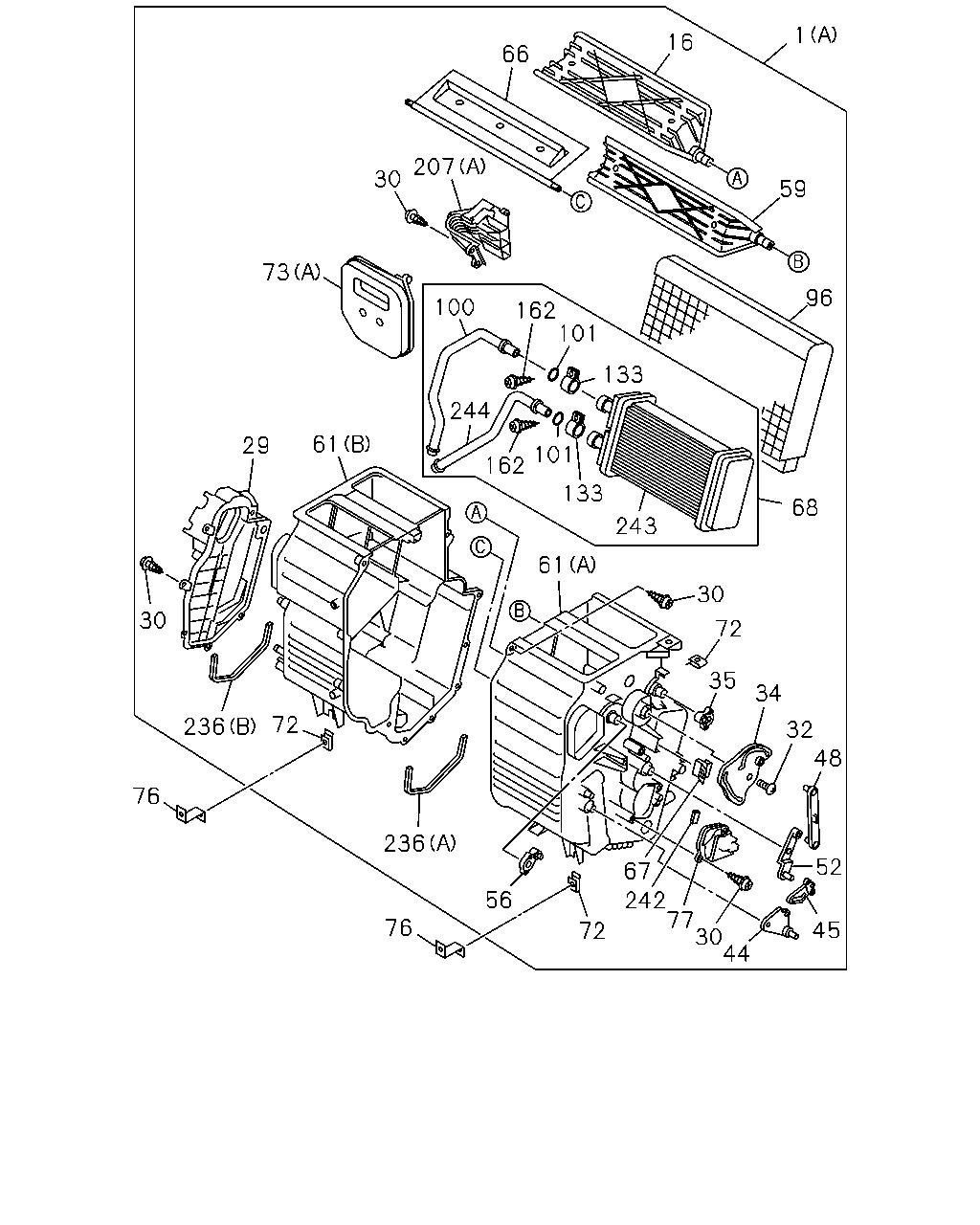

[860A] HEATER & DEFROSTER (37 parça)

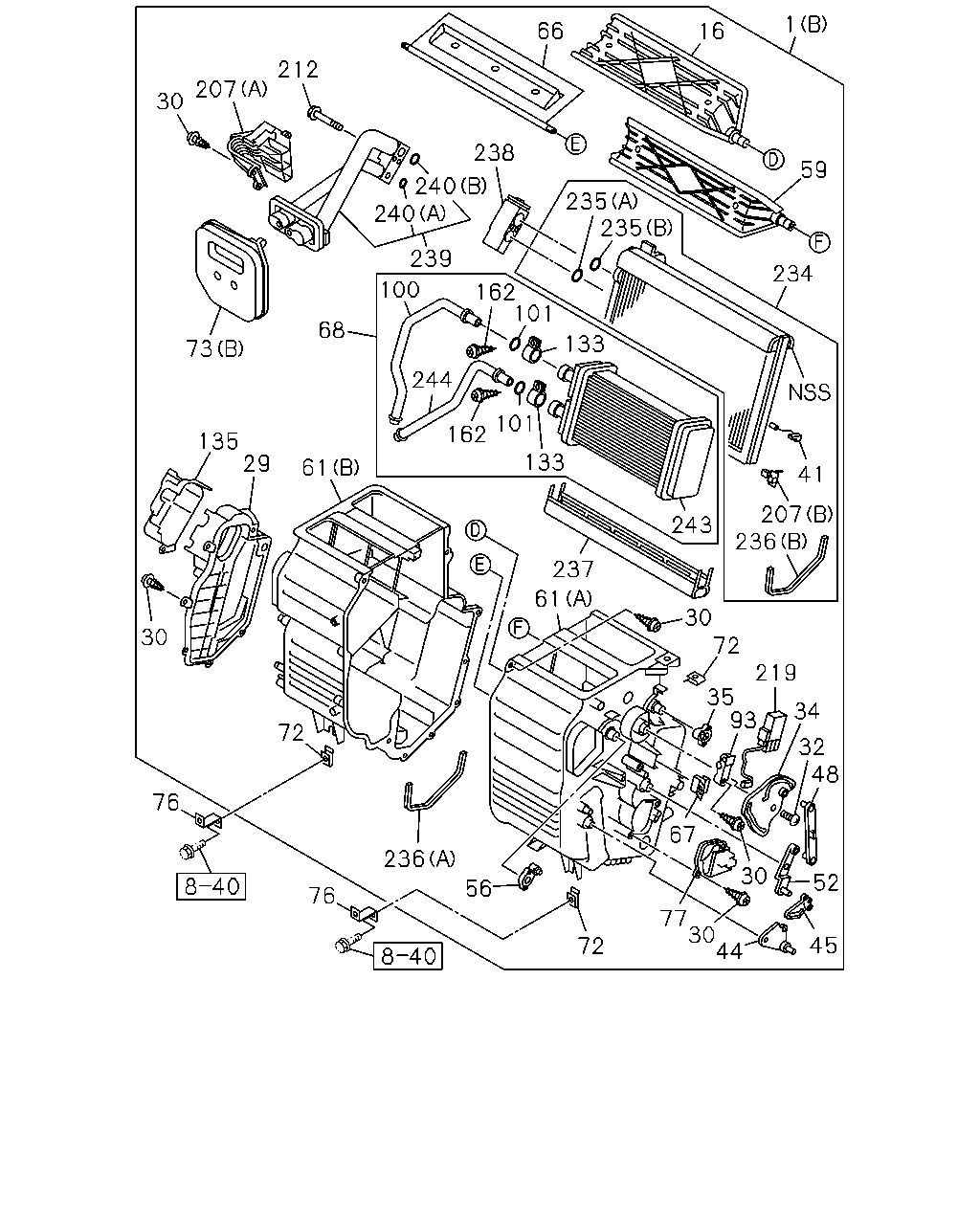

[860A] AIR CONDITIONER MANUAL CONTROL (48 parça)
▶
1
16
66
207
30
59
73
96
100
162
101
133
244
61
29
101
162
133
68
243
61
30
30
72
35
34
72
236
32
48
76
236
52
67
56
242
77
30
44
76
45
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
HEATER & DEFROSTER(C41) (A)
8-98031-740-3
01
1
0803-
1
HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98034-145-3
01
1
0803-
16
SHUTTER; HTR UNIT,CENTER UPR
8-98047-387-0
01
1
0803-
29
COVER; HTR UNIT
8-98047-480-0
01
1
0803-
30
SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING
8-97957-708-0
28
1
0803-
30
SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING
8-97957-708-0
27
1
0803-
32
SCREW; HTR UNIT
M4X16
8-98047-416-0
03
1
0803-
34
LEVER; SHUTTER,HTR UNIT
8-98047-497-0
01
1
0803-
35
LEVER; SHUTTER,HTR UNIT
8-98047-500-0
01
1
0803-
44
LEVER; SHUTTER,HTR UNIT
8-98047-502-0
01
1
0803-
45
LEVER; SHUTTER,HTR UNIT
8-98047-503-0
01
1
0803-
48
LEVER; HTR UNIT
8-98047-391-0
01
1
0803-
52
LEVER; SHUTTER,HTR UNIT
8-98047-498-0
01
1
0803-
56
LEVER; SHUTTER,HTR UNIT
8-98047-501-0
01
1
0803-
59
SHUTTER; HTR UNIT,SIDE
8-98047-386-0
01
1
0803-
61
CASE; HTR UNIT
(A)
8-98047-478-0
01
1
0803-
61
CASE; HTR UNIT
(B)
8-98047-479-0
01
1
0803-
66
SHUTTER; HTR UNIT,CENTER LWR
8-98047-385-0
01
1
0803-
67
CLIP; HTR UNIT
8-98047-417-0
02
1
0803-
68
CORE; HTR UNIT
8-98074-122-0
01
1
0803-
72
NUT; CASE,HTR UNIT
M6
8-98047-428-0
03
1
0803-
73
PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A)
8-98048-817-0
01
1
0803-
73
PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98047-491-0
01
1
0803-
76
BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98009-742-1
02
1
0803-
77
COVER; HTR CASE
8-98047-482-0
01
1
0803-
96
PLATE; HTR UNIT
HEATER & DEFROSTER(C41)
8-98048-815-0
01
1
0803-
100
PIPE; CORE,HTR UNIT
8-98072-532-0
01
1
0803-
101
GASKET; CORE,HTR UNIT
8-98072-531-0
02
1
0803-
133
CLIP; PIPE
8-98072-530-0
02
1
0803-
162
SCREW; CLIP FIX
8-98072-529-0
02
1
0803-
207
CLAMP; HTR UNIT
(A)
8-98047-493-0
01
1
0803-
207
CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98047-413-0
01
1
0803-
236
GASKET; HEATER
(A)
8-98047-420-0
01
1
0803-
236
GASKET; HEATER
(B)
8-98047-421-0
01
1
0803-
242
GASKET; CASE
HEATER & DEFROSTER(C41)
8-98048-816-0
01
1
0803-
243
CORE
8-98048-508-0
01
1
0803-
244
PIPE; INLET
8-98048-511-0
01
1
0803-
1
66
16
212
207
30
238
59
240
240
235
235
239
234
100
162
101
68
133
73
244
101
162
135
29
133
61
41
207
236
243
237
61
30
72
30
219
35
93
34
72
32
48
76
67
236
30
52
56
76
77
30
44
45
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
HEATER & DEFROSTER(C41) (A)
8-98031-740-3
01
1
0803-
1
HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98034-145-3
01
1
0803-
16
SHUTTER; HTR UNIT,CENTER UPR
8-98047-387-0
01
1
0803-
29
COVER; HTR UNIT
8-98047-480-0
01
1
0803-
30
SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING
8-97957-708-0
28
1
0803-
30
SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING
8-97957-708-0
27
1
0803-
32
SCREW; HTR UNIT
M4X16
8-98047-416-0
03
1
0803-
34
LEVER; SHUTTER,HTR UNIT
8-98047-497-0
01
1
0803-
35
LEVER; SHUTTER,HTR UNIT
8-98047-500-0
01
1
0803-
41
THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-412-0
01
1
0803-
44
LEVER; SHUTTER,HTR UNIT
8-98047-502-0
01
1
0803-
45
LEVER; SHUTTER,HTR UNIT
8-98047-503-0
01
1
0803-
48
LEVER; HTR UNIT
8-98047-391-0
01
1
0803-
52
LEVER; SHUTTER,HTR UNIT
8-98047-498-0
01
1
0803-
56
LEVER; SHUTTER,HTR UNIT
8-98047-501-0
01
1
0803-
59
SHUTTER; HTR UNIT,SIDE
8-98047-386-0
01
1
0803-
61
CASE; HTR UNIT
(A)
8-98047-478-0
01
1
0803-
61
CASE; HTR UNIT
(B)
8-98047-479-0
01
1
0803-
66
SHUTTER; HTR UNIT,CENTER LWR
8-98047-385-0
01
1
0803-
67
CLIP; HTR UNIT
8-98047-417-0
02
1
0803-
68
CORE; HTR UNIT
8-98074-122-0
01
1
0803-
72
NUT; CASE,HTR UNIT
M6
8-98047-428-0
03
1
0803-
73
PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A)
8-98048-817-0
01
1
0803-
73
PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98047-491-0
01
1
0803-
76
BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98009-742-1
02
1
0803-
77
COVER; HTR CASE
8-98047-482-0
01
1
0803-
93
PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-427-0
01
1
0803-
100
PIPE; CORE,HTR UNIT
8-98072-532-0
01
1
0803-
101
GASKET; CORE,HTR UNIT
8-98072-531-0
02
1
0803-
133
CLIP; PIPE
8-98072-530-0
02
1
0803-
135
COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-481-0
01
1
0803-
162
SCREW; CLIP FIX
8-98072-529-0
02
1
0803-
207
CLAMP; HTR UNIT
(A)
8-98047-493-0
01
1
0803-
207
CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98047-413-0
01
1
0803-
212
BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X61
8-98047-415-0
02
1
0803-
219
AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-429-0
01
1
0803-
234
EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60)
8-98074-120-1
01
1
0803-
235
GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7
8-97095-907-0
01
1
0803-
235
GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5
8-97095-908-0
01
1
0803-
236
GASKET; HEATER
(A)
8-98047-420-0
01
1
0803-
236
GASKET; HEATER
(B)
8-98047-421-0
01
1
0803-
237
INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-382-0
01
1
0803-
238
VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-383-0
01
1
0803-
239
TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-504-0
01
1
0803-
240
GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
01
1
0803-
240
GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5
8-97095-908-0
01
1
0803-
243
CORE
8-98048-508-0
01
1
0803-
244
PIPE; INLET
8-98048-511-0
01
1
0803-
