Isuzu WW
▶
TRUCKS
▶
FRR
▶
11137 - FRR-LHD(EU)SPACE EU4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

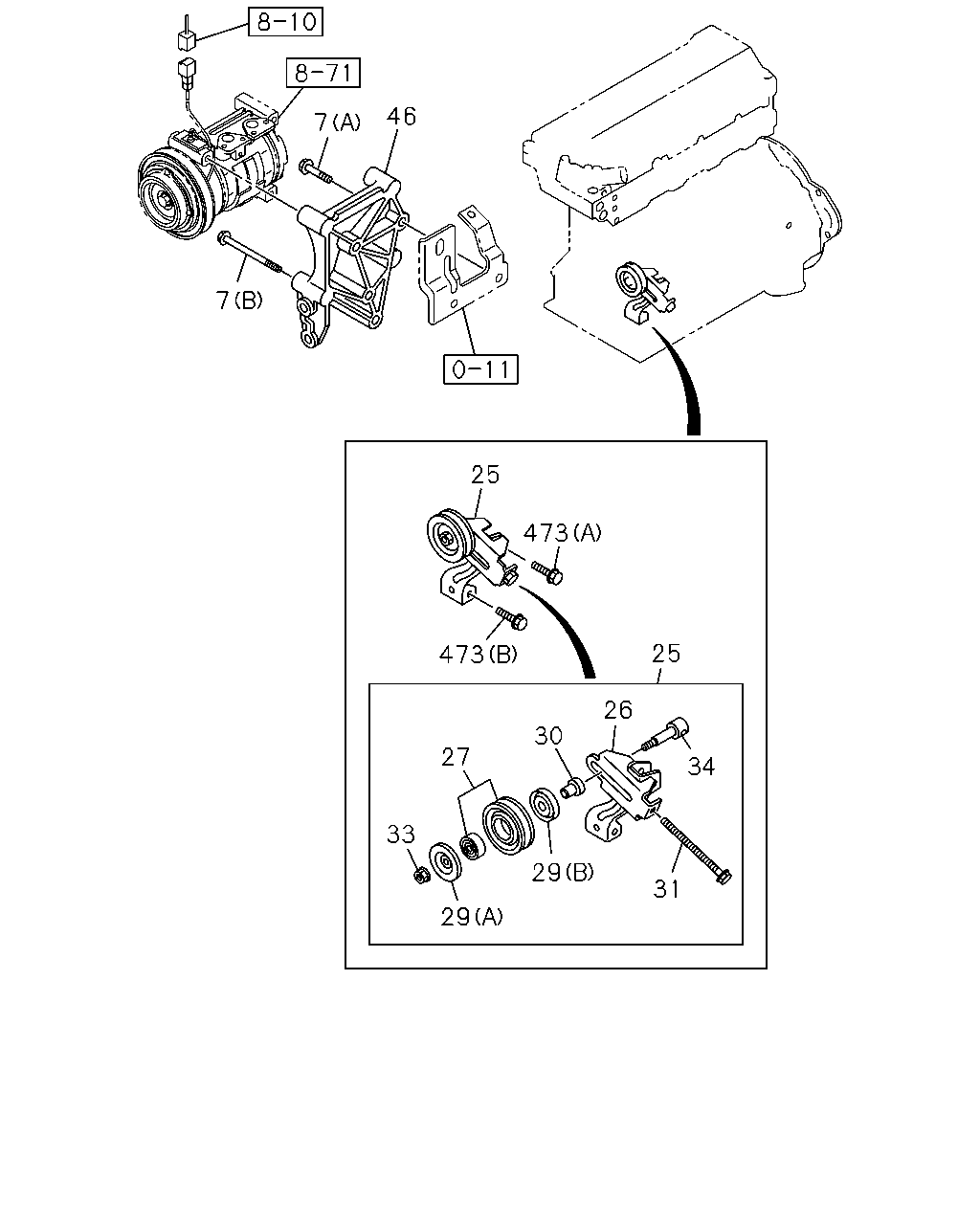

8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#24088) — 38 parça
◀
[850A] NO.1 (30 parça)
[850A] NO.2 (4 parça)
[850A] NO.3 (4 parça)
▶
46
7
7
25
473
25
473
26
30
27
34
33
29
31
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
BOLT; BRKT
(A) M10X45 FLANGE
0-28151-045-0
02
1
0803-
7
BOLT; BRKT
EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE
0-28151-080-0
02
1
0804-
7
BOLT; BRKT
(B) M10X80 FLANGE
0-28151-080-0
02
1
0803-0803
7
BOLT; BRKT
GENERATOR 24V90A(K44) (B) M10X80 FLANGE
0-28151-080-0
01
1
0804-
7
BOLT; BRKT
GENERATOR 24V90A(K44) (B) M10X130 FLANGE
0-28156-013-0
01
1
0804-
25
PULLEY ASM; IDLER,CMPR
1-GROOVE
8-97161-198-1
01
1
0803-0808
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE
8-97161-198-1
01
1
0809-
26
BRACKET; IDLE PULLEY,A/C
8-97161-031-1
01
1
0803-0808
26
BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-97161-031-1
01
1
0809-
27
PULLEY; IDLE,A/C
8-97386-869-0
01
1
0803-0808
27
PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-97386-869-0
01
1
0809-
29
COVER; DUST,IDLE PULLEY
(A)
8-97384-114-0
01
1
0803-0808
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-97384-114-0
01
1
0809-
29
COVER; DUST,IDLE PULLEY
(B)
8-97384-115-0
01
1
0803-0808
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-97384-115-0
01
1
0809-
30
COLLAR; IDLE PULLEY
8-97384-117-0
01
1
0803-0808
30
COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97384-117-0
01
1
0809-
31
BOLT; ADJ,IDLE PULLEY
8-97384-113-0
01
1
0803-0808
31
BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97384-113-0
01
1
0809-
33
NUT; IDLER PULLEY
8-97384-118-0
01
1
0803-0808
33
NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97384-118-0
01
1
0809-
34
SHAFT; IDLE PULLEY
8-97384-116-0
01
1
0803-0808
34
SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97384-116-0
01
1
0809-
46
BRACKET; CMPR
8-98101-364-0
01
1
0803-0803
46
BRACKET; CMPR
EXC. GENERATOR 24V90A(K44)
8-98101-364-0
01
1
0804-
46
BRACKET; CMPR
GENERATOR 24V90A(K44)
8-98101-365-0
01
1
0804-
473
BOLT; TENSIONER
(A) M8X50 FLANGE
0-28050-850-0
01
1
0803-0808
473
BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X50 FLANGE
0-28050-850-0
01
1
0809-
473
BOLT; TENSIONER
(B) M10X65 FLANGE
8-94344-540-1
01
1
0803-0808
473
BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE
8-94344-540-1
01
1
0809-
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
BELT; A/C CMPR
BEST VALUE PARTS
1-87610-100-0
01
1
0803-0808
32
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS
1-87610-100-0
01
1
0809-
32
BELT; A/C CMPR
L=1594
8-97383-577-0
01
1
0803-0808
32
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1594
8-97383-577-1
01
1
0809-
71
378
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
71
COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60)
8-98017-235-1
01
1
0803-
378
HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98062-954-0
01
1
0803-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98041-759-0
01
1
0803-1111
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98204-846-0
01
1
1112-
