Isuzu WW
▶
TRUCKS
▶
FRR
▶
11137 - FRR-LHD(EU)SPACE EU4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
▶

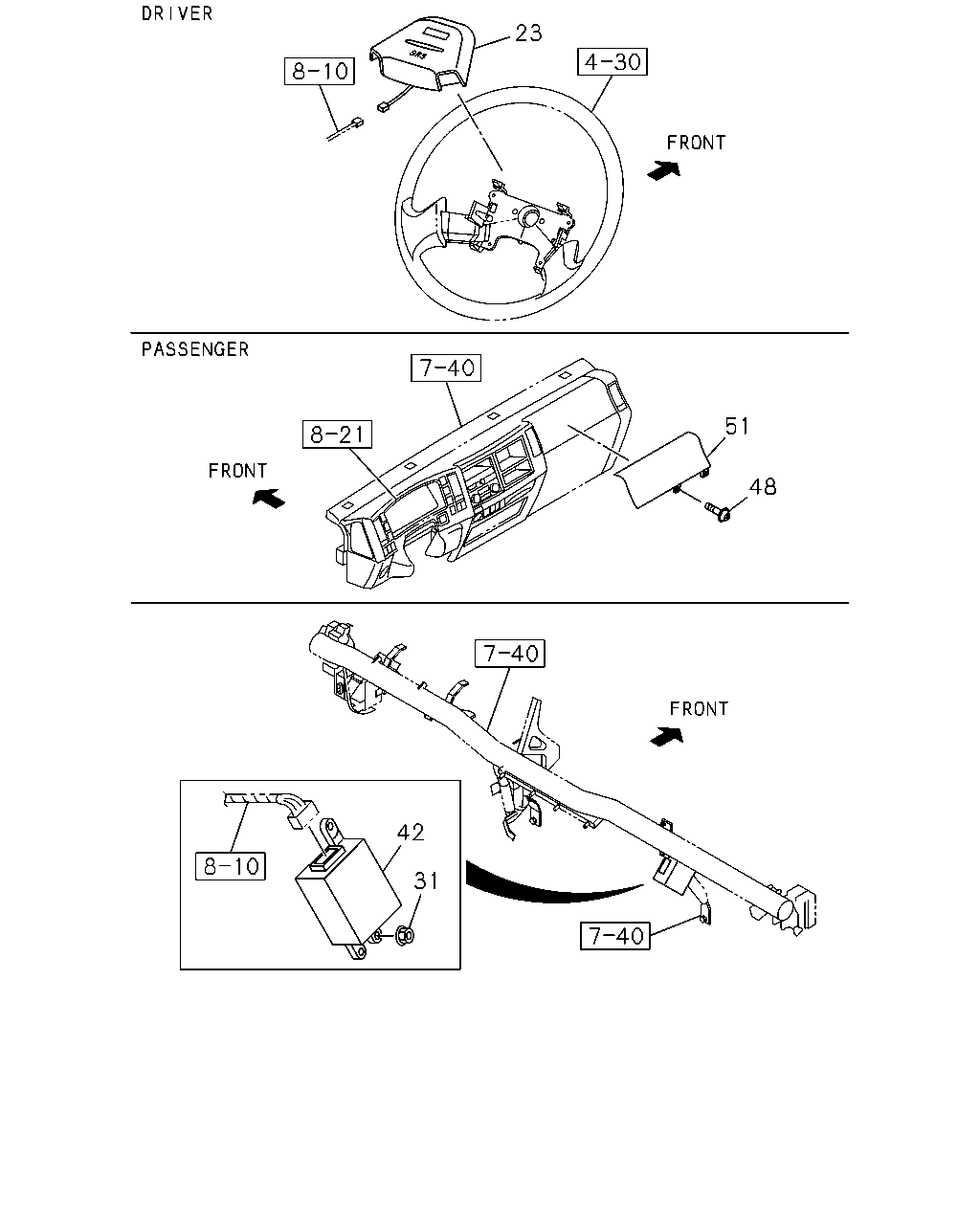

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
(#24084) — 11 parça
23
51
48
42
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY
8-97407-721-1
01
1
0803-1004
23
AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY
8-97418-100-0
01
1
1005-1210
23
AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY
8-97423-999-1
01
1
1211-
31
NUT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6 FLANGE
0-91180-106-0
03
1
0803-
42
CONTROL UNIT; SRS
AIR BAG DRIVER(AJ3)
8-98094-571-0
01
1
0803-0903
42
CONTROL UNIT; SRS
AIR BAG DRIVER(AJ3)
8-98120-072-2
01
1
0904-
42
CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER(AK5)
8-98094-572-0
01
1
0803-0903
42
CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER(AK5)
8-98120-073-2
01
1
0904-
48
BOLT; INST PNL
M6X16 W/LK&PL WASHER
0-52010-616-0
02
1
0803-1006
48
BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) M6X16 W/LK&PL WASHER
0-52010-616-0
02
1
1007-
51
AIR BAG ASM; P/S
AIR BAG DRIVER & PASSENGER(AK5) GRAY
8-97409-783-2
01
1
0803-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
