8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#24083) — 90 parça

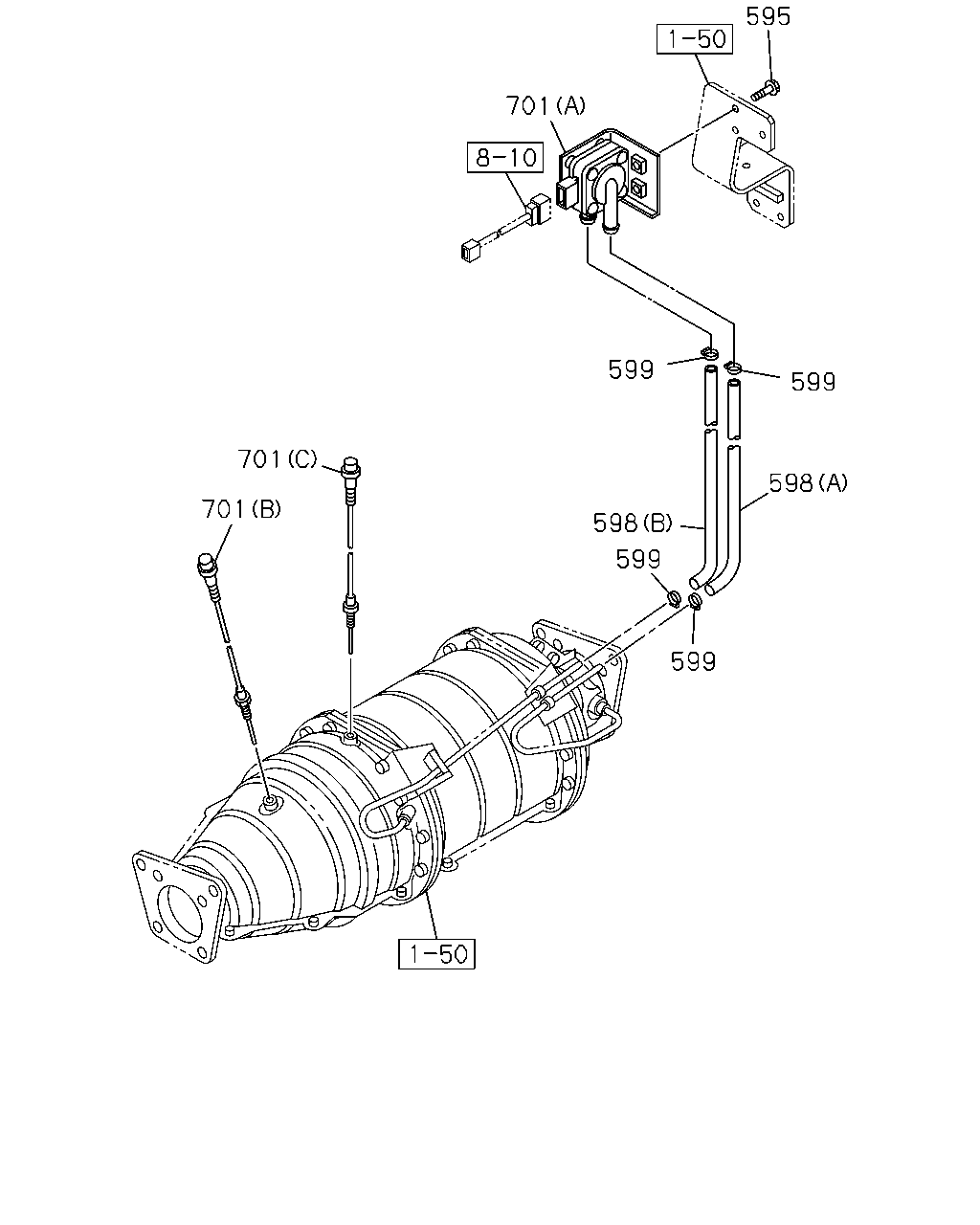

çizim 144493
595 701 599 599 701 598 701 598 599 599
BalonParca AdiParca NoAdetTipApplied Date
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0803-
598 HOSE; RUBBER,SENSOR
WHEEL BASE 3400MM(34W) (A) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0803-
598 HOSE; RUBBER,SENSOR
WHEEL BASE 3400MM(34W) (B) L=230 SERVICED BY L=3000 		0-01558-300-0 01 1 0803-
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-98060-174-1 01 1 0803-
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-98077-342-0 01 1 0803-
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0803-
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0803-
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0803-
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0803-
çizim 144771
747 275
BalonParca AdiParca NoAdetTipApplied Date
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803-
747 CONTROL UNIT; TURBOCHARGER 8-98077-118-2 01 1 0803-1103
747 CONTROL UNIT; TURBOCHARGER 8-98162-807-0 01 1 1104-

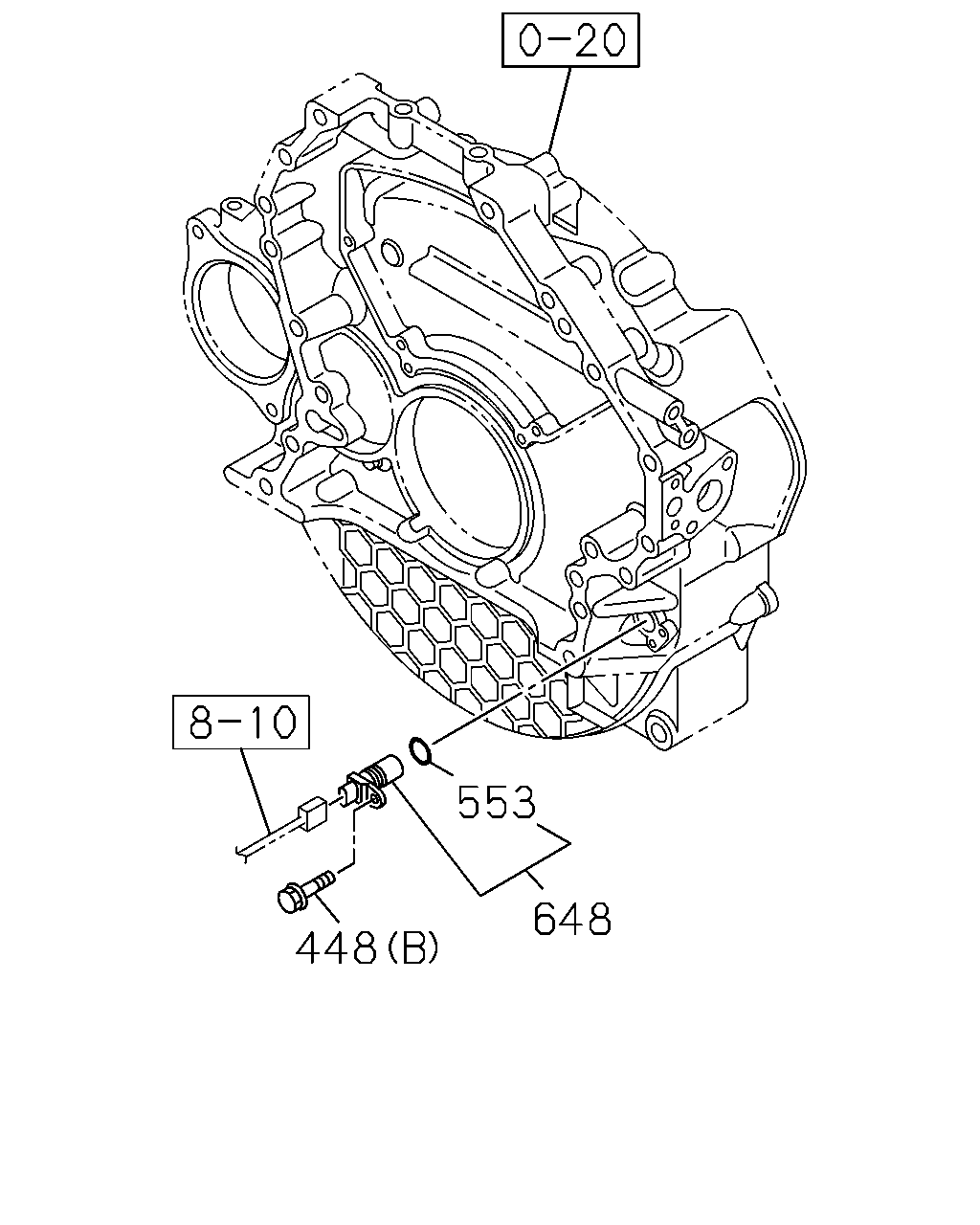

çizim 144782
553 648 448
BalonParca AdiParca NoAdetTipApplied Date
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0803-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 0803-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 0803-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 0803-

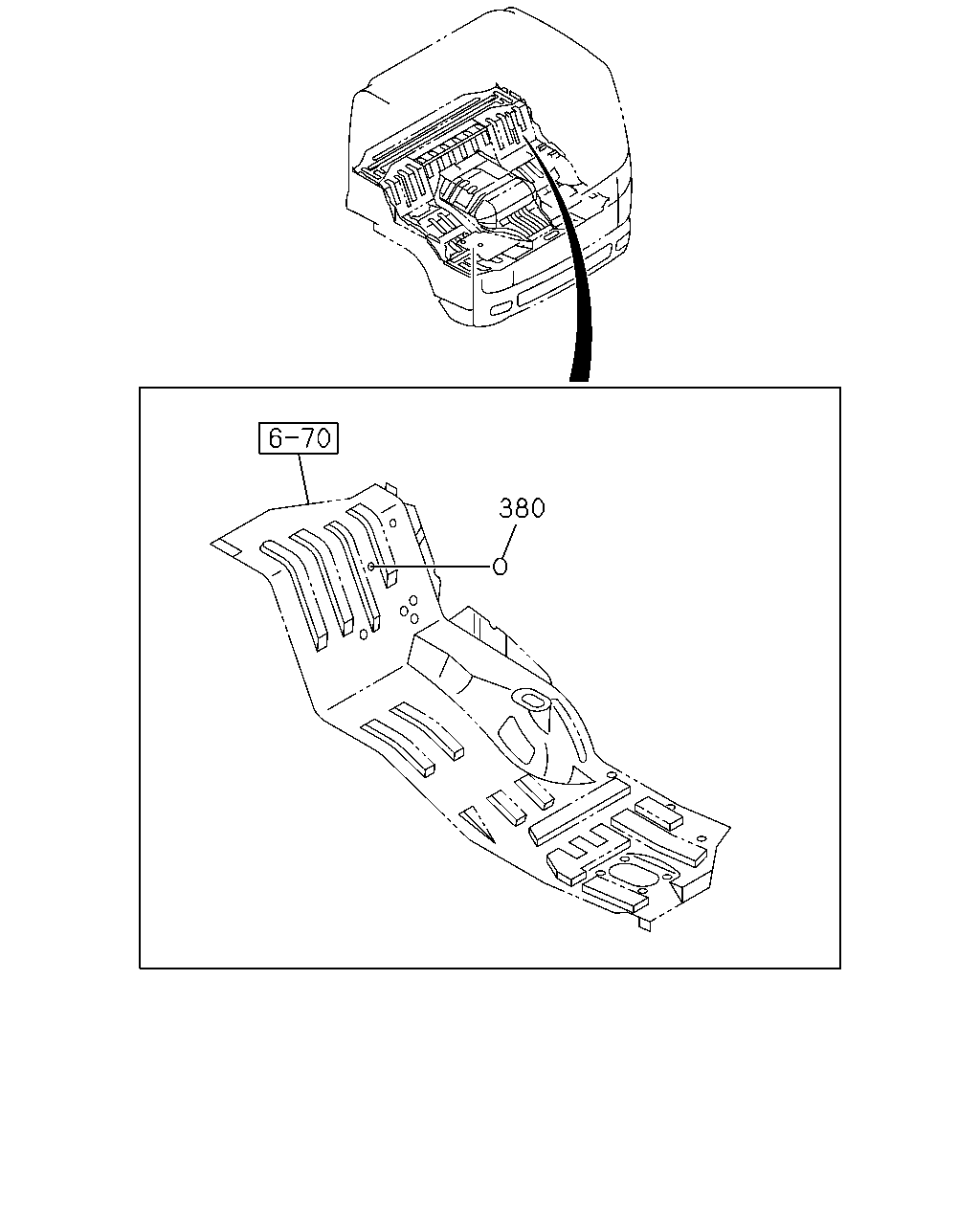

çizim 144783
380
BalonParca AdiParca NoAdetTipApplied Date
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0803-

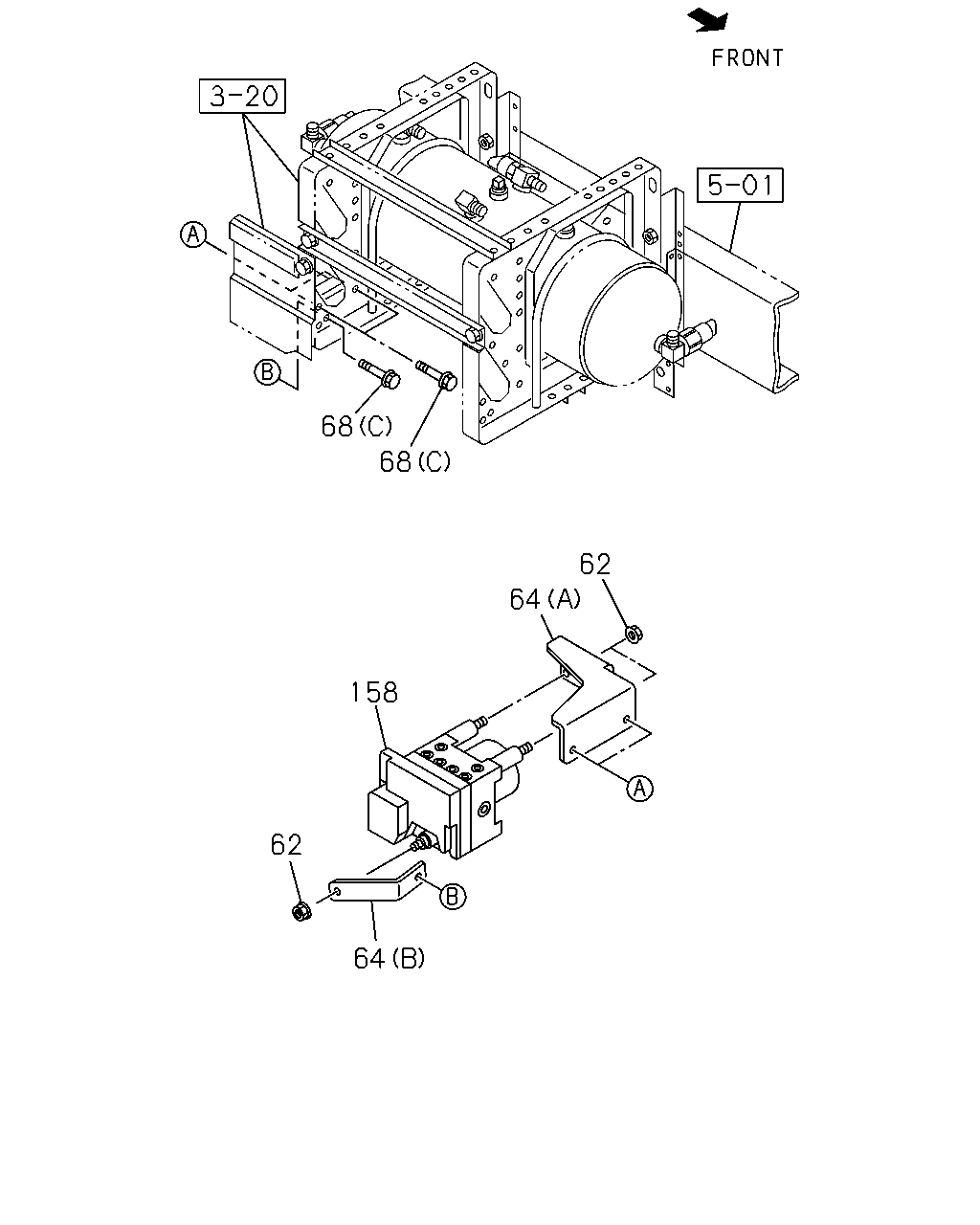

çizim 144784
68 68 62 64 158 62 64
BalonParca AdiParca NoAdetTipApplied Date
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0803-
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 0803-
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 0803-
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0803-
68 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0803-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0803-
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98048-310-2 01 1 0803-1006
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-1 01 1 1007-
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-306-2 01 1 0803-1006
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-1 01 1 1007-

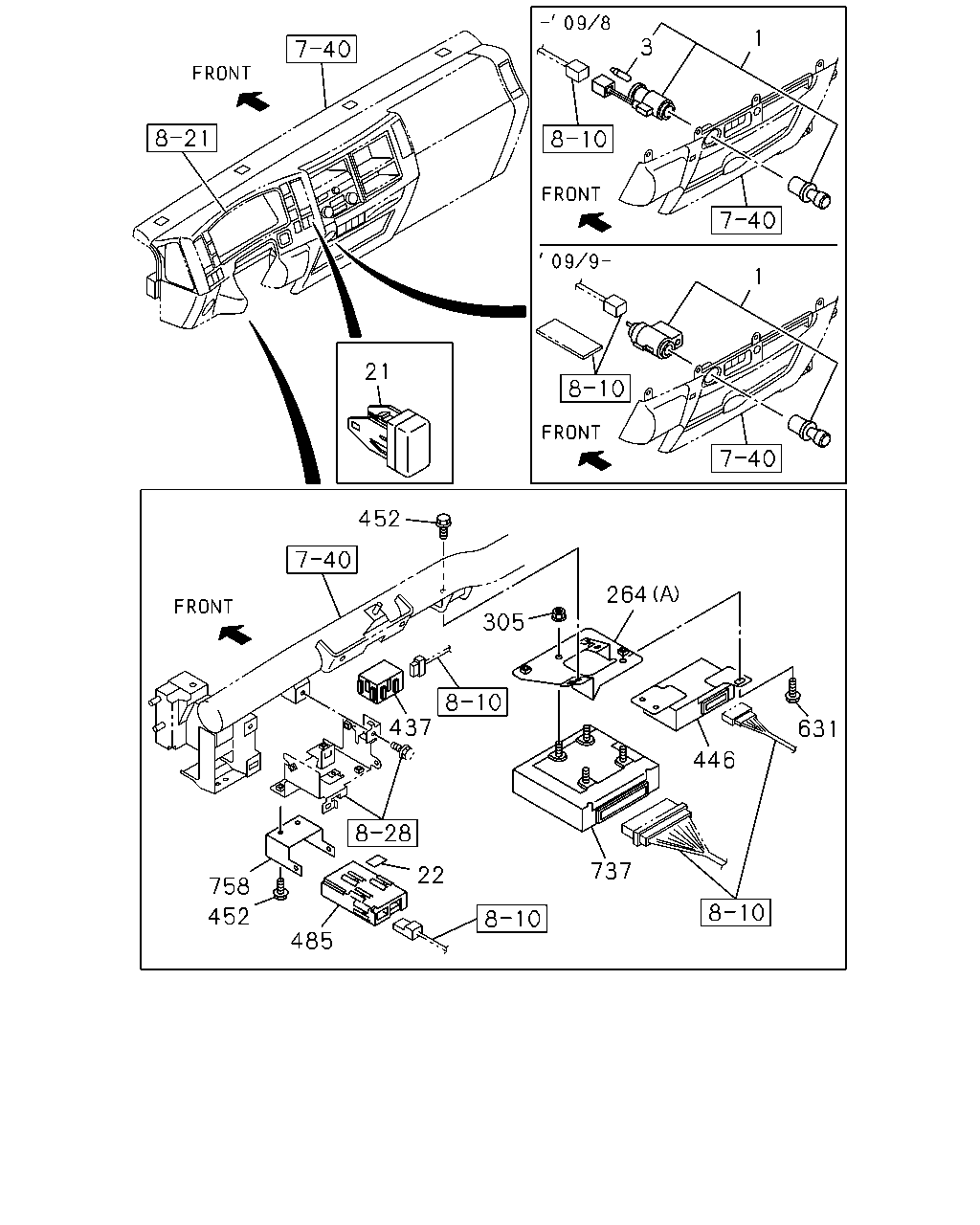

çizim 144785
1 3 1 21 452 264 305 437 631 446 737 22 758 452 485
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0803-0908
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909-
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0803-0908
21 COVER; HOLE 8-98025-954-1 01 1 0803-
22 SEAL; TAPE 1-80199-006-0 01 1 0806-0808
22 SEAL; TAPE
EXC. ISRAEL COUNTRY(CV4) 		1-80199-006-0 01 1 0809-0811
22 SEAL; TAPE
EXC. ISRAEL COUNTRY(CV4) 		1-80199-006-0 02 1 0812-1212
22 SEAL; TAPE
EXC. ISRAEL COUNTRY(CV4) 		8-98166-639-0 02 1 1301-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 0803-
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 0803-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 0803-
305 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6 FLANGE 		0-91180-106-0 04 1 0803-
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0803-
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80111-116-2 01 1 0803-
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0803-0806
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0803-0806
452 BOLT; BRKT
MZX6P M/T(RSW) M6X16 FLANGE 		0-28650-616-0 02 1 0803-0806
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0807-
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0807-
452 BOLT; BRKT
MZX6P M/T(RSW),MLD6S M/T(X7W) M6X16 FLANGE 		0-28650-616-0 02 1 0807-
485 CONTROL UNIT; SPEED SENSOR
MZX6P M/T(RSW) KD PREPARATORY PACK<6HF> 		1-80190-061-0 01 1 0803-0805
485 CONTROL UNIT; SPEED SENSOR
MZX6P M/T(RSW) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 0806-0806
485 CONTROL UNIT; SPEED SENSOR
ISRAEL COUNTRY(CV4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		1-80190-061-0 01 1 0807-0807
485 CONTROL UNIT; SPEED SENSOR
MZX6P M/T(RSW) TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 0807-0807
485 CONTROL UNIT; SPEED SENSOR
ISRAEL COUNTRY(CV4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		1-80190-061-0 01 1 0807-
485 CONTROL UNIT; SPEED SENSOR
MZX6P M/T(RSW),MLD6S M/T(X7W) TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 0807-
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0803-0812
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0901-0906
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0907-
737 CONTROL UNIT; TRANSMISSION
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-827-0 01 1 0803-1008
737 CONTROL UNIT; TRANSMISSION
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-523-0 01 1 1009-1212
737 CONTROL UNIT; TRANSMISSION
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-119-0 01 1 1301-1404
737 CONTROL UNIT; TRANSMISSION
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-478-0 01 1 1405-1411
737 CONTROL UNIT; TRANSMISSION
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-019-0 01 1 1412-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MZX6P M/T(RSW) 		8-98048-743-1 01 1 0803-0806
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MZX6P M/T(RSW),MLD6S M/T(X7W) 		8-98048-743-1 01 1 0807-

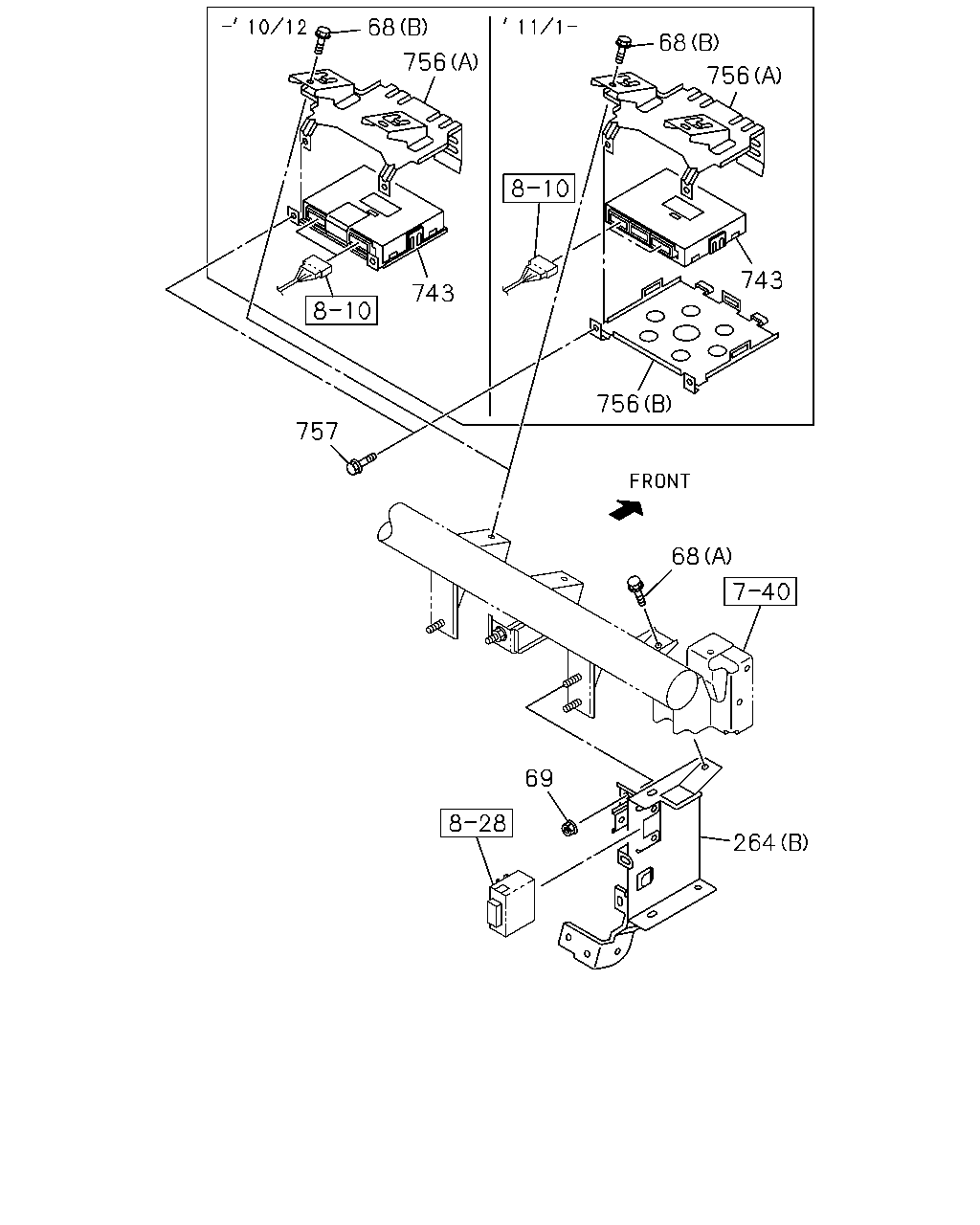

çizim 144791
68 68 756 756 743 743 756 757 68 69 264
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0803-
68 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0803-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0803-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0803-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 0803-
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 0803-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 0803-
743 CONTROL UNIT; BCM 8-98102-484-0 01 1 0803-0901
743 CONTROL UNIT; BCM 8-98125-904-0 01 1 0902-1005
743 CONTROL UNIT; BCM 8-98155-169-1 01 1 1006-1007
743 CONTROL UNIT; BCM 8-98176-213-0 01 1 1008-1012
743 CONTROL UNIT; BCM 8-98182-026-3 01 1 1101-
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101-
756 BRACKET; ECU,BCM
(A) 		8-98052-797-3 01 1 0803-
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0803-

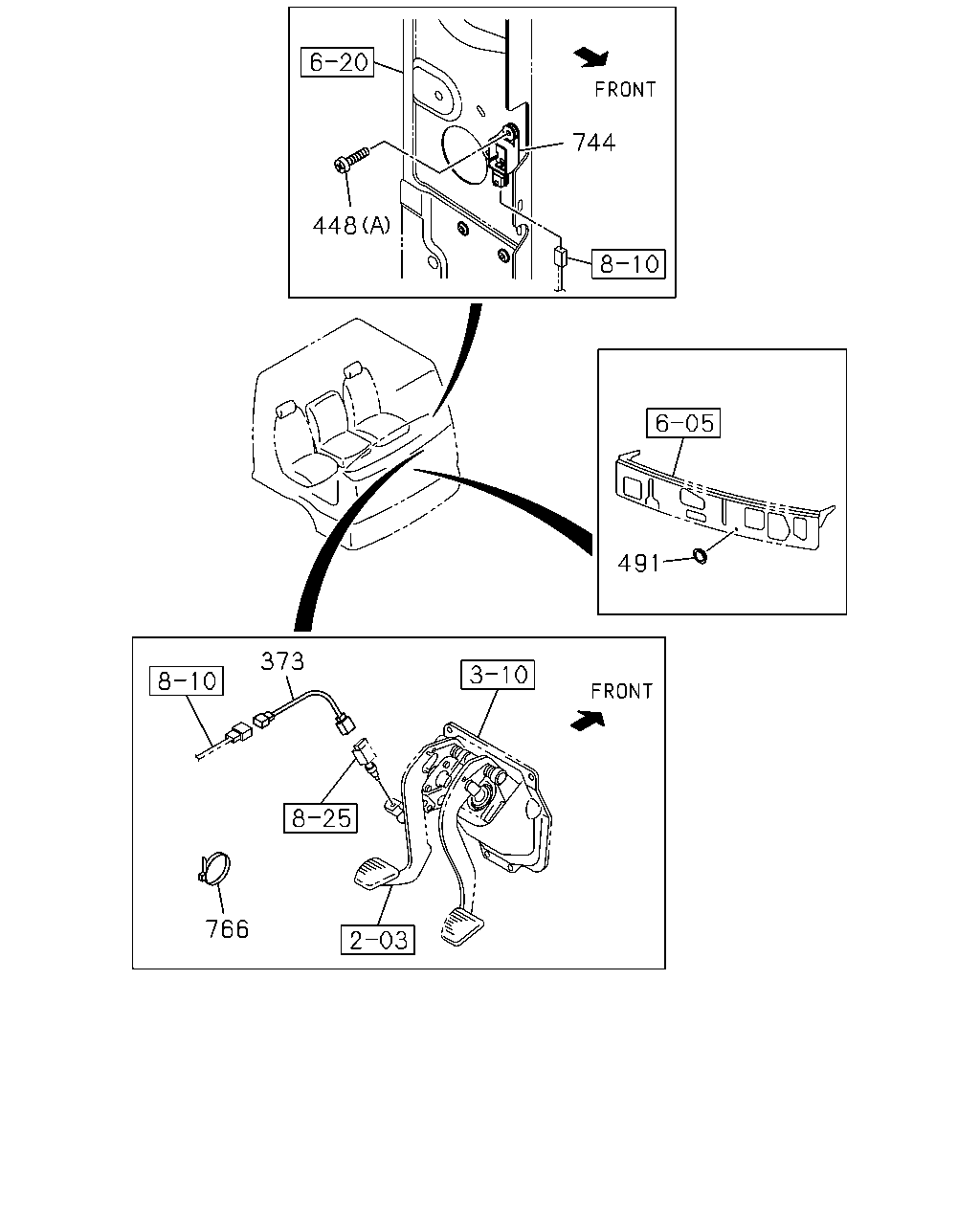

çizim 144801
744 448 491 373 766
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98110-719-0 01 1 0803-
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 0803-
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0803-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 0803-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0803-
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0803-
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0803-0807

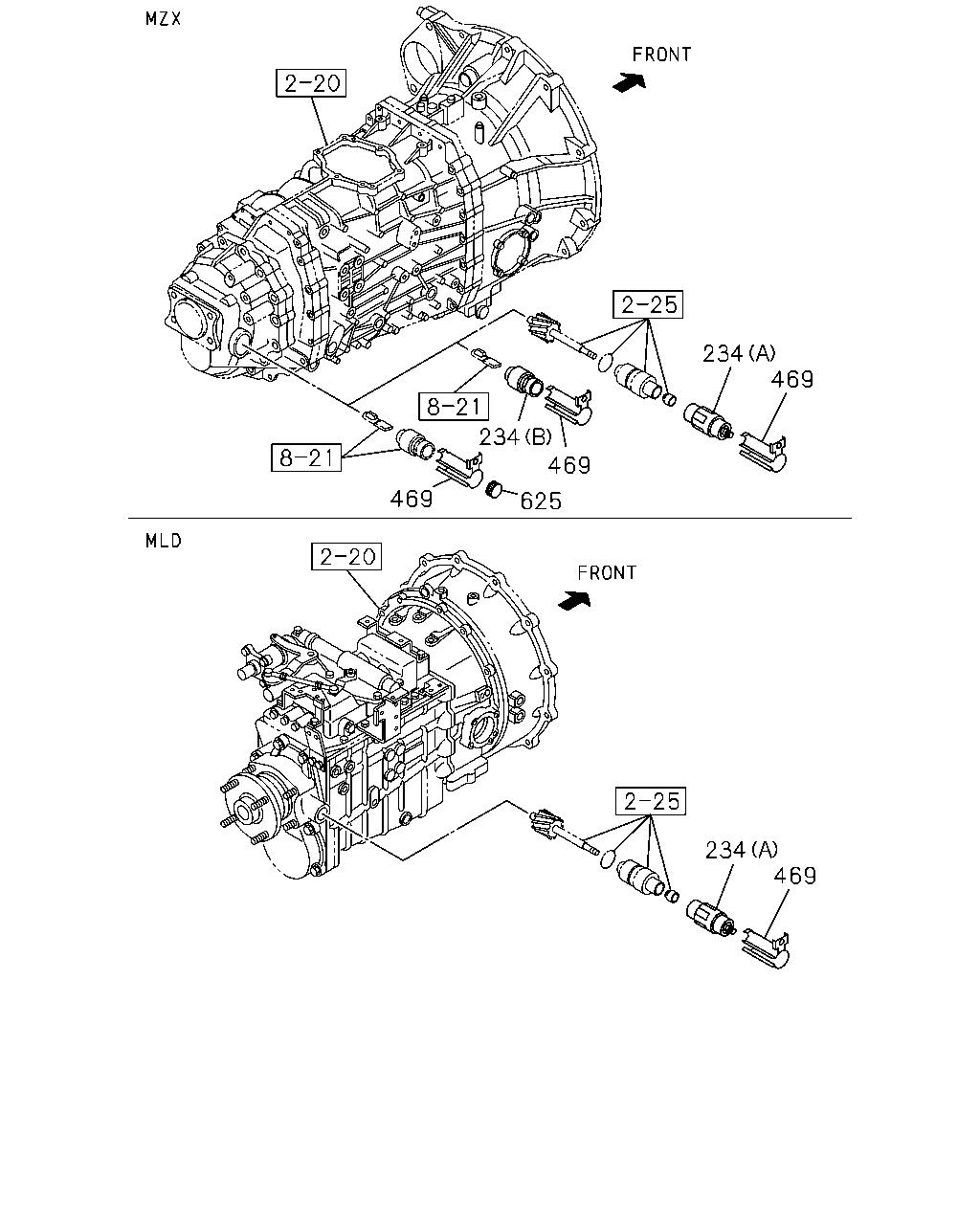

çizim 144802
234 469 234 469 469 625 234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
KD PREPARATORY PACK<6HF> (B) 		8-98035-238-0 01 1 0803-0803
234 SENSOR; VEHICLE SPD
(A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0803-
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0803-0808
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 0809-
625 CAP; SPEED SENSOR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. 14" CLUTCH(WF6) 		1-83129-133-0 01 1 0901-
